Mineral Water production plant / Complete production plant

Product Overview

Description

Water Production Plant / Bottling Plant



Automatic 3 in 1 Juice/Water filling machine

The machine is a full-automatic multiple-functional washing, filling and capping unit.

It is used in washing, filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,

wine, fruit wine, mineral water and pure water. The line has features of unique design, new style,

complete functions, multi-purpose, convenient in operation, beautiful construction, high automation.

It is the best filling equipment in China.

Model:	RFC8/8/3	RFC10/10/3	RFC18/18/6	RFC24/24/8	RFC32/32/10	RFC40/40/12
Production Capacity:500ml(B/h)	1000-2000	3000-4000	5000-6000	8000-10000	15000-17000	20000-2300
Suitable Bottle Standard:(mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard:(mm)	φ50-φ110
Filling Pressure:(Mpa)	0.2-0.3
Filling Model:
Installed Capacity:(L)	3.13	3.84	3.84	5.6	6.3	7.3
Filling Temperature:	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Overall SizeL×W×H(mm)	2100×1670 ×2350	2400×1970 ×2350	2470×2170 ×2350	2500×2570 ×2350	3700×2950 ×2400	3800×3400 ×2400
Total Weight:(kg)	2000	2500	3000	3500	5000	6000



1) The capacity is from 2000BPH to 36000BPH for hot filling, mid-temp filling, and aseptic cold filling lines.

2) The capacity is from 2000BPH to 36000BPH for mineral water and pure water product line.

3) The capacity is from 2000BPH to 20000BPH for carbonated beverage product line.

4) The capacity is from 8000 to 15000 packs per hour for Tetra Pack and brick pack of aseptic milk packaging product line.

5) The capacity is from 2000BPH to 30000BPH for beverage with particle product line.

6) There are water treatment equipments.

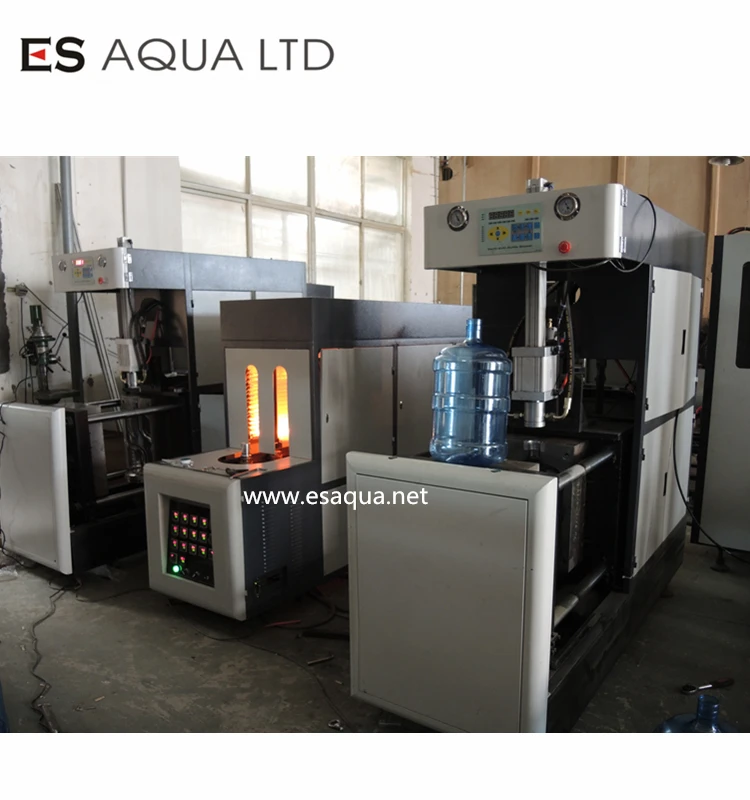

7) PET blow molding machine

8) Beverage pre-blending and sterilizing system

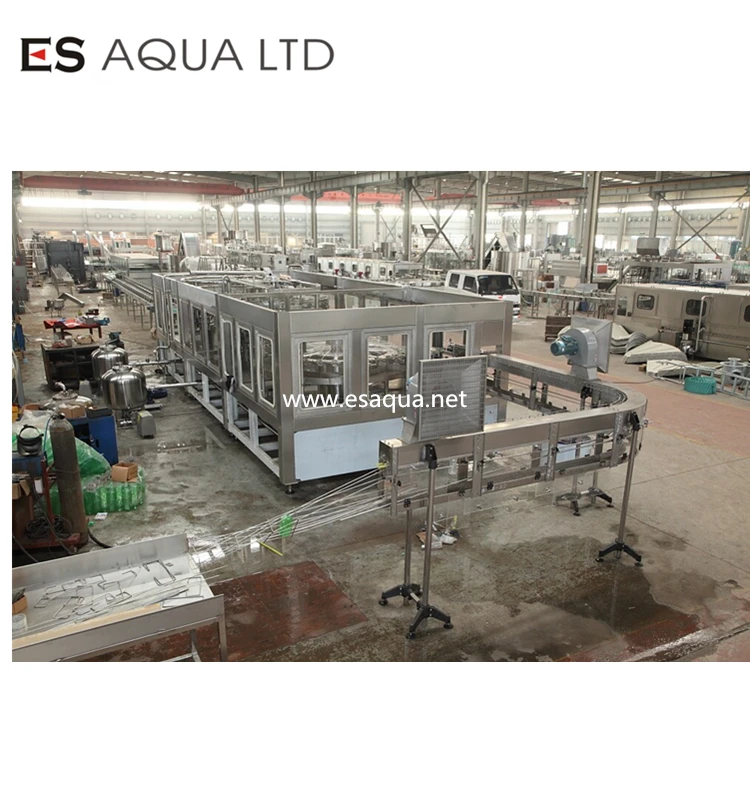

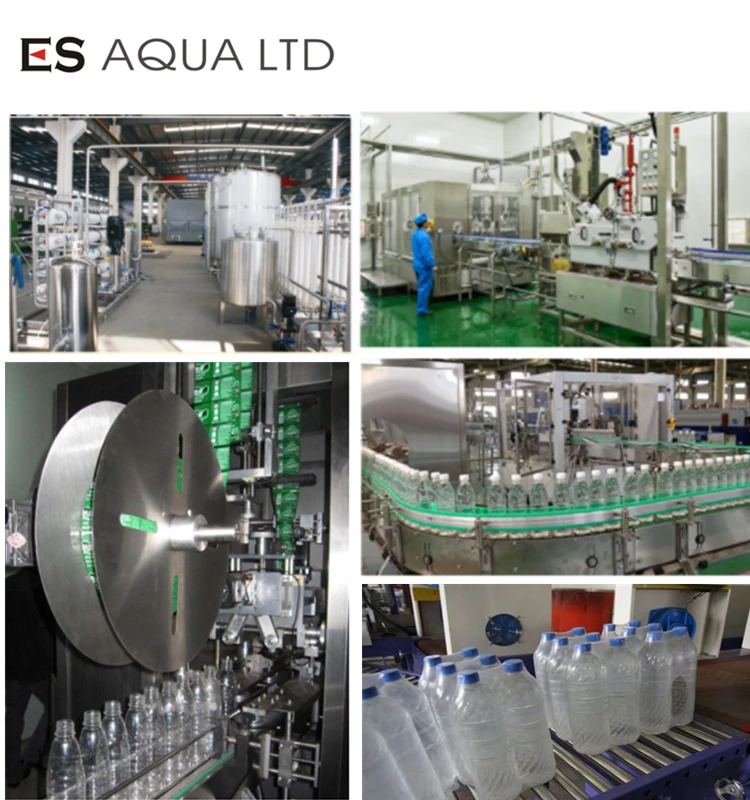

WorkShop :





Package:

Normally the inner package ,we will packed by the stretch film ,outpackage we will use the export woodencas if you have special requirment of the package pls let us know in advance .

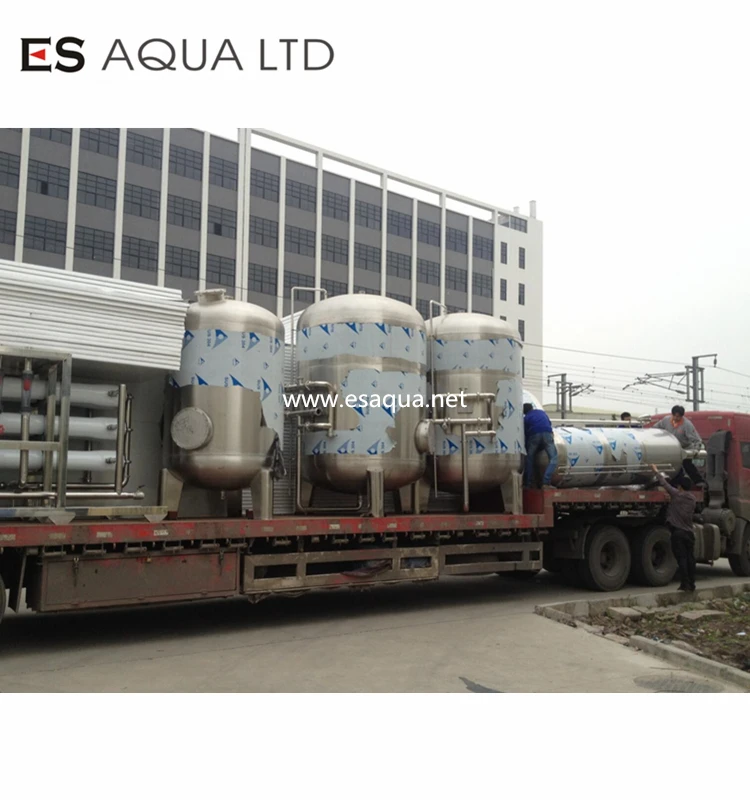

Shipment:

Mostly we send the goods to you by sea,as in this way the freight is most reasonable  ,if you need the goods urgently ,We can also send by air .



After Sales Service:

One year warranty for the whole system .
Free equipment installation and debugging.
After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
We can provide internship service and help you train the operator and mechanic.
Free production technology and process configuration.
We can help you to design the product line , workshop and provide turn-key project.
