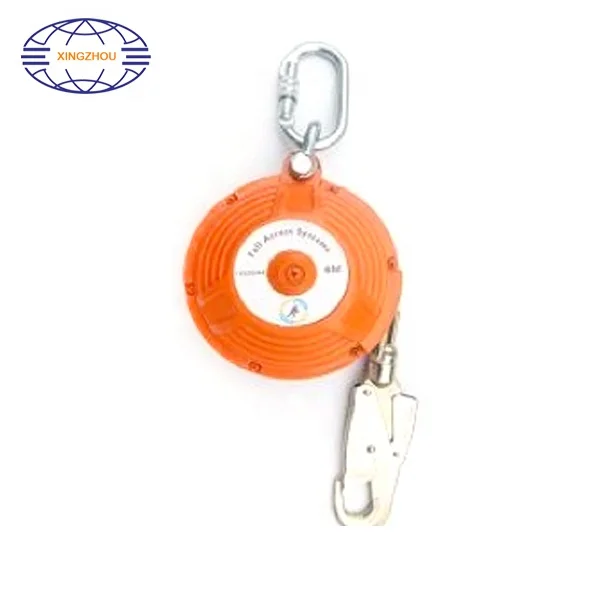

3 meter Personal Webbing Fall Arrest System
- Category: >>>
- Supplier: Jiangsu Xingzhou Industrial And Mining Equipment Co. Ltd.
Share on (60292732299):
Product Overview
Description
Product Description
Personal Webbing Fall Arrest Systemfall arres
Item No. | XZF-ZD Series |
| Features | - Main Cable: Nylon Webbing - Shell Material: Plastic - Strap Width:47mm - Max. Load 150Kg - Self Weight: 1.2Kg |
| Performance | Locking speed: 1.0 m/s |
| Compliance Standard | GB2454-2009 << TEST METHOD FOR PERSONAL FALL PROTECTION SYSTEMS>> |
| MOQ | 1 unit |
| Warranty | 1 Year |
| Payment | L/C, T/T, Western Union |
| Packing Details | Iron Pack |
A fall arrest system is a personal fall protection system that arrests a free fall and which limits the impact force on the body of the user or goods during fall arrest.
Xingzhou webbing fall arrester is lightweight, high-strength, impact-resistant nylon housing for maximum durability. It is made from flat webbing rope with plastic shell. The maximum breaking load can be 2300KN. The length of the webbing rope is usually 2.5m – 6m.
Model | XZFZ-ZD2.5A | XZFZ-ZD2.5B | XZFZ-ZD6B | XZFZ-ZD6A |
Webbing Length | 2.3m(2.5m) | 2.3m(2.5m) | 5.7m(6m) | 5.7m(6m) |
Webbing Width | 47mm | 47mm | 20mm | 20mm |
Max. Working Load | 150Kg | 150Kg | 150Kg | 150Kg |
Tensile strength | 15KN | 15KN | 15KN | 15KN |
Self-Weight | 1.2Kg | 1.1Kg | 2.1Kg | 2.1Kg |
Case Material | Plastic | Plastic | ABS | ABS |
Jiangsu Xingzhou Industrial & Mining Equipment Co., Ltd. is a specialized safety product producer, such as fall arrester, industrial load arrester, webbing fall arrester, safety harness etc. Xingzhou has experience in Personal Protect Equipment industry for more than thirty years with the perfect products and high quality service. The products have been exported to more than twenty countries all over the world.
Product Uses
Although cable retractors are designed to provide years of trouble free service the type of atmosphere they are used in, or prolonged cable exposure to the sun or moisture may impact the overall service life. For example, use near chemical or paint sprays or failure to allow cable to retract when not in use will reduce the cable's life.
Immediately remove the cable retractor from service and discard if it has been used to arrest a free fall.
Immediately remove the retractor from service and inspection if the device has failed a visual inspection for any reason.
Always store in a cool dry place, always from chemical, water, direct sun light and sources of heat and vibration.
Always ensure cable section is completely retracted before storage.
It is especially important when retractors are left in place outside as components of a permanent fall protection system.
