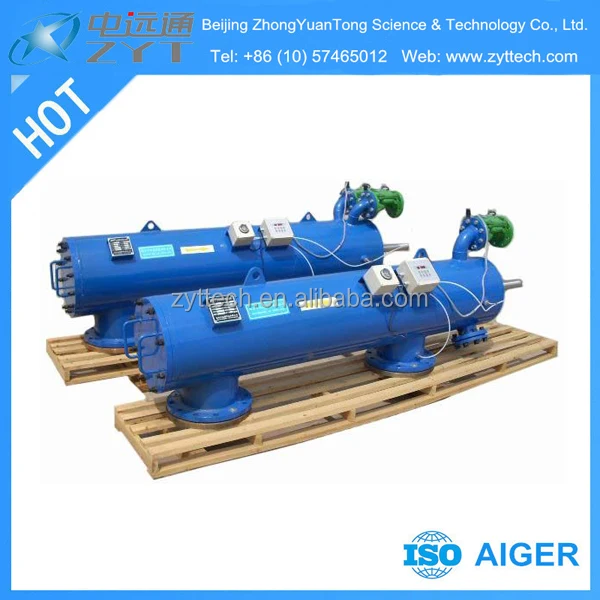

Автоматическая щетчатая система фильтрации воды для промышленной очистки воды

Product Overview

Description

 Automatic Brushaway Water Filter System for Industrial Water Treatment



Brief Introduction:

The Hydraulic drive automatic backwash filters is applied in industry extensively, hydraulic control without any external energy (wind, water, electric, battery). By using water pressure, the automatic water filter can be automatically filtering, automatic cleaning, and water supply is not interrupted, time is short, horizontal installation.

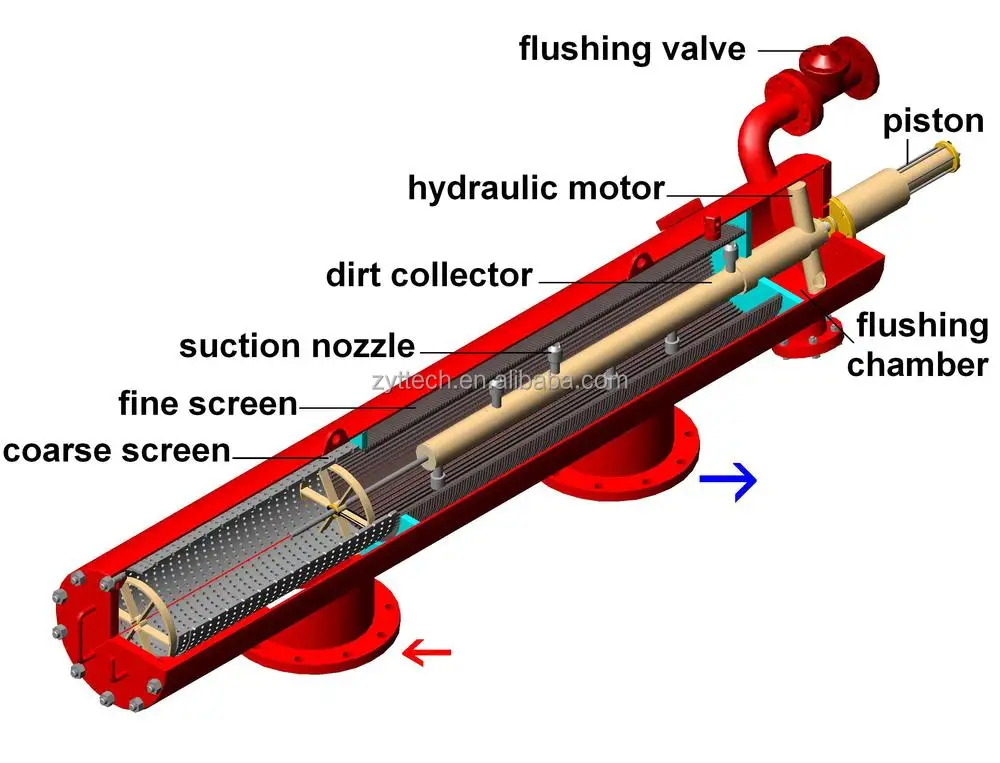

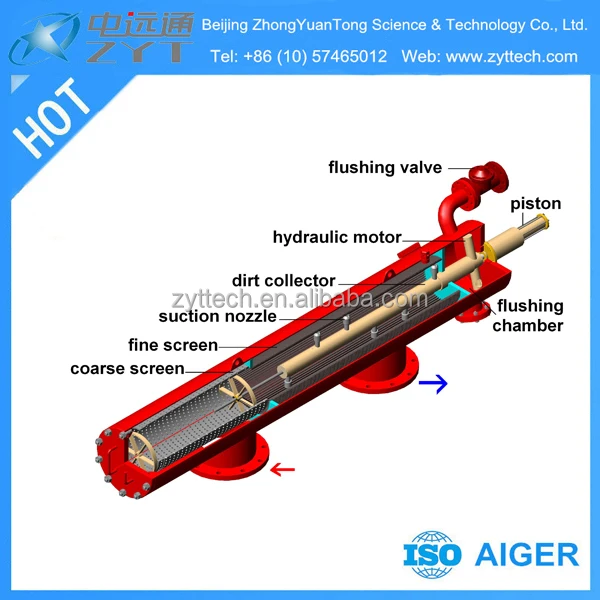

Working Principle:



The waste water enter into the coarse screen, and fine screen from the inlet then flow out from the outlet. In filter process, the fine screen surface gradually accumulates the impurities from the water, then form the filter impurity layer. Because the impurities accumulate in inside of the fine screen, then forming a pressure difference inside and outside of the fine screen. When the differential pressure system reaches the preset value, automatic cleaning function is started, the system of water supply is not interrupted, open backwash valve or drain valve, the waste water outlet from the drain valve. While the pressure go down in the hydraulic motor chamber and dirt collector, then the suction nozzle of suction assembly begin suction process: there is a very strong backwash water flow to the outside, the suction nozzle produce a suction power plus the flow power through the hydraulic motor. Because the hydraulic piston pressure go down, lead the dirt collector rotate around the axis of rotation to move, so perfectly clean the inner surface of fine screen. This type of filter is simultaneously provided with a timing controller, which can regular blowdown in certain time. Motor driven type suction filter principle ibid, just dirt collector is motor driven.





Model and Specification

Model	Flow (m³/h)	DN (mm)	Weight (kg)	D	H	L	L1	L2	L3	L*
A304	80	100	145	273	245	1982	900	887	110	1400
A306	150	150	180	325	275	2058	900	922	150	1400
A308	300	200	200	325	275	2248	900	1072	190	1400
A310	400	250	320	426	333	2424	1100	969	265	1600
A312	600	300	400	426	335	3175	1100	1274	711	2350
A314	900	350	480	480	367	3175	1270	1119	696	2350
A316	1100	400	560	530	400	3322	1270	1269	693	2500
A318	1500	450	745	610	440	3330	1270	1267	698	2500

Note: Our company can produce the filter according to the user required size, material (such as: carbon steel, stainless steel), color (red, yellow, blue, green) and other special requirements.

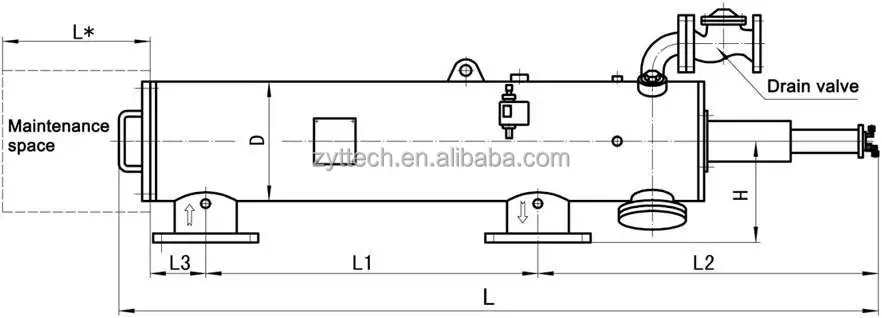

Size Chart:



Technical Parameters:

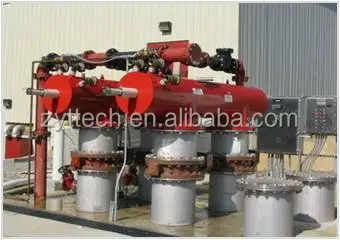

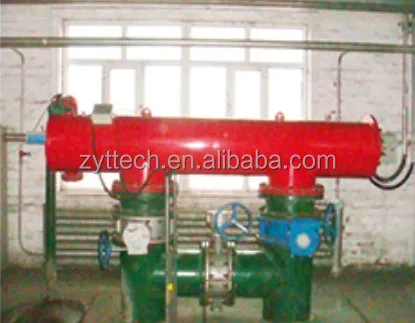

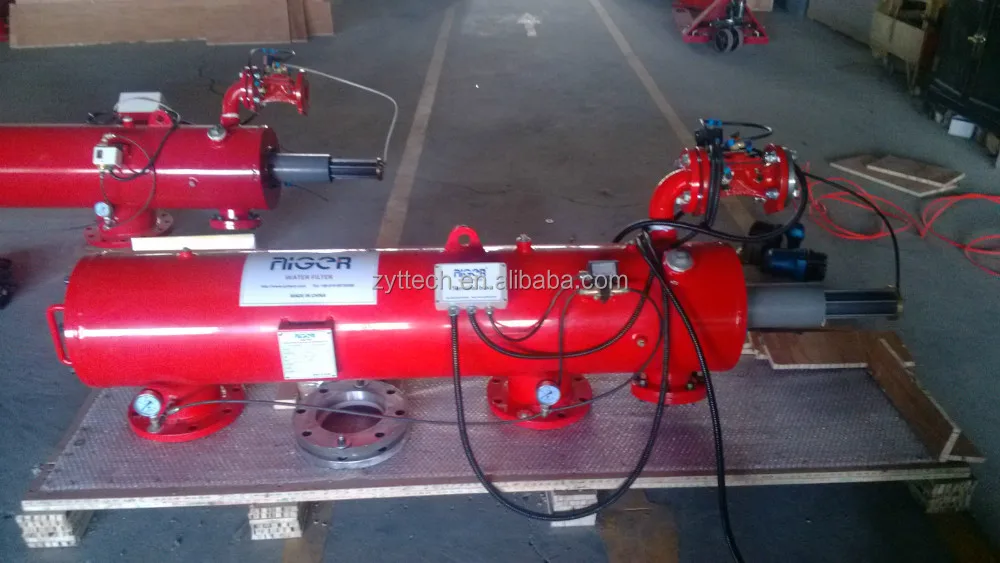

Installation and Site picture:

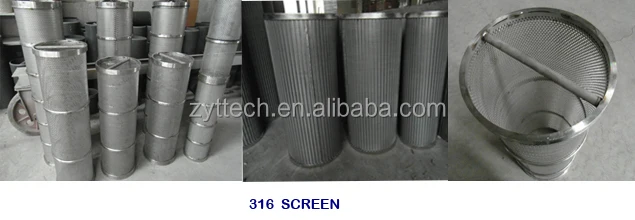

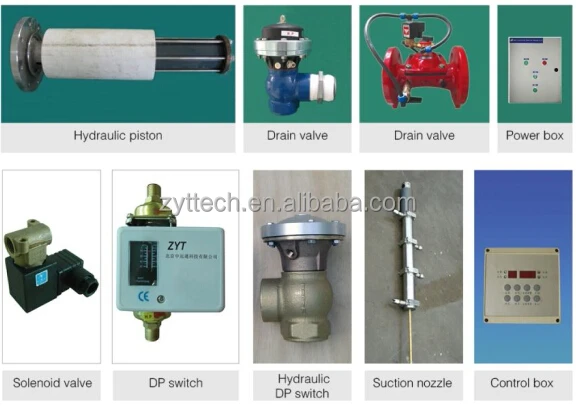

Spare Parts:

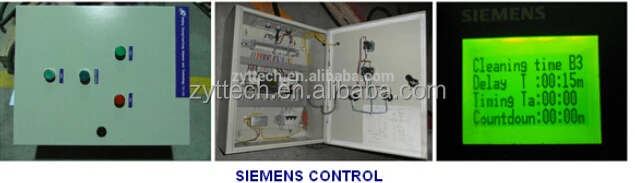

AIGER 300 Series automatic backwash water filter consist of Motor, Electric control boxes, Control line (including the Control valve and Differential pressure controller), Pipeline elements , filter elements, 316L Stainless steel brush, Frame elements,Framework components, Connecting flanges and Other major components.



Packing&Shipping:



 Application:

• Water treating, Raw water treating , Recycle water , Chilling water treat
• Agricultural irrigation ,such as Farms Water , Golf Water Filtration , Orchards and Groves Water Filtration , Vineyard Water Filtration  etc .
• Papermaking factory
• Steel and  lron plant
• Petroleum Chemistry



Company Information:

Beijing ZhongYuanTong Science and Technology Co., Ltd. founded in 1998, we have strong technical

research and development strength, excellent production capacity and high quality after sale service to

win a majority of customers trust and support. Number of Staff: 120 persons, R&D staff account for 50%. Including 2 Ph.Ds, 9 Masters and 15 senior technical engineers.







FAQ
Do you have certificates?

Yes , we have ISO9001 / CE certificate and certificate of patent
Do you have design team?

We have a professional design team provide drawings, we wait for your confirmation and production
What is your warranty period ?

Our warranty period is 12 month.


Are you maufacturer ?

Yes, we are the professional Automatic self cleaning water filter manufacturer in china
