LR PS OV High Speed Automatic Pocket Spring Coiling Machine For Mattress

Product Overview

Description

LR-PS-OV High Speed Automatic Pocket Spring Production Line Machine For Bed Mattress



LR-PS-OV  High Speed Pocket Spring Coiling Machine

LR-PS-OV Pocket Spring Coiling Mahine-spring type:pocket spring -high speed running -electronical controlled coiling head

Machine Description: ( Bonnell spring coiler machine)

LR-PS-OV Pocket Spring Coiling Machine is the pioneer in this line (protected by the patent technology). This machine combines the coiler without cam with the flexible control system coming from servo and changes quickly the varieties and the size of the pocket springs in the producing process. It can meet with the customers requirement of the pocket products model in a short term. (This machine also can set various products in advance, and change the time to produce the pocket springs less then 5 minutes in the range of spec adjusting.) It can produce the mixed-style pocket spring strands. And it provides the stage and space to the clients for the exploitation of the new products.

Technical characteristics: ( Bonnell spring coiler machine)

1. The high efficiency-performance is perfect. Under the stable running situation, the output is up to 80 springs per minute.
2. The stable-performance is high. LR-PS-OV is develop.

Main Specification: ( Bonnell spring coiler machine)

Spring Type	Pocket
Production Speed	120 Springs/Minute
Spring Diameter	Φ45-75mm
Spring Wire Diameter	Φ1.4-2.1mm
Spring Height	80-200mm
Spring Coils	4-8 Coils
Fabric Rolls Width	Max. 540mm
Fabric Material	65-90G/M2
Fabric Roll Diameter	220-600mm
Lubrication	Fully Automatic Standard
Tempering	Standard
Control	PLC
Safety	Coiler Sound Enclosure and other features
Power Supply	380V/220V 50/60Hz 33KW
Air Consumption	30 M3/H 0.8MPA
Operative Temperature	0oC- +45oC
Machine weight	3600KG

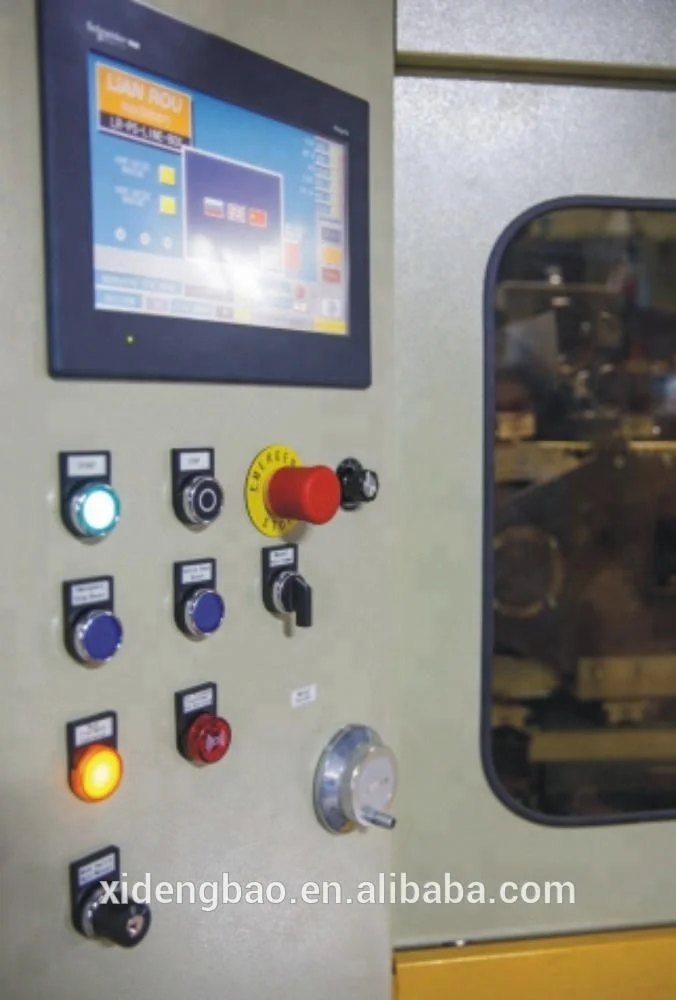

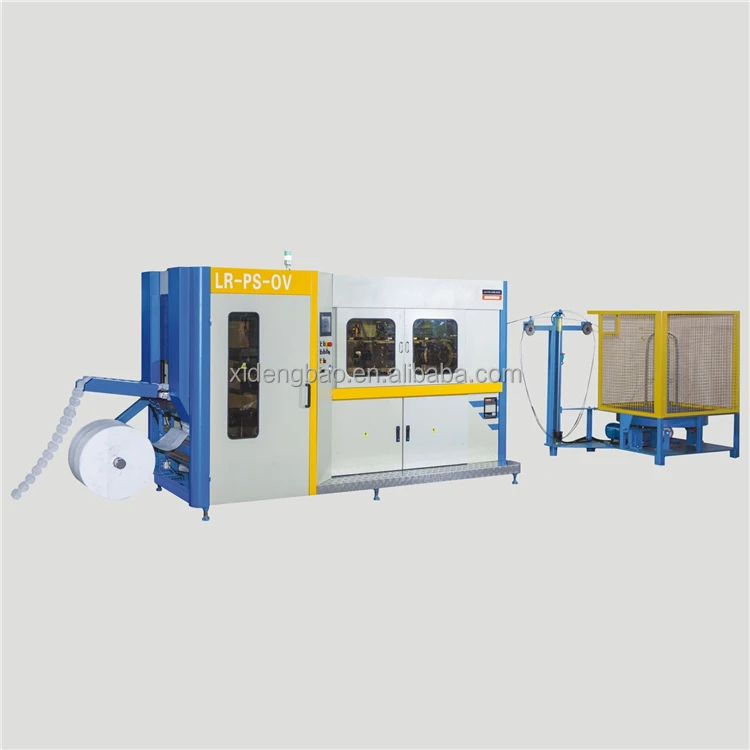

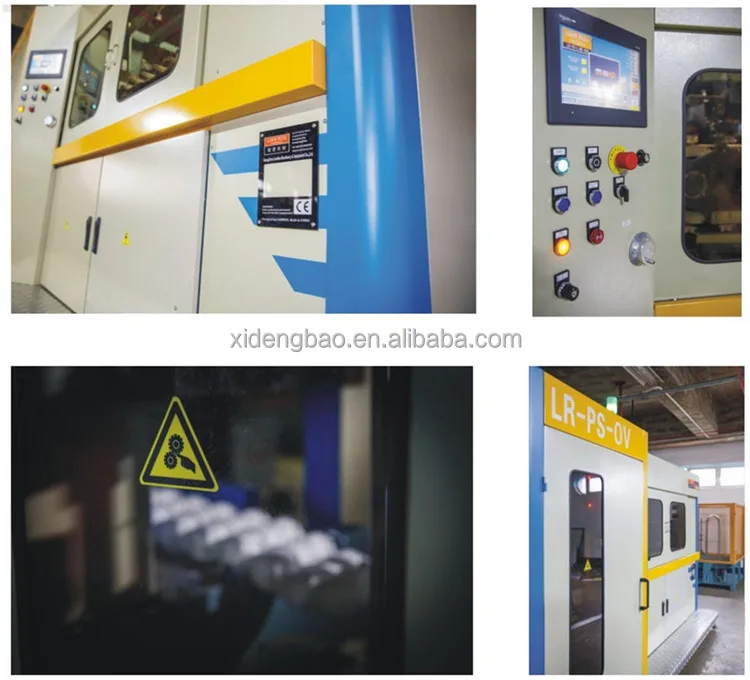

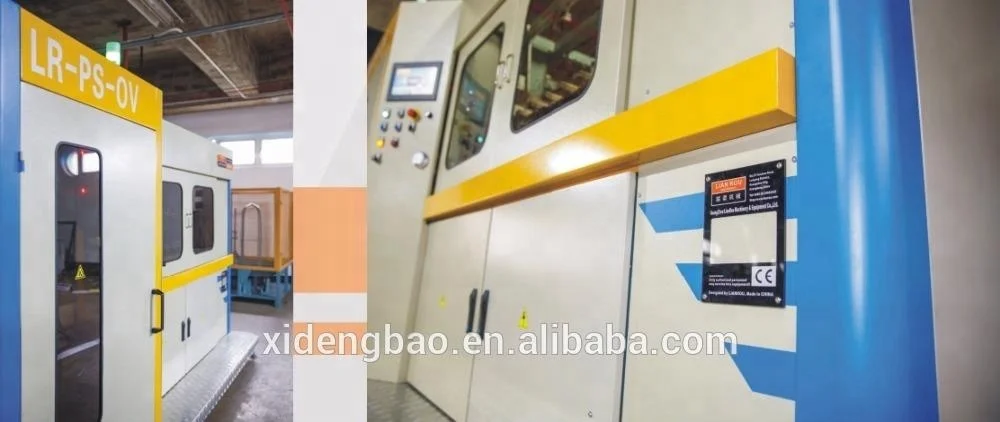

Machine Picture:
