building Mini skid steer loader mini machine with various attachments

Product Overview

Description

building Mini skid steer loader mini machine with various attachments

1)Size
Dimension(L*W*H)	2206mm* 1160mm* 1233mm
Length	2206mm
Width	1160mm
Height	1233mm
Bucket Width(K)	1150mm
Max Working Height	2143mm
Max Dumping Height	1488mm
Max Dumping Distance	348mm
Total Length without Bucket	1752mm
Turn Radius forward Turning	1307mm
2)Engine
Rated Power (KW)	17.1KW
Rotating Speed	3600rpm
Noise(Dd)	≤95
3)Hydraulic System
Pressure	17Mpa
Operating Load	200kg
Bucket Capacity	0.15m³
Max Lifting Force	375kg
Travel Speed	0-5.5km/h
Weight	890kg



4)Configuration
Engine	23hp American Briggs& Stratton gasoline engine, 3 year international warranty service.
Parts	Imported Italy hydrocontrol valves;
Tires	With engineering tires. Optional: Solid tires, grass tires and Track(crawler) Type.
Optional Configuration	Italy joystick system, triple pump & valves for optional 2 or 4 motors drive 18*8.5-8 or 20*10-10 or track
Operating	With a back pedal plate


Features

Operation:
1) Two handles to achieve operation of working, lifting and dumping.

2) 4 wheels drive, suitable for various environment.

3) Safe pedal, stand operating way.

4) 360°  pivot steering. Save space, Flexible and operating easily.

5) Compact design can for any small space working.

6) Quick hitch system makes fastening attachments quickly and eaily.

7) A loader serves several functions. Hy380 can with various attachment for different working need. Quick hitch system,  attachments can be changed quickly and easily.
8) Compare with same kind of products, hy380 mini loader is with higher lifting height.
Easy maintenance:
1) Easy to put oil and replace Air filter, filter, spark plug, etc.

2) Back shrouds can be took easily, parts can be checked by opening upper canopy.

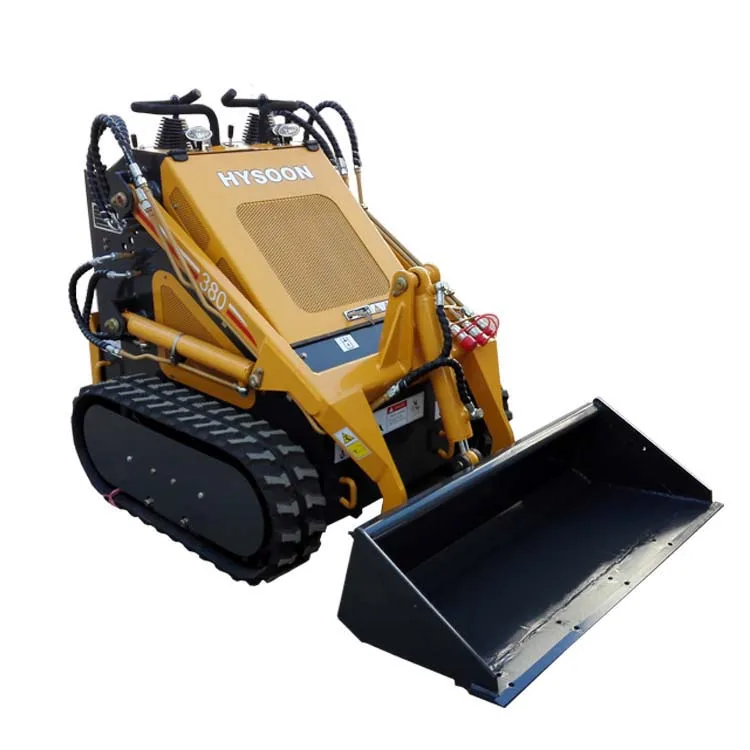

Wheel type and track type for optional




HY380 Mini Skid Steer Loader with digger etc various attachments

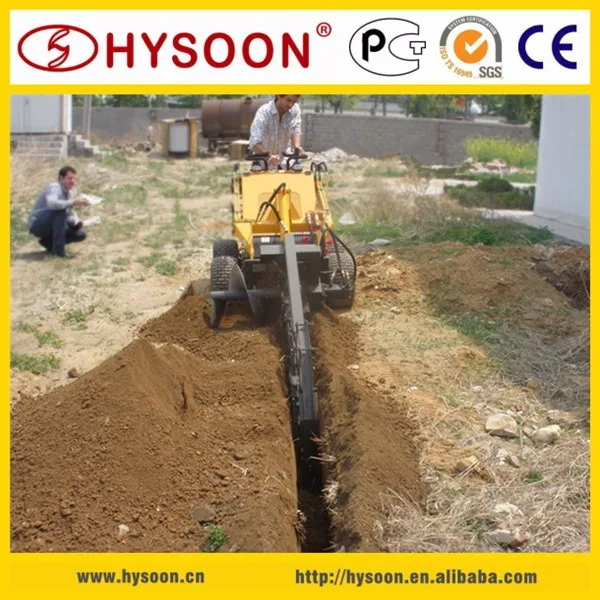

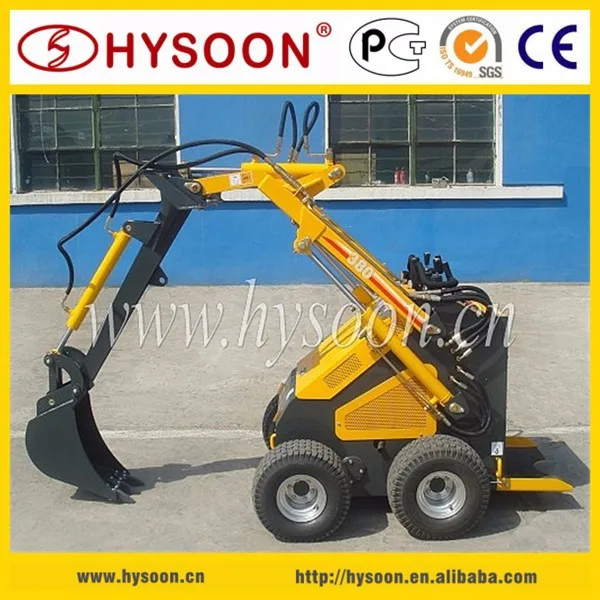

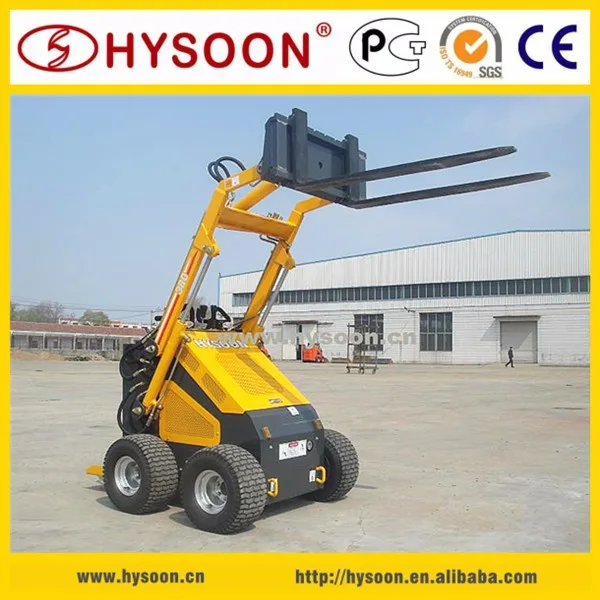

A loader serves several purposes, with a quick hitch system,the HY380 mini skid steer loader can change various attachments for more functions quickly and eaily. Attachments: backhoe, digger,  sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trench filler, trencher,grapple,,auger,stonr bucket, auger levers, standard bucket, trailer system, and so on.

Usage:

Land sorting,  Garden,  Snow removal,  Mining,  Landscaping, Construction, Dairy industry,

Farm, Livestock farm , Waste(animal waste, municipal solid waste, life garbage) removal,

ditching, truck loading ,tree planting and so on.
