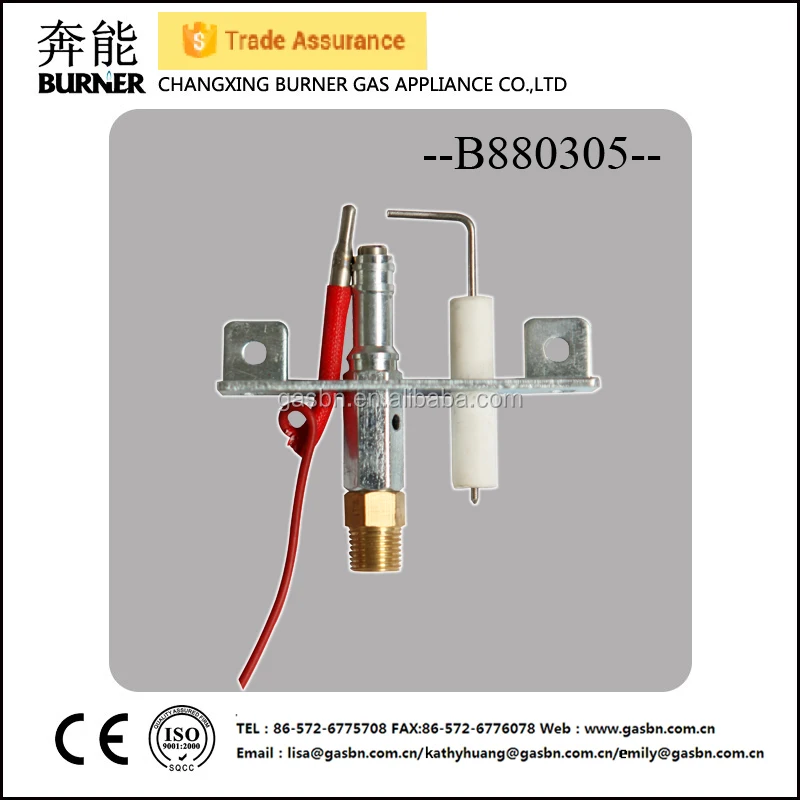

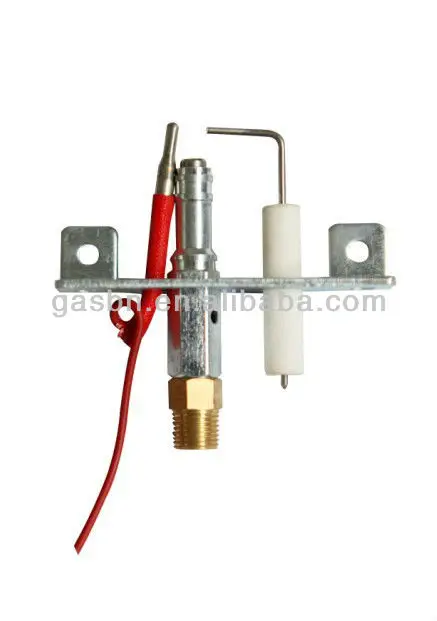

B880305 gas water heater ignition parts/pilot burner/flame sensor

Description:

ODS Pilot Burner is called ODS for short. When gas appliance is working in a unvented space for some time, the oxygen is involved in chemical reaction and produced CO2 and H2O when burning. In this case, the oxygen content in this unvented space is decreasing while CO2 content is increasing. People will feel uncomfortable when oxygen content arrives the level 16% to 17% or higher. It will even cause toxicosis when CO2 content arrives the level 4% or higher.

While ODS Pilot Burner can avoid above dangers and promise the safe operation in unvented space. It will cut off the energy source so that gas appliance stop working to assure personal safety once oxygen content arrives the level 18.5% to 19.5% and CO2 content arrives the level 0.8% to 1.5%.

Advantages:

1. ODS pilot burner can avoid danger and promise safe operation in unvented space.

2. ODS pilot burner can cut off energy source when oxygen content arrives 18.5% to 19.5% and CO2 content arrives 0.8% to 1.5%.

3. All ODS pilot burner are 100% test before shipment.

Name:

B880305 gas water heater ignition parts/pilot burner/flame sensor

Port

Shanghai

Model

B880305

Place of origin

Zhejiang, China

Type

ODS Pilot Burner

Thermocouple length

Customized

Material

Metal (brass/stainless steel/steel/other)

Ignitor wire length

Customized

Gas source

NG/LPG

Application

Gas heater, gas water heater, gas grill, gas stove, gas cooker

Flame hoods

One

Packing

25pcs/box,200pcs/carton,with standard export carton

Nozzle orifice

0.15-0.6mm

Delivery time

30 days upon official order

MOQ

1000 PCS

Certificate

CE

Supply ability

20000 PCS / Month

Feature

Eco-friendly

We can design and manufacture as per customers’ requirements. Feel free contact us for any specific requirements, also for pictures, drawings and samples of our products. We will try our best to meet your requirements.
