Gloview Portable Interactive Whiteboard,smart Board/ White Board High Gloss White Board Finger Interactive FP3 FLYIN (OEM)

Product Overview

Description

Top Quatlity ! Brand New Touch interactive whiteboard-----FP3 Board

FLYIN Original Factory for Classroom use Portable finger touch interactive whiteboard

FLYIN FP3 Board touch screen interactive whiteboard







Specifications

1. Wireless interactive whiteboard
2. Portable;
3. 10 points touch
4. Auto calibration
5. Finger touch

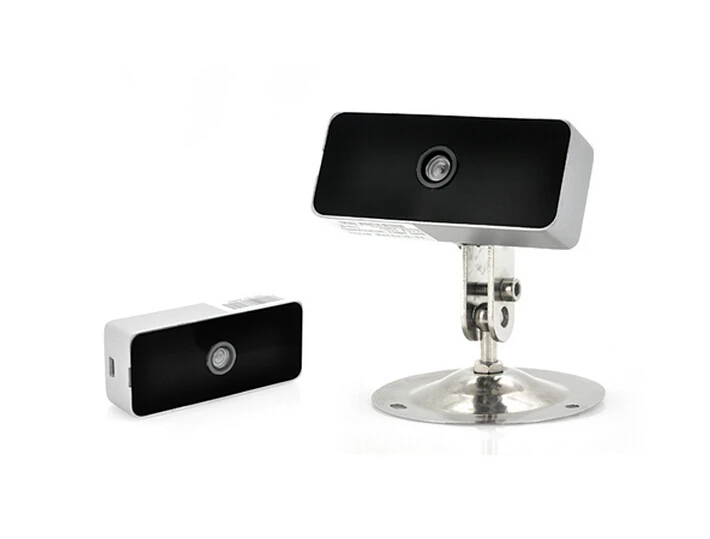

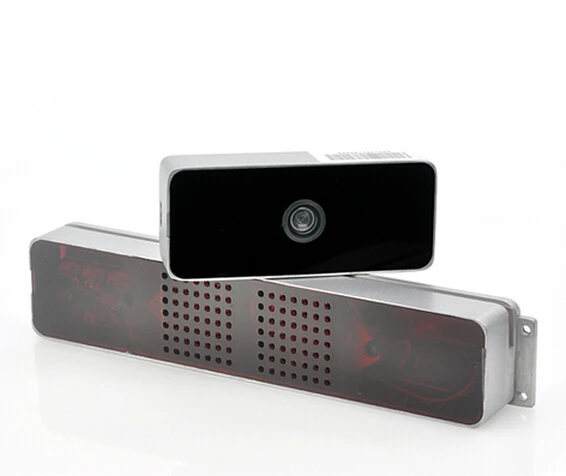

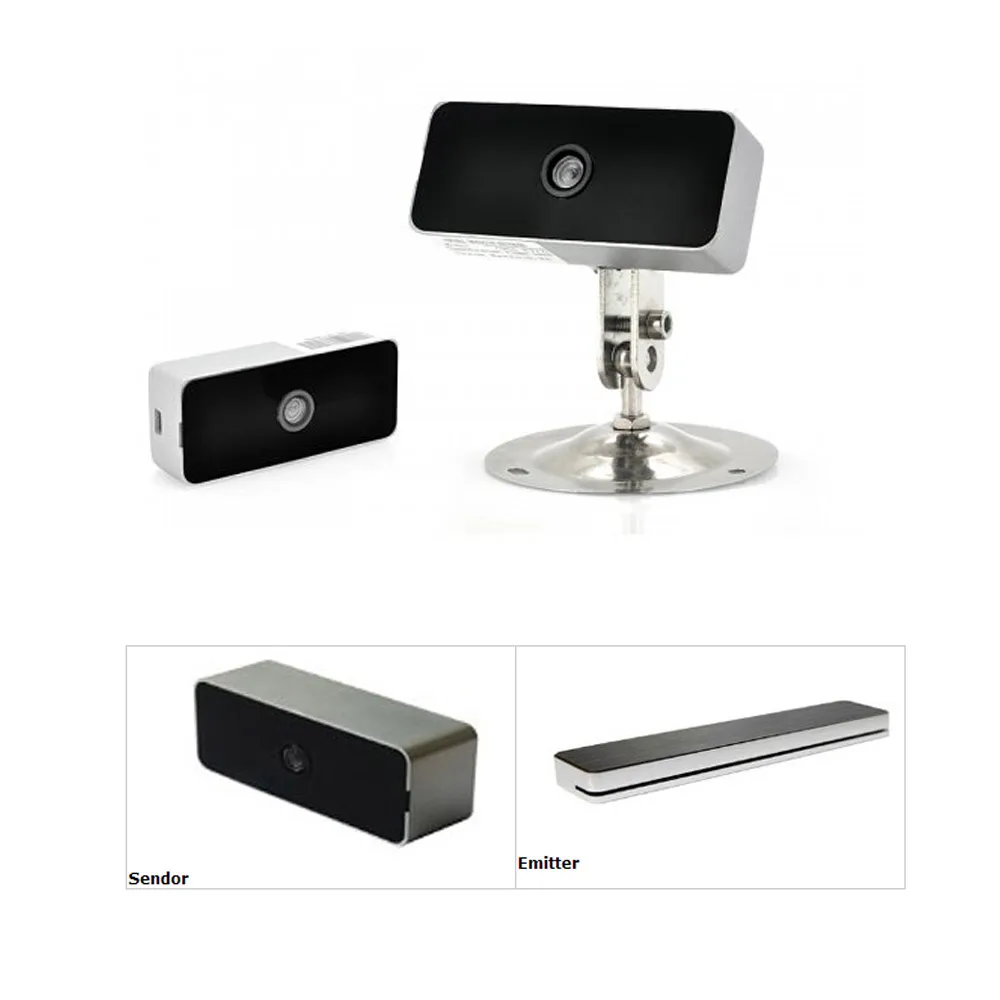

Sendor

Emitter



How it works

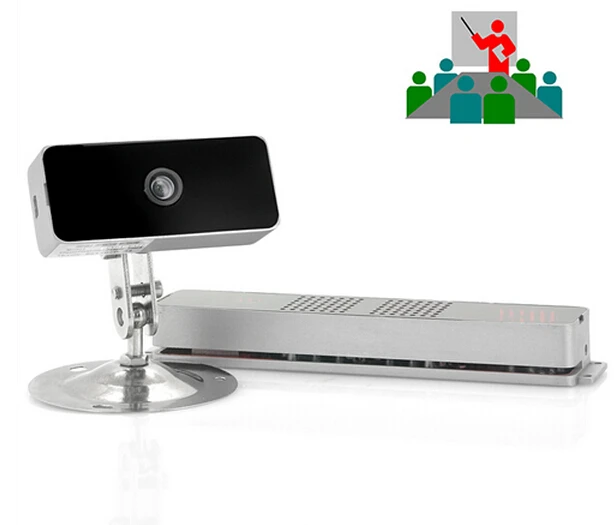

FP3 Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser on the projection surface which is about 1mm thick invisible light membrane and parallel with the projection screen surface, 1-2mm above from the screen surface. When the fingers or any non-transparent objects touch this virtual surface, the light will be reflected and detected by the sensor. Computer will figure out the position of the mouse by accurate calculation of light position.







Features

1.Finger touch, support active size up to 100”;

2.Portable, totally weight is only about 500g;

3.Ten points touch;

4.Abundant of gesture recognition functions;

5.Competitive price.







 Main features for FP3 Board



1. Stable:Through a variety of abnormal light interference algorithm, it can make the use not be affected by the environment, light. Even have worms stay on board, it also run well.



2. Requirement for board is not high:Only make sure the board is flat, no matter have frame or not, and the projection screen can be very near to board’s frames. Even near the frame area, it can do the normal operation.



3.Support abundant of Gesture Recognition. Single finger to “Write”; Two fingers for “Move”, Palm for “Eraser”; Two fingers to “Zoom in & zoom out Two fingers for “Scroll”.



4. Support three models of calibration.

Auto calibration (Calibration points can reach 289 points) Manual calibration (25 points and 36 points) and Semi-auto calibration. For IR and Optical technology, they only support manual calibration. So our calibration much easier and much more accuracy.







5. Support 10 points touch. People can do writing and erase simultaneously.







6.  Portable and easy to install.

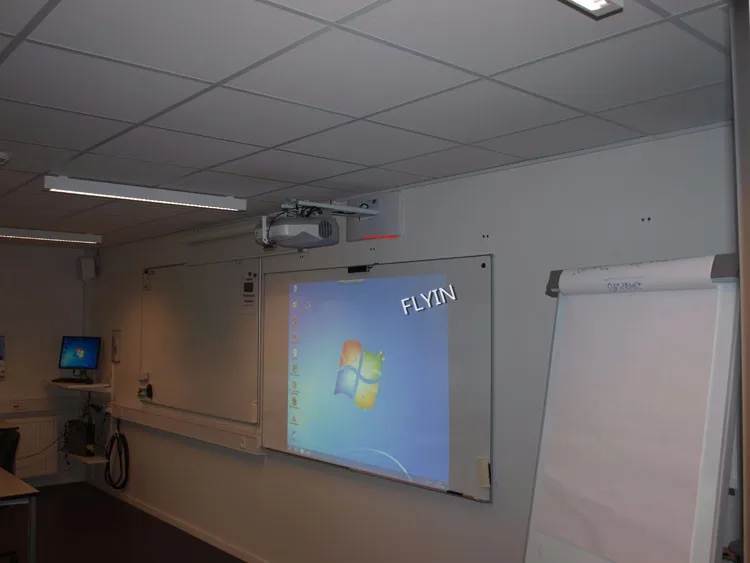

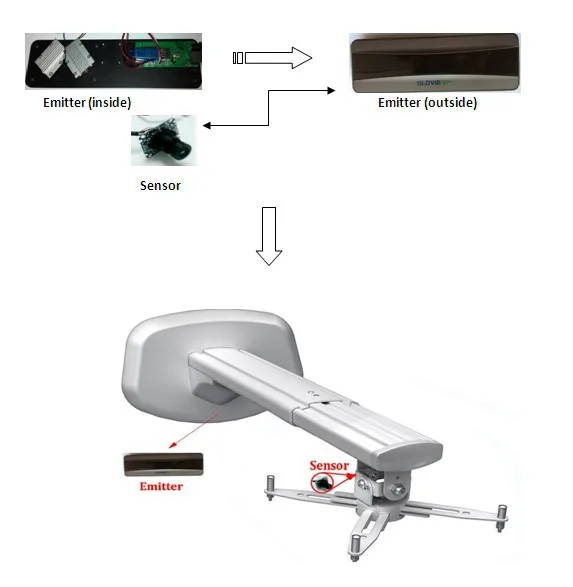

Totally weight is less than 1KG. The installation is very easy. Just put the emitter part to the upper of projection screen by magnet or double adhesive tape, and put the Sensor (camera) part together with projector or other objects by double adhesive tape or amount. No need professional technicians.







7.The calibration software is integrated into Sensor (Camera) part.

Even change computer, there is no need to do calibration again. It save the calibration time, make the use much convenient.







8.Much more portable.

The emitter’s size is only3cm*16cm*1.7cm, it can be put on board directly.







9.Wireless connection.

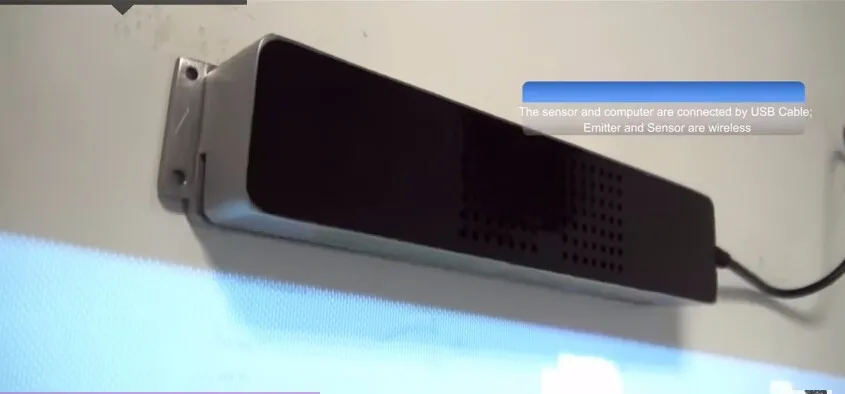

Sensor part and emitter part are used wireless connection, and we use wireless signal to control the camera’s open and close, that increase the emitter’s working life.







10.Auto change filters;

When does auto calibration, the filter will be opened by software automatically. That will increase the success rate of calibration.  After calibration, the filter is closed. That will increase the anti-interference ability and make the use much more stable.







11.Turn common board or wall into touchable.

Our product can turn any flat surface (like board, wall, LCD) into touchable; just put the emitter part on the upper of the projection screen







12.Support to operate by any untransparent objects.

In the active area, any untransparants objects can work as pen to do the operation











Technical Parameter:
