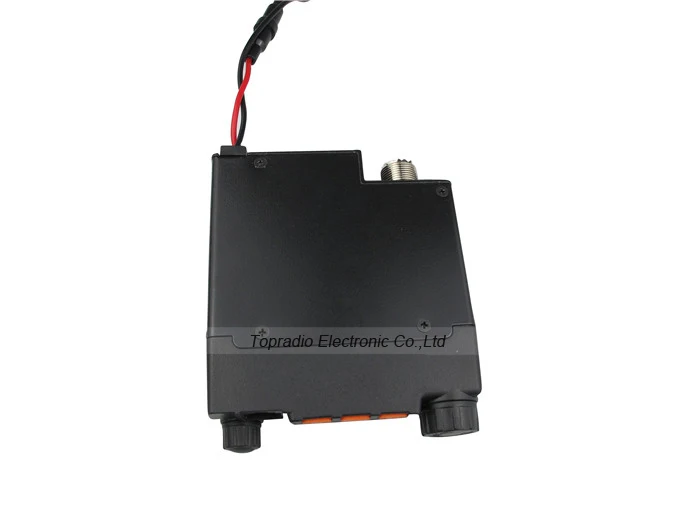

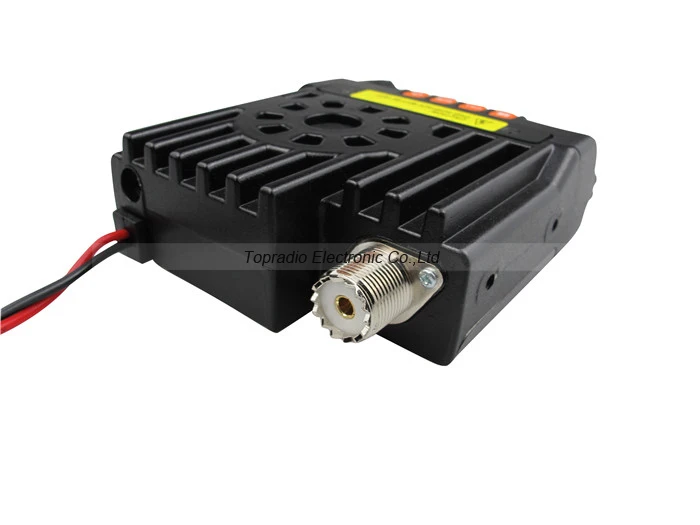

Dual Band Mobile Radio VHF UHF Mini Transceiver 136 174/400 480MHz Mini 25W Car Radio Mini Mobile Radio

Item Model

TM-588UV

General

Frequency Range

VHF 136-174MHz&400-480MHz

VHF 136-174MHz&480-520MHz

VHF 245-246MHz&400-480MHz

Number of Channel

200

Channel Spacing

25KHz/12.5KHz

Channel Step

5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz

Working Voltage

13.8V DC±15%

Squelch Way

CTCSS/DCS/5Tone/2Tone/DTMF

Frequency Stability

±2.5ppm

Operation Temperature

-20~+60℃

Dimension(W x H x D)

98(W) x 35(H) x 118(D)mm

Weight

408g

Receiver(ETSI EN 300 086 Testing Standard)

Bandwidth

Wide Band 25KHz

Narrow Band 12.5KHz

Sensitivity

≤ 0.25μV

≤ 0.35μV

Channel Selectivity

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio Response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Hum & Noise

≥45dB

≥40dB

Audio Distortion

≤5%

Audio Power Output

≥2W@10%

Transmitter(ETSI EN 300 086 Testing Standard)

Bandwidth

Wide Band 25KHz

Narrow Band 12.5KHz

Output Power

25W/20W(VHF/UHF)

Modulation Mode

16KΦF3E

11KΦF3E

Adjacent Channel Power

≥70dB

≥60B

Hum & Noise

≥40dB

≥36dB

Harmonic

≥60dB

≥60dB

Audio Response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Audio Distortion

≤5%
