Spindle moulder 4 sided planer and moulder RMM623SS
- Category: Spindle Moulder >>>
- Supplier: Guangdong Reignmac Machinery Co. Ltd.
Share on (60294461090):
Product Overview
Description
Product Description
Spindle moulder 4 sided planer and moulder RMM623SS
| Specification& type | RMM623SS | |
| Working width(mm) | Min. For main machine | 20 |
| Max. For main machine | 230 | |
| Min. For saw unit | 60 | |
| Max. For saw unit | 190 | |
| Working thickness(mm) | Min. | 20 |
| Max. | 200 | |
| Min. thickness of slice(mm) | 5 | |

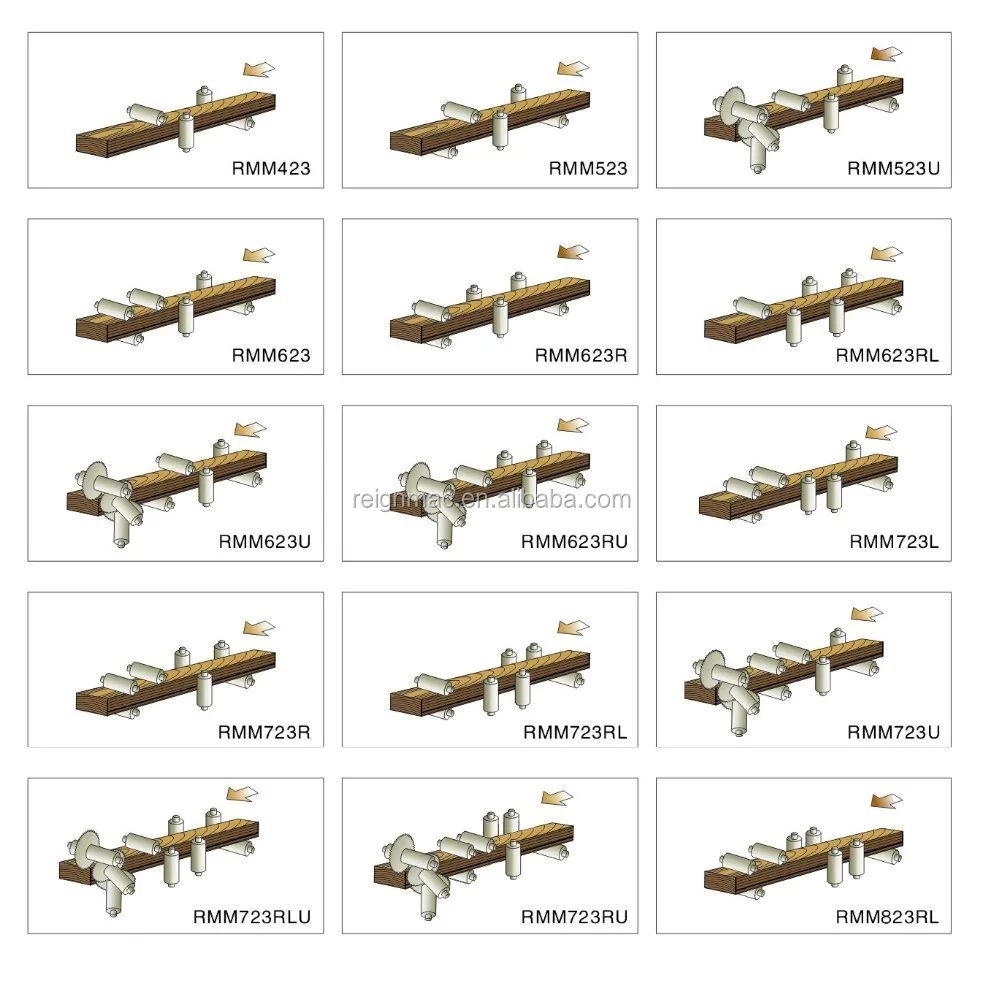

| Number of spindles | 6 | |
| Spindle speed(r/min) Saw Spindle speed(r/min) | 6000/4000 | |
| Cutting circles (min-max)(mm) | First bottom spindle | Ø110 ~ Ø145 |
| Right spindle | Ø110 ~ Ø200 | |
| Left spindle | Ø110 ~ Ø200 | |
| Top spindle | Ø110 ~ Ø200 | |
| Right saw unit | Ø180 ~ Ø280 | |
| Left saw unit | Ø180 ~ Ø280 | |
| Spindle diameters(mm) | Spindle | Ø40 |
| Saw unit | Ø50 | |
| Motor power(kW) | First bottom spindle | 11kW/15HP |
| Right spindle | 11kW/15HP | |
| Left spindle | 11kW/15HP | |
| Top spindle | 11kW/15HP | |
| Right saw unit | 22kW/30HP | |
| Left saw unit | 22kW/30HP | |
| Feed | 7.5kW/10HP | |
| Feed beam &fall | 1.1kW/1.5HP | |
| Total motor power(kW) | 96.6kW/131.5HP | |
| Speed(m/min)(inverter for feed) | 6~30 | |
| Dust pipe diameter(mm) | Ø150 | |
| Overall machine dimensions(LxWxH)(mm) | 4800×1950×1960 | |
| Weight(tons approx)(T) | 5.3 | |

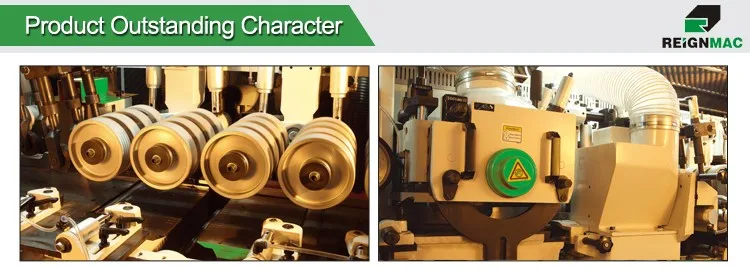

M623SS Outstanding character
1,The machine has four side planningr and slice double functions which can save time and enhance capacity effectively.
2,Inverter feed speed of 6-30m/min.
3,Individual motor to each spindle to ensure maximm cutting.
4,Two high precision bearings for supporting of the front and backward of the spindle, it is more suitable for heavy cutting.
5,All spindle adjustments are carried out in front of the machine for convenience.
6,Hard chormb treament has been adopted for the durability of work table surface.
7,Equipped with shaft cooling and cleaning function,it can increasing the life of saw blades and ensure the precision of cutting.
8,Chain-wheel box is equipped for advancing feeding performance.
9,A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
10,As our standard, short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
11,Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness.
12,Multiple sets of driving bed rollers for enhancing feeding performance.
13,Adjustable out-feed side pressure board which can more satisfy the smothly output of different thickness of the wood.
14,Manual oil pump lubrication for working table and saddle,it is convenience for control.
15,Adopting electric component from international class with steady quality.
16,Sealed safety enclose to reduce noise levels, improve extraction and operator safety.
