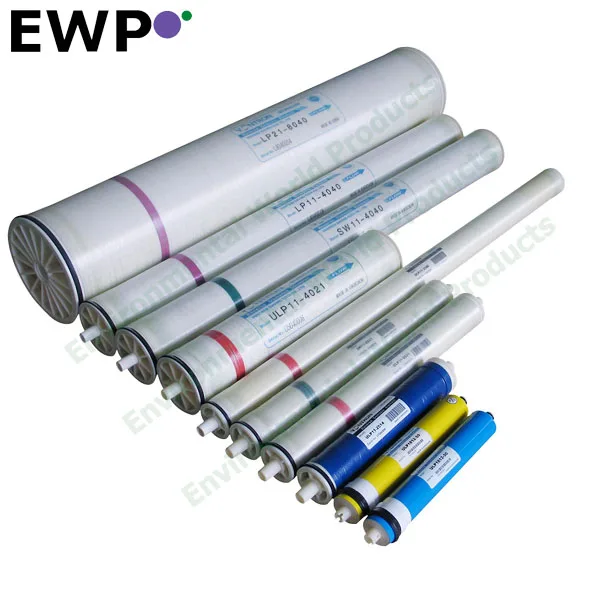

Vontron water filter RO membrane ULP11 4040
- Category: >>>
- Supplier: Environmental World Products (China) Inc.
Share on (60295225162):
Product Overview
Description
Products Description

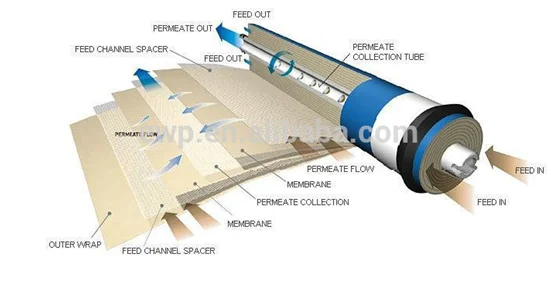

Industrial RO membrane elements
Vontron is the biggest RO membrane manufacturer in China with NSF certificate. Perfect option for house-hold RO units with feed water lower than 2000ppm, like tap water, municipal water, underground water.
EWP is Vontron's global distribution partner and we have been working with Vontron since its establishment.
Normally, we have below three series
Extra Low pressure element-XLP series:working under extremely low pressure, applicable to feed water with low salinity that requires low rejection rate.
Ultra low pressure element-ULP series:
working under ultra low pressure, applicable to feed water with fairly low salinity.
Brackish water element-LP series:
working under low pressure, applicable to regular or high-concentration brackish water.

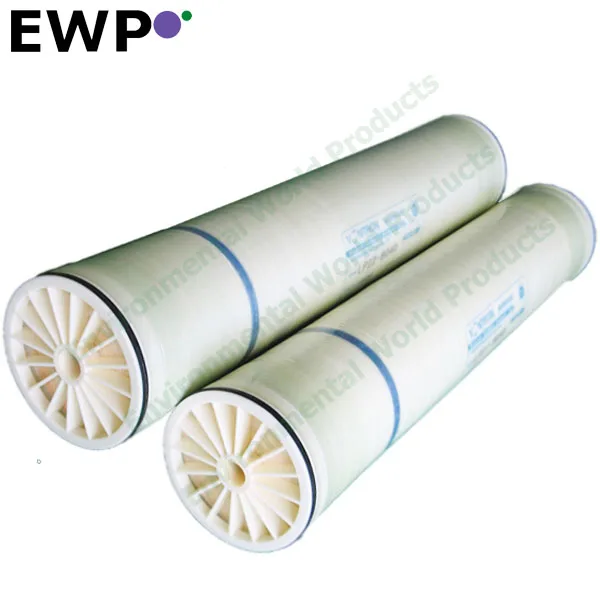

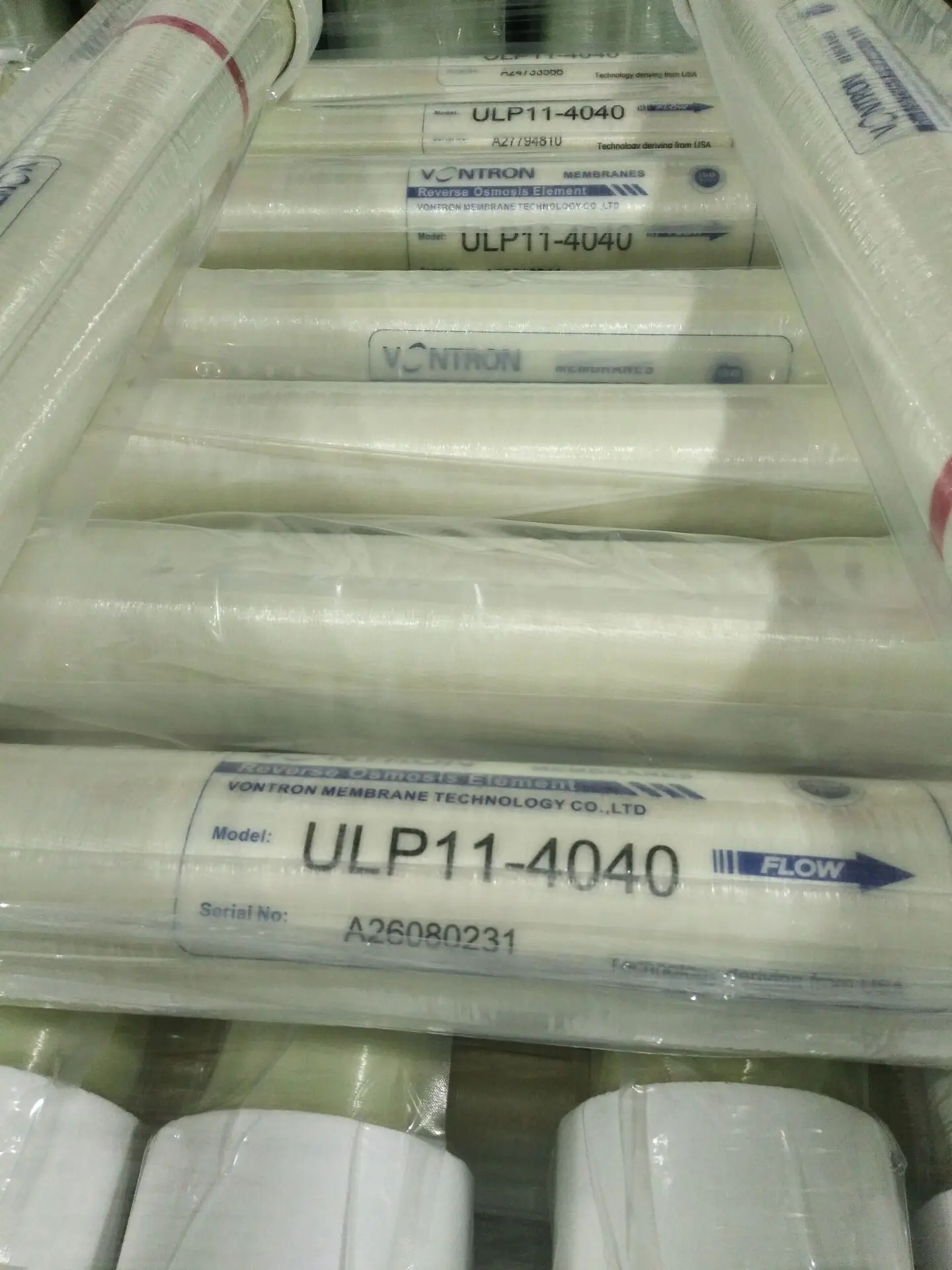

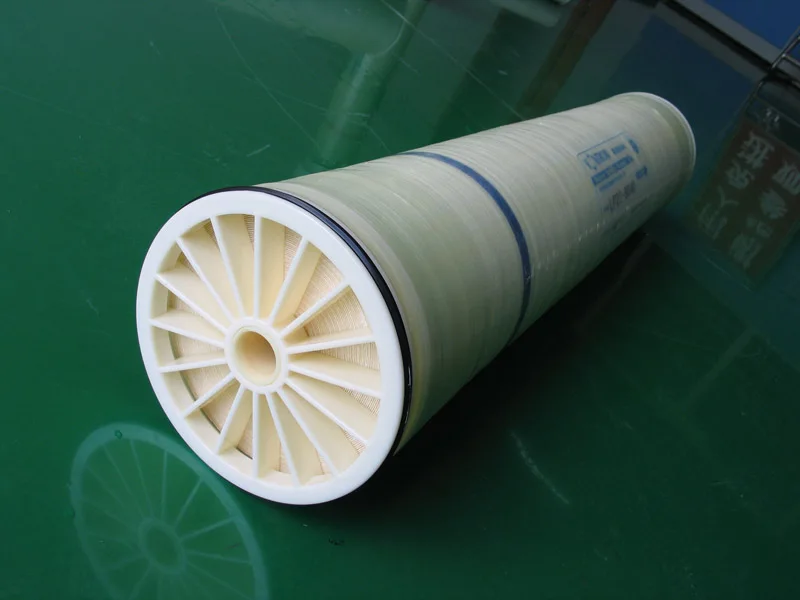

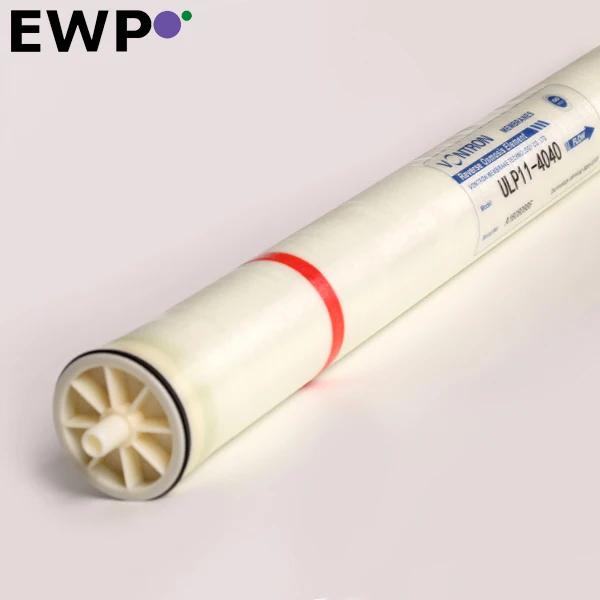

ULP11-4040
Ultra-low pressure compound RO membrane element working under the conditions of ultra low operating pressure, ULP membrane series can achieve as high permeated flow and rejection rate as regular low-pressure membranes can. It runs under approximately two thirds pressure of that of regular low pressure compound membranes, and can achieve a rejection rate of as high as 98.0%.
Model | Active Membrane Area ft2(m2) | Average Permeate GPD(m3/d) | Stable Rejection Rate % | Min. Rejection Rate % | ||
ULP21-4040 | 90 (8.4) | 2400 (9.1) | 99 | 98.5 | ||
Operation Limits & Conditions | Max. Working Pressure | 600psi (4.14MPa) | ||||
Max. Volume of Feed water | 16gpm (3.6 m3/h) | |||||
Max. Temperature of Feed water | 45℃ | |||||
Max. Feed water SDI | 5 | |||||
pH Range of Feed water during Continuous Operation | 3～10 | |||||
pH Range of Feed Water during Chemical Cleaning | 2～12 | |||||
Residual Chlorine Concentration of Feed Water | ＜0.1ppm | |||||
Max. Pressure Drop of Single Membrane Element | 15psi (0.1MPa) | |||||
NSF-certified quality
Excellent outlook and performance
Dry membrane
100% tested
Certificate: NSF and ISO-9001
Material: Composite film

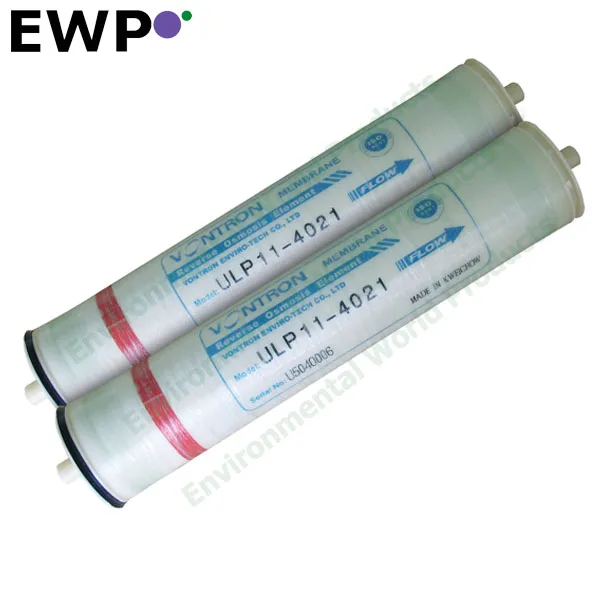

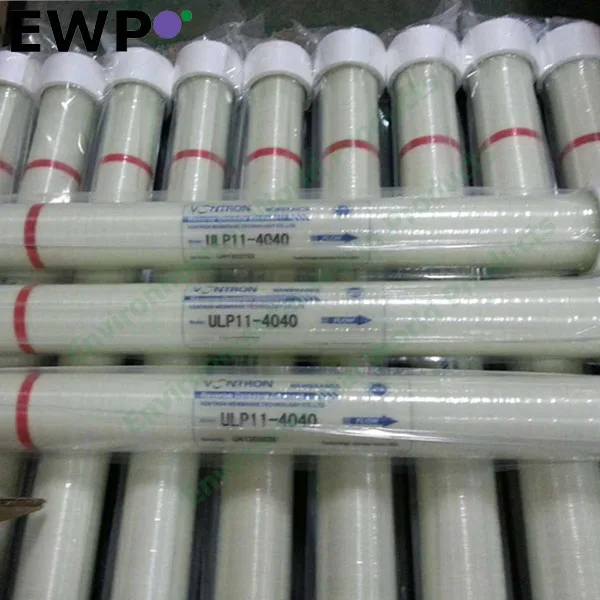

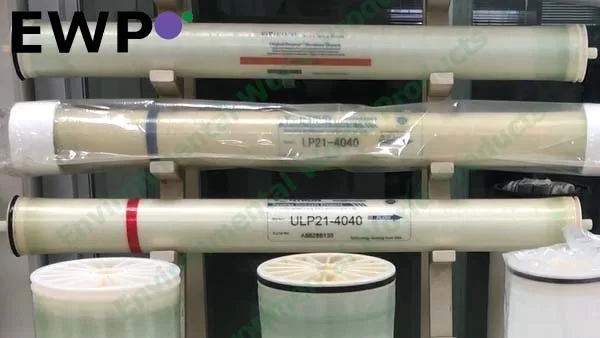

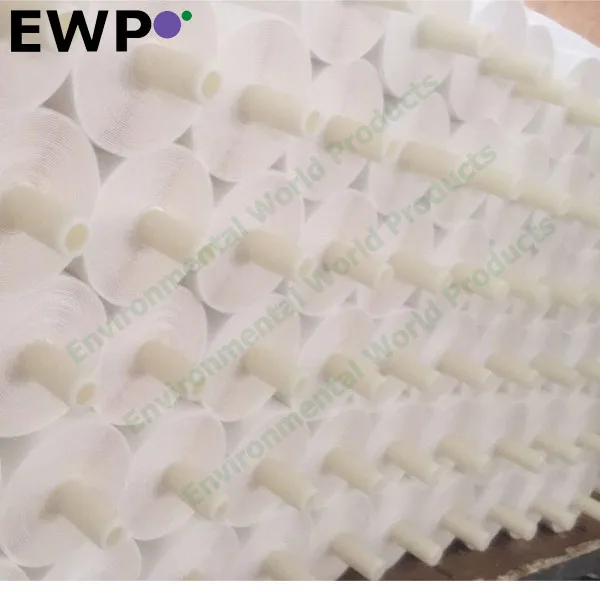

Detailed Images
Packing and Delivery

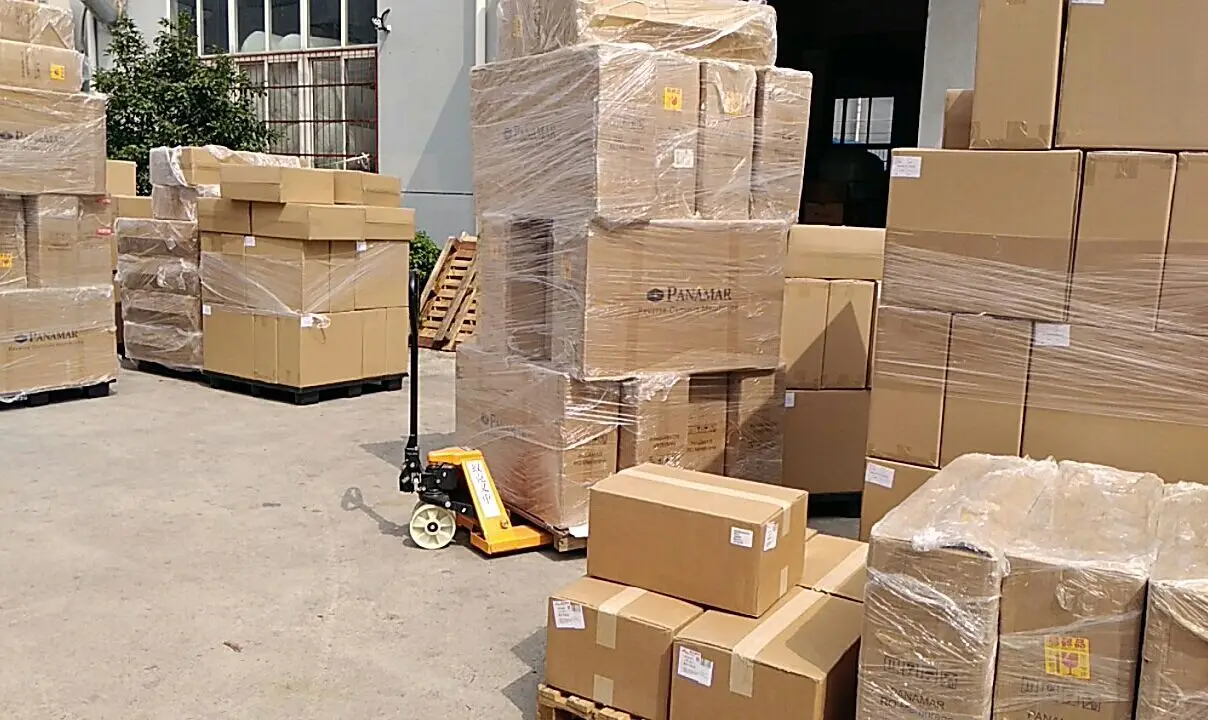

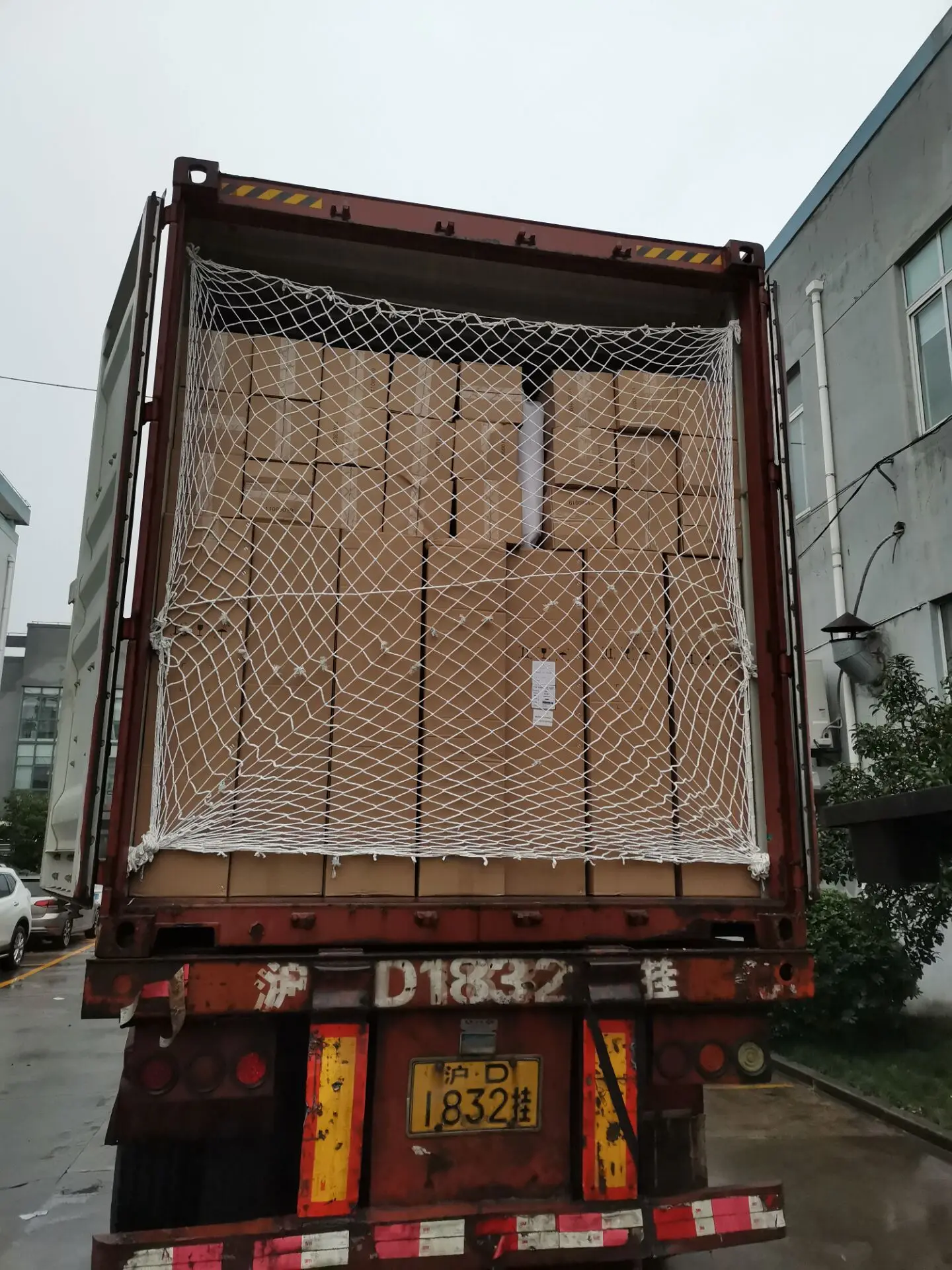

Solid and Seaworthy Package

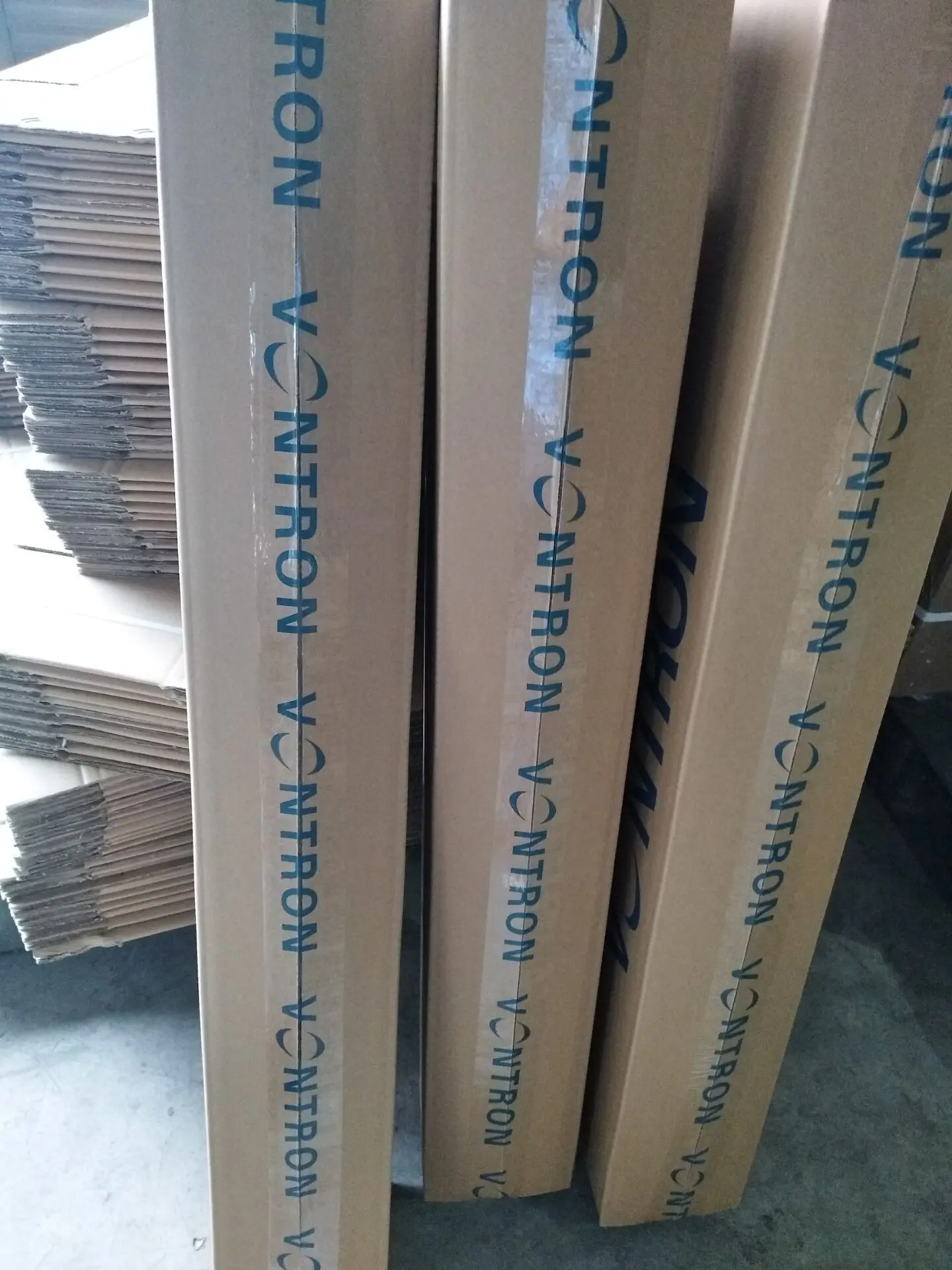

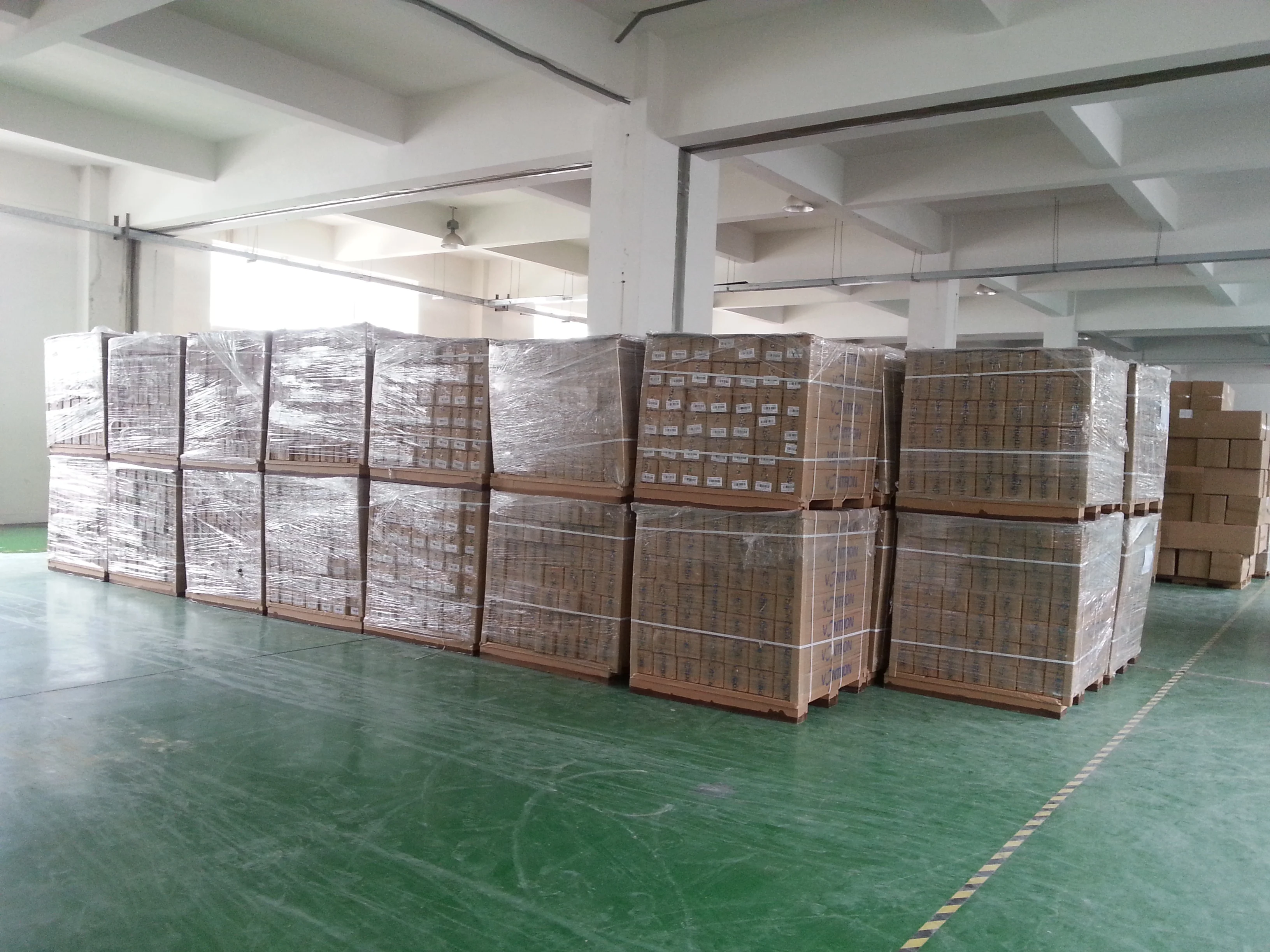

Residential RO membranes will be packed into cartons, and then onto pallets. Packing will be enhanced for international shipping.
We will mark each carton or pallet for easy identification.
Application Industry
Company Profile
Environmental World Products
Founded in 2004, EWP is an international group with diversified cultures. We have members in USA, South Africa, Nigeria, Malaysia and China.
Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems.
EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future.
Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems.
EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future.
Your ONE source for ALL standard and custom water treatment components and systems with a global sales network and services.
Our Advantages
Our Values
* always provide exceptional value.
* always provide outstanding service.
* always promote technological innovation.
* always act ethically and lawfully.
* always act environmentally responsible.
* always act socially responsible.
* always build relationships based on mutual respect.
* always provide outstanding service.
* always promote technological innovation.
* always act ethically and lawfully.
* always act environmentally responsible.
* always act socially responsible.
* always build relationships based on mutual respect.
Our Strength
EWP’s engineering team possesses technology and experience to assemble RO systems for over 20 years, and with degree in electrical, structural, mechanical and hydraulic.
Our engineering team focuses on providing the best quality and continuously improving products made by EWP.
Our Services
-Software: Solidworks, ROSA, AutoCAD, CAD 3d Plant
-Licensed welding etc.
-Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other documents upon requests.
-Licensed welding etc.
-Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other documents upon requests.
Recommend Products
FAQ
Q: Are you trading company or manufacturer?
A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years. EWP is a leading water treatment components wholesaler.
Q: What's the information you need to know before order?
A: The material, pressure rating and quantity.
B: What's the piping standard?
Q: How long is your delivery time for the water treatment components?
A: Depend on different products. Some are in stock while some are not. Feel free to contact us for more details.
Q: How can you control the quality and delivery?
A: Production strictly according to CE / ISO standards. We provide top-notch components and some of them are NSF/ CE listed.
B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery.
Q: What’s your warranty?
A: Our warranty for machine is 1 year. Different components have different warranty period.
A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years. EWP is a leading water treatment components wholesaler.
Q: What's the information you need to know before order?
A: The material, pressure rating and quantity.
B: What's the piping standard?
Q: How long is your delivery time for the water treatment components?
A: Depend on different products. Some are in stock while some are not. Feel free to contact us for more details.
Q: How can you control the quality and delivery?
A: Production strictly according to CE / ISO standards. We provide top-notch components and some of them are NSF/ CE listed.
B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery.
Q: What’s your warranty?
A: Our warranty for machine is 1 year. Different components have different warranty period.
