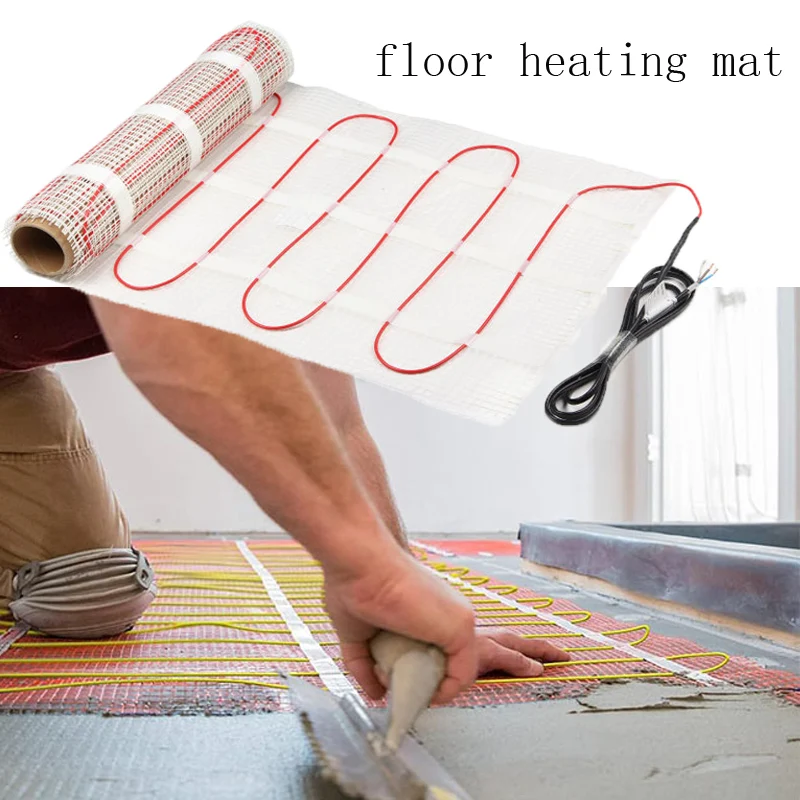

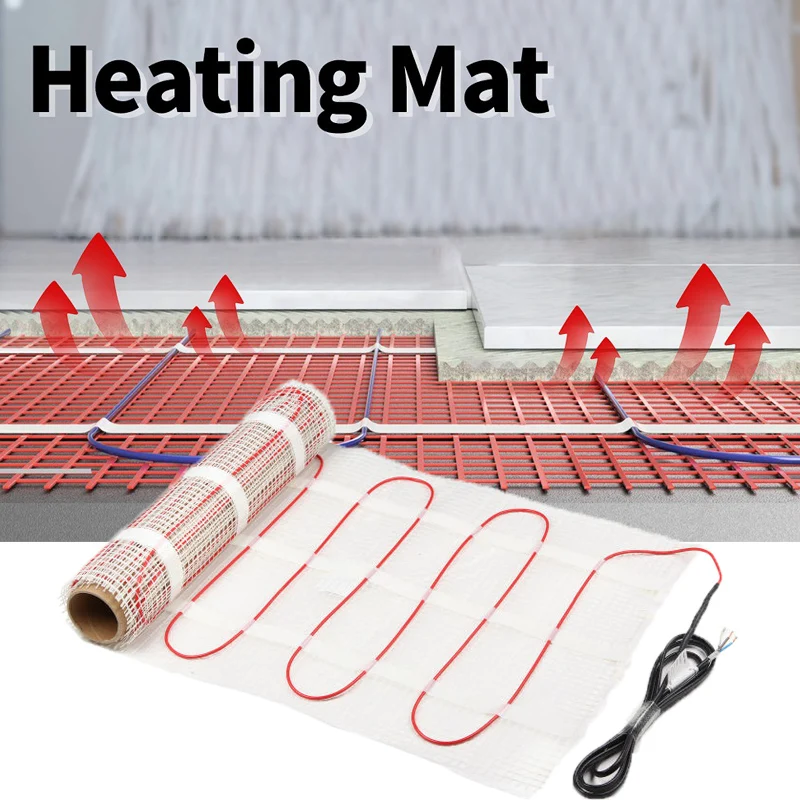

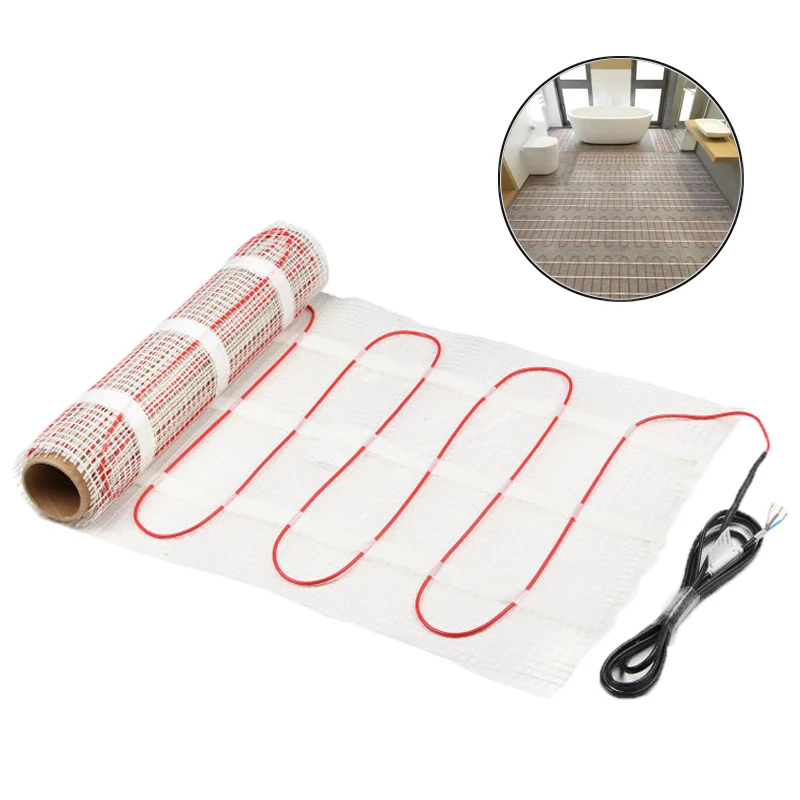

underfloor heating carpets 230v floor heating mat single conductor heating mat
- Category: >>>
- Supplier: Wuhu Jiahong New Material Co. Ltd.
Share on (60295365208):
Product Overview
Description
We support sample service, please contact us
Product Description
Jiahong Constant Wattage Heating Cable is a kind of regular wire cable used to produce heat. It has the same wattage throughout the heating process, regardless of temperature. It heats up through their conductor, and the conductor is its heating element as well. However, it cannot regulate the heat output by itself. Therefore, it generally works with a thermostat.
Product Type | Minimat S |
Cable Construction | single conductor |
Rated Voltage | 230V |
Output | 100w/m2 and 150w/m2 |
Cable spacing | 100mm and 66.7mm |
Cable Diameter | 2.6mm |
Conductor Insulation | Fluoropolymer |
Max Ambient Temp | 85℉(30℃) |
Min Installation Temp | 40℉(5℃) |
Characteristics
1. Heat Tracing, Frost and Ice Protection, Snow Melting, Floor Heating, etc.;
2. Can convert 100% of electrical energy into heat without energy loss;
3. Lower Installation Cost and Maintenance Expenses;
4. Match all Popular Thermostat in Europe and America;
5. Suitable for use in Non-hazardous, Hazardous and Corrosive Environments;
6. Custom Any Wattage and Length of Heating Cable According to Practical Applications, Free Packing Design.
Uniform heat dissipation, small temperature difference and greater comfort. Form a thermal environment that truly meets the body's heat dissipation requirements and is suitable for all ages.
Can be installed by yourself
Under floor, plank and carpet heating.
Note: Do not damage the heating wire when cutting.
Safe in wet locations and has a certain dehumidification effect on the room.
Suitable for kitchen, living room, bathroom, bedroom, washroom, office, etc.
The preset temperature can be reached in half an hour with a good insulation layer.
All Jiahong's Constant Wattage Heating Cables
Constant Wattage Heating Cables can be divided into two different categories:
1. Series Type Cable2. Parallel Type Cable.
HX Warming Cable
Warm-C Floor Warming Cable
JHSD Pipe Freeze Protection Cable
Membrane Floor Heating Cable
JHRD Deicing Cable
Parallel Circuit Heating Cable
Mini-D Floor Heating Wire
TXLP Underground Heating Cable
Mini-S UnderFloor Heating Cable
AFMAT Floor Warming Mat
SX & HX Snow Melting Mat
WarmMat Floor Warming Mat
Constant wattage series heating cables are many types, including floor heating cables, deicing cables, and snow melting cables.
Parallel heating cables are mainly used for industrial heating.
>>> Click for more product details <<<
Our Company
WuHu Jiahong New Material Co., Ltd
- Founded in 2002.
- More than 300 employees.
- Top heating cable manufacturer in Asia.
- 1 manufacture base+14 sell office+2 oversea joint venture.
- Constant wattage series& self-regulating heating cable & thermostats.
- 3 sets of wire-grouping machines.
- 15 sets of high temp and low temp extruding machines.
- 21 sets of braiding machines which produce 40000M cables per day.
Testing Equipment
Power Testing Machine
High-Low Temperature Testing Machine
Flame Testing Machine
Mechanical Performance Detector
Water Proof Testing Machine
Aging Testing Machine
Exhibition
Why choose Jiahong
1. R&D Team
2. Oversea Local Services
3. The Ultimate Manufacturer
4. Full Testing Certificates
5. Fortune 500 Companies Audit
6. The Only CSA Standard Lab in China
Packing & ODM
Rolled cable, wrap the rolled cable in white air conditioner cloth after fixing the tape.
Coiled cable, cable reels are available in paper, plastic and iron.
Two kinds of packaging, for other packaging Jiahong provides the design.
1. Mat into a white box, four boxes into a carton
2. Four mats are packed directly in a carton
For samples, goods will be shipped from stock within 3 days.
For bulk production, our lead time is 7~15 days.
ODM Service
We support OEM service and package design for the products you see.
>>> Contact us for free sample <<<
