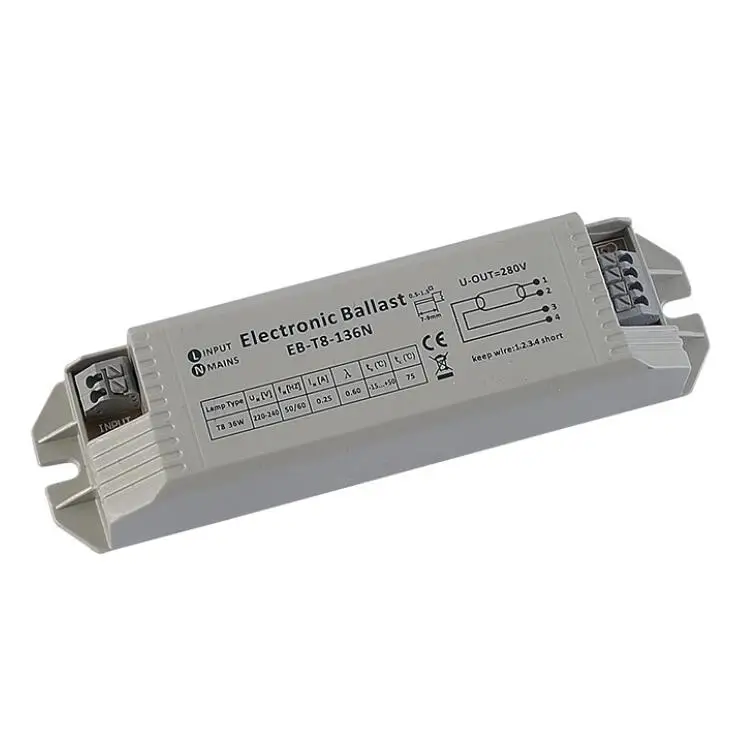

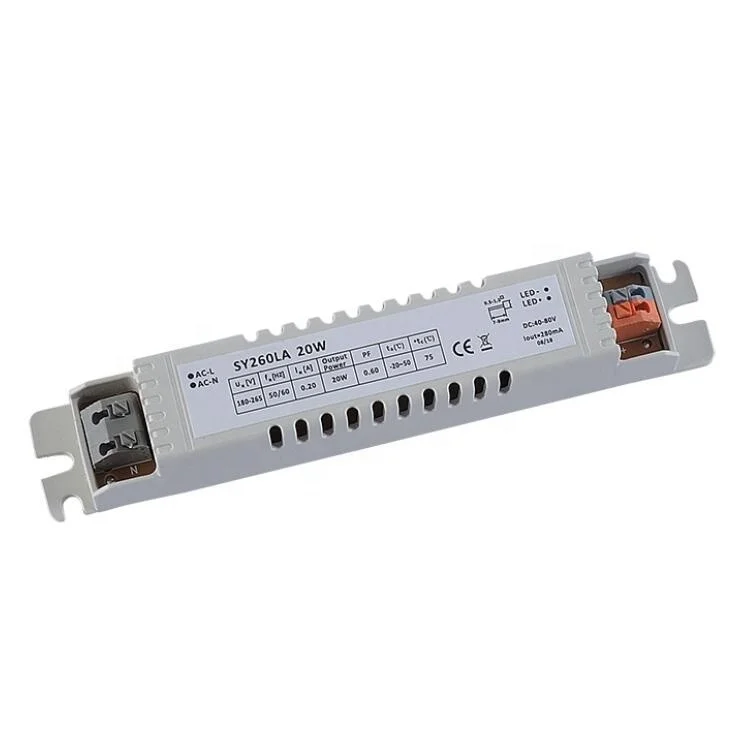

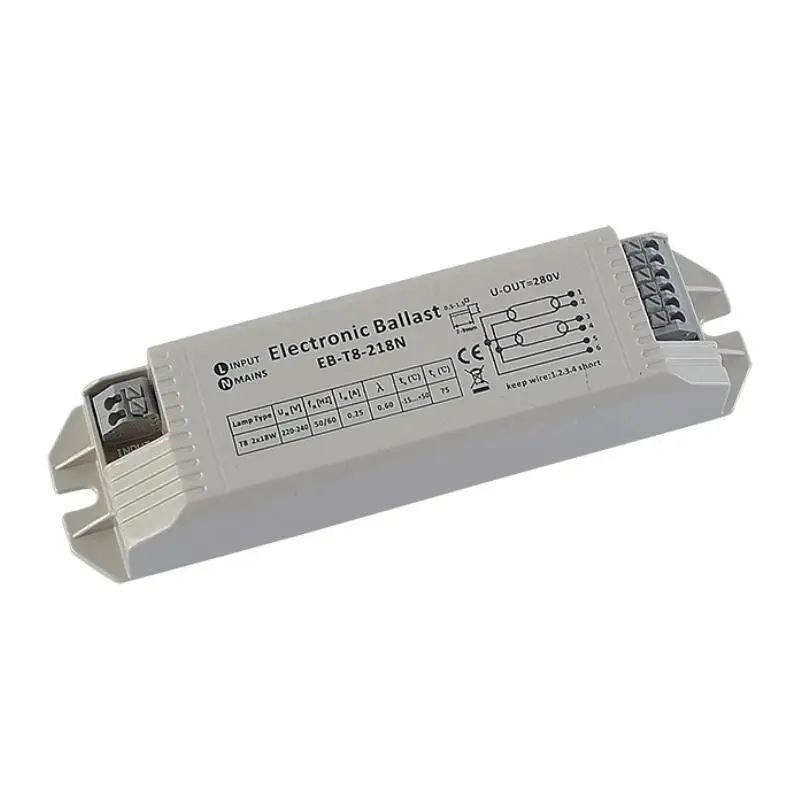

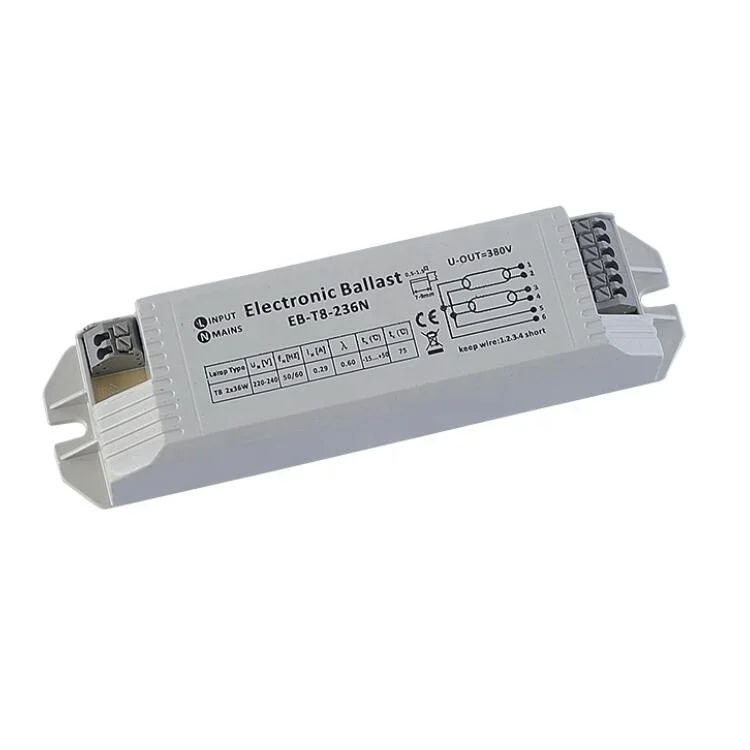

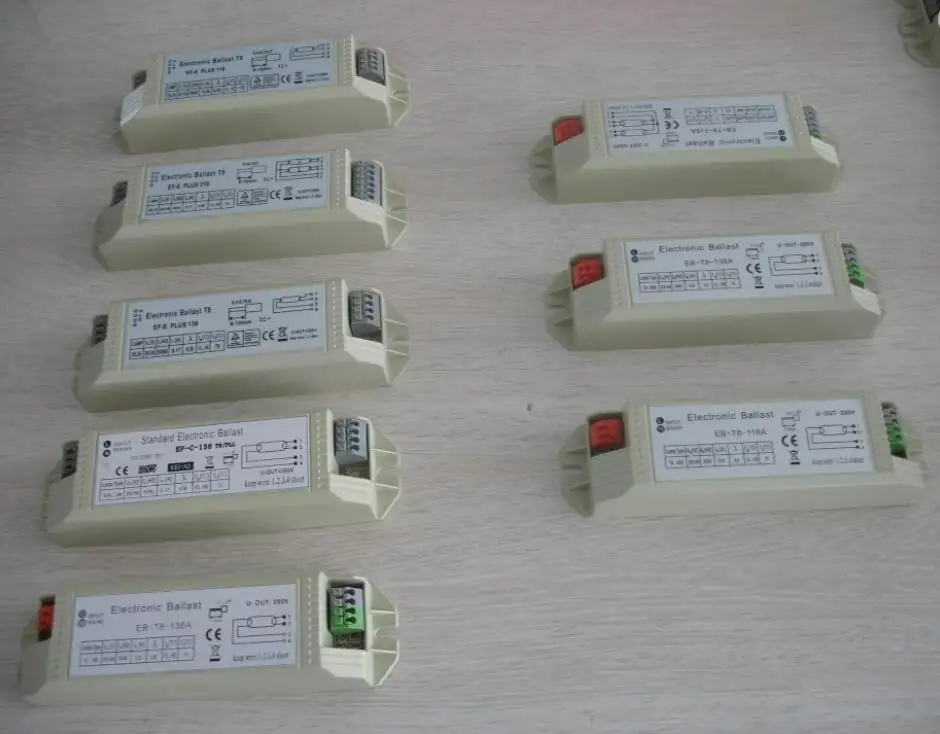

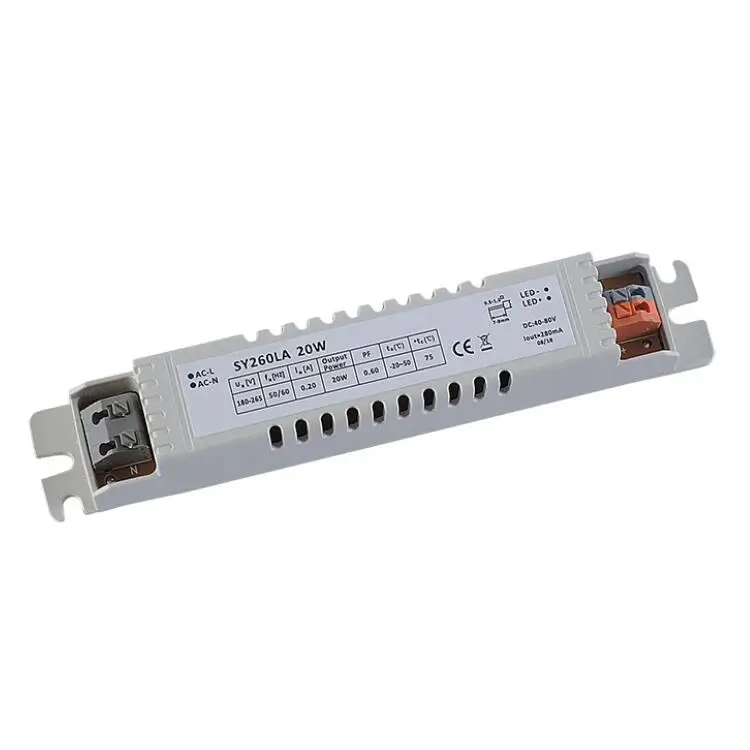

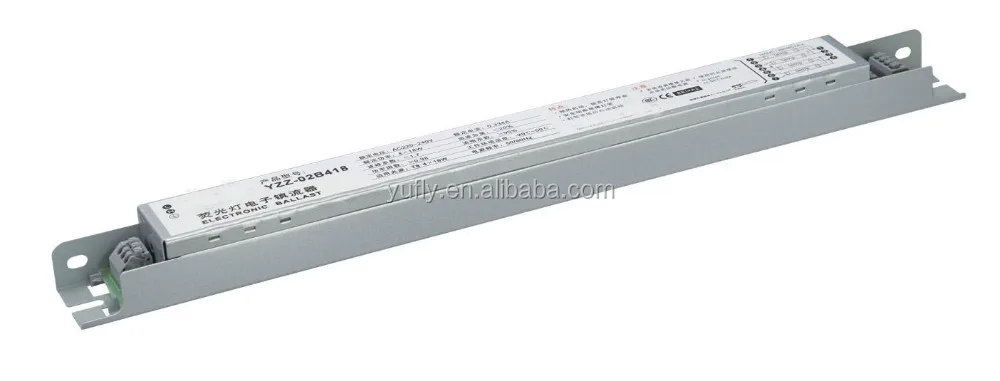

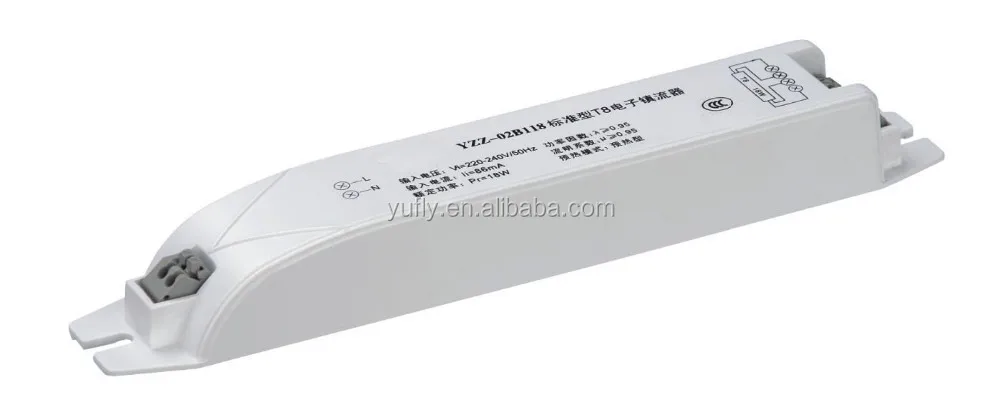

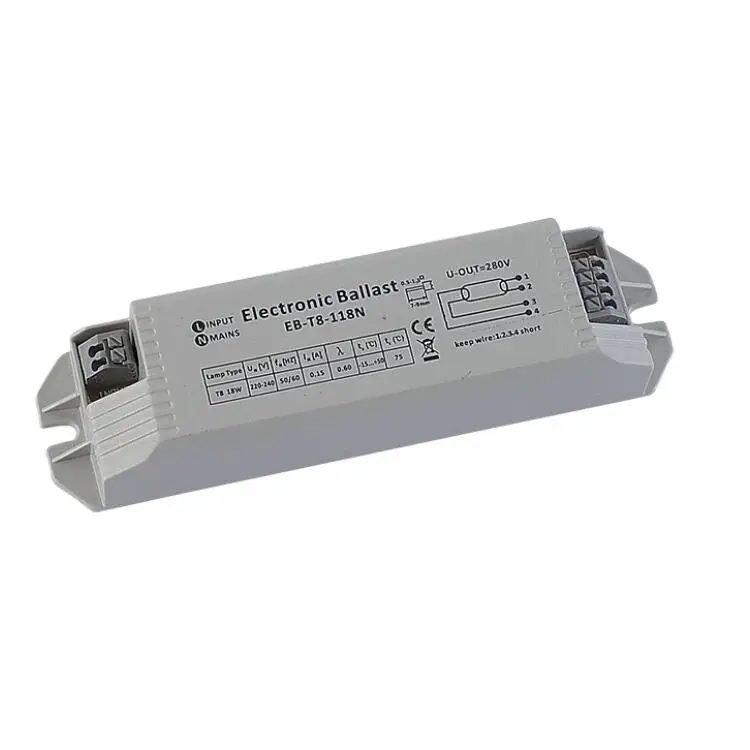

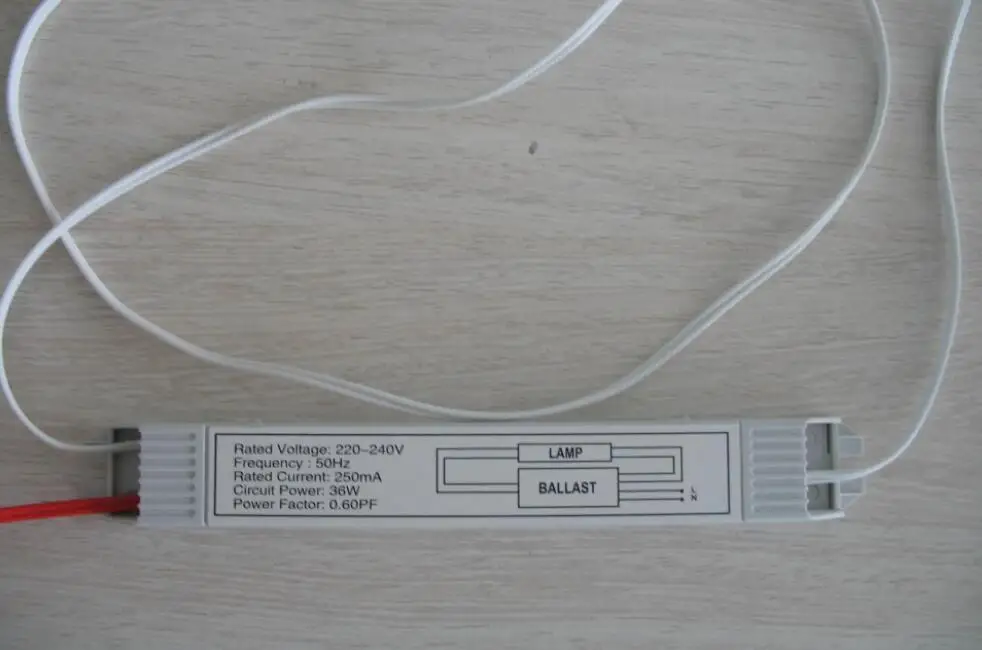

T8 110V 1X18W 2X18W 4x18W 1X36W 2X36W 3X36W 1X58W 2X58W Electronic Ballast

Product Overview

Description

• MB series metal halogen ballast is of high energy-saving, stable performance, longtime life and safety, which is mounted in metal halogen lamp


• It is used widely, such as department store, stadium, high building, exhibition hall, entertainment place, also can be used in road, plaza, airport, railway, wharf and more


• The metal halogen ballast much with according specification metallic specification metallic halogen bulb and trigger which is European standard


• When the ballast works with bulb, the power-supply’s voltage doesn’t surpass+10% rated value


• The mount is in accordance with wiring diagram


• Keep well electricity contact


• The input end of power-supply is mounted with the dude (the current is two times than bulb’s working current)


• Ballast’s coil can withstand 2000V of iron core


• Thus the applicable trigger needs three-end-pulse type, which prevent pulse-high-voltage from imposing on ballast


• It is system wiring diagram is as following


• The usage environment is not more humidity is not more than 90%


• The temperature is not more than +45℃
