A4 roll Paper Cutting packing machine

Product Overview

Description

 CY- A4 roll Paper Cutting packing machine

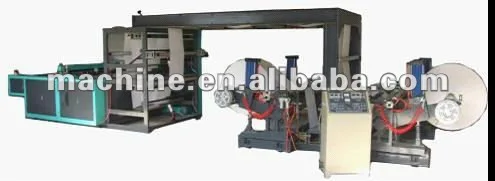

We have three type cutting machine, one is sigle material roll loading, second is double material roll loading,third is four material loading.

The difference of the three machine is in output, double roll is two time, four roll is four time faster than sigle roll machine.

The materil roll width is 1100mm and 1400mm, two width can be chosen.

And we have the paper packing machine to work on line, there are two types machine for choice, one is good for seprate working, another is for online machine worki\\ng.

Please let me know which one you prefer. and contat me

whatsapp/viber 0086-15988795434, skype viviyang9, wechat viviyang2012.



 1.HQJ-D(A4) Paper Cutting Machine

Performance and Characteristics:

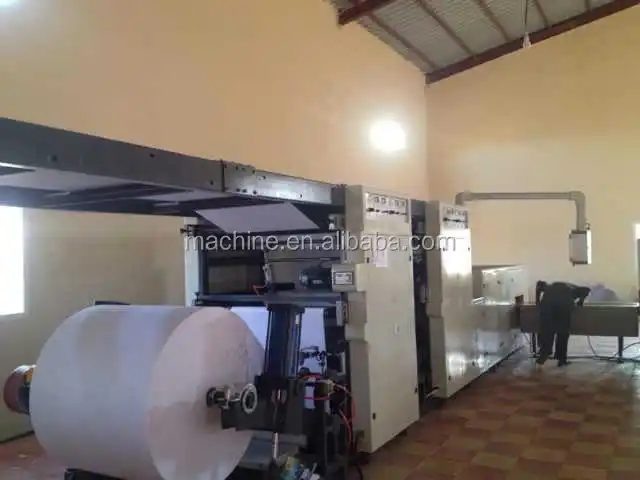

This A4 paper cutting machine ( A4 paper sheeter )is suitable for cutting big rolling packaging materials such as paper,paper-plastic,multicolor laminated  material,etc.
1.It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2.It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
3.This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically,adopt blower to get rid of waste.

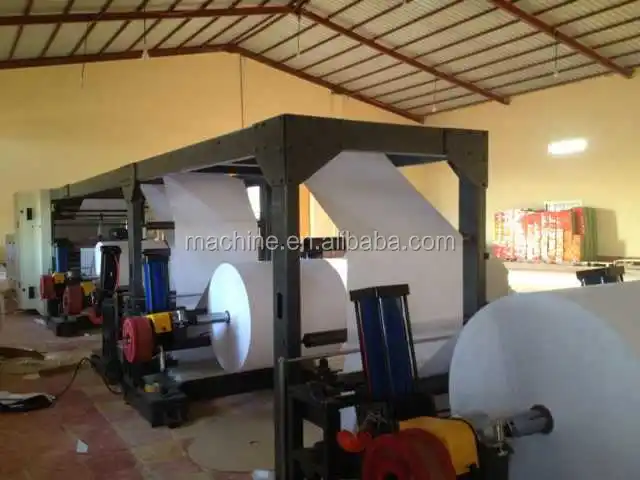

4.We have three types machine of single roll,double roll and four roll loading. It can cut one, two or four paper material rolls at the same time, which decide the speed.

Main Technical Parameters



Model	HQJ-1100D
Max.width of cutting	1000mm
Max diameter of material	Φ1400mm
Min.width of cutting	50mm
Length of cutting	20-400mm
Speed	10-140times/min
Precision	±0.2mm
Total Power	9.5kw
Weight	3500kg
Overall dimension(L*W*H)	8600x1500x2000mm



 Video //www.tudou.com/programs/view/stAjKiBncc8/

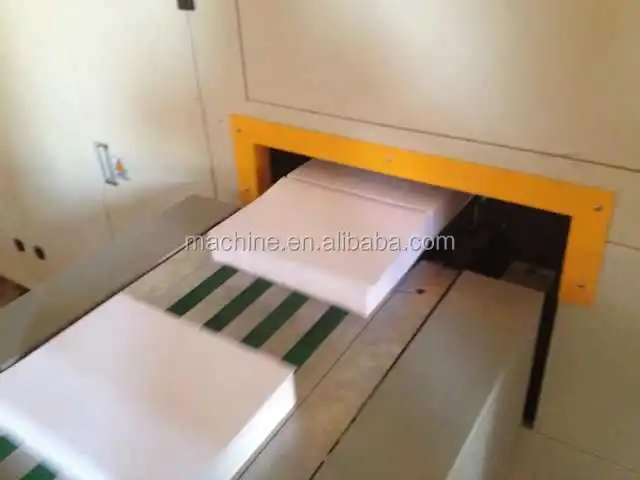

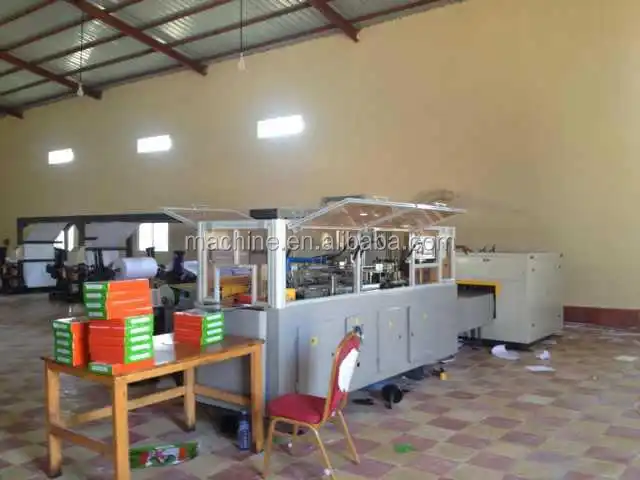

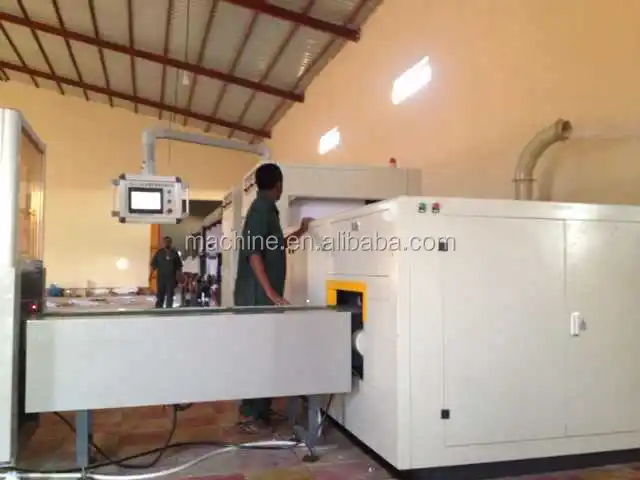

2.A4 Paper Packing Machine

Performance and Characteristics:

This machine can pack A4 copy sheets(210*297mm),B5 copy sheets(182*257mm) and 16K copy sheets(195*270mm)

1.Multifunction digit-display infinite speed regulation, PLC control system

2.Touch screen, man-machine interface

3.Fully automatic feeder

4.Can pack common and advanced printed sheets

5.Advanced automatic gluing spraying system

6.Can reduce packing cost and make it veracity,effect,sealing capacity are increased

7.The packing effect can be up tp international level

Main Technical Parameters

Model:CY-A4

Speed:10-15pcs/min

Packing size:210*297*50mm

Power:5.1kw

Air Compressor:0.5-0.7mpa

Machine size:4600*940*1400mm

Machine weight:1350kg

Video: //www.tudou.com/programs/view/b5MnZvSgwe0/
