metal coil used cut to length line for sale
- Category: Cut to Length Line >>>
- Supplier: Wuxi Bangzhou Machinery Manufacturing Co. Ltd.
Share on (60295643118):
Product Overview
Description
Products Description

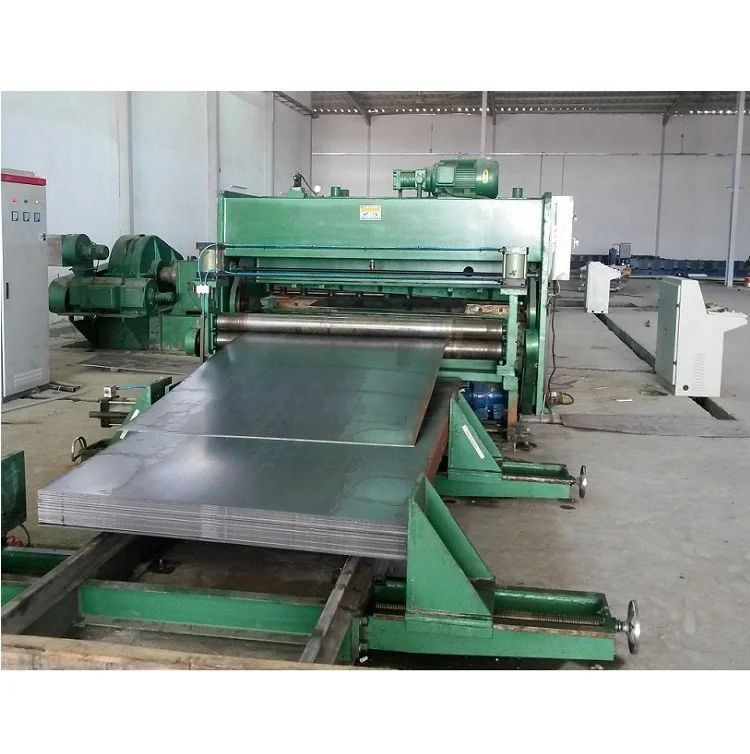

Automatic cut to length line
Automatic cut to length line is a complete line to cut the steel sheets from the steel coils. With the PLC , it can cut various size you need.
It can cut cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc.
Automatic cut to length line is composed of the entry coil car, decoiler, straightening machine, Looper, servo straightening machine, high speed cutter, transportation table, Pneumatic piling device, X-shaped lifting table, Exit sheet car.
Product Paramenters
No. | Item | Parameters |
1. | Application | CR, GI, PPGI, SS/HR |
2. | Thickness | 0.3-3mm |
3. | Width | 500-1250mm/1600mm |
4. | Coil weight | 15T / 20T |
5. | Coil ID | 508mm |
6. | Length precision | ±0.5mm |
7. | Diagonal precision | ±1mm |
8. | Cut length | 500-4000mm |
9. | Line speed | 0-80m/min |
10. | Control model | PLC control |
Details Images

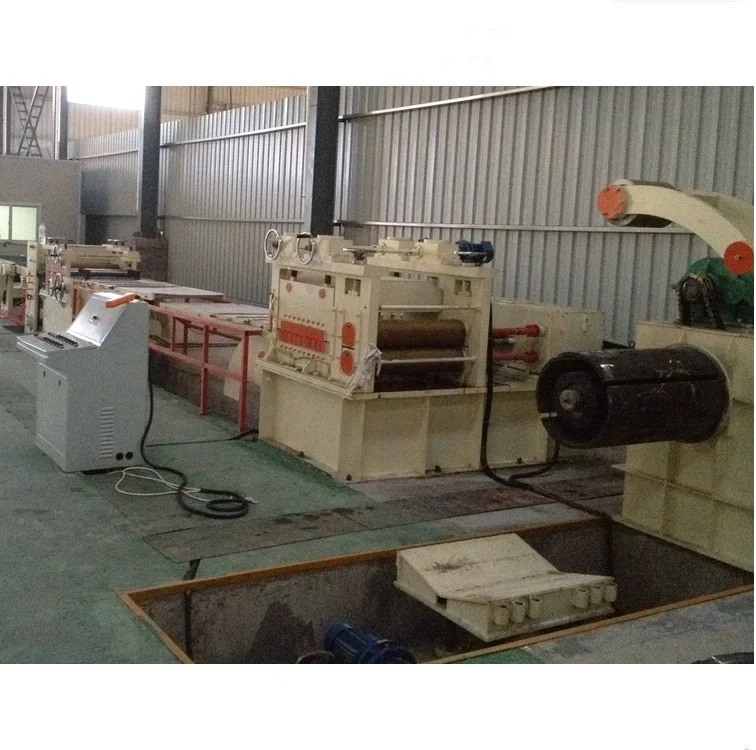

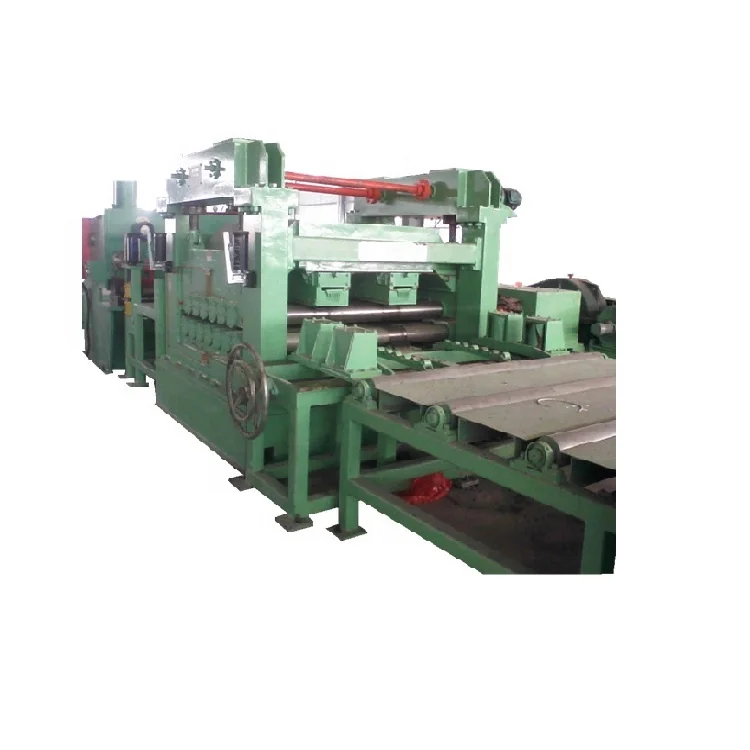

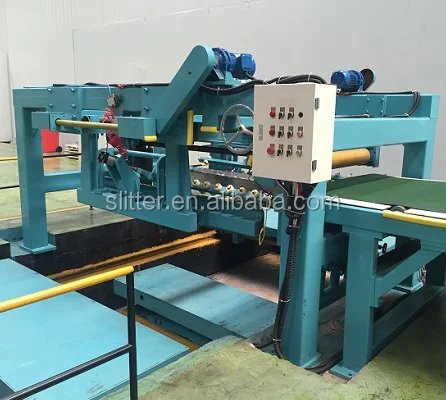

Straightening machine
1. Straightening machine or leveling machine is the important parts . It will influence the flatness of the final sheets.
3. At the entry part, it is equipped with the press and pinch device to feed the steel sheets conveniently.
4. The upper rollers can be lift up and down by motor as per different thickness

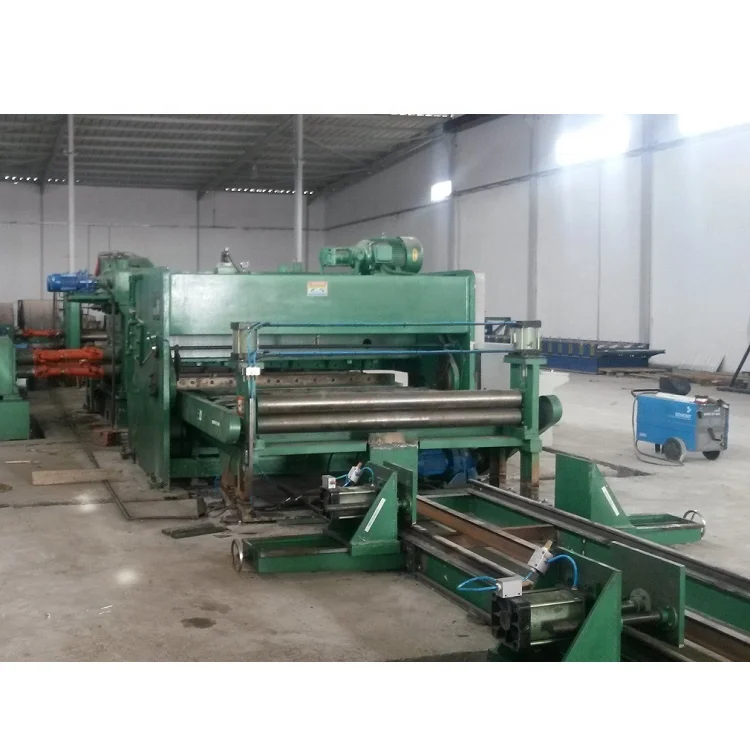

High speed cutter
1. We adopts the high speed cutter design to guarantee the fast production.
2. The cutter cooperates with the servo motor, make the fixed length cutting possible. Cutting length precision can be reach up to ±0.5mm.
3.The cutter is designed to cut from down to up way to protect the sheet surface.
4. Cooperate with the belted table, it can ensure the high speed .

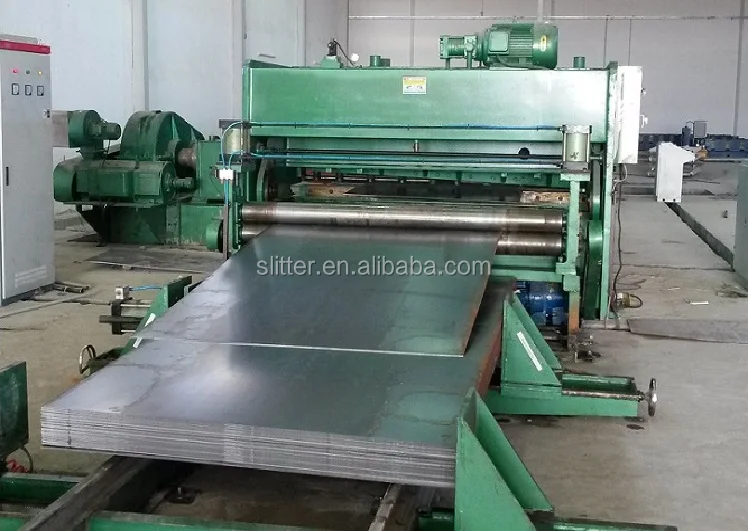

Automatic stacker
1. Automatic stacker part includes the pneumatic piling device, X-shaped lifting table, exit sheet car.
2. For this part, it is equipped with the independent control panel to make it convenient to operate.
3.The car moves out on the railway to make it easy to packing the buddle of sheets.
4. Pneumatic piling device can ensure the buddle of sheets in good order .
Manufacturing Technique
Wuxi Bangzhou Machinery Manufacturing Co.,Ltd has the abundant technical strength, professional production capacity to make us as one of the leading enterprises in the industry in product design and development.
We have seveal independent working area,fine machineing area, welding area, aeesmbly area and so on . All department is equipped with 1 or 2 testing technicians to guarantee the machine with high precision.
All the machines are managed and tested all-round before delivery to guarantee them in best condition when they are handed over to the customers.
Company Profile
Wuxi Bangzhou Machinery Manufacturing Co.,Ltd Located in Wuxi city, is a company specialized in steel coil slitting line, cut to length line, flat bar straightening and chamfering machine, and other steel coil cutting machines.
We gained the great reputation all over the world in the field of steel slitting line and cut to length line.
Welcome to your inquiry, we will do the best we can to build the machine you want!

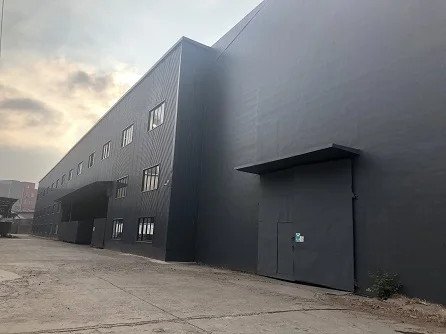

Factory:Over 8000 square meter area. All the design, produce and assembly will be finished here.
Warehouse : Over 2000 quare meter space. Mainly used to store the ready machines .
Office building: domestic and internation sales department, designing department, management department.
Certifications
Customer Photos
Exhibition
FAQ
(1) What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and rich experienced..
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 4 lines per month
(2) Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any
problem , contract us and we will solve for you.
(3) How to visit your company?
Our factory is located in Wuxi city, near SHANGHAI. So there are two ways to our factory.
(4) What information you need to prepare the quotation:
1. coil thickness(min-max)
2. coil width(min-max)
3. what kind of your material
4. weight of your coils(max)
6. how many tons you need per day or per month
A1:More than 15 years experience in manufacturing the machines. Professional and rich experienced..
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 4 lines per month
(2) Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any
problem , contract us and we will solve for you.
(3) How to visit your company?
Our factory is located in Wuxi city, near SHANGHAI. So there are two ways to our factory.
One is by flight, directly to Wuxi Airport.
Another is by high speed train to WUXI EAST station.
We will pick you up at the train station or airport.
(4) What information you need to prepare the quotation:
1. coil thickness(min-max)
2. coil width(min-max)
3. what kind of your material
4. weight of your coils(max)
6. how many tons you need per day or per month
