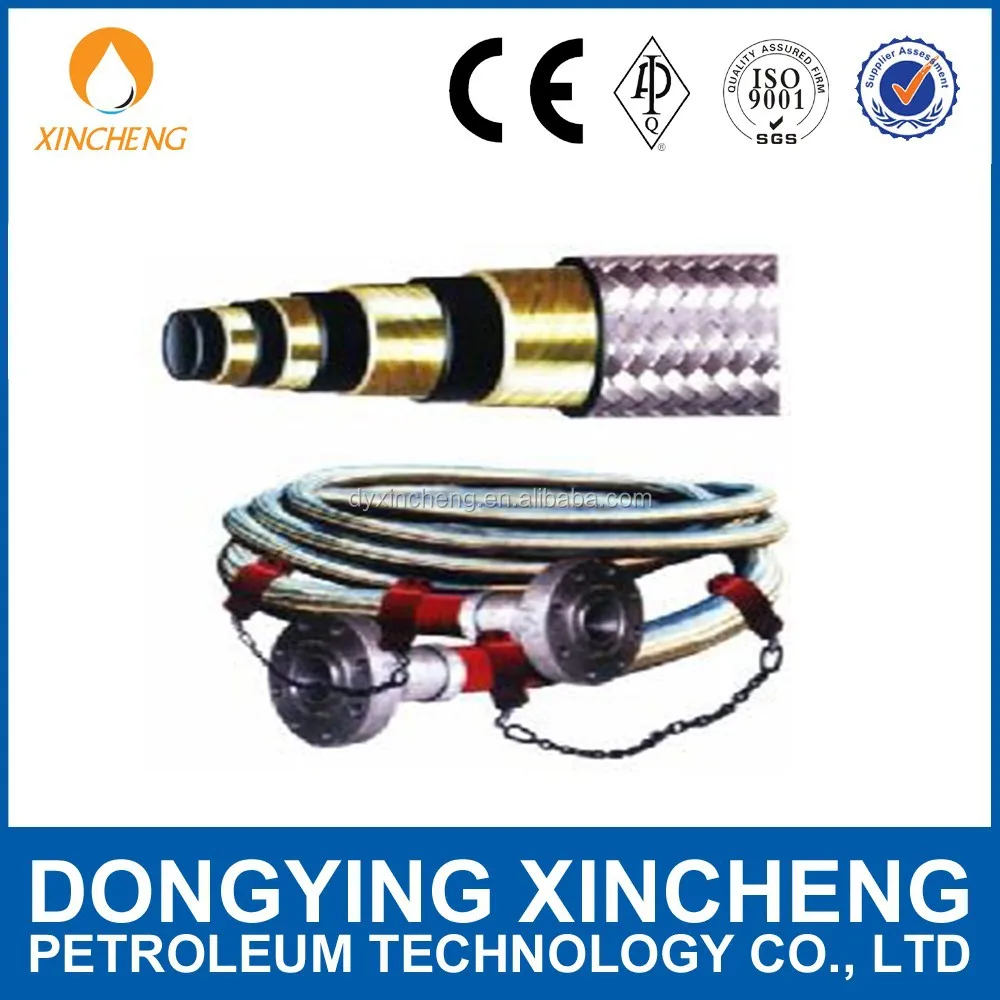

API 16C High pressure flexible kill/choke hose line(Stainless steel armored)
Product Description
Application:
The choke & kill line works as the connection part when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and for adjustment of the installation variance of the drilling rig.
It transfers oil, gas, mud and other high pressure media.
It is mainly used for connection of inner and outer high pressure choke and kill hose and as flexible connection between mud & gas separator and choke manifold.
Standard: API Spec 16C & SY/T5323-2004.
Features: high pressure resistance, thermal insulation, flame-retardant, fire resistance, oil resistance, high abrasion resistance inner wall and long operating life.
Fittings: Swaged fitting, integral vulcanized, integral flange and union are available according to clients' requirements.
Classification: Stainless steel armored and stainless steel wire braided.
SPECIFICATION
ID mm(in)
Rated work pressure MPa(psi)
Test pressure MPa(psi)
Min. burst pressure MPa(psi)
Min. bend radius (mm)
50.80(2)
35.00(5000)
70.00(10000)
105.00(15000)
900
64.00(2-1/2)
1000
76.20(3)
1000
89.00(3-1/2)
1100
101.60(4)
1200
50.80(2)
70.00(10000)
105.00(15000)
157.50(22500)
1000
64.00(2-1/2)
1100
76.20(3)
1150
89.00(3-1/2)
1200
101.60(4)
1250
50.80(2)
105.00(15000)
157.50(22500)
236.25(33750)
1000
64.00(2-1/2)
1150
76.20(3)
1200
50.80(2)
138.00(20000)
207.00(30000)
310.00(45000)
900
64.00(2-1/2)
1100
76.20(3)
1200
Packaging & Shipping
Packaging:Standard seaworthy packaging or as per requirement.
Shipping:By air or sea
