Product Overview

Description

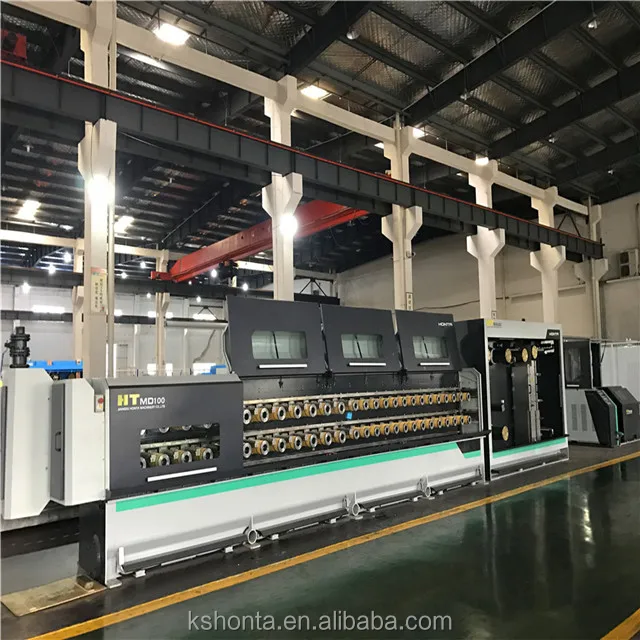

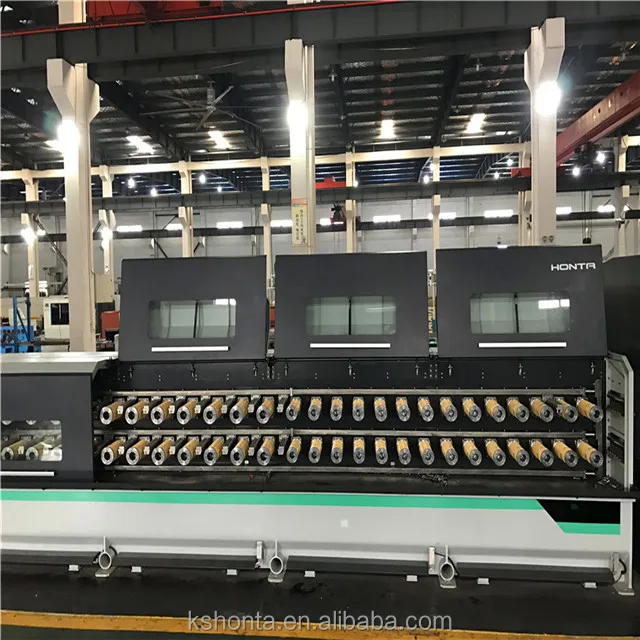

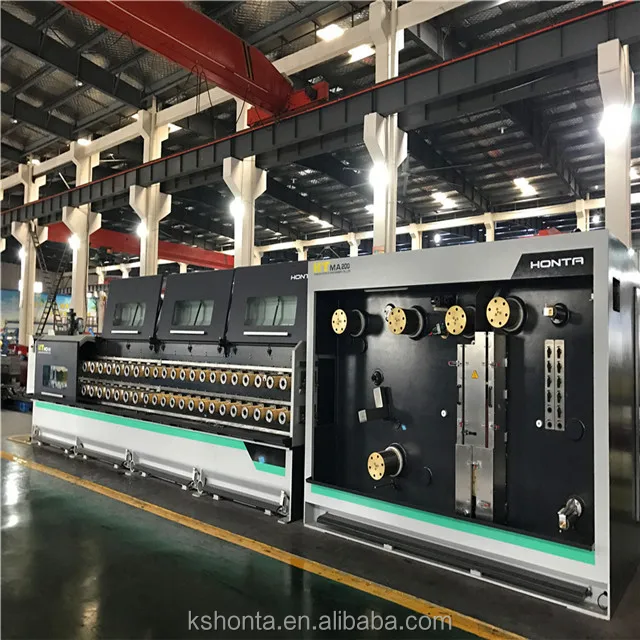

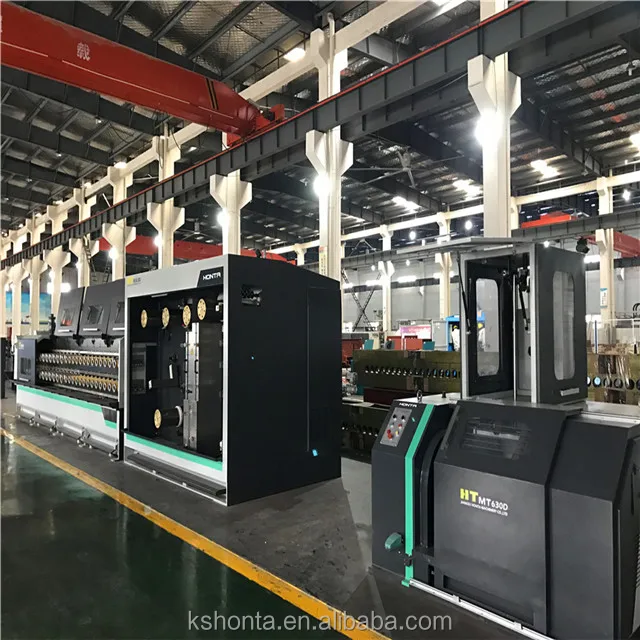

Multiwire  Drawing Machine 16wires With Continuous Annealer ( 8/10/14/16/24wires )



Feature:

• Ø  Drawing machine Driven by high precise helical gears; particular oil lubrication mechanism;


•      dual motors drive;


• Ø  The capstan and die lubrication system is in emulsion spraying with force from inside of die


•       holders design; In this way, Drawing machine the lubrication is more sufficient and it save space,


•       moreover,   it makes operation more convenient;


• Ø  Annealing part of drawing machine contact copper rings, nickel tubes are made from special alloy;


•      it can ensure a


•      longer service life;


• Ø  The annealer control system is in zero length preset voltage design, so that it can ensure


•       stable annealing of wires in the process of machine start and stop;


• Ø  Drawing machine A special mechanism is designed to meet requirements of drawing bare


•     copper wires, tinned copper wires and silver plated copper wires.

-------------------------------------------------------------

Drawing machine 16wires Technical specification:

Machine type	HT-MD150	HT-MD120	HT-MD100	HT-MD100
Material	Cu
Machine speed	Max.1800m/min
No.of wires	2/4	8/16	8/16	8/16
Inlet dia.	1.60-2.00mm	2.60mm	1.60-2.00mm	2.60mm
Finished dia.	0.15-0.60mm	0.20-1.35mm	0.15-0.50mm	0.15-0.50mm
No.of dies	21/25	22/25	22/25	31
Drawing capstan dia.	150mm	120mm	100mm	100mm
Finished capstan dia.	150mm	120mm	100mm	100mm
Dies change system	Fast dies change design for 3dies
Control method	DC/AC
Drive method	Two motors



Continuous Annealer:

Machine type	MT1000	MT2000	MT2500	MT4500	MT7000
Material	Cu
Machine speed	Max. 1800m/min
No. of wires	2/4	8	16	8/16	8/16
Wires range	0.15-0.60mm	0.15-0.50mm	0.15-0.40mm	0.20-1.05mm	0.20-1.35mm
Contact pulley dia.	140	140	140/160	200	200/250
Annealing current	Max.1000A	Max.2000A	Max.2500A	Max.4500A	Max.7000A
Annealing power	85kw	160kw	190kw	360kw	540kw
Control method	DC Resistance Annealer



--------------------------------------------------------
