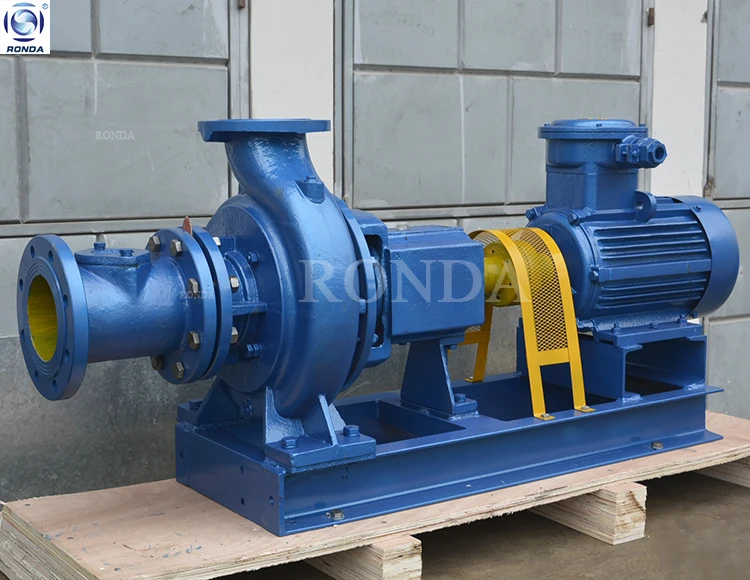

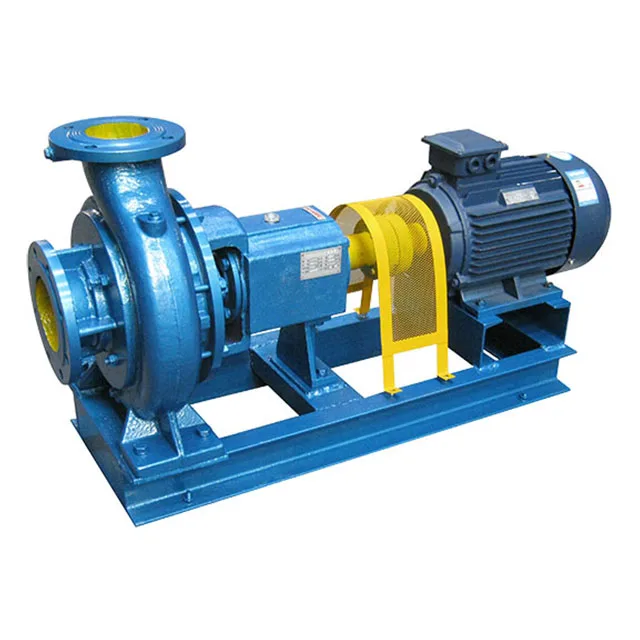

XWJ 50kw heavy duty centrifugal sewage water pump bilge pump

Product Overview

Description

XWJ 50kw heavy duty centrifugal sewage water pump bilge pump











XWJ 50kw heavy duty centrifugal sewage water pump bilge pump

∗Semi-open or all open type impeller, centrifugal pump structure, the gap between wear plate and impeller is adjustable, and the shaft seal is mechanical seal and made of high quality material.

∗Widely used to transfer pulp, waste water in light industry or papermaking. Also being used in industry & city water supply & drainage.







Working Principle:	Centrifugal
Flowrate	20-400m3/h(88-1760US.GPM)
Head	12.5~32m
Max.permissible fluid temperature:	110°C(230°F)
Power	1.5~55KW
Casing parts material:	Cast iron, Stainless steel
Caliber:	DN65~DN200







Model		Capacity  (m³/h)	Head  (m)	Inlet  (mm)	Outlet  (mm)	Motor power  (KW)	Speed  (r/min)
80XWJ25-12.5		25	12.5	80	65	2.2	1450
80XWJ25-12.5A		20	10			1.5
80XWJ25-20		25	20			3
80XWJ25-20A		20	16			2.2
100XWJ50-20		50	20	100	80	5.5
100XWJ50-20A		45	18			4
100XWJ50-20B		45	16			4
100XWJ50-32		50	32			11
100XWJ50-32A		40	26			5.5
125XWJ100-20		100	20	125	100	11
125XWJ100-20A		90	18			7.5
125XWJ100-20B		80	16			7.5
125XWJ100-32		100	32			15
125XWJ100-32A		90	28			11
125XWJ100-32B		80	26			11
150XWJ200-20		200	20	150	125	18.5
150XWJ200-20A		180	18			15
150XWJ200-20B		160	16			11
150XWJ200-32		200	32			30
150XWJ200-32A		187	28			22
150XWJ400-32B		170	24			18.5
200XWJ400-20		400	20	200	150	37
200XWJ400-20A		380	18			30
200XWJ400-20B		340	15			22
200XWJ400-32		400	32			55
200XWJ400-32A		375	28			45
200XWJ400-32B		340	24			37
