YS D331E Glue Dispensing Machine for transformer or replay

YS D331E Glue Dispensing Machine for transformer or replay

Category: >>>
Supplier: Shenzhen Robotsung Automation Technology Co. Ltd.

Price:$1,350.00 - $1,550.00

Quantity:

Product Overview

Description

Product Description

Product Application

Dispenser can be applied to the following areas:
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Small transformers, SMD transformers, relays, small coil motors.
3. Communications industry: the phone keypad, mobile phone casing bonding, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys, chassis bonding
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts fixed and dust and moisture protection, LCD liquid crystal screen, etc.
7 Optics: optical lenses, bald, head
8 Mechanical Hardware
9 Battery Box Sealed
10 Trademarks fixed bond
11.LED industry, widely used in LED industry, LED dispenser

Glue dispenser Specification
YS-D331E	Working area(X/Y/Zmm)	Resolution 0.01mm	Drive mode Micro Stepping Motor
		300x300x100	Repeatability +/-0.01mm	Power 220V /110V
		Max. Speed 500mm/sec	Display 5.7’ LCD	Temperature:5-40 degrees Celsius
YS-D441E	Working area(X/Y/Zmm)	Resolution 0.01mm	Drive mode Micro Stepping Motor
		400x400x100	Repeatability +/-0.01mm	Power 220V /110V
		Max. Speed 500mm/sec	Display 5.7’ LCD	Temperature:5-40 degrees Celsius
YS-D551E	Working area(X/Y/Zmm)	Resolution 0.01mm	Drive mode Micro Stepping Motor
		500x500x100	Repeatability +/-0.01mm	Power 220V /110V
		Max. Speed 500mm/sec	Display 5.7’ LCD	Temperature:5-40 degrees Celsius

Main Features

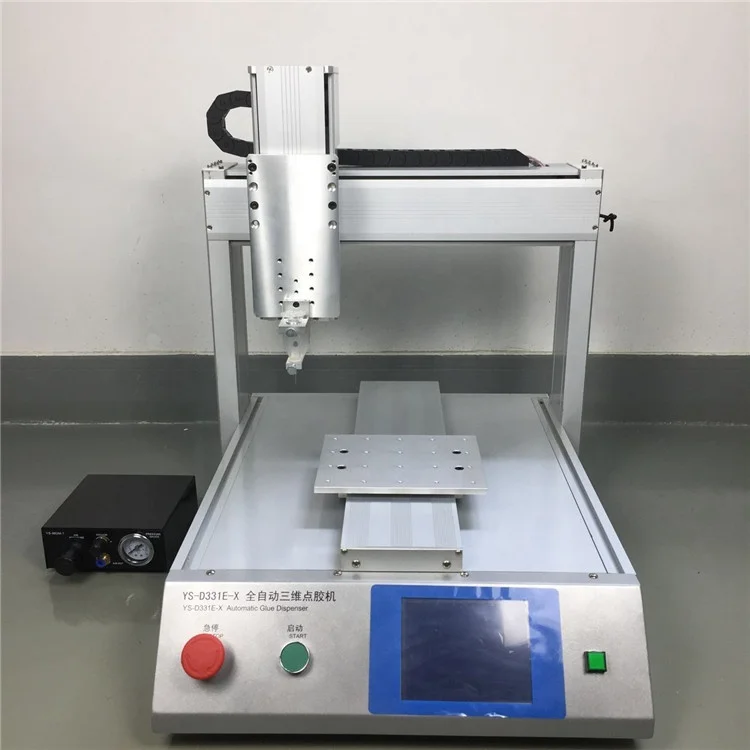

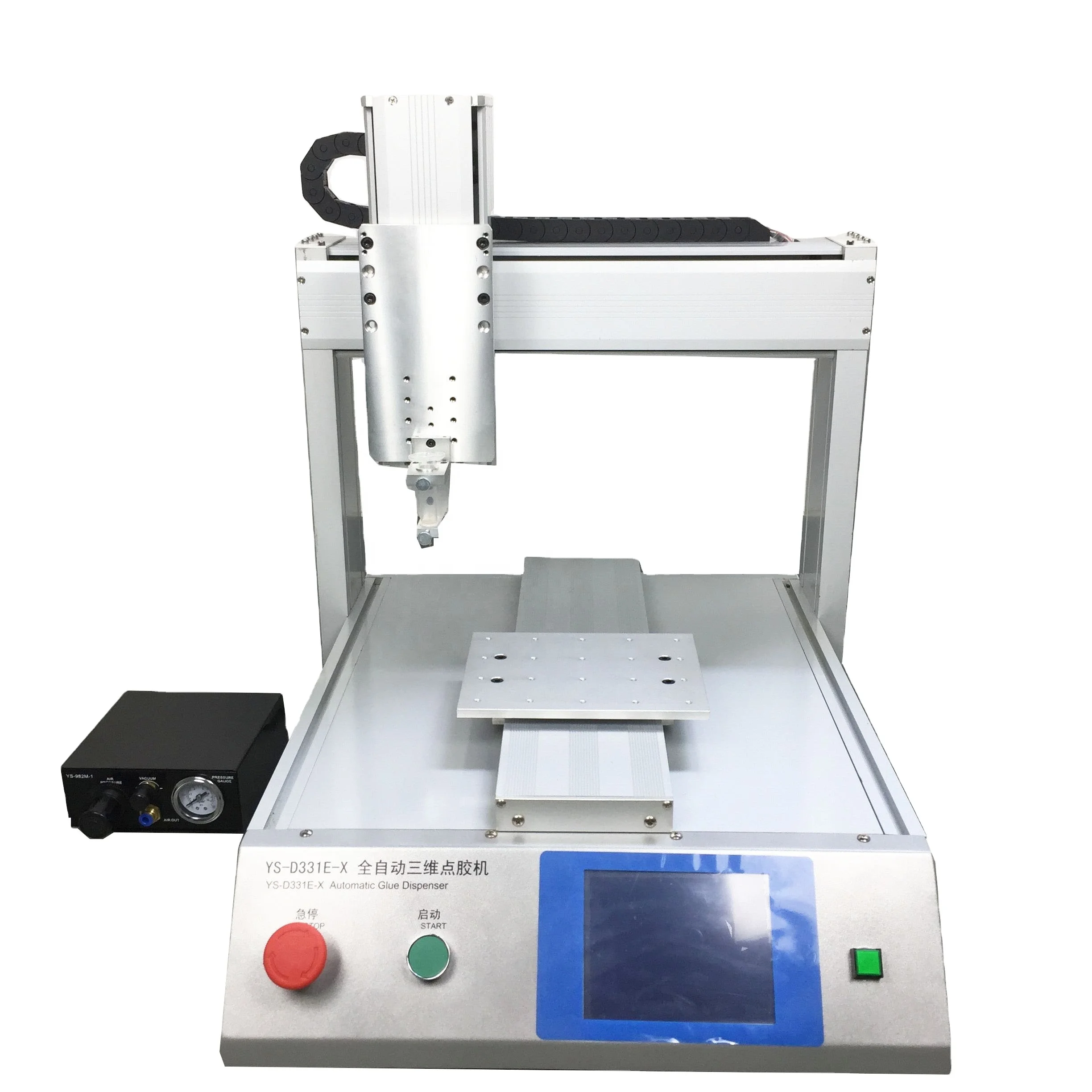

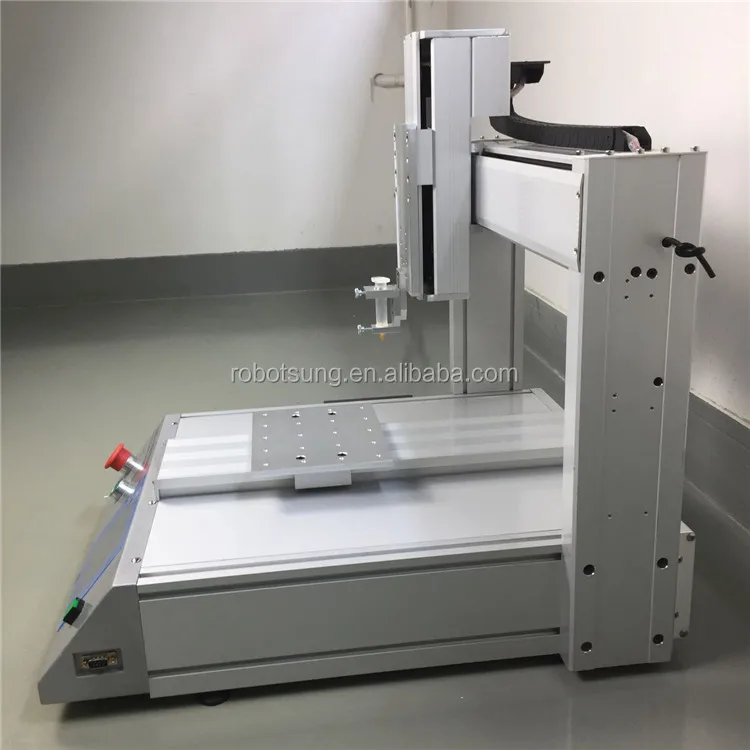

1) Full automatic robot glue dispenser, 3 axis. Locate precisely.

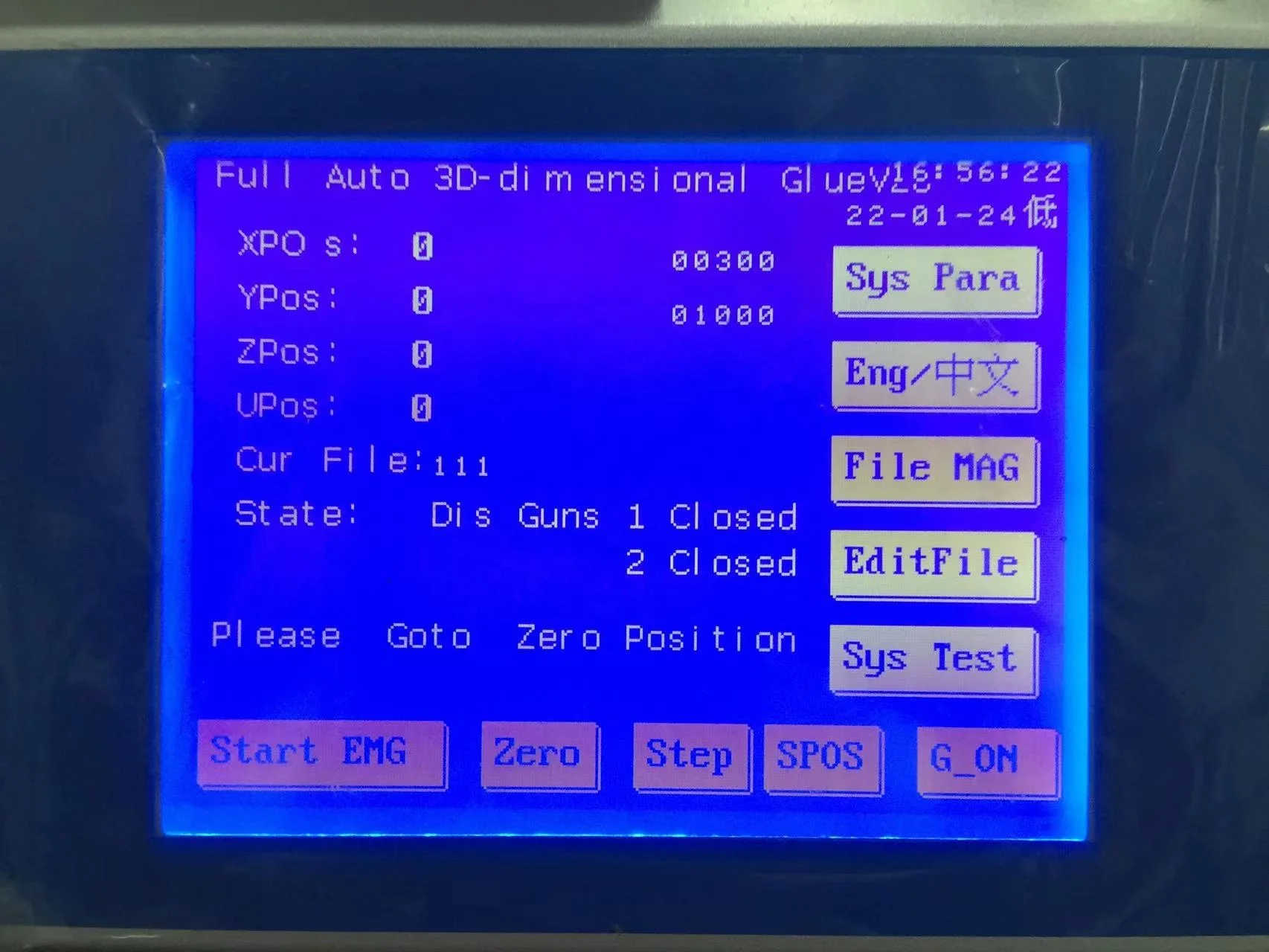

2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
7) Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Detailed Images
