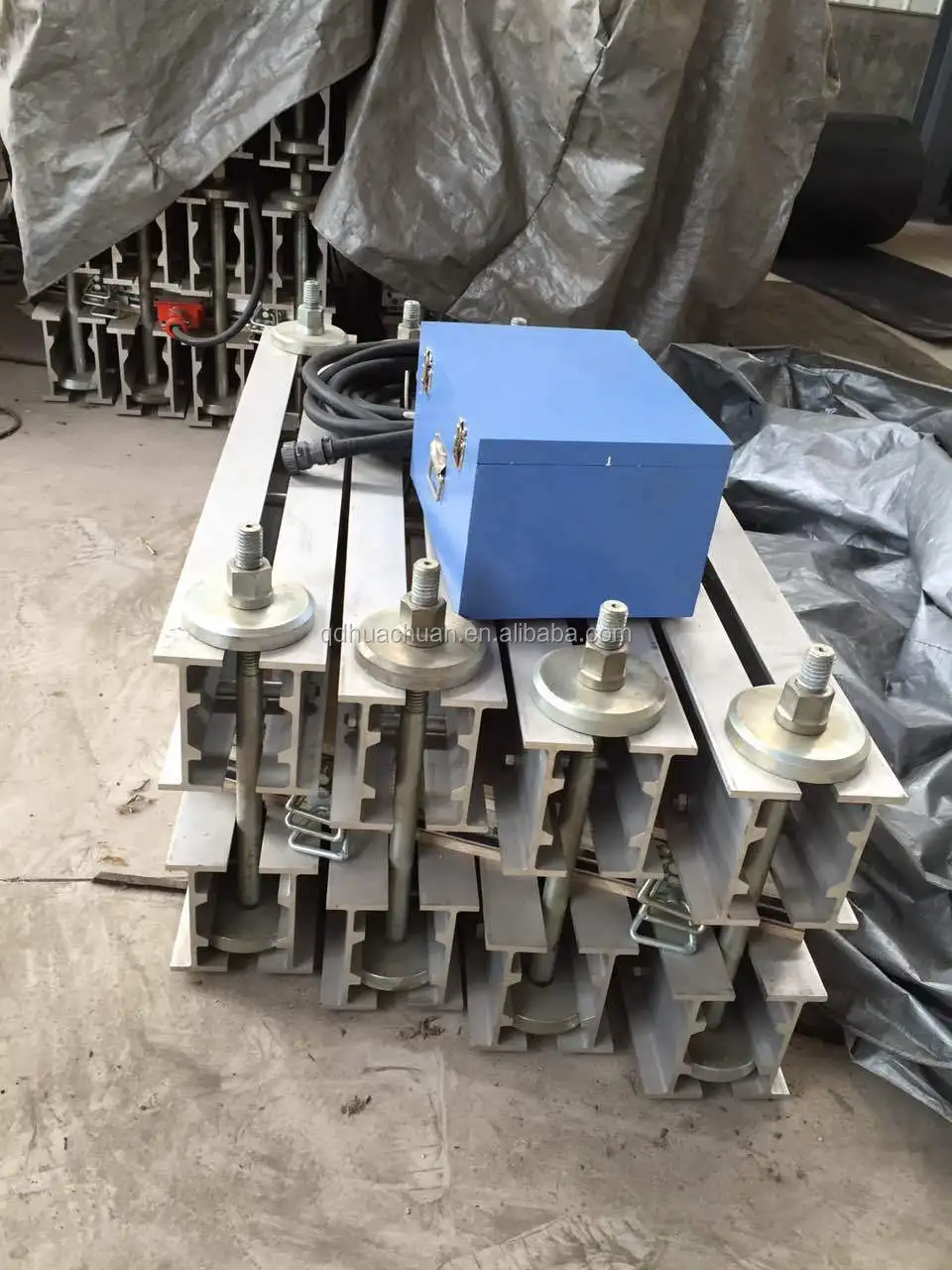

Conveyor belt joint vulcanizing press
Specification
1.This series is mainly used to vulcanize common rubber conveyor belt, nylonor belt ,PVC/PU conveyor belt ,steel wire core conveyor belt fabric core parallel adhesive tape.
2.Frame-type structure , hot plate and plunger are high quality material ,has the features with precision machining, difficult to abrasion, anticorrosion, convenient maintenance ,stable working pressure ,and easy to adjust.
3.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.
Technical parameter
Model | XLB1200x1200x1/2 |
Nominal mold clamping force(MN) | 3.15 |
Space between hot plate(mm) | 250 |
Working lager of hot plate | 1/2 |
Unit area pressure of hot plate(Mpa) | 2.19 |
Plunger stroke(mm) | 250 |
Heating mode | steam |
Main motor power(kw) | 5.5 |
Overall dimensions(mm) | 2800x1300x2300 |
Mzchine weight(kg) | 8800 |
Structural form | box type |
Certifications
Trade Shows
Delivery
Any needs,can let me know freely and send me email,we can make it as accordingly.
