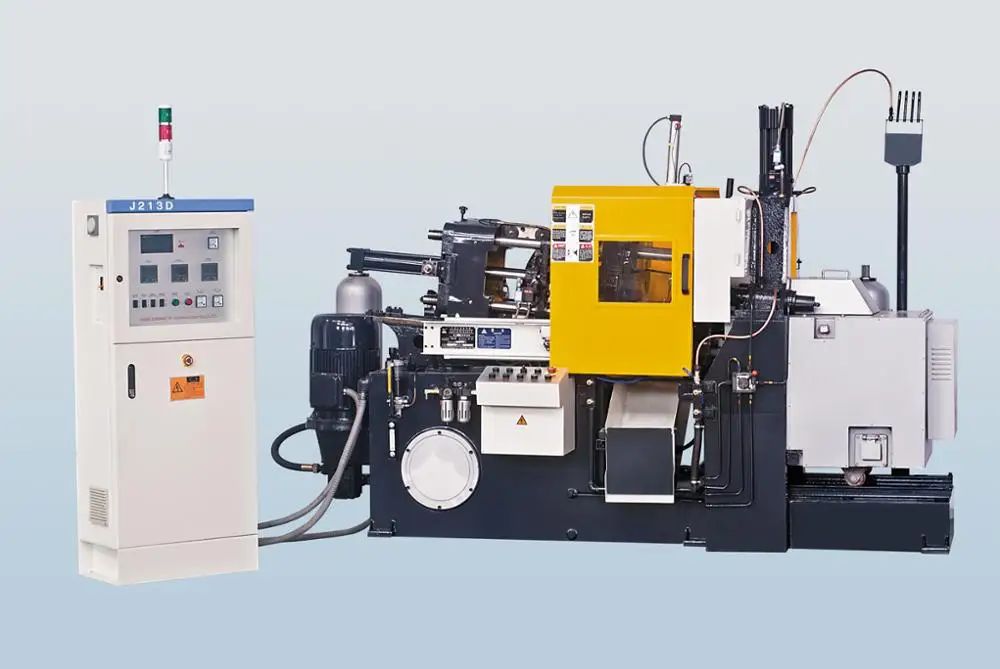

25TON/300kN small Lead metal casting machine

Product Overview

Description

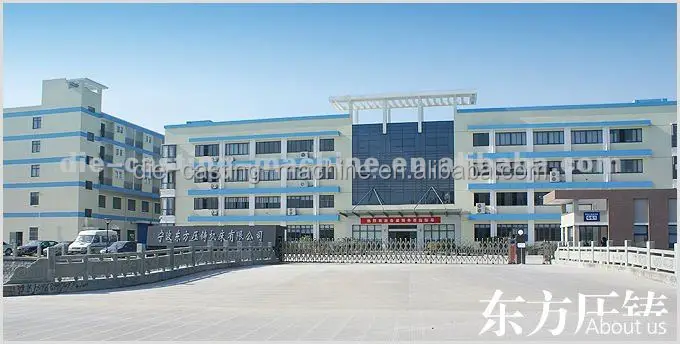

Our factory



In Ningbo Dongfan Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisistently pursue to provide perfect hot chamber / cold chamber die casting machine and sincere service.



Hot chamber die casting machine can help the manufactory do all kinds of product which is made of Zinc, Lead alloy.Mental casting means the machine can cast various shaps final product. Tell us what you want to make, the machine can help you reach the business goals through special mould. As a die casting machine manufacturer, we are happy to help all our clients to find the most suited mould for thir product.





* With a history of over  30  years                            * Factory Area : 40,000 square meters

*Employees : More than 500                                    *Production Capacity : 10,000-sets yearly capacity

*Company owed Tech & Research center               * Main Machines: 100sets

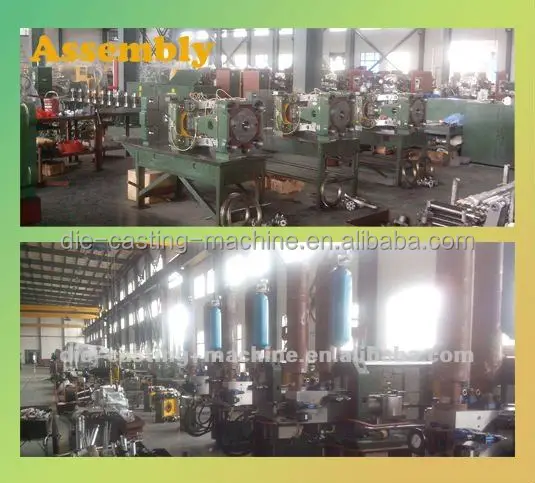

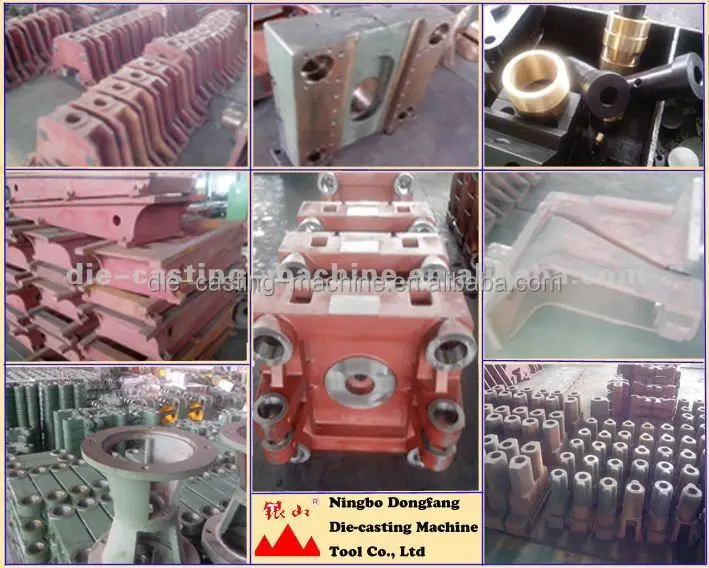

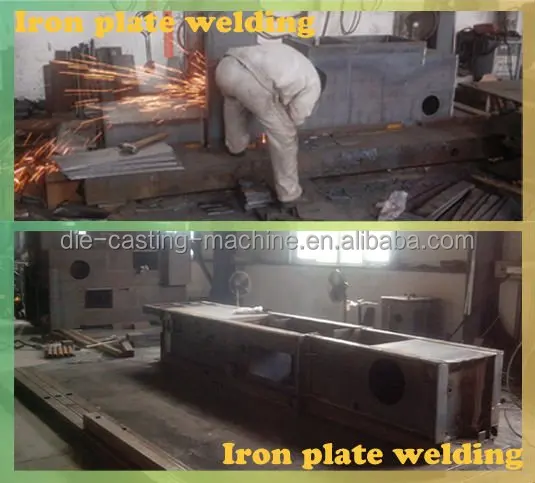

We can supply this Lead die casting machine  with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.

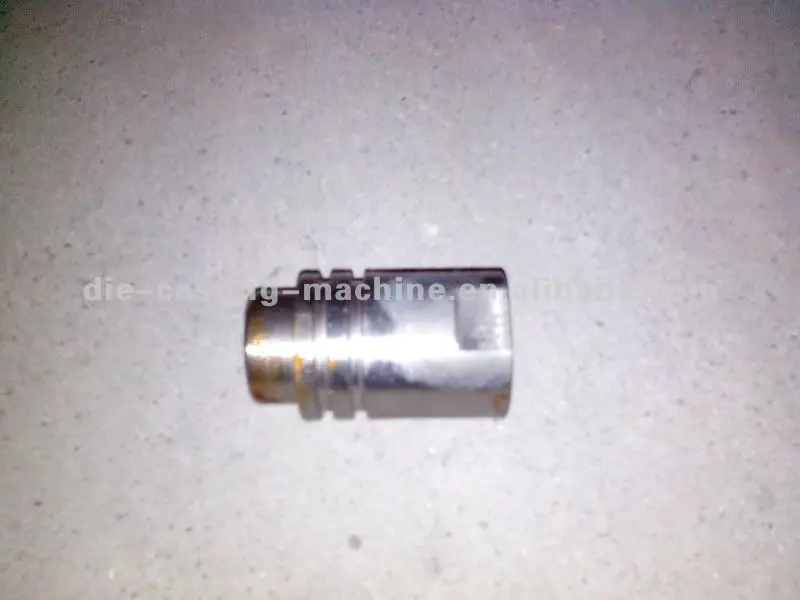

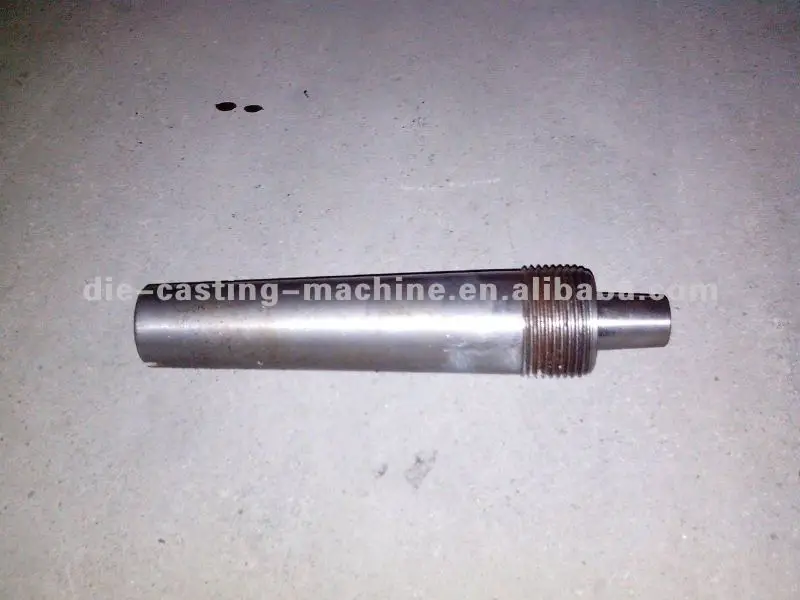

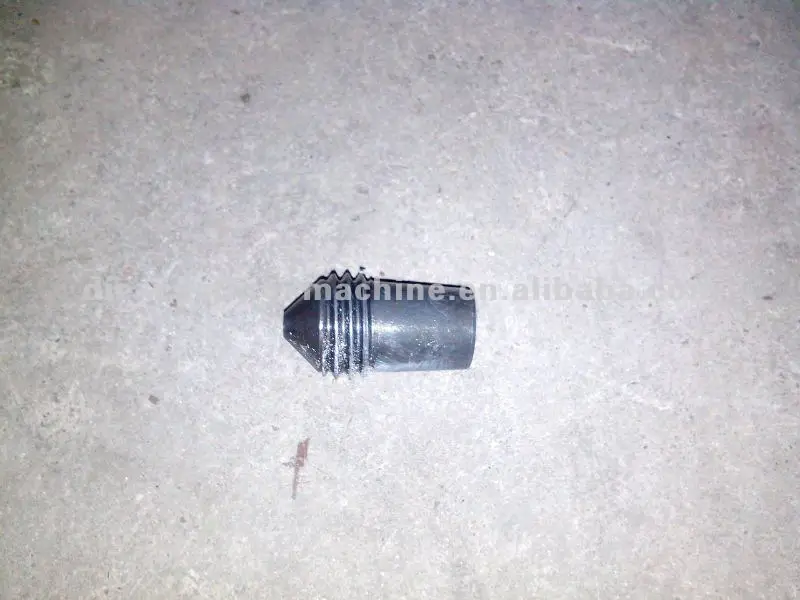

components of J213D lead die casting machine

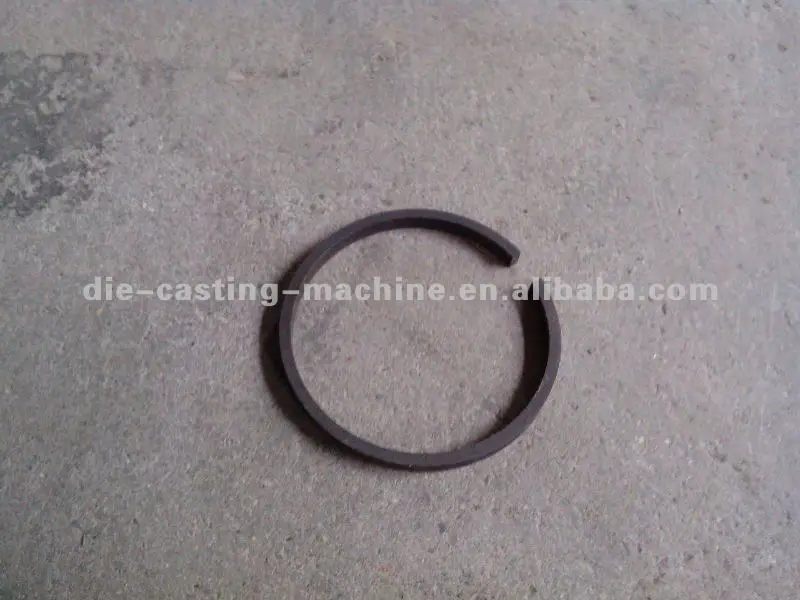

Injection ring		injection ram

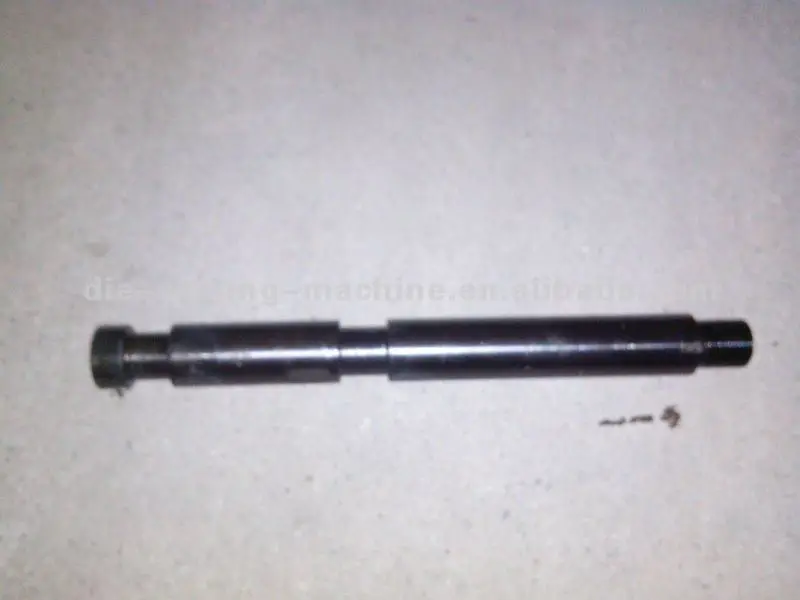

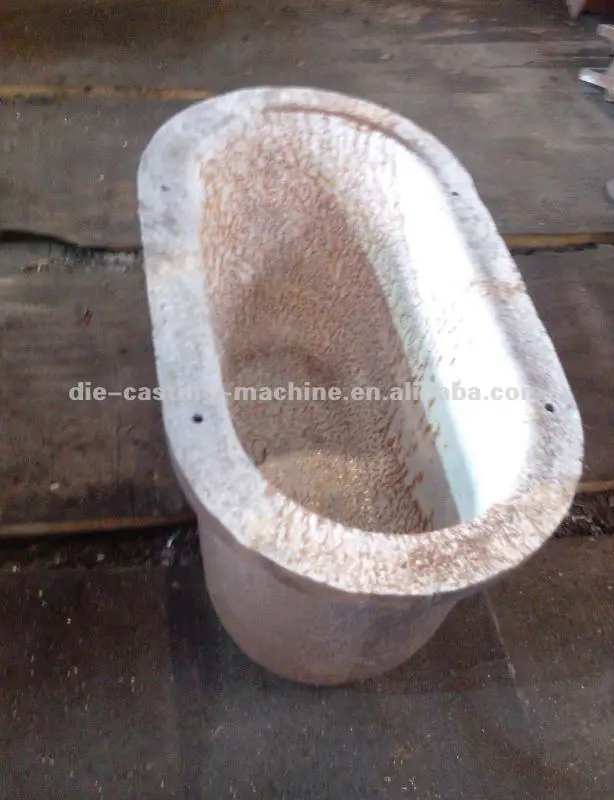

Injection stick		crucible
spray nozzle		spray pipe









  Specification of Lead die casting machine J213D





The project	unit	J213D
Die locking force	kN	300
Size of moving platen(HxV)	mm	200
Inner space between the bars (H x V)	mm	240x240
Thickness of die block (Min./Max)	mm	120/320
Injection force	kN	30
Injection stroke	mm	110
Ejection force	kN	35
Ejection stroke	mm	50
Diameter of shot sleeve	mm	45
Projecting area of casting	cm2	132
Pipeline pressure	MPa	7
Motor power	kW	7.5
Dosage of fluid metal per shot (zinc)	kg	0.6
volume of crucible (zinc)	kg	160
Oil consumption of burner	kg/h	1.5-6.0
Volume oil tank	kg	250
Machine weight	kg	2900
Overall dimensions (L x W x H)	mm	2900x1320x1880





Features and applications Lead metal cast machine J213D



25T Lead/Hot Chamber Die- Casting Machine

 Suitable for zinc and lead alloy

 PLC for more stable and reliable

 Three kinds of driving modes

 High effective with 3 seconds per cycle



The lead die casting machine J213D is suitable for die casting of non-ferrous metal with low melting point, such as Zn, Pb and its alloy.  It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.

There are three kinds of driving modes as manual, single circulation and automatic circulating. The operator could manage several machines simultaneously under automatic mode.



The machine is in high effective with period of 3 seconds, which could send up 600g zinc alloy per cycle.



The machine is equipped with electronics and hydraulic processed parts of high grade and controlled by program which is stable and reliable.





If you want to know more details pls contact us.
