In Ningbo Dongfang Die-casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service. We are devoted ourselves to higher and better die cast technology in die casting are in China.

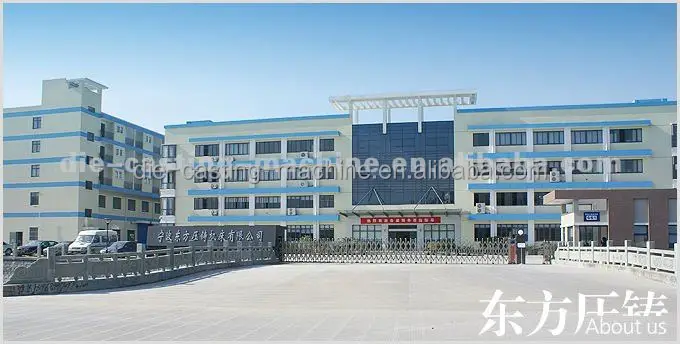

* With a history of over 37 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets
Hot chamber die cast machine

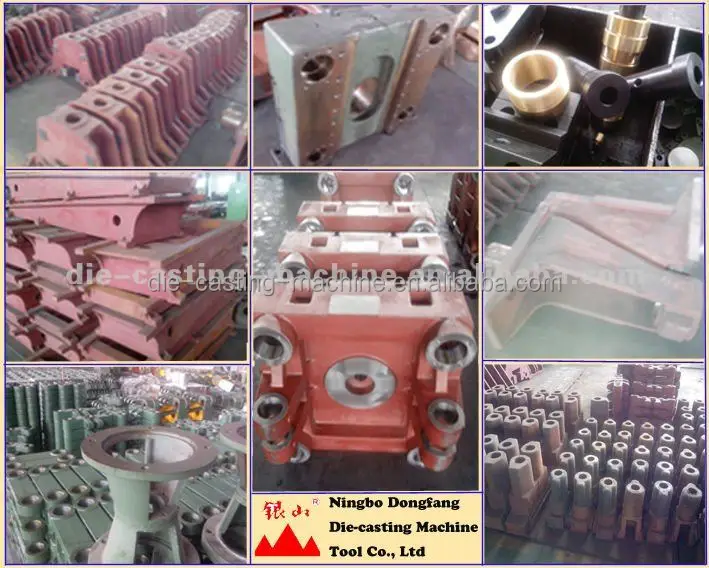

We can supply hot chamber die casting machine with the die locking force from 160kN to 1900kN. We do best in the manufacturing process from the material,including forging steel and iron plates, to manchining, japanning and assembly.
Features and applications

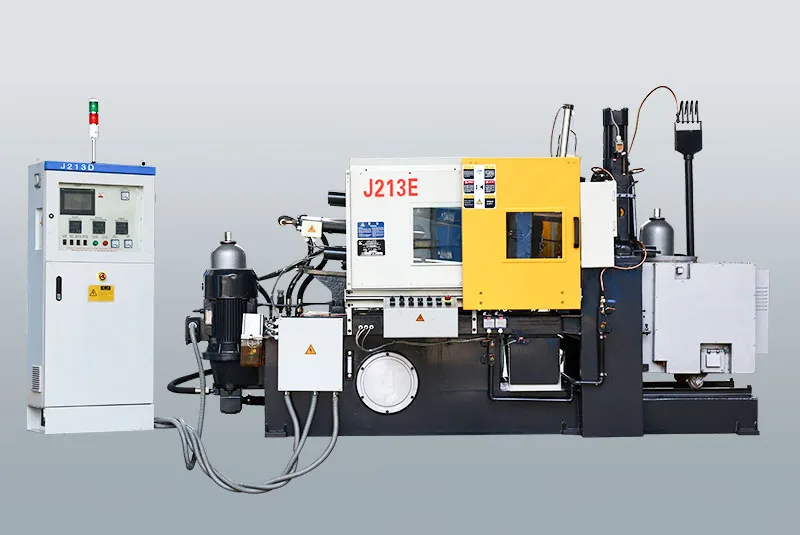

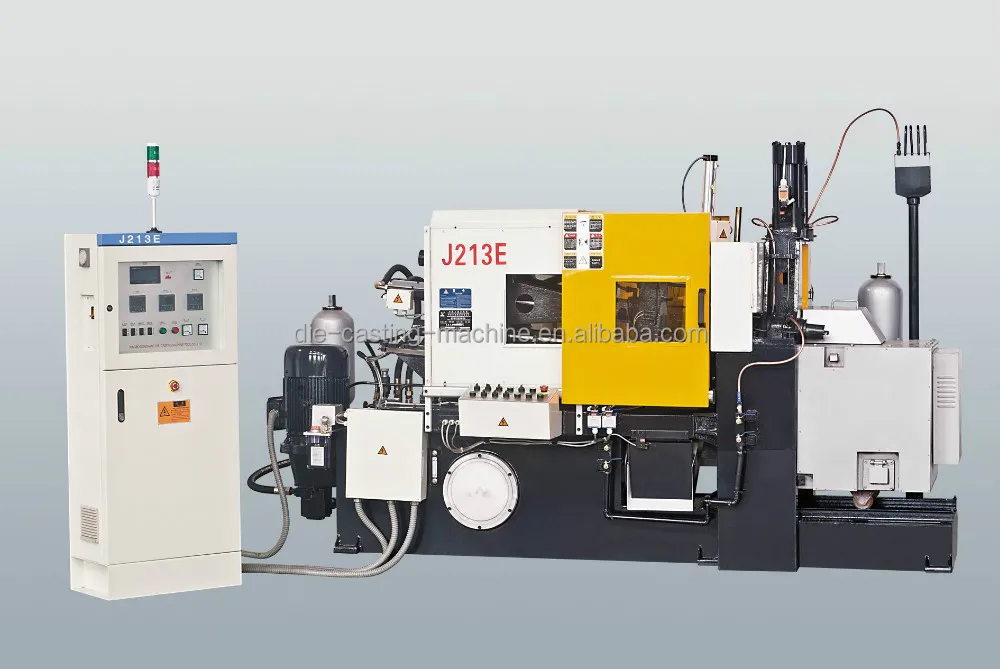

38Ton Hot Chamber Die-casting Machine
Suitable for zinc and lead alloy
PLC and person-machine interface
Large-directional control valve for high quality
Remote machine control and trouble locating functions
The specification of 38T hot chamber die casting machine
SUBJECT
UNIT
J213E
Die lock force
kN
380
Inner space between bars(HXV)
mm
270 X270
Thickness of die block (Min./Max.)
mm
120/320
Stroke of moving platen
mm
210
Ejection stroke
mm
50
Ejection force
kN
45
Injection force
kN
45
Injection stroke
mm
110
Diameter of shot sleeve
mm
50
Working pressure of vane pump
MPa
9
Fluid metal dosage per shot(Zinc)
kg
1.1
Effective volume of crucible(Zinc)
kg
160
Max. projecting area of casting
cm2
134
Oil consumption of burner
Kg/h
1.5~6.0
Volume of oil tank
kg
320
Motor power
kW
7.5
Machine weight
kg
3300
Overall dimensions(L X W X H)
mm
3500X1450 X 2100
What product this machine can make? -----This hot chamber die casting machine is suitable for die casting of non-ferrous metal with low melting point, such as Zn, Pb and its alloy. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.
Some machine device ---- The die casting machine is controlled by industrial level microcomputer. The die casting process parameters can be set up through the person-machine interface and import pressure control valve ensure easy operation of parameter and program setup. The injection system uses large-directional control valve, ensuring die casting parts have high quality. The machine has remote machine control and trouble locating functions.
The hydraulic system of the machine adopts pressure double-scale system so that can be adjusted at discretion. The ejecting system use large-caliber logic and cantilever beam-type oil-way, which ensure high ejecting speed.

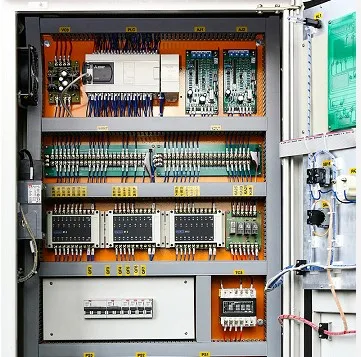

The electrical and electronic control system -----This systerm is the instruction systerm for the control of the machine .It usually consists of a processor ,input /output device and a human interface device.The operator enters the required parameters though the human interface device.After that ,the processor will follow the pre-set program to provide the corresponding instructions to the machine .
This die casting machine is equipped with high quality electronic and hydraulic parts, ensuring a reliable and safe whole-machine performance.
The machine is equipment with imported electronics and hydraulic parts, ensuring a reliable and safe whole-machine performance, it is an advanced typed of die casting machine within our country at present.
After-sales Service When shipment arrives, the seller appoint engineer to buyer's factory for machine commissioning and installation and training workers.We provide one year warranty for machine .
