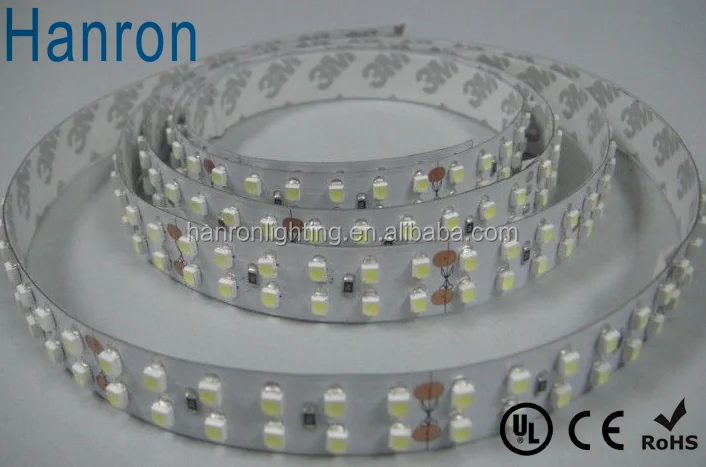

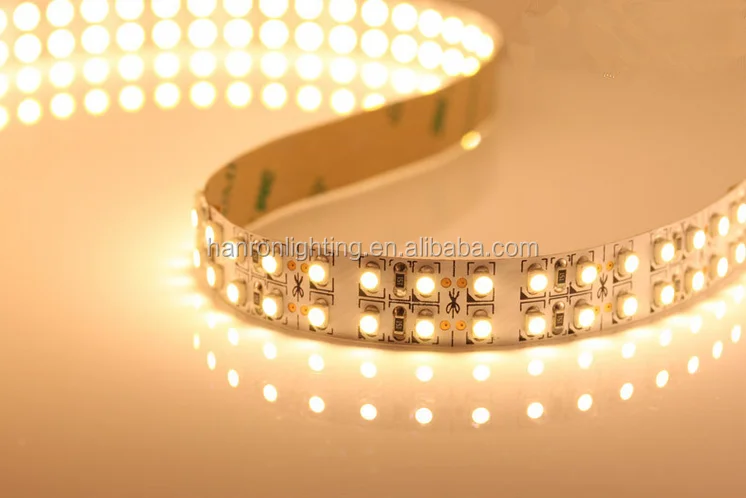

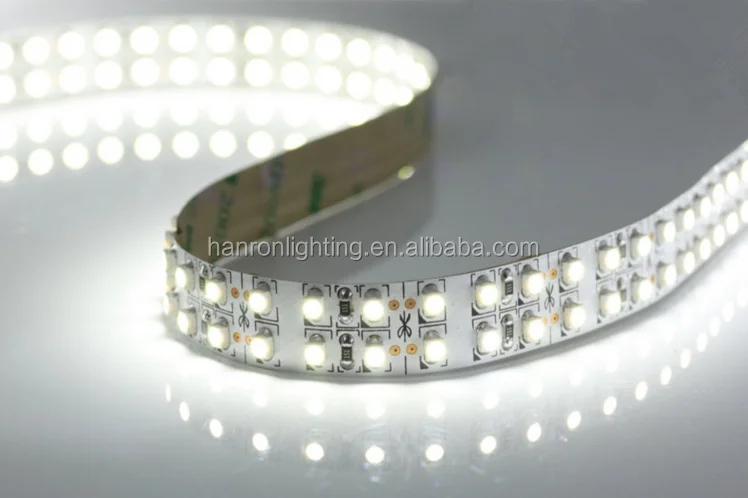

5 years warranty double line/row smd 3528 240led/m 24v led strip light IP20 single color

Product Overview

Description



   5 years warranty double line/row smd 3528 240led/m 24v led strip light IP20                                                                single color





Features:

* 3528 single color

* Size:1000*20mm

* Beam Angle:120 °

* LED:240leds/m

* 200MP 3M tape in the back

* Working Voltage :DC24V

* Working Current : 20 mA/ Group

* Power: 19.2W/M (Max)

* CE&RoHS Certificated

*  Black/white/yellow FPC are optional

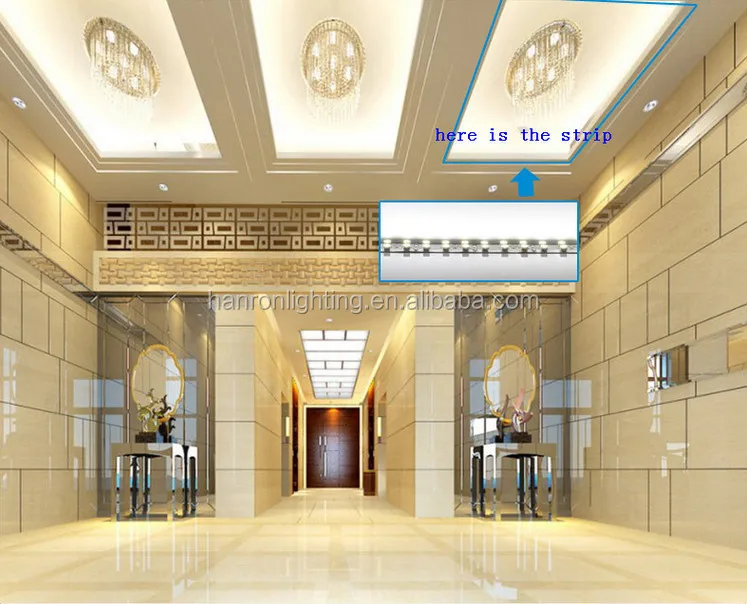

Applications:



* Cove lighting



* Architectural lights for canopy, corridor, window, archway



* Backlight or edge lighting for signage



* DIY lights for home use



* Path and contour marking



* Decorative lights for holiday, event, show, exhibition



* Special light effect for art gallery and glass-made items



Electric parameters:



Item NO.	LED    (pcs/m)	Voltage      (V)	Power     (W/M)	color	Color Temperature	Package
HR00-A24AW240P	240	24	19.2	White	5500-6500K	5m/roll

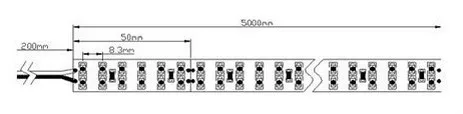

Dimensional Drawing(Unit: mm):





Notes:





* Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 24V before power supply concatenation, working voltage is 24V, Wrong voltage concatenation will cause permanent damage.



* Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.



*Ensure cable outlet of strip to be waterproof



* Prohibit touching and operating with static



* Please use qualified SMPS with short circuit protection,overload protection and S.O.P. certificate.



*Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and low voltage transmission cable.



*Don’t hit,squeeze strip, don’t bend strip overly



* Ensure installed surface tidy, clean and dry.



* Avoid rain and mechanical vibration.



* Place SMPS in ventilated and dry environment



*Usually only80-90% of SMPS total power is consumed
