Brass stainless steel MSF 20F/25F tatsuno fuel dispenser solenoid valve
- Category: >>>
- Supplier: Shanghai Jiasong Machine Co. Ltd.
Share on (60296790499):
Product Overview
Description
Product Details:Brass stainless steel MSF-20F/25F tatsuno fuel dispenser solenoid valve
Main Features
Controlled by built-in overlapped or parallel-connected electromagnetic precursor valve, with advanced craft and reliable action;
Diaphragm of main valve adopts imported special rubber, with high anti-corrosion and resisting low temperature at -40°C;
Special stainless steel magnetic material never rust or generate remanent magnetism;
Close the main valve when the working pressure is 0.3-0.4MPa, and the small flow system will be 3-3.5L/min, which can be designed according to users' requirements.
Technical Specification
| Type | mSF-20FA,mSF-20FB | mSF-25FA,mSF-25FB |
| Medium | Gasoline , Kerosene , Diesel | |
| Working Pressure | 0.035MPa--0.35MPa | |
| Flow | 3--50L/min | 80-90L/min |
| Working Voltage | AC220V AC110V DC24V DC12V | |
| Diameter | 20mm 3/4'' | 25mm 1'' |

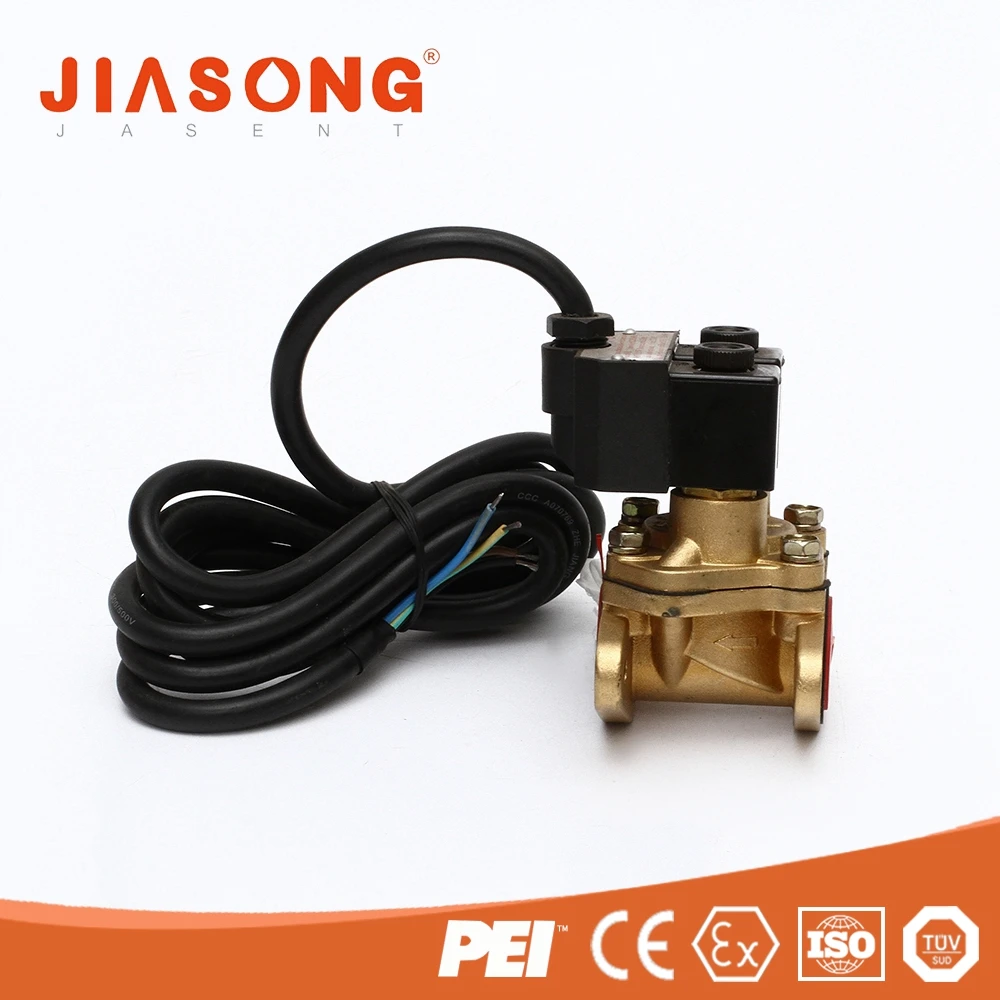

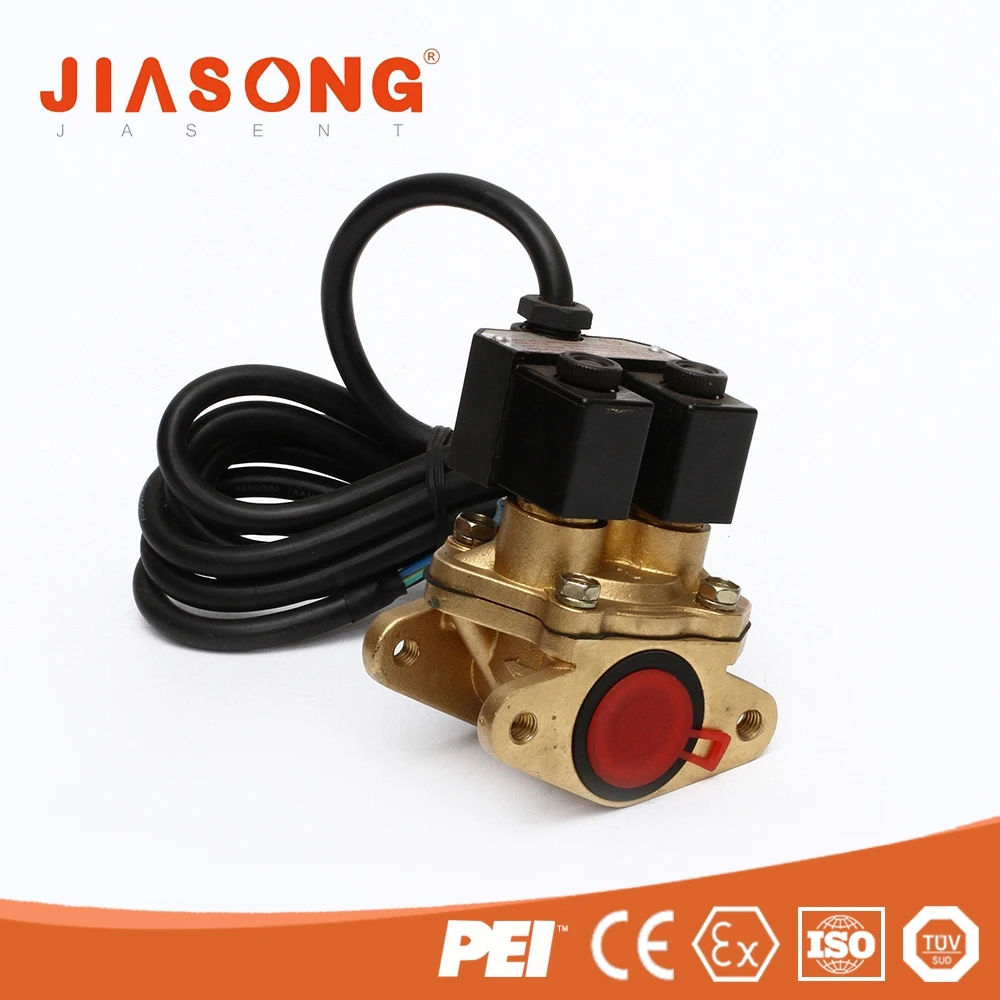

Product Images: tatsuno fuel dispenser solenoid valve / dispenser solenoid valve / castingsolenoid valve
