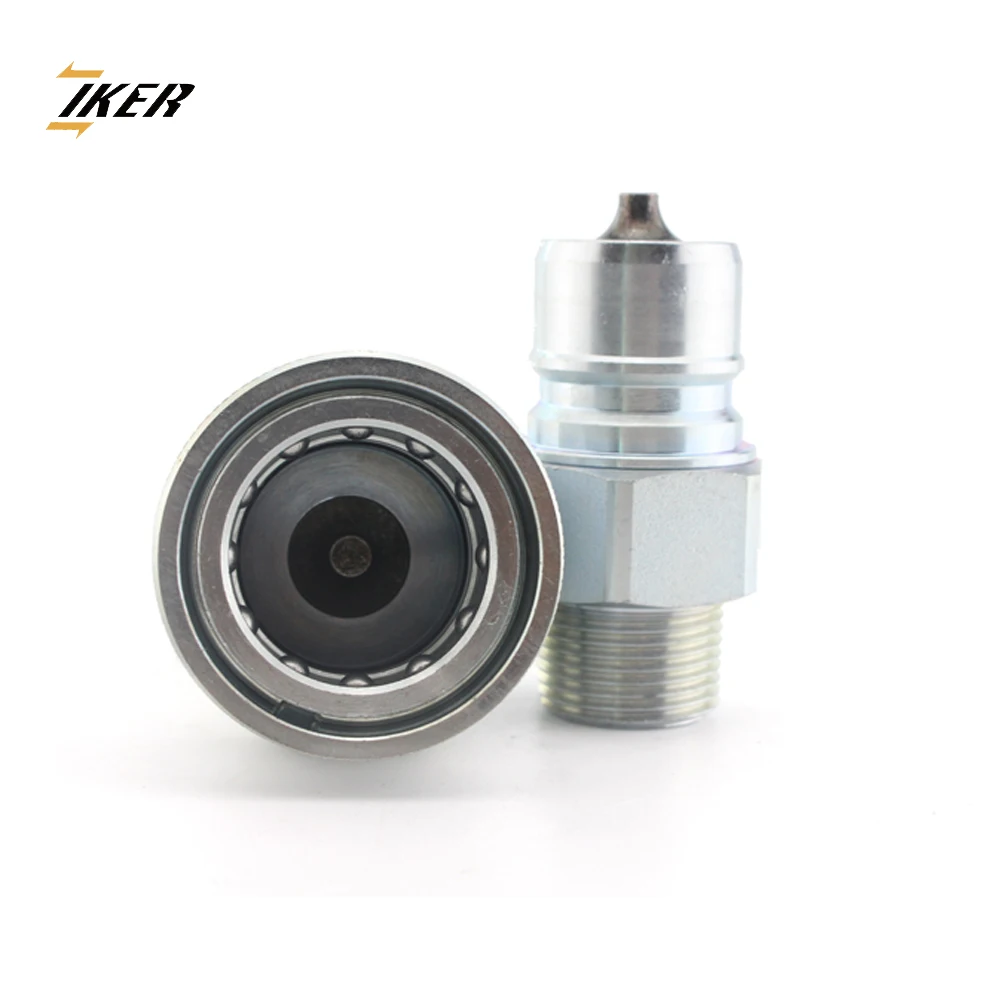

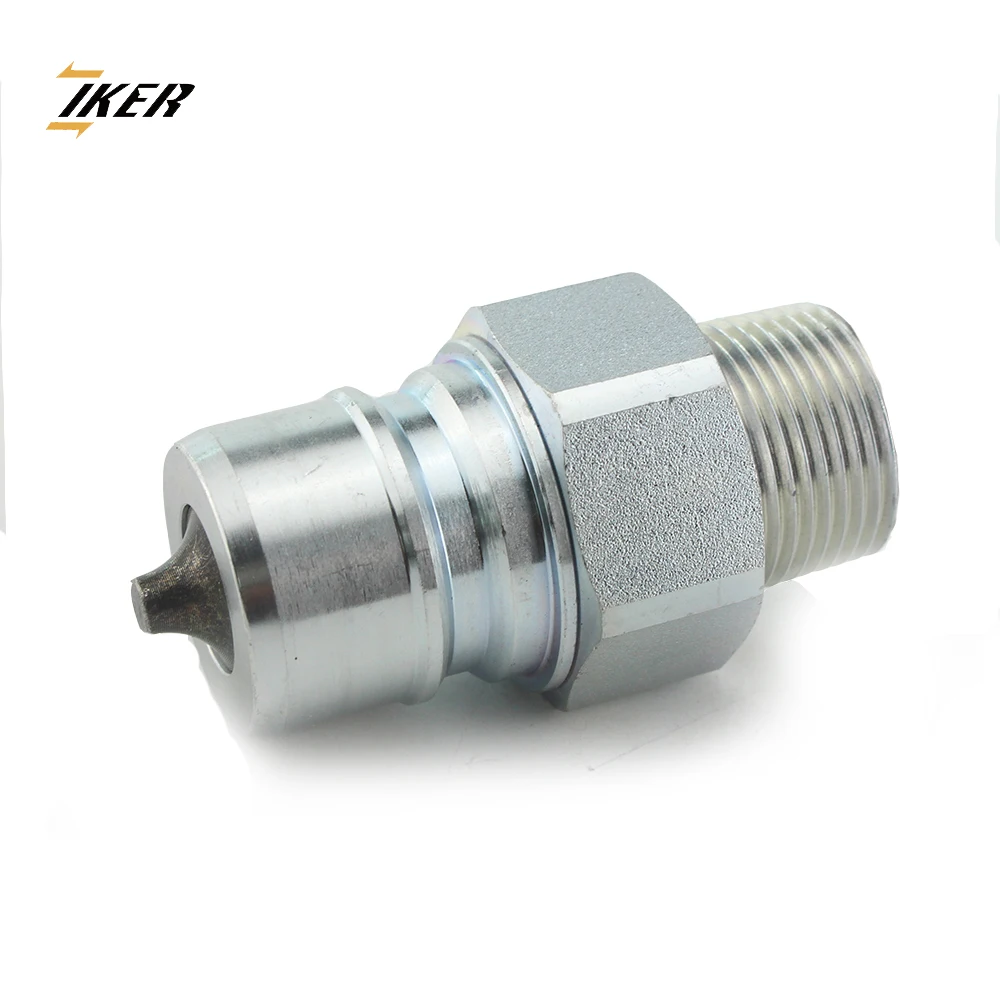

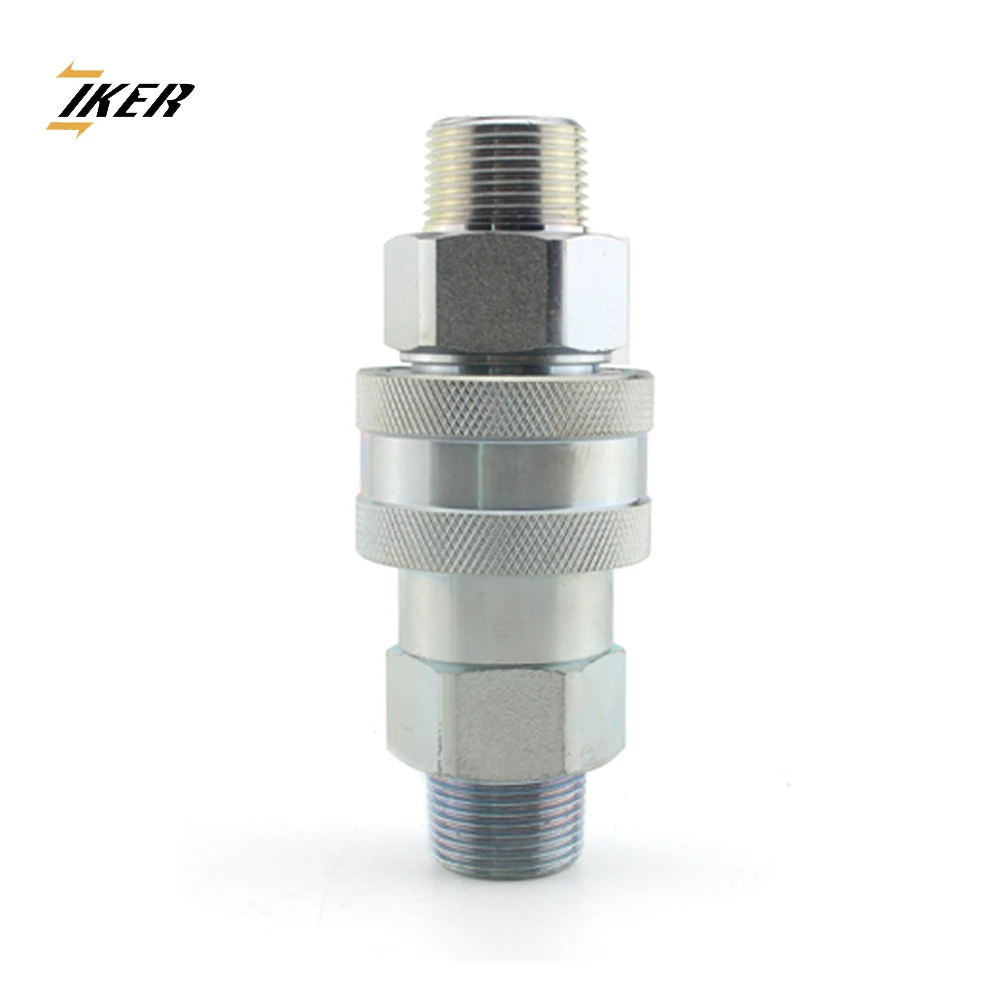

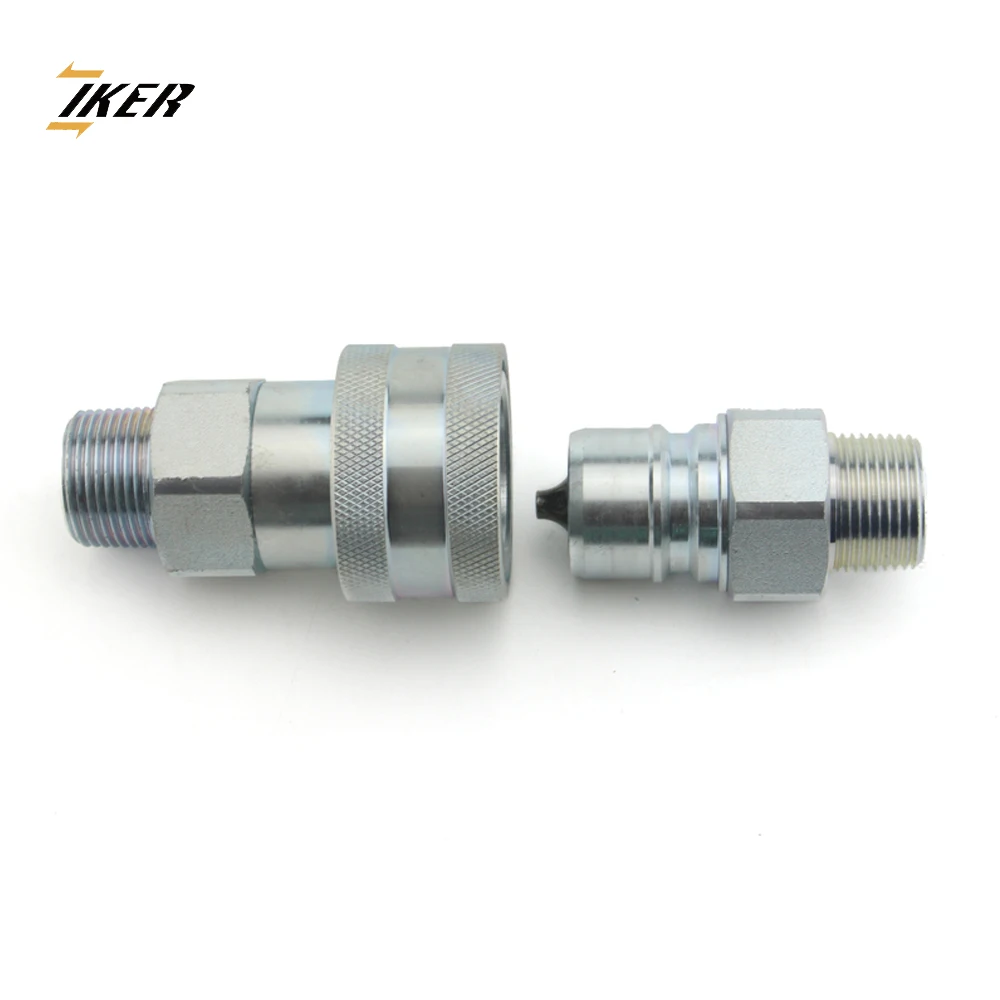

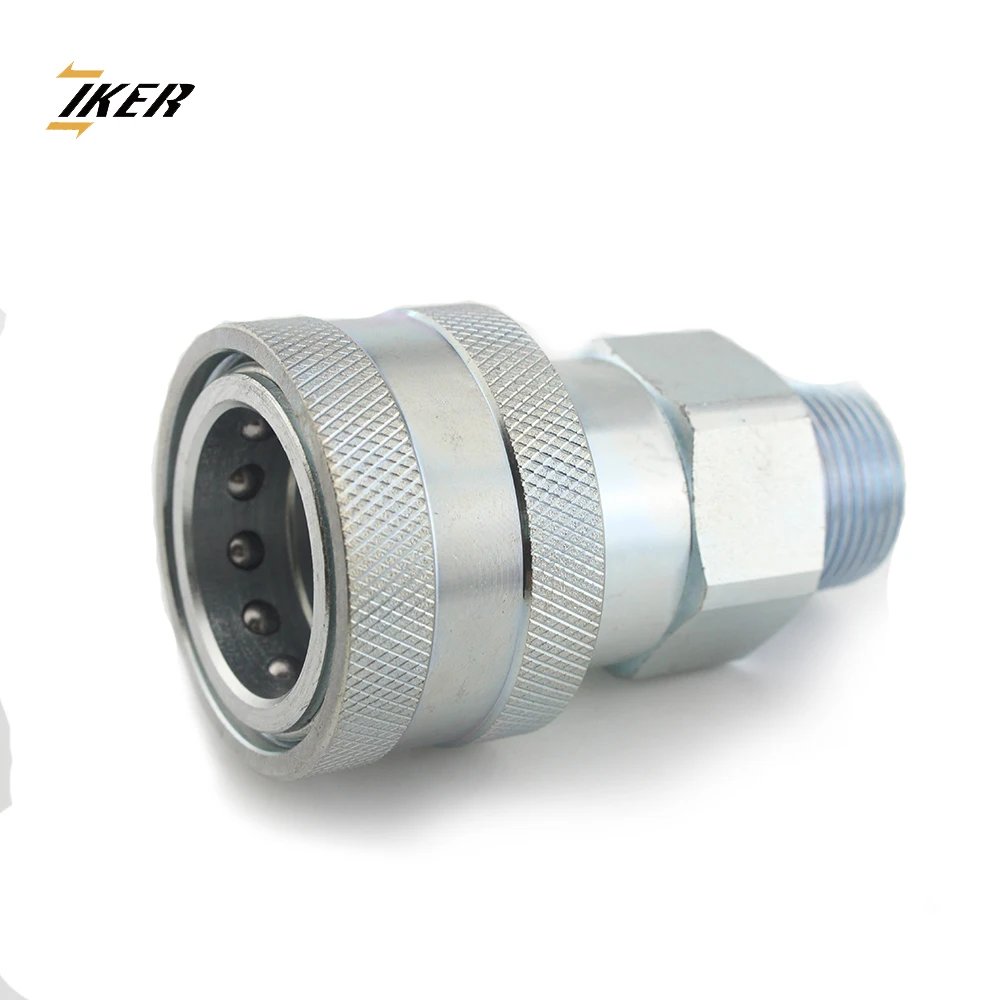

ZJ YAB ISO 7241 1 Series A trailer machine Interchange hydraulic quick release couplings
- Category: >>>
- Supplier: Jiangxi Aike Industrial Co. Ltd.
Share on (60296819302):
Product Overview
Description
ZJ-YAB trailer machine Interchange hydraulic quick release couplings
Product Description
Features:
1. Poppet valves are available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Secured ball-locking mechanism holds the two matchable parts together.
5. Socket and plug are precision machined from solid bar stock.
6. ZJ-YAB trailer machine Interchange hydraulic quick release couplings comply to the standard of ISO7241-1A.
7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Application:
The ZJ-YAB trailer machine Interchange hydraulic quick release couplings series brings to the industry a proven design for use on construction equipment, forestry equipment, hydraulic tools, oil equipment, steel mill machinery, and other industry required hydraulic connection.

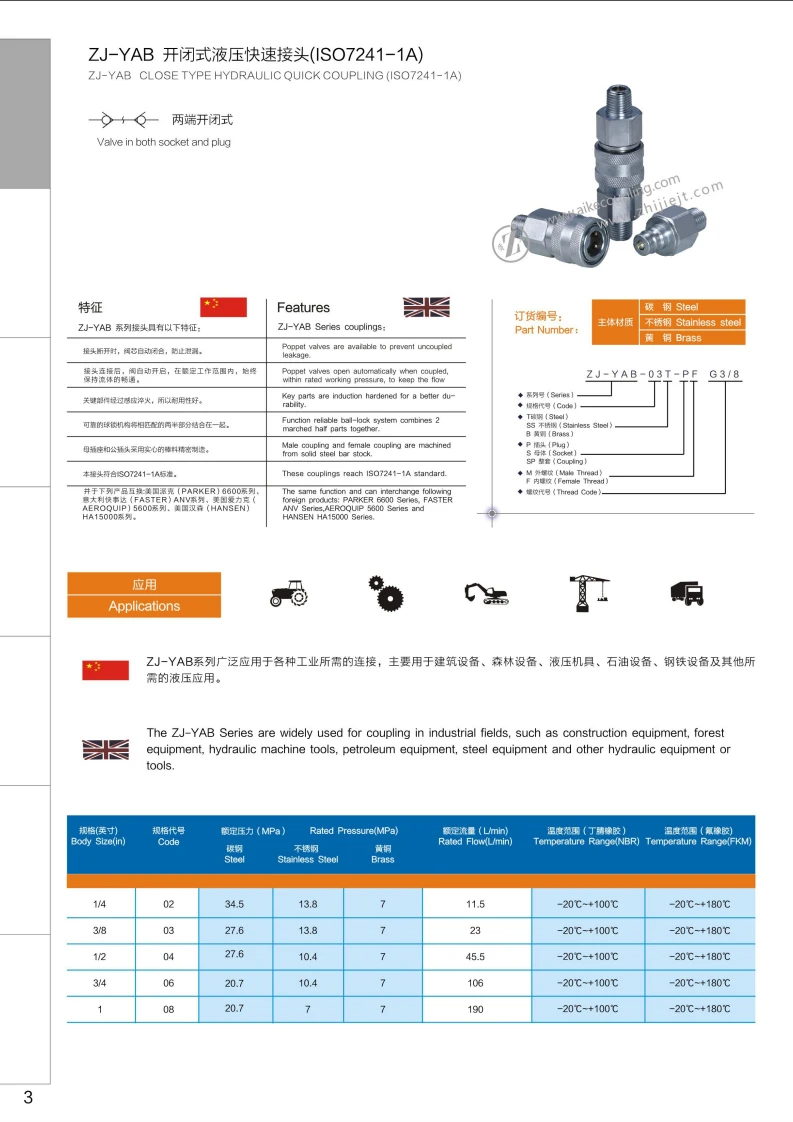

Specification:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Code | 02 | 03 | 04 | 06 | 08 |
| Rated pressure(Mpa) | |||||
| STEEL | 34.5 | 27.6 | 27.6 | 20.7 | 20.7 |
| STAINLESS STEEL 316 | 13.8 | 13.8 | 10.4 | 10.4 | 7 |
| BRASS | 7 | 7 | 7 | 7 | 7 |
| Rated flow(L/min) | 11.5 | 23 | 45.5 | 106 | 190 |
Temperature Range(NBR):-20°c+100°c
Temperature Range(NBR):-20°c+180°c
Production Flow
| How is the quick coupling produced? |
Company information
About Jiangxi Aike Industrial Co., Ltd |
>>Established in 2011, Jiangxi Aike Industrial Co., Ltd is a leading manufacturer specializing in hydraulic quick couplings, pneumatic quick couplings and tube fittings. With a group of experienced engineers equipped with strong technical background, sound management system, innovative mind and team work, we are competent to exceed our customers' expectations in every aspect of our business relationship. For more information, please visit our website: www.aikecoupling.com |
Workshop Show
Company Gate
Workshop show
Test Equipment
Our Certificate
Our Exhibition
Our Services
| Why Choose Jiangxi Aike |
| >> Quality— ISO9001 Quality System Management Assurance — SGS certificate |
| >> Price— Manufacturer price, first-hand price |
| >> Delivery— Control delivery by ourself, no middle-man |
| >> Production— High precision production, high standard and strict quality |
| >> Machinery— More than 80 sets advanced machines |
| >> Payment— Various options to make payment more convenient |
| >> Logistics— LCL to save on your freight cost |
| >> Customer Service—24 hours standby, feedback immediately |
FAQ
Q: Do you have your own factory?
A: Yes, we are a real factory with over 20 years experience in manufacturing hydraulic and pneumatic quick coupling.
Q: Where is your factory?
A:Our factory, covering 30000 square meters, located at Jiangxi Province, China,
3.5 hours away from Shanghai if take high speed train.
Welcome to visit our company!
Q:What is your sample policy?
A: We are glad to provide sample for your evaluation, free of charge, freight collect.
Q: How long is your delivery time?
A: For some items, we have stock and can be sent out immediately.
For other items, it will take 30 days after receiving deposit. The specific delivery time depends on the items and the order quantity.
Q: What is your terms of payment?
A: For payment less than USD1000, full payment in adance.
For payment more than USD1000, 30% TT in advance.,70% TT before delivery.
