 Features and applications

1. 1300kN /130TON Cold chamber aluminum die Casting Machine


2. Suitable for aluminum,zinc and copper alloy


3. Computer-programmed control


4. 4-rod pilot elastic framework for more faster and reliable


5. 3-step hydraulic boosting and injecting system for more effective


6. Efficiency: maximum injection rate over 6m/s


7.  minimum boosting time less than 25ms

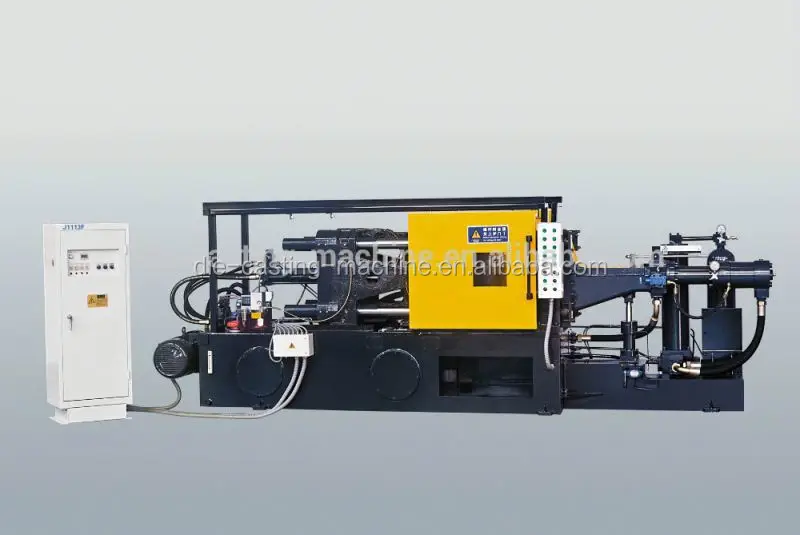

This aluminum pressure die casting machine is a middle size horizontal cold chamber die-casting machine, which can die-cast middle size non-ferrous metal cast, such as aluminum, zinc and cooper alloy, etc.

Computer-programmed control;hydraulic drive; crank expanding structure; 4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic ejector for lift-out, mould thickness can be controlled by hydraulic motor; 3-step hydraulic boosting and injection system that is constant and effective; injection rate over 6M/S and minimum boosting time less than 25ms.

The machine is superior in performance, high in productivity and smooth in operation. It is advantageous in technology in China's mainland.

1300kN Aluminum die casting machine Parameters



 HYDRAULIC SYSTEM

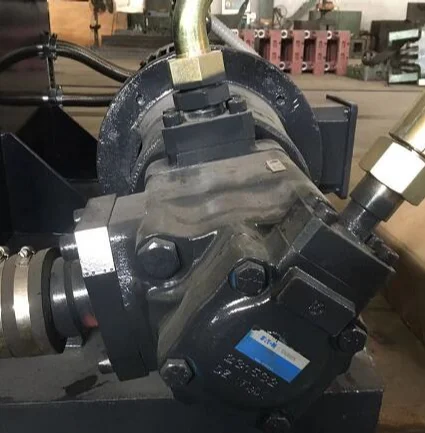

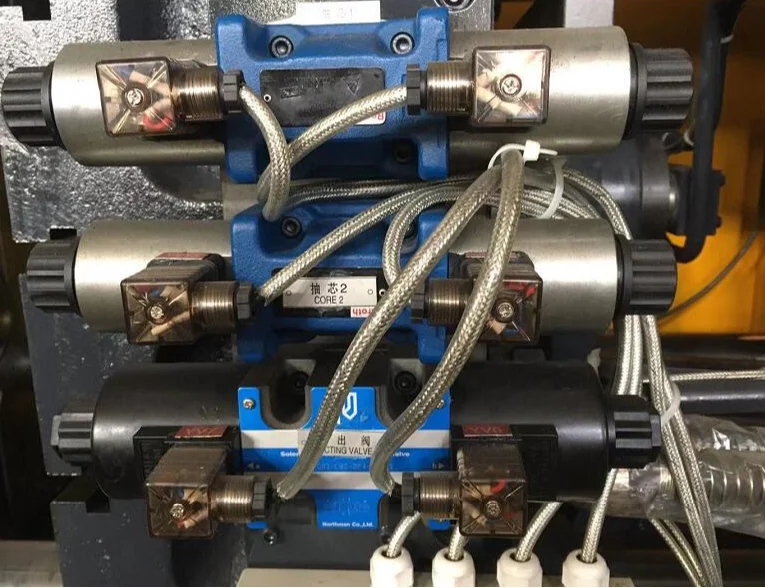

The hydraulic driving system of the machine is open type, which is formed by oil tank, oil filter, oil pump feeding system, driving cylinder (cylinders of die closing, injection, pressurizing, ejecting and dnockout core, etc.), all flow, pressure and direction control valves, accumulator, cooler and hydraulic pipeline, etc.

Aluminum die casting machine

 we can supply this Aluminum cold chamber die casting machine with the die locking force from 250kN to 2800kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.

Strategy of the Company

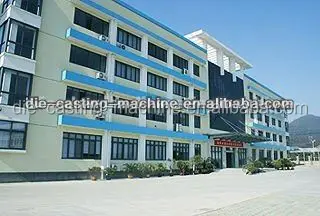

 In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 40 years, we always have perisistently pursue to provide perfect hot and cold die casting machine and sincere service.

* With a history of over  40  years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center           * Main Machines: 100sets

 FAQ:

1.Q:Are you a manufacturer of a trade company?

A:We are a manufacturer.And we have our own Export rights.

2.Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no problem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .

3.Q:Are you make the mould?

A:Yes ,we can not only help to make the mould but also help to design the mould according to your request .

4.Q:Are you only sale the die casting machine ?

A:pls kindly note the mail products of us is die casting machine ,but we can also provide the one-stop service.So if you will want some other assisting equipments of the machine ,we all help to provide them .

5.Q:How is your delivery time?

A:Generally ,we can delivery the machine within 7-10 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.

6.Q:How about the payment terms?

A:Generally ,the 30% T/T deposit ,the balance 70% T/T before delivering the goods.

7.Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
