earth drill and earth drilling machine hand small digging machine hole digging tools

Share on (60297366240):


Price:RUB 6,018.96

Quantity:


Product Overview

Description

Certificate : CE  EMC ISO9001-2015

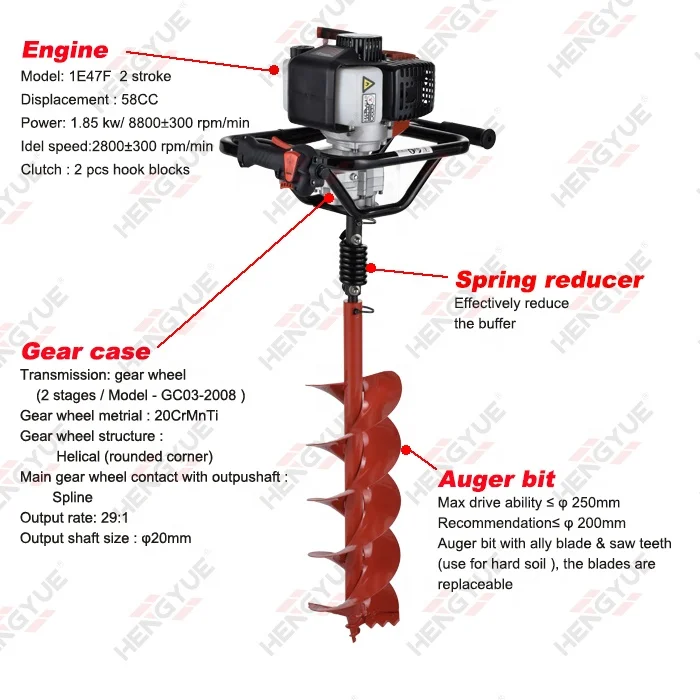

Engine model: 1E47F  2 stroke Handle design: V & Rectangle form to surround engine and gear case
Engine power: 1.85kw / 8800±300 rpm/min Trigger : (Optional )
Displacement : 58CC         * Simple type with safty arm
Max output speed:8800±300 rpm/min         * luxury with automatic reset switch & safty arm   (Bisc)
Fuel  tank capacity: 1200 ml Vibration reduction system:1 pcs rubber & 1 pcs metal
Fuel  tank :(Optional ) Transmission: Gear case  (Optional )
        *Normal standard fuel tank            *( 2 stages / Model - GC03-2012 )  (Bisc)
        *With external balance air level  (Basic)           *( 2 stages / Model - GC01-2007 )

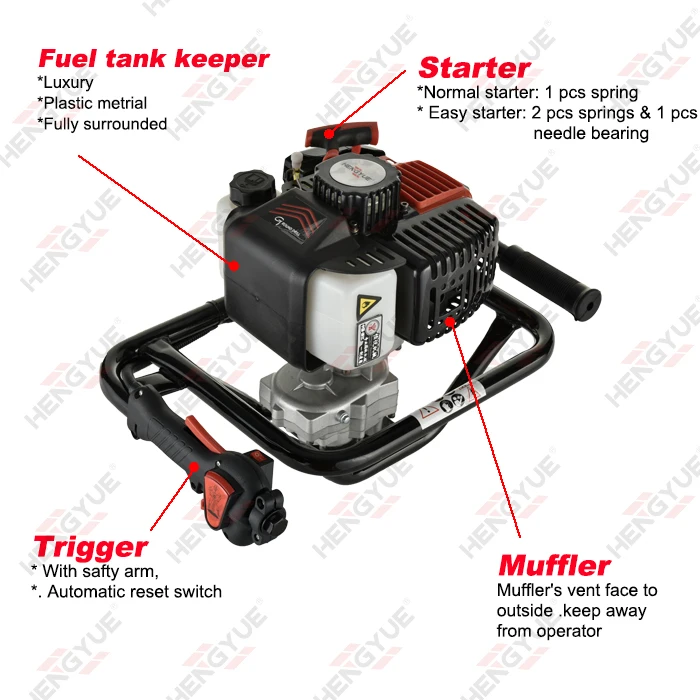

Fuel tank keeper:(Optional ) Gear wheel metrial :20CrMnTi
        * Without  Gear wheel structure : Helical (rounded corner)
        * Simple metal   Main gear wheel contact with output shaft : Spline
       * Luxury / Plastic metrial  / Fully surrounded (Basic) Output rate: 29:1  (Basic)   /   10:1  / 5:1
Fuel: Gasoline mix 2 stroke Oil (25:1) Output shaft type :  (Optional )
Clutch : 2 Pcs hoof blocks          * Spline
Starting systerm : Recoil         * Cylinder φ20mm (Basic)
Starter: (Optional )         * Cylinder φ22mm
       *Normal starter Max drive ability : ≤ φ 300mm  auger bit
       *Normal easy starter Recommend drive :≤φ 250mm auger bit
       *Supper easy starter: 2 pcs spings  & 1 pcs needle bearing (Basic) Auger bit size :  φ40/60/80/100/150/200/250mm
Product Description

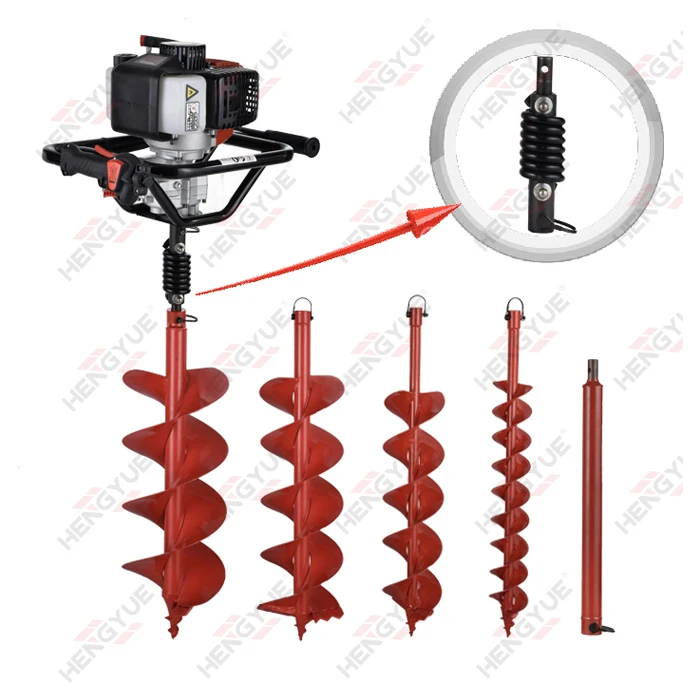

Different drill bit you can choose



1. Different tips

 HY-ZT01
 A. Cast steel tip, which can not be take down
 B. Simple blade, which can not be take down
 C. Single laminae or double laminaes
 HY-PT01
 A. Easy tip
 B. Simple blade , which can not be take down
 C. Single laminae or double laminaes
 HY-HJZT01
 A. Cast steel tip, which can not be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Single laminae or double laminaes
 HY-ZYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Whole metal disk plate in the bottom
 D. Single laminae or double laminaes
 HY-BYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes
 HY-CX01
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes



 HY-CX02
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes

HY-CX03
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Single laminae or double laminaes





 HY-ICE01
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes
 HY-ICE02
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes
 HY-ICE03
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E - Single laminae or double laminaes
 HY-CX04
 A. Spring adapter, can reduce shake
 B. Single laminae or double laminaes
 C. Cast iron twist tip, which can not be take down
 D. Whole metal disk plate in the bottom
 E.Alloy sawtooth or flat blade, which can be take down





2. Different size and spare parts
