ibeacon Tag Bluetooth Low Energy BLE 4.0 Beacon With Battery OEM Provided by JINOU /Beacon JO BEC04
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (60297490837):
Product Overview
Description
Packaging & Delivery
Packaging Details: cartons
Delivery Detail: samples within3 days, bulk orders 25-35 days
Description:
Beacon technology is a massive step forward in ambient context identification for indoor positioning. Beacons allow for background positioning and detection, giving new power to a phone that can make it truly 'smart'. jBeacon is compatible with iBeacon, and there are applications for Android & iPhone.

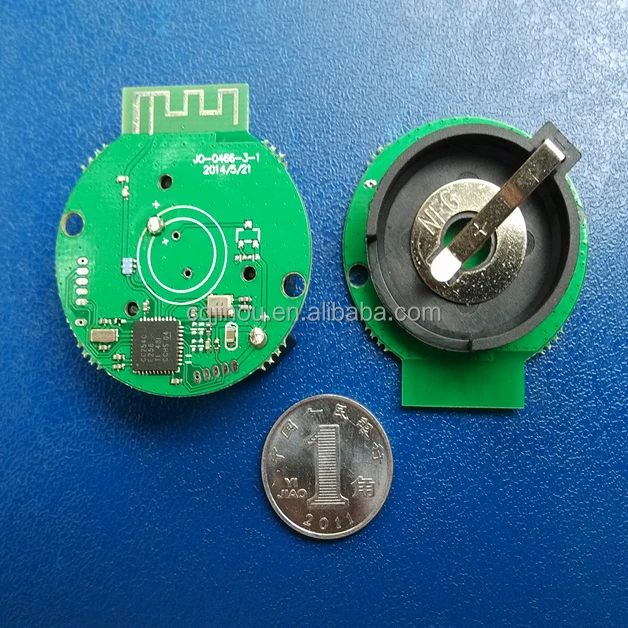

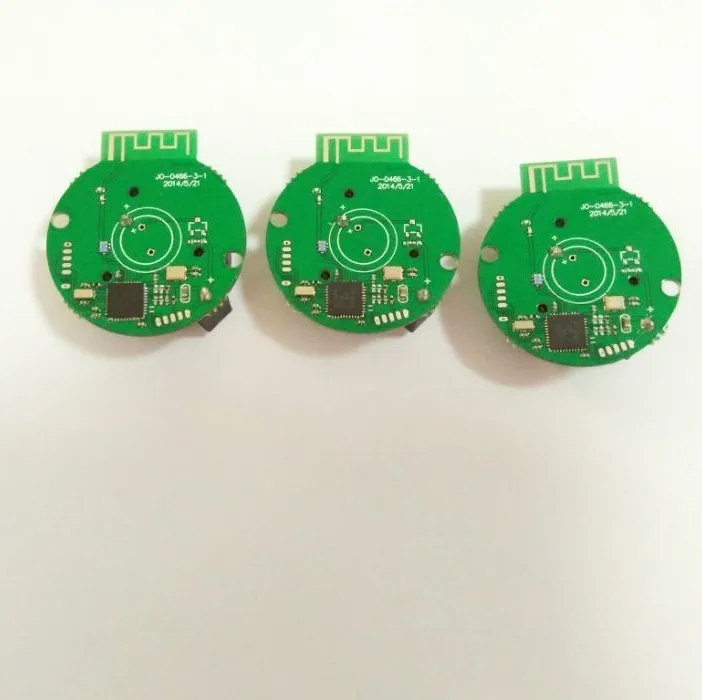

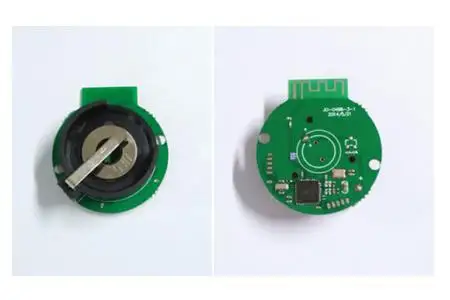

Jinou Beacon uses Bluetooth 4.0 BLE technology. It’s so small that just like a coin, which can be easily placed indoor. Users can detect its UUID signal, RSSI signal and battery life signal by smart phones. Also, users can change its paring code, transmitted power and other customized functions. It has a virtue of quick respond and less Latency. Additional functions: power switch, power level indicator Led, Buzz alarm etc.
Applications:
1. advertising and positioning
2. Built-in pairing password preventing others to modify Settings
3. UUID, Major and Minor values can be amended by the users
4. Broadcast cycle can be modified by the users
5. The battery intelligent detection and notification
6. Names shown on the iOS device can be modified by the user
7. jBeacon compatible with iBeacon when connected with other iOS devices, it will continue broadcasting
8. Free jBeacon firmware upgrade services
9. Fashionable customized cover and firmware services
10.Kinds of sensors can be added to use it in logistics tracking, greenhouse, buildings, baby house, hospitals, etc.
Specification:
1. Bluetooth version: Bluetooth BLE 4.0
2. Size:

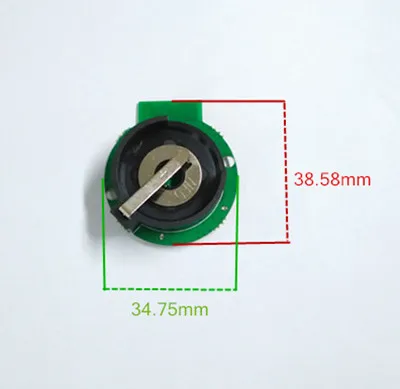

DIA34.75mm(PCB Board)
3. Install: indoor & outdoor
4. Searching Distance: 50m
5. Connecting Distance: 10~30m
6. Power Supply:
CR2450 or CR2477(1~2year)
7. CC: TI CC2540/CC2541
8. Working Current (3ms wake up): About 235uA
9. Matching APP: Android 4.3+, iOS 7.0+
10. Operation Frequency: 2400-2483.5MHz, Programmable
11. Frequency Error: +/- 20KHz
12. Modulation: Q-QPSK
13. Standby Current: 46uA, depends on duty cycle/broadcasting frequency
14. Broadcasting Frequency: 2S, duty cycle
15. Output Power: 0 dBm, default setting, programmable
16. Receiving Sensitivity: -93dBm, high gain mode
17. Transmission Distance: 25 meters, BER<0.1%, open space
Features:
1. Built-in firmware, compatible with iBeacon
2. Bluetooth Low Energy
3. Available for long distance transmission
4. Precise figures indicate received signals strength
5. CE/FCC standard
6. High performance, low power consumption
7. Temperature sensor
8. AES Security Processor
Company information
Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 14 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.
Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.
