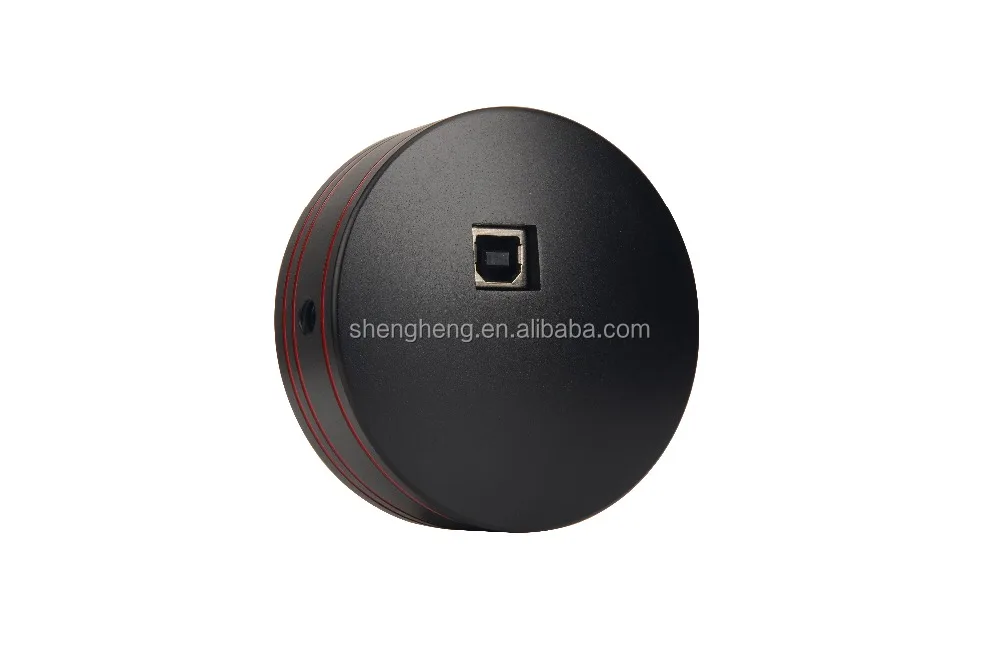

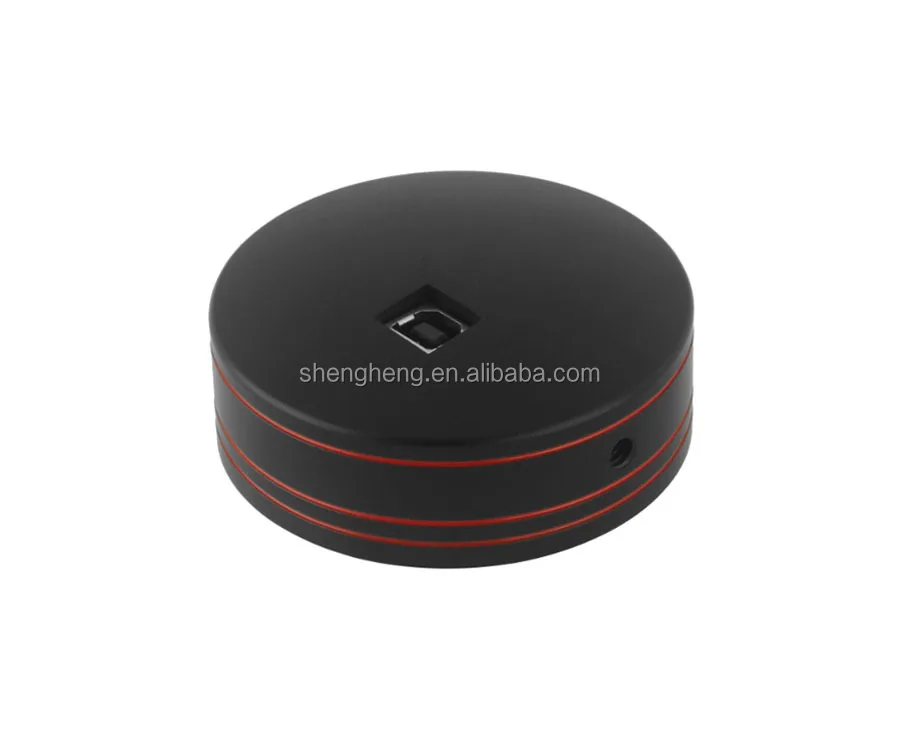

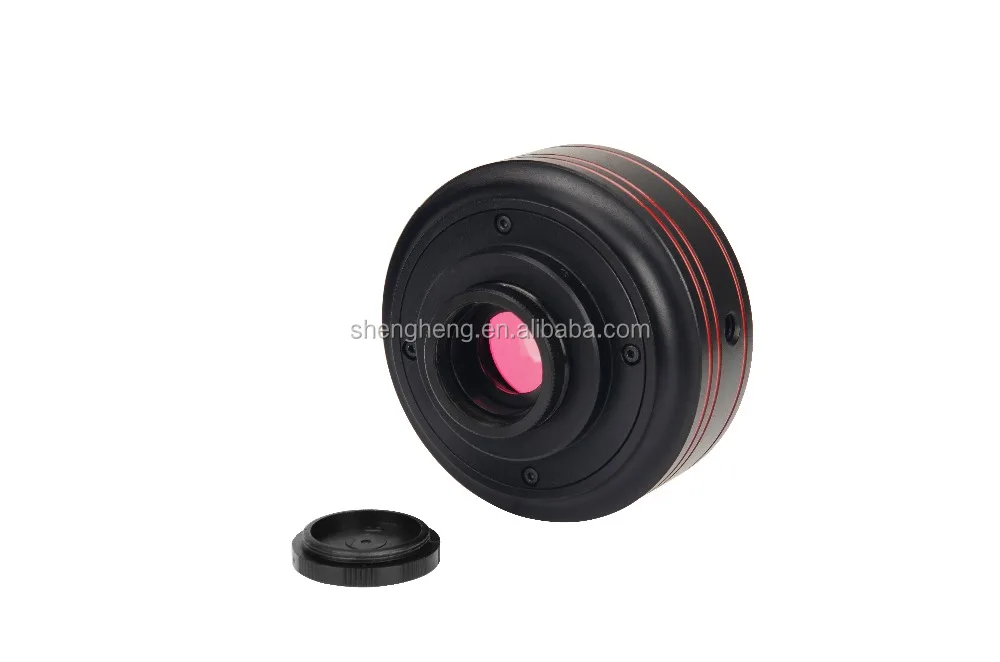

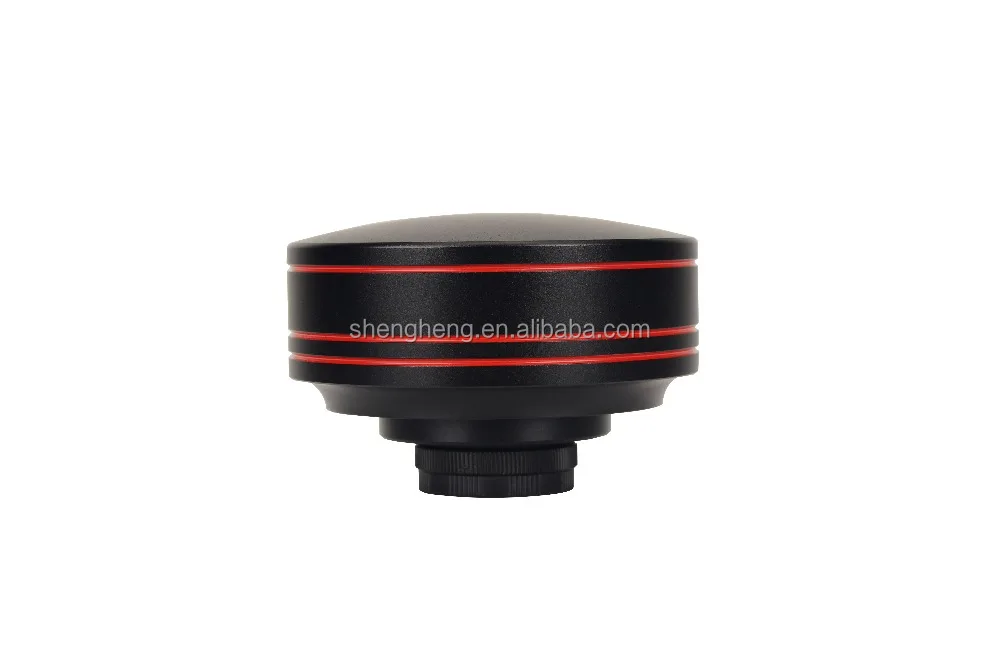

Sinher SHD-1000 Industrial USB LINK TRINOCULAR MICROSCOPE WITH CAMERA
Product Description
Information
Model:
SHD-1000
Category:
CMOS industrial camera
Feature
1, High resolution image sensor, good color rendition and definition; 2, 1/2.3 inch progressive scanning image sensor, 10 megapixel; 3, USB2.0 digital interface, max 480MPS; 4, Brightness/contrast/saturation/acutance/gamma etc can be adjustable 5, Auto white balance, auto exposure; 6, Drive-free, support Windows2000\XP2\Vista\Win7; 7, Max resolution 3840*2160
Specification
Image device
1/2.3” color 10 megapixel CMOS
Resolution
3840*2160 effective pixel
Pixel size
1.67μmm x1.67μm
Frame rate
2fps @3840*2160
30 fps @640*480
Shutter
Electronic shutter
SNR
65.2 dB
Scanning mode
Progressive
Temperature
0°C~50°C
Sensitivity
0.31V/lux-sec@550nm
Spectral response
400nm~1000nm
Data interface
USB2.0 (480 Mbit / sec)
Power
No need for external power supply
Current
≈200 mA
White balance
Auto/manual
Auto exposure control
Auto exposure
Function
Image display/film/record/measure etc
Apply to
Micrography, common image capture, microspur image etc
Packaging & Shipping
The packing have two choice by customer, one type is foam with carton, another is wooden case with carton. Both packing approved export standard requires.
Our Services
We share one year warrantee for our customer. We offer complete parts for after service. we have 20 years for export business service. We offer lower price and qualified product for our customer.
Company Information
Welcome to share your inquire for our proudcts here.
