foldable music hall seat CE EN ISO telescopic bleacher retractable bleacher for baseballs entertainment sports games JY 768

Product Overview

Description

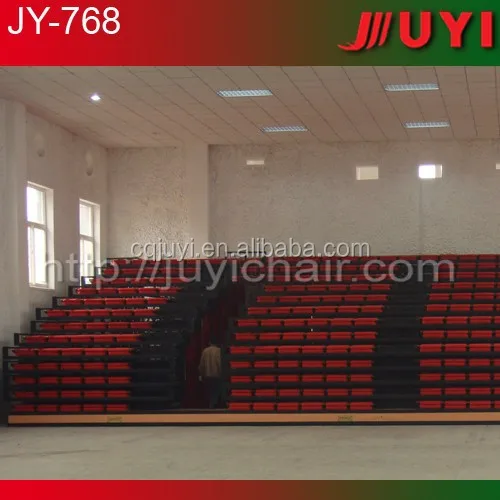

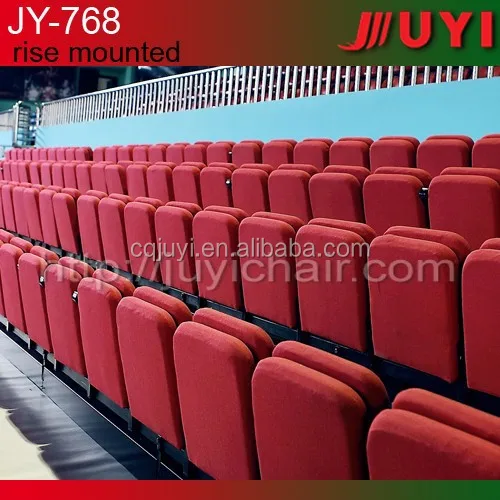

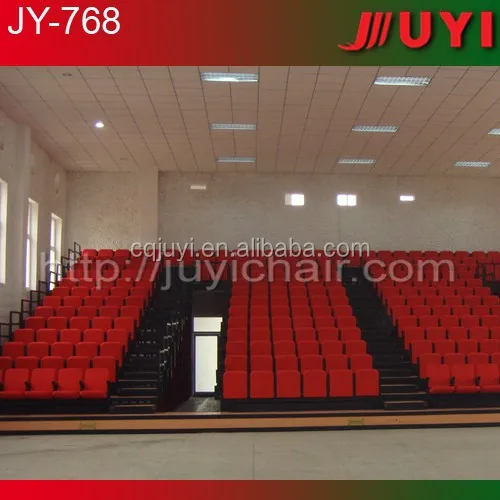

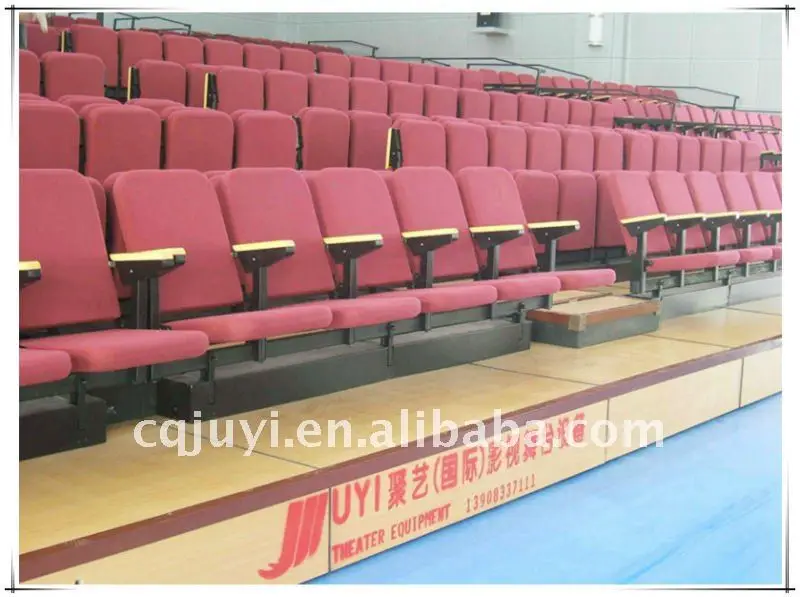

Foldable music hall seat CE  EN  ISO telescopic bleacher retractable bleacher for baseballs entertainment sports games JY-768









The ability of load

The telescopic not only bear the weight of structure, but also the around the load ≥36kg/m²,

For the rail,Horizontal loads≥65kg/m²,Horizontal loads≥100kg/m².

The seat and backrest:

HDPE Blow mold craftwith inner steel support,curve design,anti-static,wall thickness: 3mm,

Uniform wall thickness ,fabric cushion is optional.

Power supplier:

Operation Fashion: Remote control, Pendant Control,Power: 380V,0.37KW(0.55KW),50HZ, Features: Small impact, Smooth operation, Maintenance Free.

Seat beam:

Use the high quality of Q235 rectangular tubes 60mm×40mm×3.75mm,The combination

of structural steel can be installed apace,the on-site welding is forbidden.Installation,Each

structure is made up by the Q235 steel plate which is bending forming the thickness is

more than 2 MM.

Feet column armrest:

Galvanized steel,the steel components is dealed wih the sandblasting,Then use the phosphate cleaning system finish the process of retreatment, powder coating will be operated by the

large automatical powder coating production line,the thickness is 80-120μm. The armrest is

made by PE,it is nice look and durable.

Hinge system:

The system is made up by Permanent lubrication connecting rod wall,two Independent hinge

and two pcs  two-way function lifting systerm of spring , the hinge system can be operated

more than 350,000 times and Lubrication fatigue and bearing wear which can be measured

won't happen.

Chair turnover:

Use Pedal device easy to operate, and hard to  damage,avoid danger.

Casters:

The material of casters of the steel structure of the stand is made by the Polyurethane materials,

the beaing capacity of the Double bearing casters is more than 250kg/m²,when it is rolling, it

won't leave any track on the floor.
