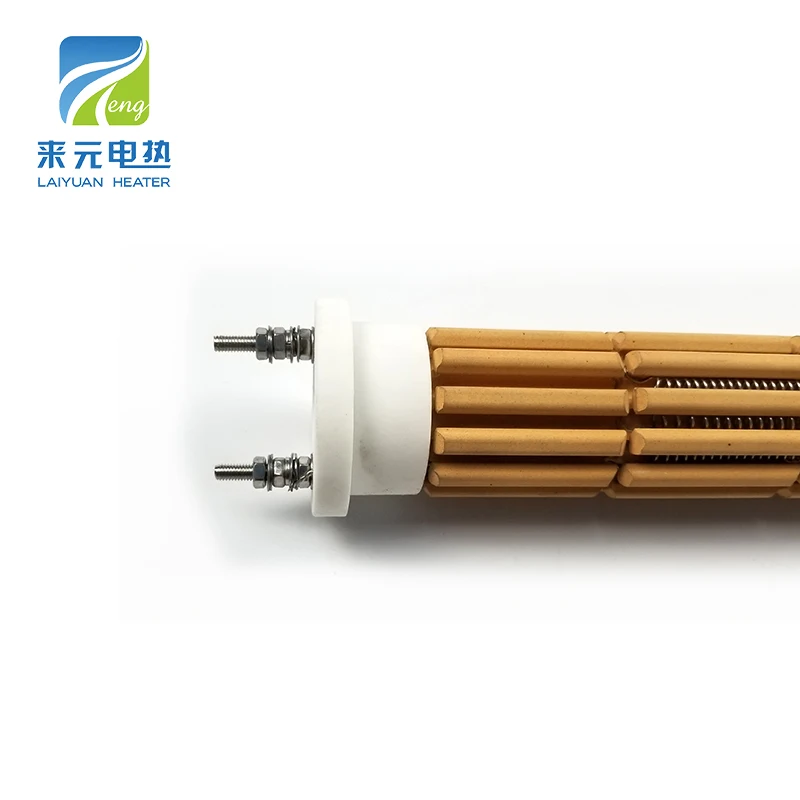

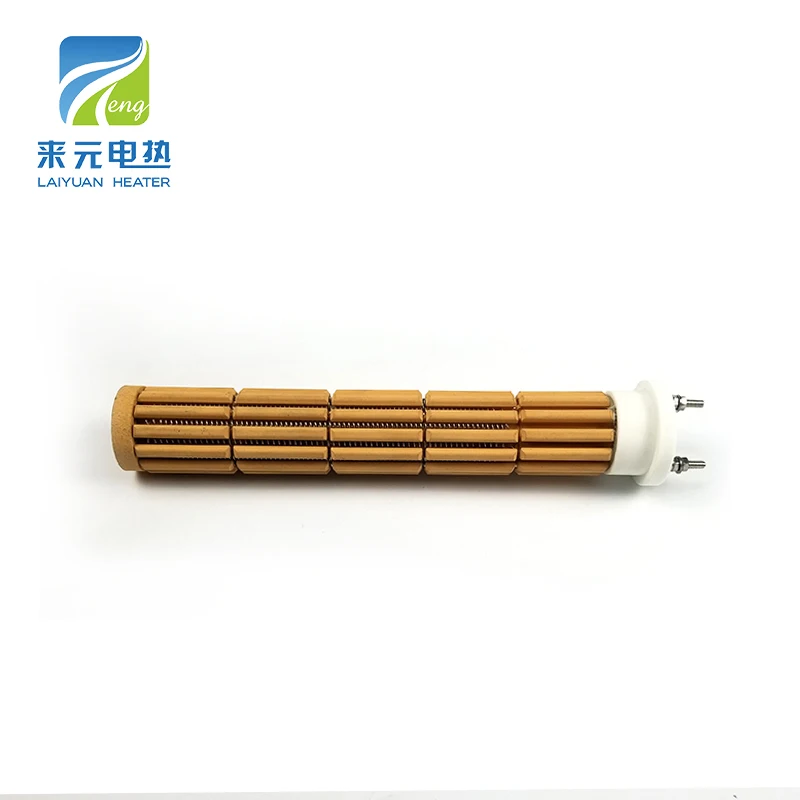

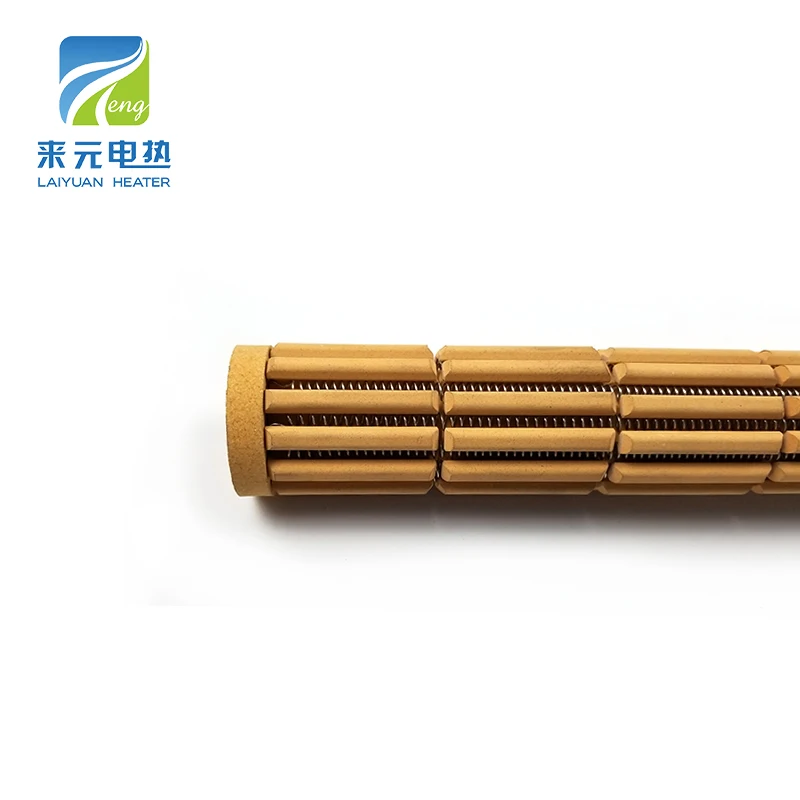

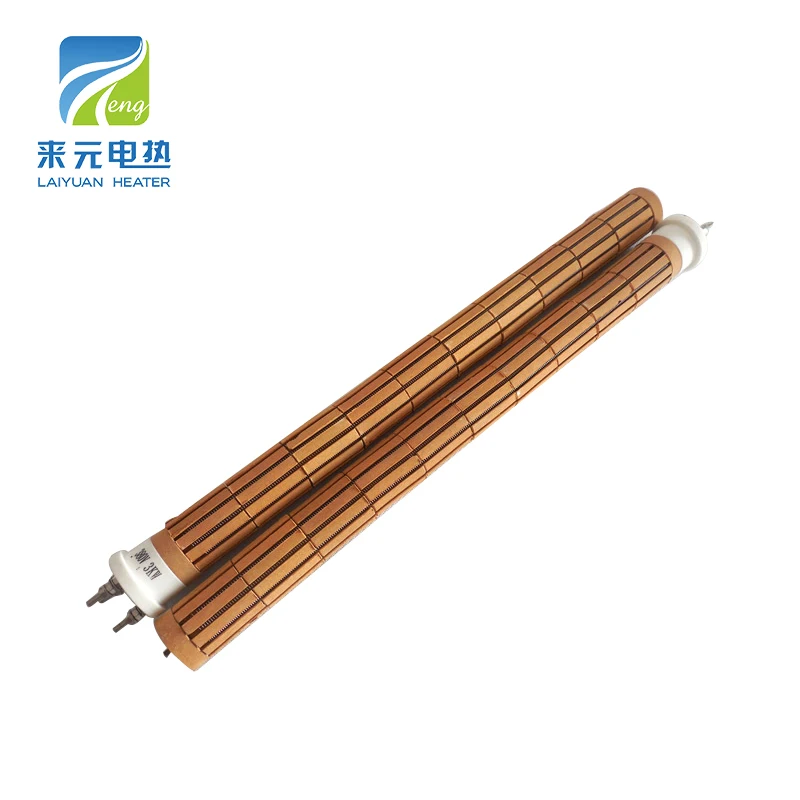

380V 6KW Ceramic Bobbin Radiator Heater Tube for Boiler
Product Description

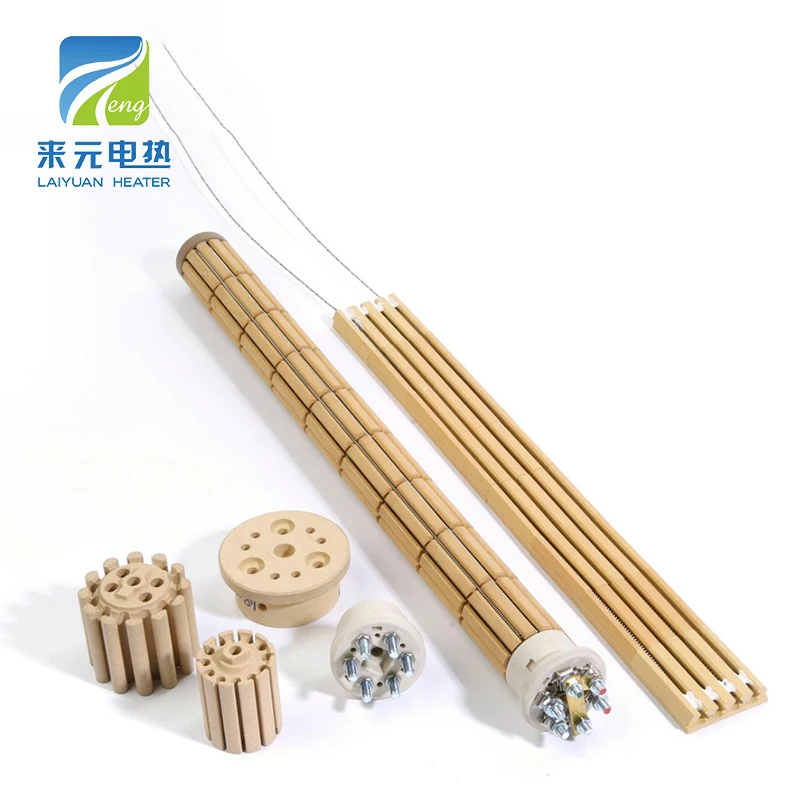

Features of Ceramic bobbin heater:
Offers a large area to heat liquids or semi-solid materials like wax, fats, oil and bitumen.

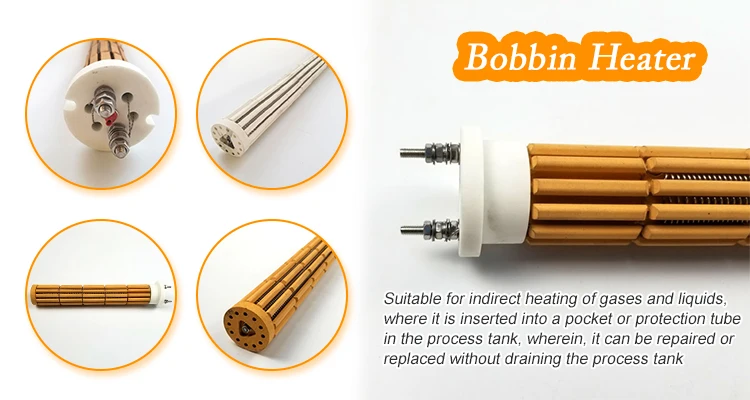

Suitable for indirect heating of gases and liquids, where it is inserted into a pocket or protection tube in the process tank, wherein, it can be repaired or replaced without draining the process tank.
Wide range of lengths, voltages and power is available to meet customers’ specific requirement.
Benefit Simple and low-cost installation,Ease of maintenance and repair,Energy efficient as 100% of heat generated is within the solution.
Specification of Ceramic bobbin heater:
All ceramic bobbin heaters are custom-made, and the power ratings are according to the length of the ceramic bobbins shown in the table below .High-grade mildsteel or stainless steel protection sheath available to suit the customers’ various .

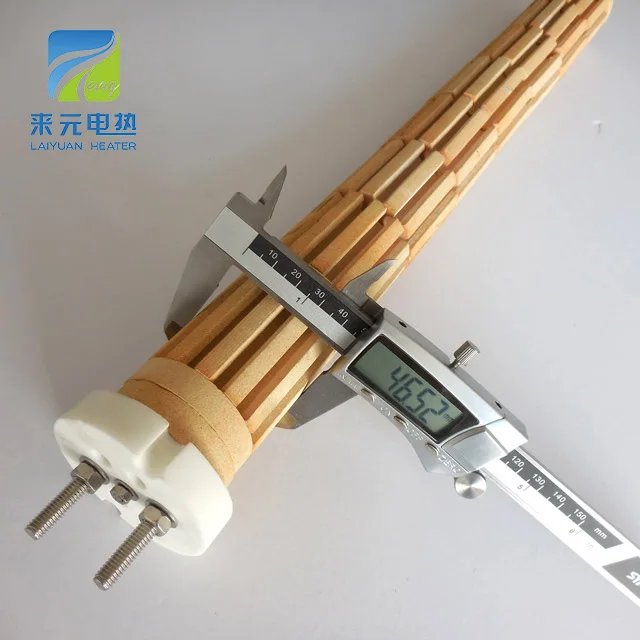

Diameter of Bobbin | OD of SUS Cover | Customized Length | KW/M | Remark | |
Water | Oil | ||||
Φ26mm | 34*3mm(Thickness) | 300~1500mm | 4.5~5.5 | 3.5~4.0 |
|
Φ36mm | 44*3mm(Thickness) | 300~1500mm | 4.5~5.5 | 3.5~4.0 |
|
Φ40mm | 48*3mm(Thickness) | 300~2000mm | 6.0~7.0 | 4.0~5.0 |
|
Φ43mm | 51*3mm(Thickness) | 300~2000mm | 6.0~7.0 | 4.0~5.0 |
|
Φ46~47mm | 54*3.5mm(Thickness) | 300~2500mm | 7.0~8.0 | 5.0~6.0 |
|
Φ57mm | 65*3.5mm(Thickness) | 300~2500mm | 7.0~8.0 | 5.0~6.0 | |

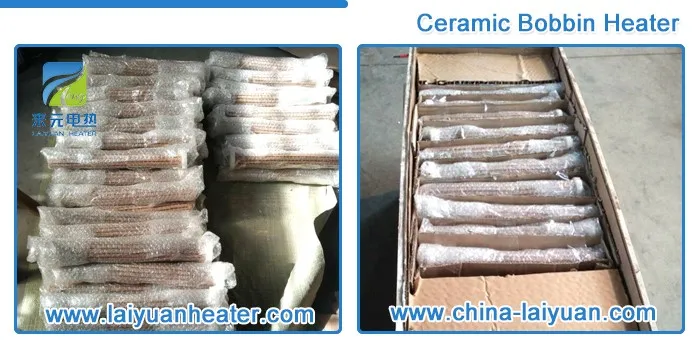

Packaging & Shipping
