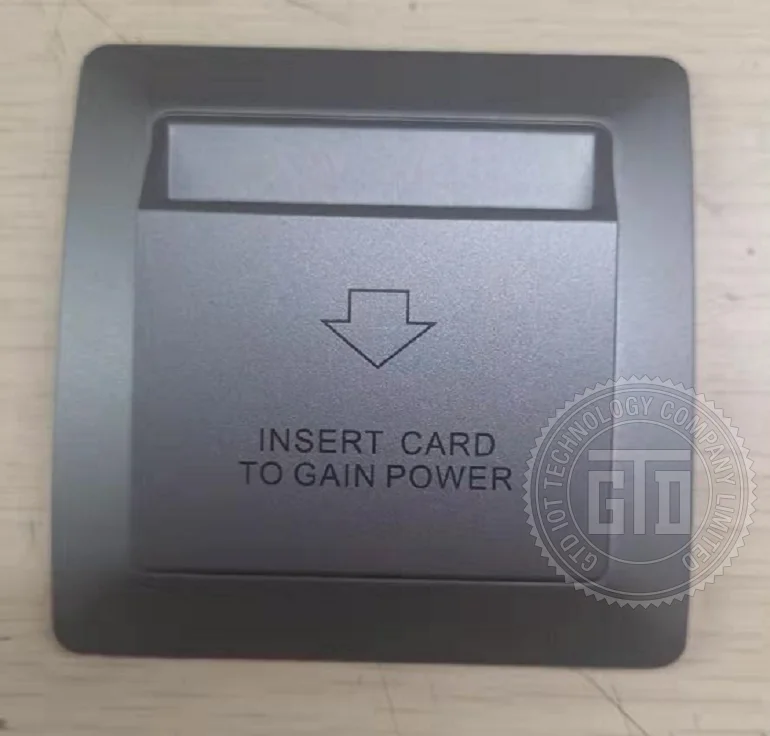

220V AC Energy saving Hotel RFID Card European key card Power Switch for Round Mounting box installation

Product Overview

Description

220V AC Energy saving Hotel RFID Card European key card Power Switch for Round Mounting Block ck

GTD brand hotel room key card power switch is designed by GTD company specifically for energy saving and safety of hotels, guesthouses.

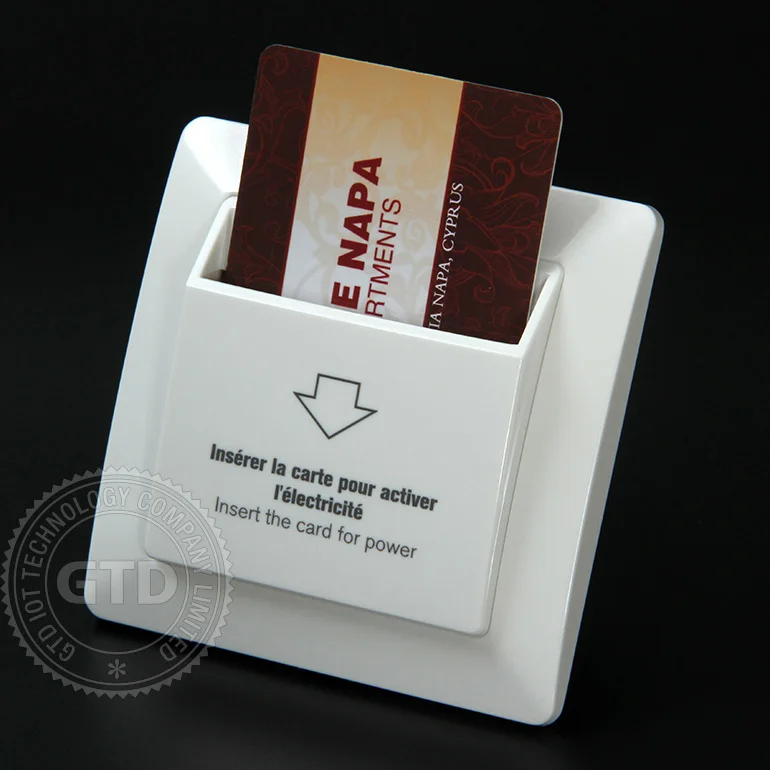

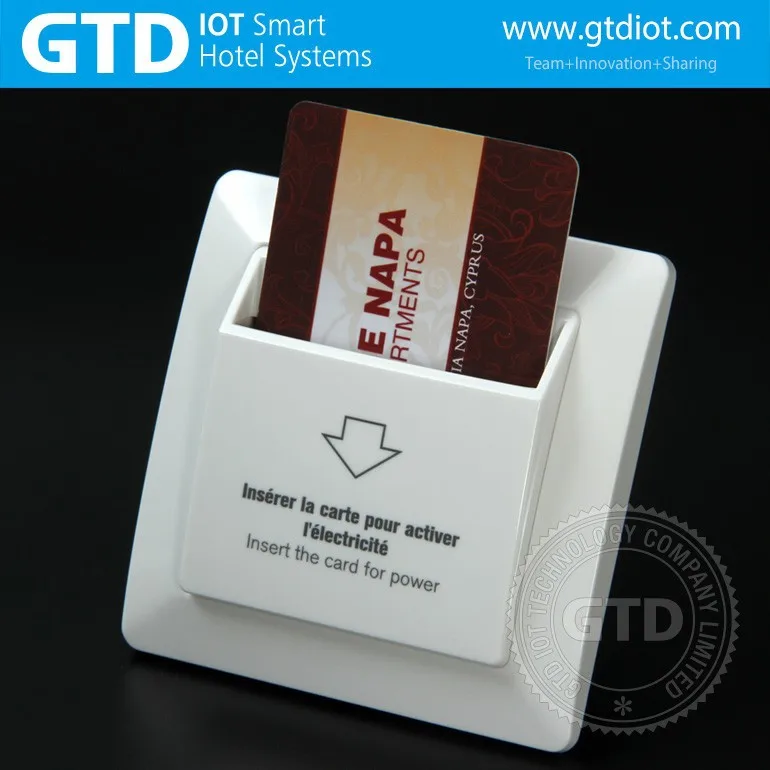

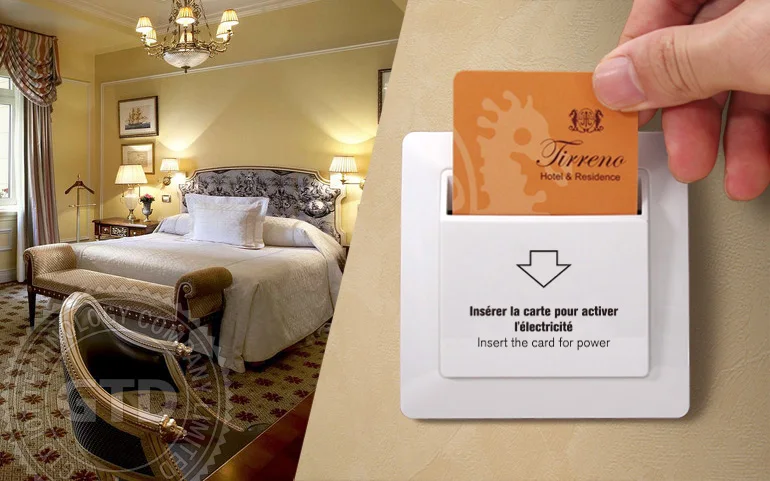

After installation of GTD hotel room dedicated card power saving switch, as soon as guests check-in insert card into the power-saving switch at the side of interior door, the power is available for the electrical equipment in the room (lighting, air conditioner, television, etc.) can be used; when guests leave the room, the guests take out the door card (guests must pull the card out, because they have to use it to open the door after return), power-saving switch shall be off automatically after delay about 15 seconds to ensure energy saving and safety.

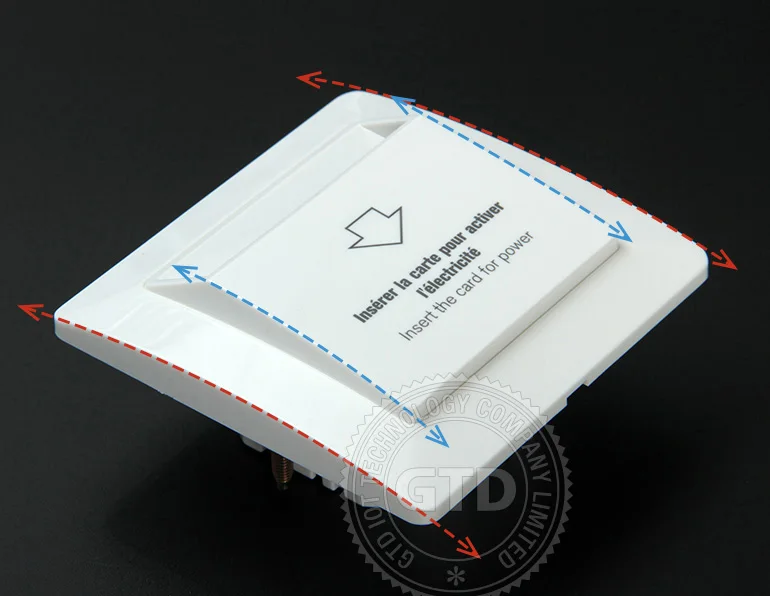

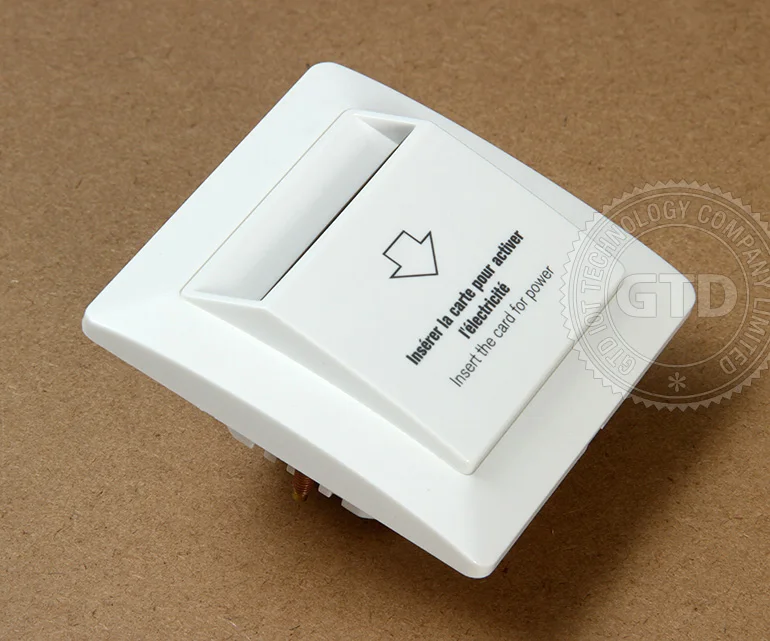

Graceful curve design
Its ultra-thin flow line, with smart curves, elegant contours, well match the wall surfaces perfectly and naturally. Silver decorative texture border inadvertently is shining light of wisdom. It’s good choice for modern hotel.

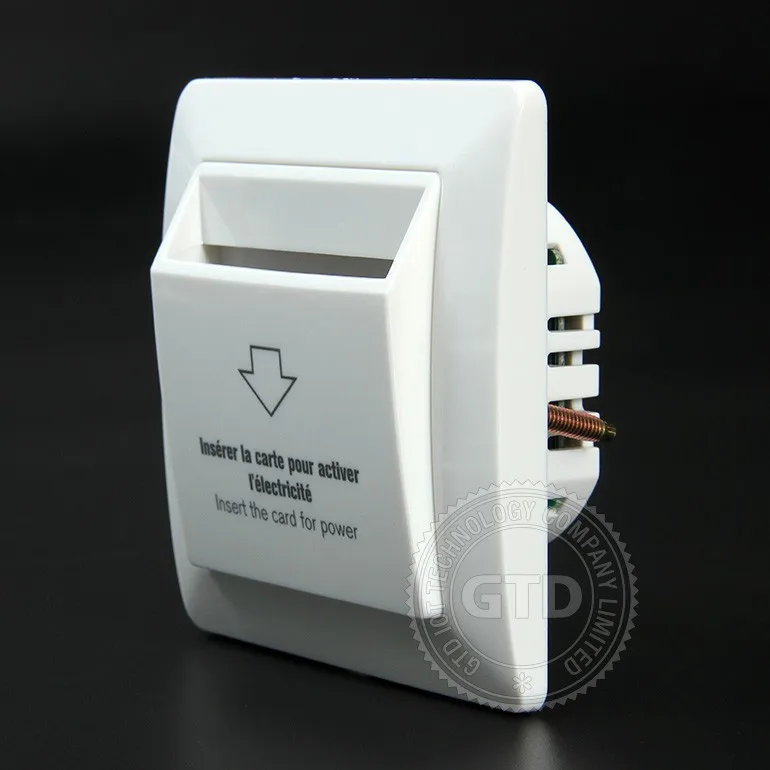

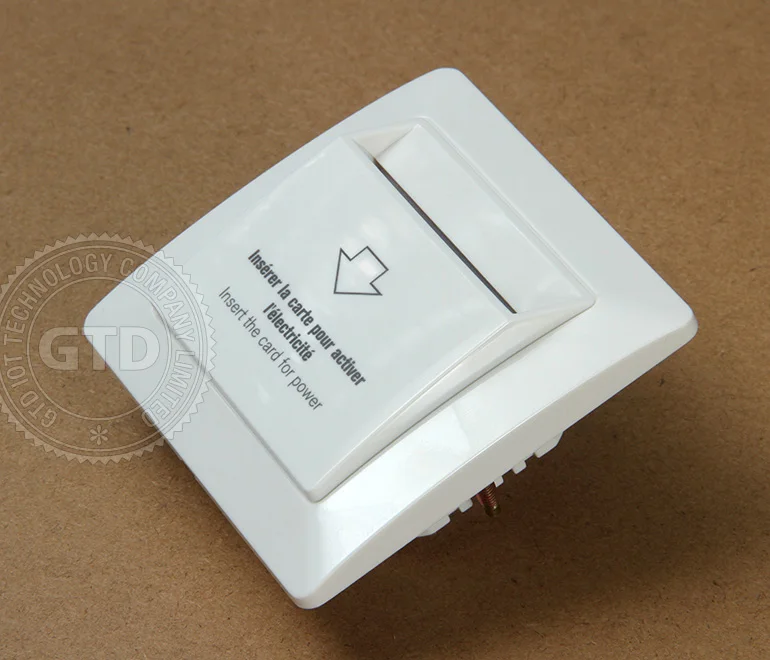

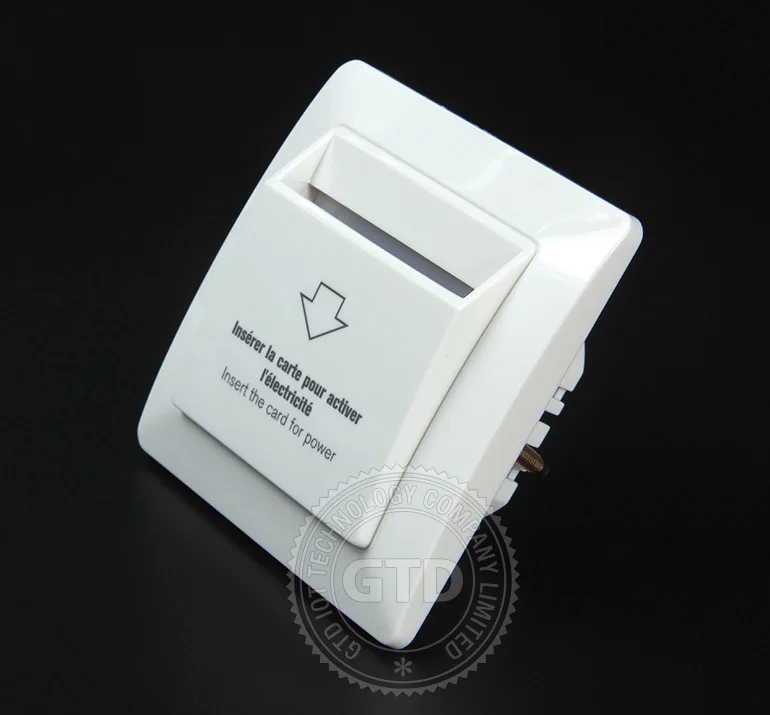

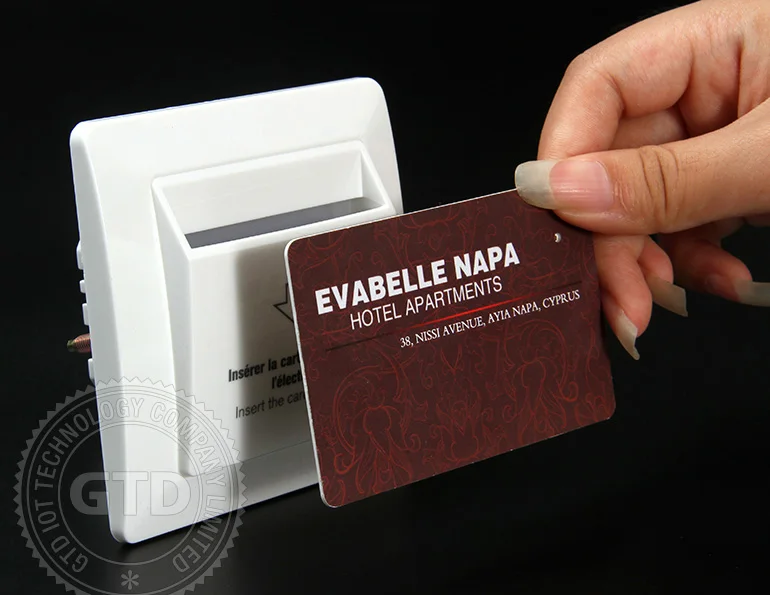

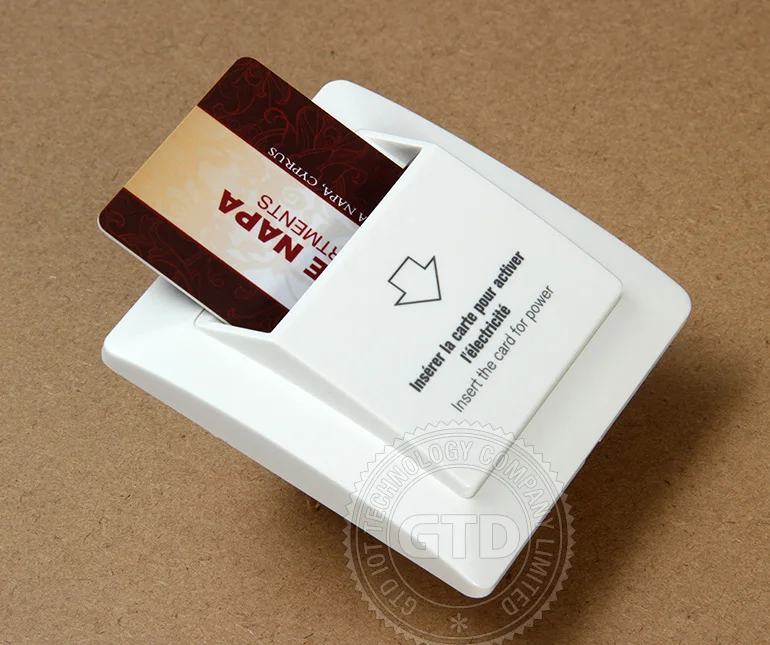

Inclined card slot

G2KS uses the inclined card slot frame humanized design, very convenient for the guests to insert key card access to gain power.

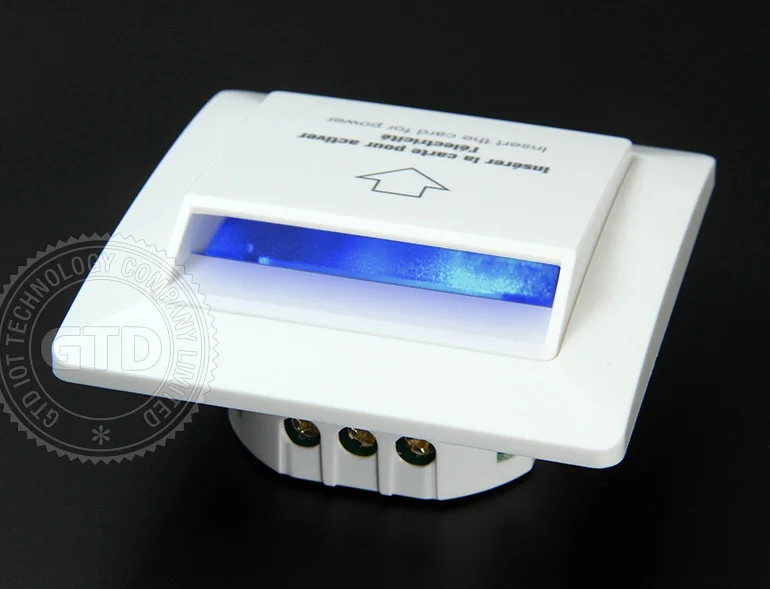

LED back-light indicator

When no card inserted, the G2KS switch blue indicator back-light will be on, once guests open the door, you can find it fast and convenient in dark.



High sensitivity technology

G2KS used advanced RF sensor technology, sensor distance is about 50MM.

Metal copper port

Greatly improve the conductive performance, reduced contact resistance, increase the intensity of switch wiring, well improve the products robustness and stability.

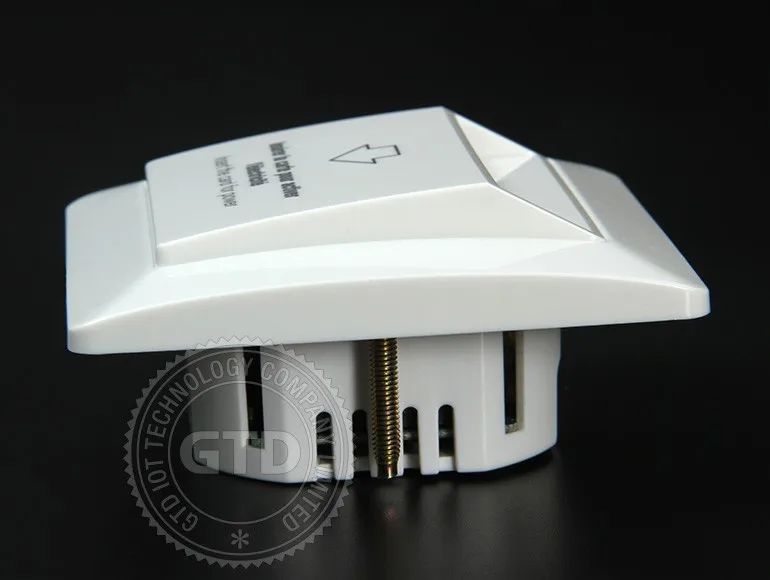

Cooling grid design

This open grid design, can full cooling, thereby prolonging the switch service life well.


Completely closed design
G2KS uses completely closed design, effective isolation force electric, ensure the user’s absolutely safe.

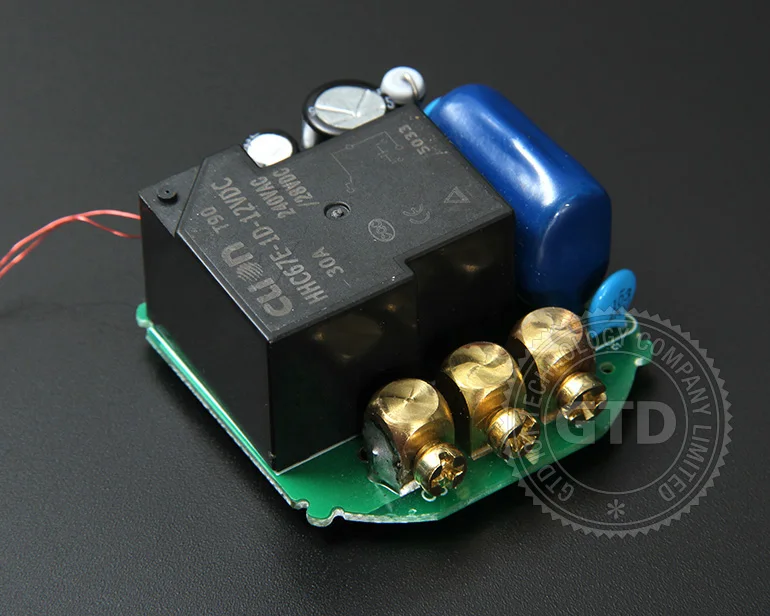

30A power relay

30A power relay, Max 6600W, completely satisfied Global hotel request.

High-grade Bulletproof glue
G2KS energy saving switch uses high-grade imported PC material, impact resistance, fire retardant, and never fade.

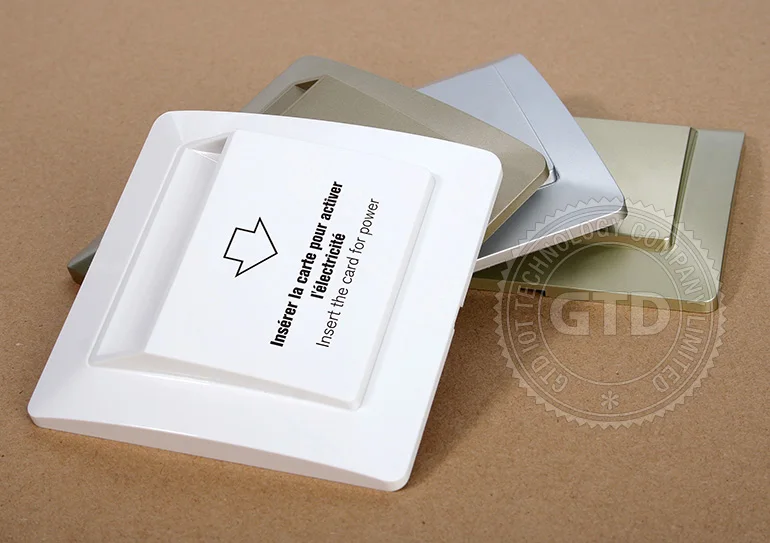

Lots of colors to choose
Different panel color choice to meet your hotel decorate style request, such as magnetic white, silver, champagne gold, including panel words and logo printed.


Suitable Size
This panel size is 86*86MM, widely used, just standard square 86 style box can well installed.



Energy saving

Power-saving economic analysis for GTD brand (GTD) hotel key card power switch is designed : (according to the electrical configuration of the standard rooms):



Used in different areas
Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centres and offices etc.

Technical details

Operating voltage: 50/60Hz 80-260VAC (other voltages can be customized, such as 12V DC, 110V AC)

Maximum load current: 30A

Maximum load power: 6000W

Quiescent operating power: 1W

Delay power-off time :10- 20 seconds

Non-working condition: light blue

Service life: When relay contacts 220V in the full load, life expectancy greater than 10 million

Operating temperature: -10°c - 60°c

Working humidity: 10-95% RH

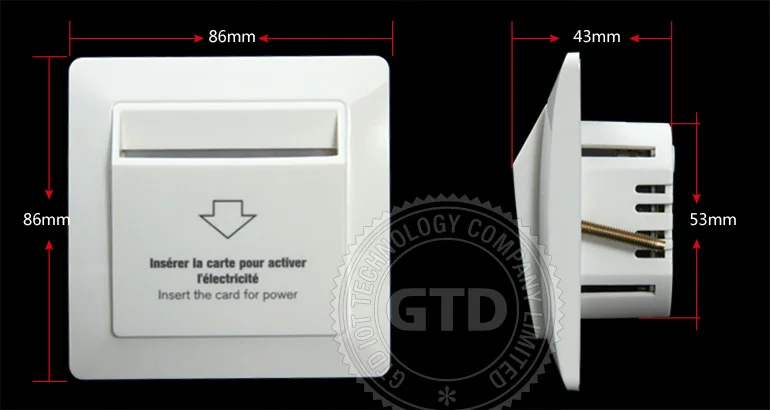

Overall dimensions: W86mm * H86mm * D43mm

Case Material: Imported fire retardant PC plastic

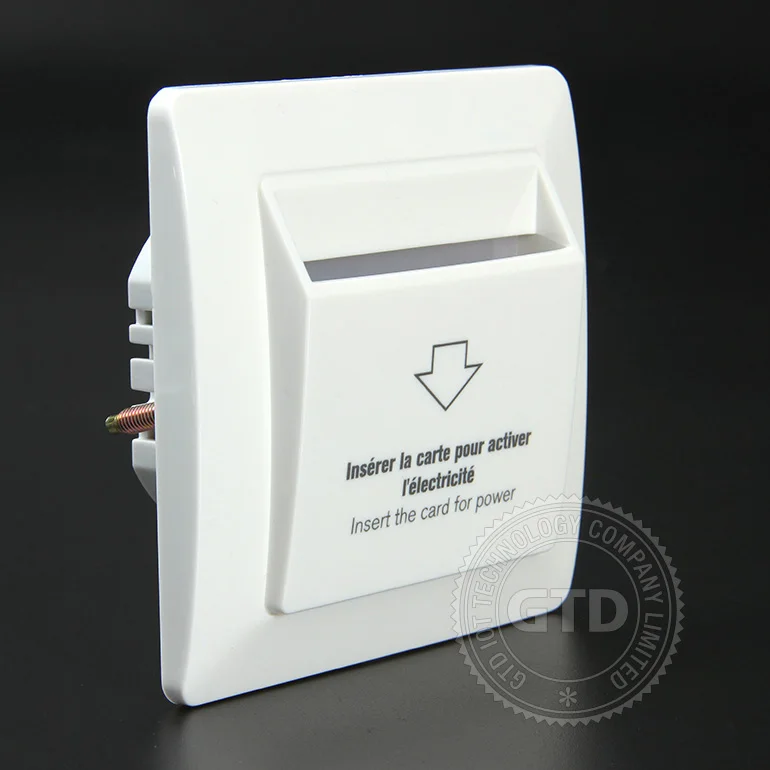

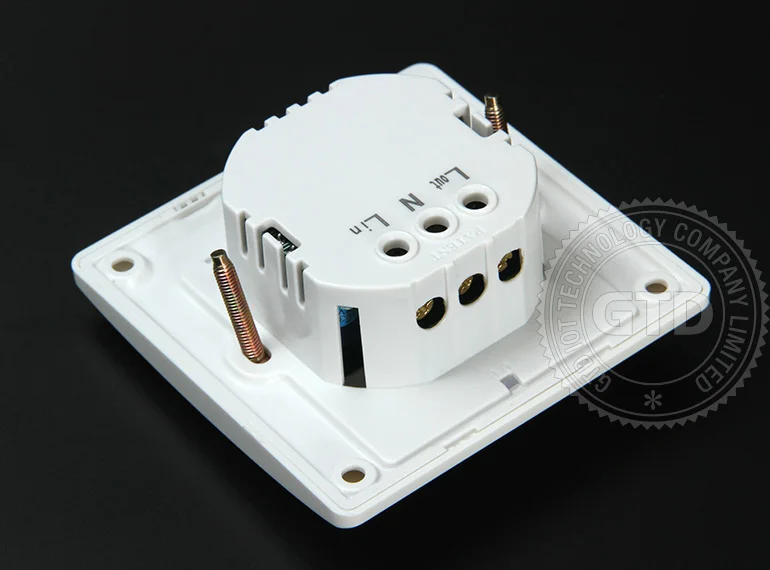

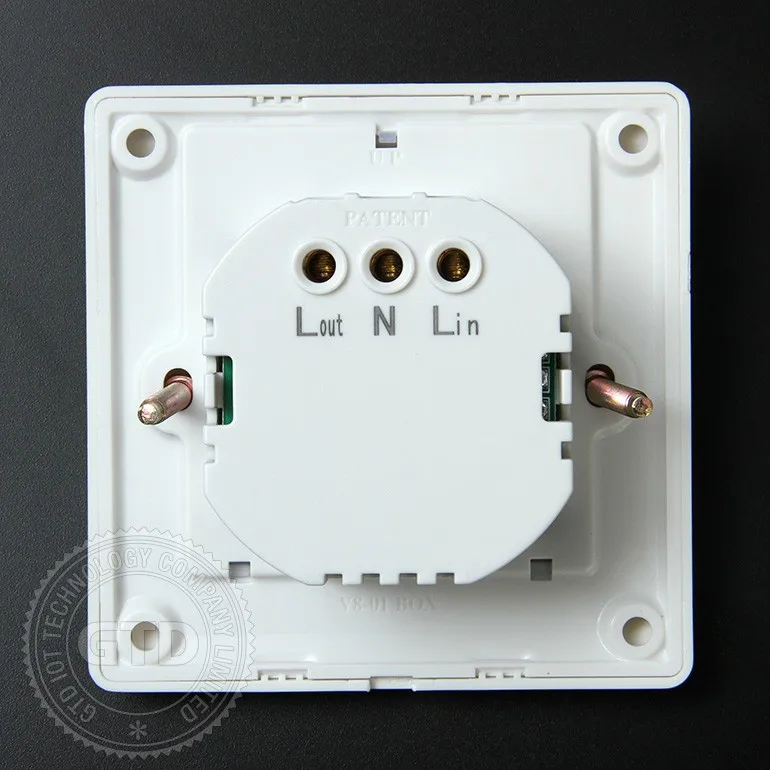

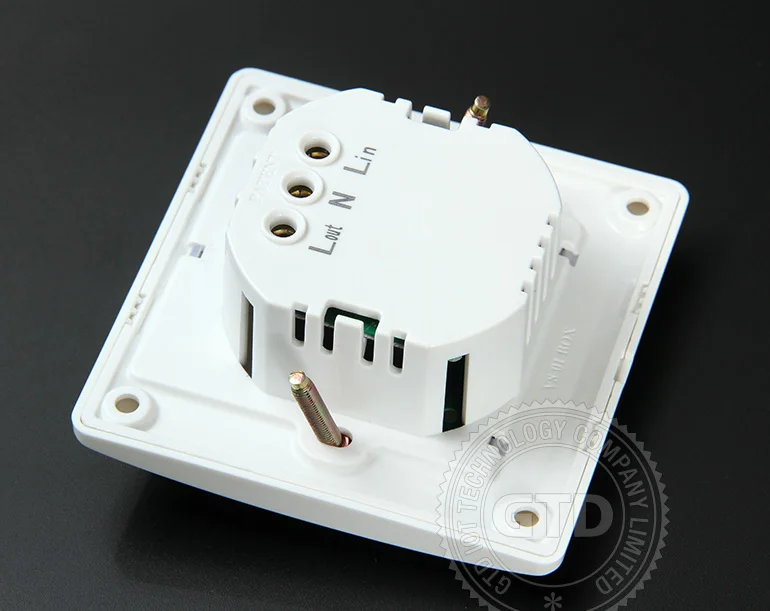

Round back, small size, special suitable for European smaller box to install.

The 2 screw holes distance is 60MM.
