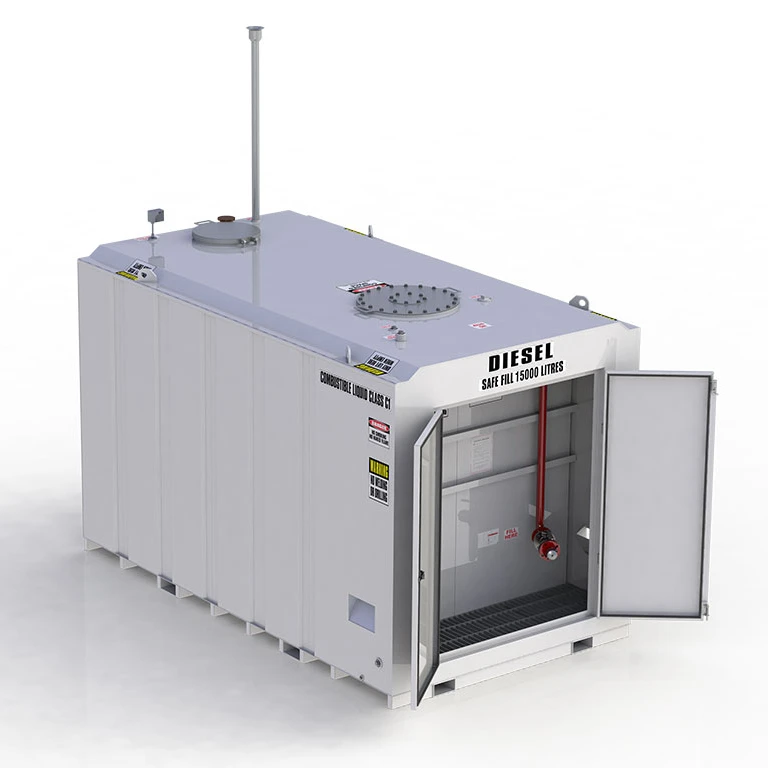

16000 Liters store tank , double Skined, 110% self bunded tank,

110% Self Bunded (Double Wall)

STORE TANK SMALL FOOT PRINT TANK RANGE

Innovative new range of tanks. Perfect for home base refuelling applications with lockable full height pump bay housing for secure storage of dispensing equipment.

Suitable for the Storage and Dispensing of Diesel, Gasoline (Petrol), Kerosene, Lubricants and Waste Oil.

STORE TANK- 110% Self Bunded (Double Wall) Small Foot Print Tank Range

 FUTURES

• Galvanised grated bunded area with drain.

• DN50 (2”) Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm.

• DN50 (2”) Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.

• Spare DN25 (1”) Suction Outlet.

• SPARE FITTINGS - Numerious spare fittings on top of the tank for retrofitting of instrumentation or other devices.

• 600mm dia manway with internal ladder.

• Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting.

• Anodised alunimum interstitial dipstck with brass locable drip stick cover fitting.

•Interstitial emergency vent.

• Primary tank free air vent.

• DECALS - Statutory safety decals.

• Forklift tynes have been incorporated in the front / rear of the tank to facilitiate offloading and positioning on site.

• Certified crane lifting lugs have been incorporated to facilitiate crane offloading and positioning on site. The lifting lugs are NOT certified to lift the tank with fuel.

• Letterbox syle secure weatherproof hose inlet / outlet assembly.

• Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard.

 Please feel free to contact us and let me know your requirements.
