square steel pipe and tube atv120 flail mower made in china

Share on (60298671069):


Price:

Quantity:


Product Overview

Description




Product Description

                       Mower



The 9GN series Rotary Slasher are suitable for cleaning and slashing of bush and grassland, as well as improving of uneven ranch. This sort of slasher is simple in construction, durale in service, adjustable in cutting height. And excellent in working performance. They are more ideal agricultural machine used for grass slashing and ranch cleaning.



Specifications



Model

9GN-1.2

9GN-1.5

9GN-1.8

9GN-2.1

9G-1.0

9G-1.5

9G-1.8

Cutting height(mm)

25-380

60-300

Cutting width(mm)

1200

1500

1800

2100

1000

1500

1800

Overall width(mm)

1370

1590

1960

2210

1180

1660

1960

Overall length(mm)

1880

2440

2770

2920

2360

2860

3160

Overall highth(mm)

1050

1050

1050

1150

1100

1100

1100

Weight(kg)

200

260

400

506

240

336

442

Working speed

5-8km/h

Diameter(mm)

≤38

≤38

≤63

≤63

≤38

≤38

≤63

Gearbox protection

Shear Pin

TractorP.T.O.RPM

540 or 760

Hitch Type

3-Point,Cat.I

Tractor H.P.Rating

11-22

18.3-36.7

36.7-55

40.4-59

11-22

18.3-36.7

36.7-55

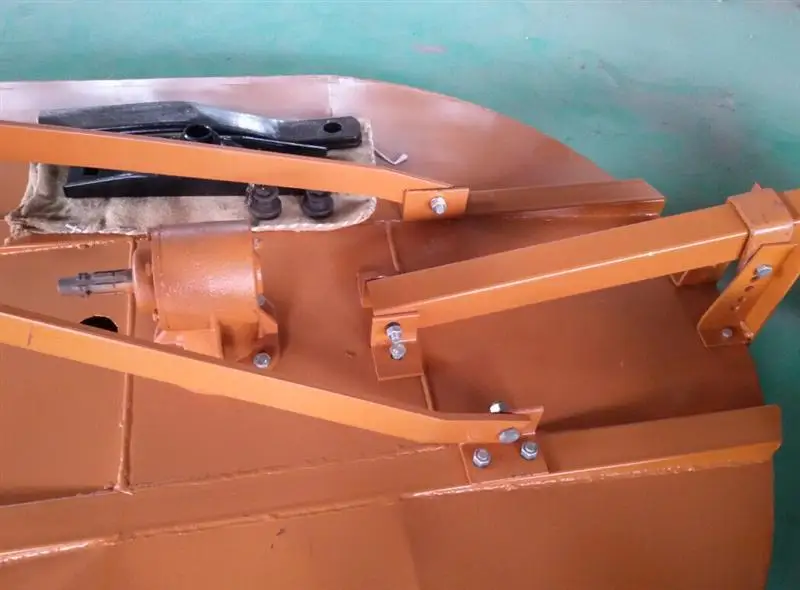

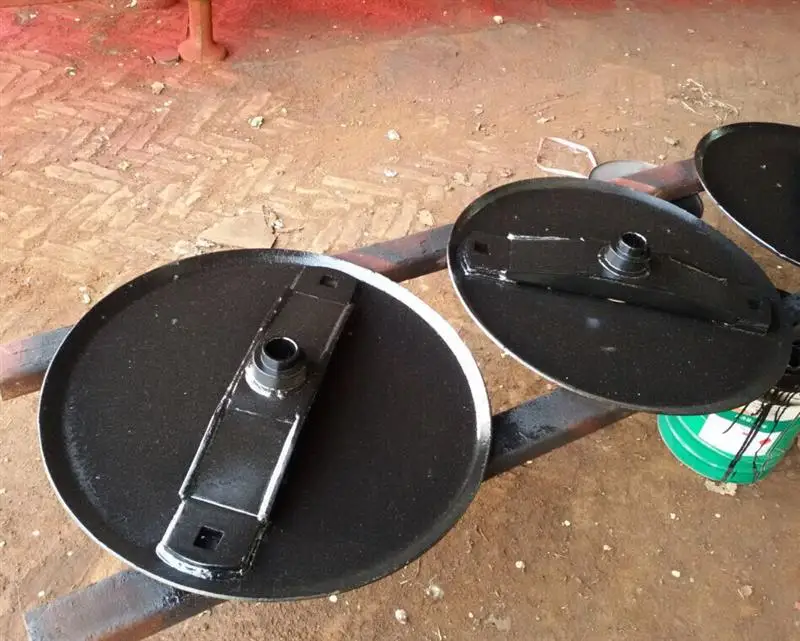

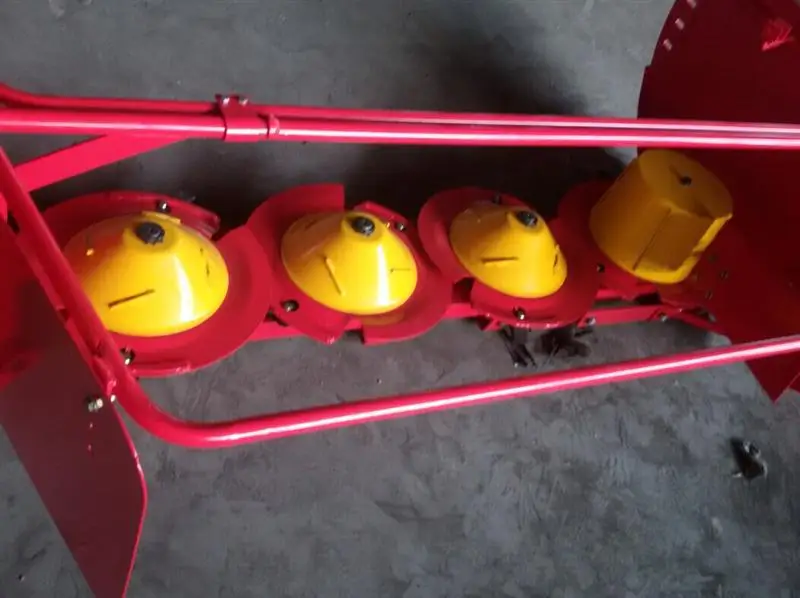

Product Show

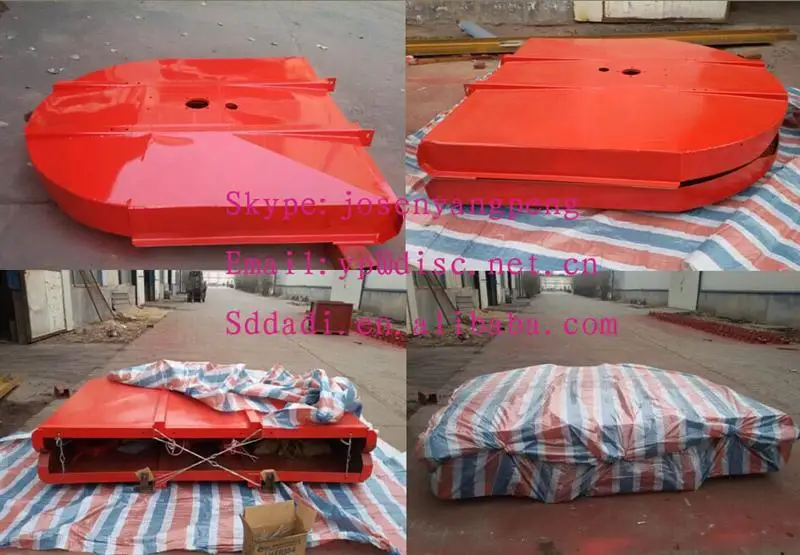

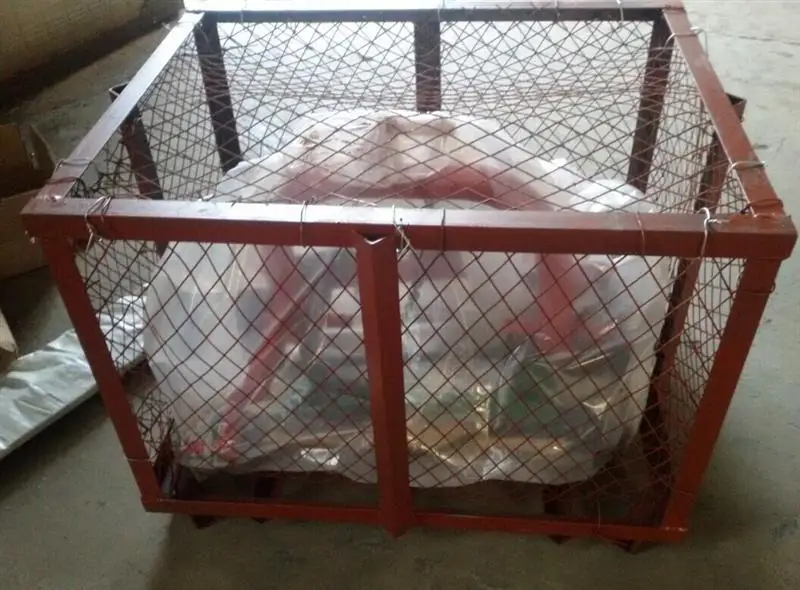

Packaging & Shipping






Company Information

 QQ20141130093523.jpgQQ20141130093630.jpgQQ20141130093630a.jpgQQ20141130094411a.jpgQQ20141210164406b.jpg




Our Services

1. Warranty time

    1.We can supply samples for customers.

    2.We supply you 2 years warranty time.

2. Spare Parts

    The Easy-damage parts, we will send you together with the Product for free. And in warranty         period, if the spare part is not work because of the quality, we will send you new parts for       free.

3.Payment way

   1. We accept T/T 30% in Advance, and 70% T/T after Shipping.

   2. We alos accept L/C at sight

4.More information, please contact us
