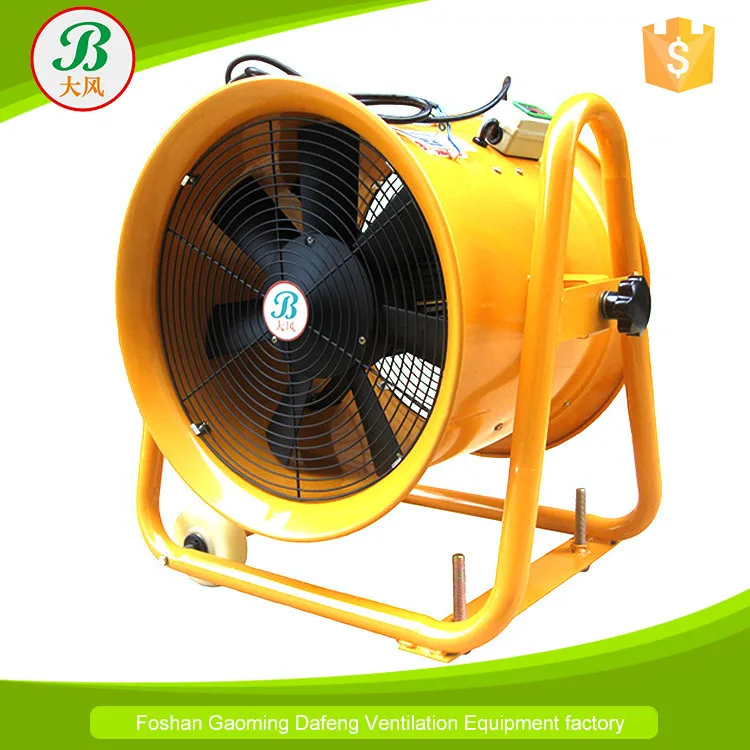

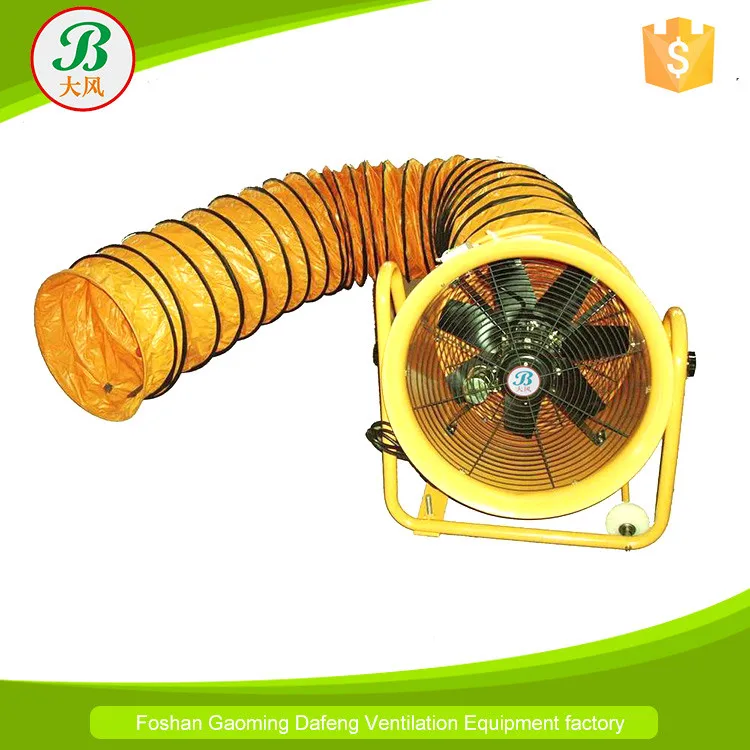

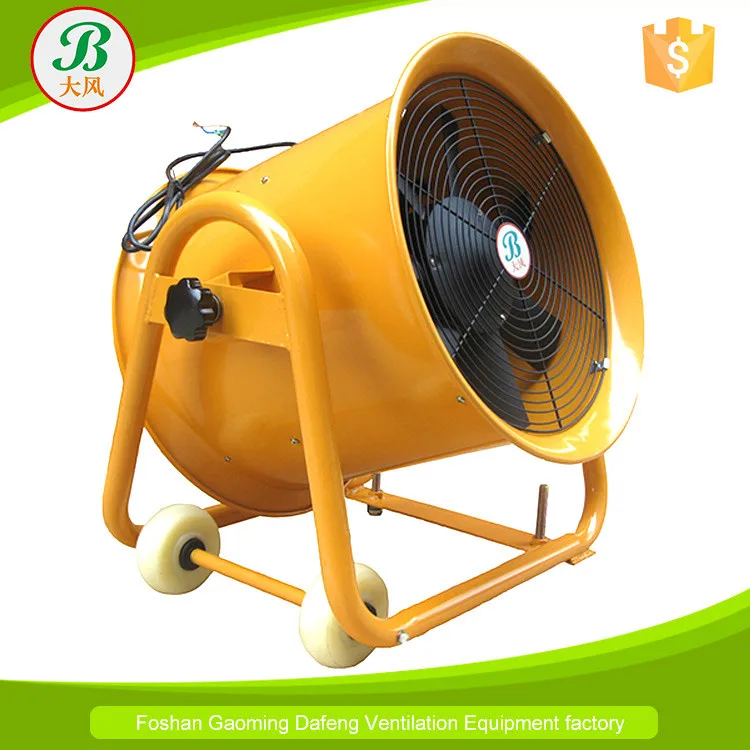

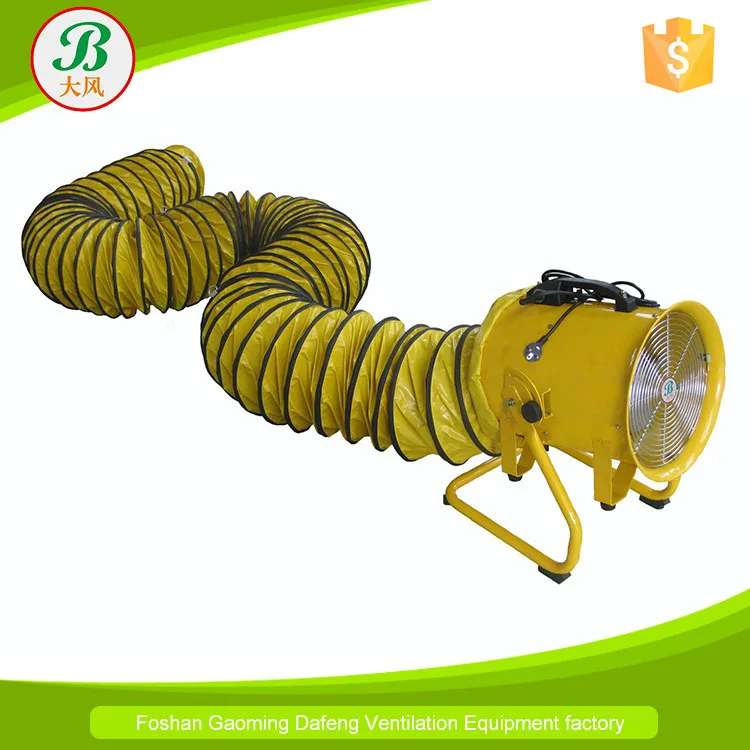

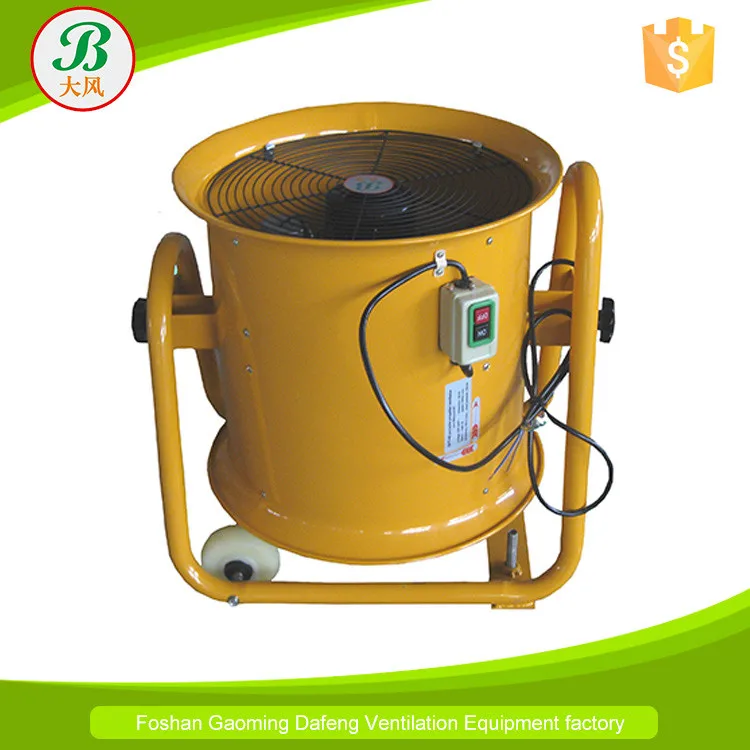

500mm 220V/50Hz Industrial Super Speed Exhaust Blower Fan

Product Overview

Description

pecification:



Size: 20” 500mm



Ventilator shell: made of hot-dipped galvanized sheet which has spray painted automobile coating on its surface



Impeller: made of aluminum casting alloy, 7 blades.



Fan guard: dusting, zinc coating



Switch: No plug.



Integrated plastic handle for easy carrying and with adjustable U standing.



Motor: It is wrap around with international standard copper wire



With radiating rib aluminum casting integrated motor shell.







Voltage Choice:

Voltage: 110V,220V,380V,440V.



Features

1.With good capability, novel pattern, reasonable structure and strong suction.



2.Make low noise and Light weight due to die-casting aluminum alloy



3. We can adjust the blowing angle to 180°





Production	Hand pushing adjustable ventilator /                     Adjustable ventilation fan/ Adjustable blower fan
Item No	SHT-50
Diameter	20"(500mm)
Voltage	220V/50HZ
Power(w)	2000
R.P.M(r/min)	2800
Capacity(m3/min)	200
GW(kgs)	44kg
Packing(cm)	68*66*52
OEM & ODM	OEM
Certification	CE
Free Sample	Pay sample

Application

Exhaust and supply flesh air in remote or deep operating zone, confined space construction and other bad air environment.



Exhausting welding waste gas, smoke, dust, the smell of paint during shipbuilding and maintenance.





3. Field of machinery, chemical industry, plant warehouse, underground sinking and driving engineering
