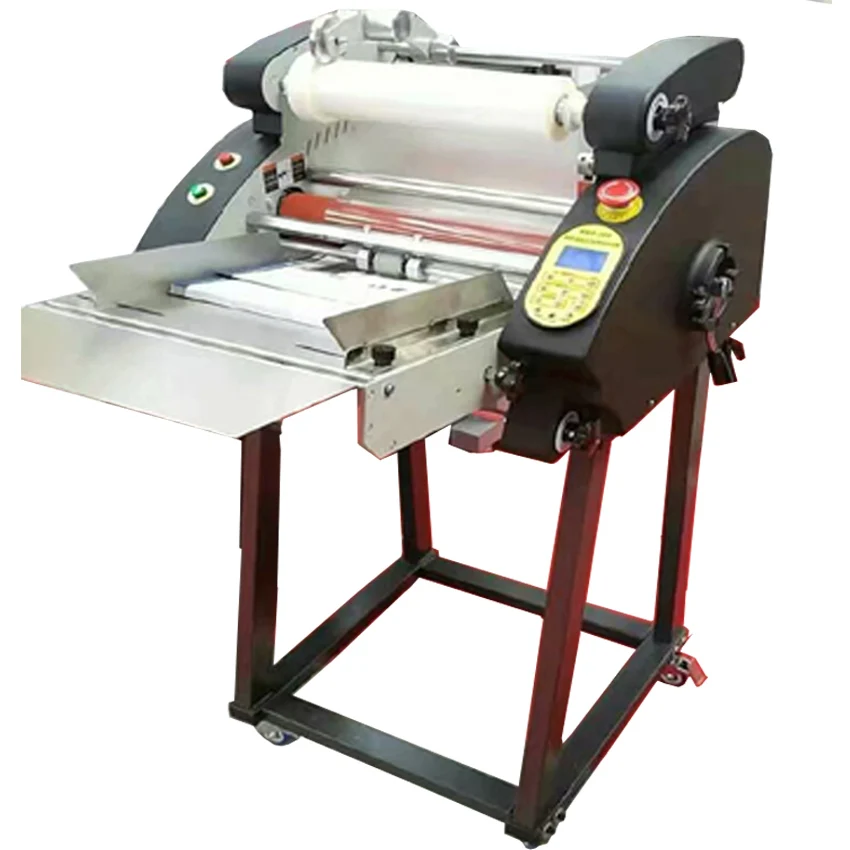

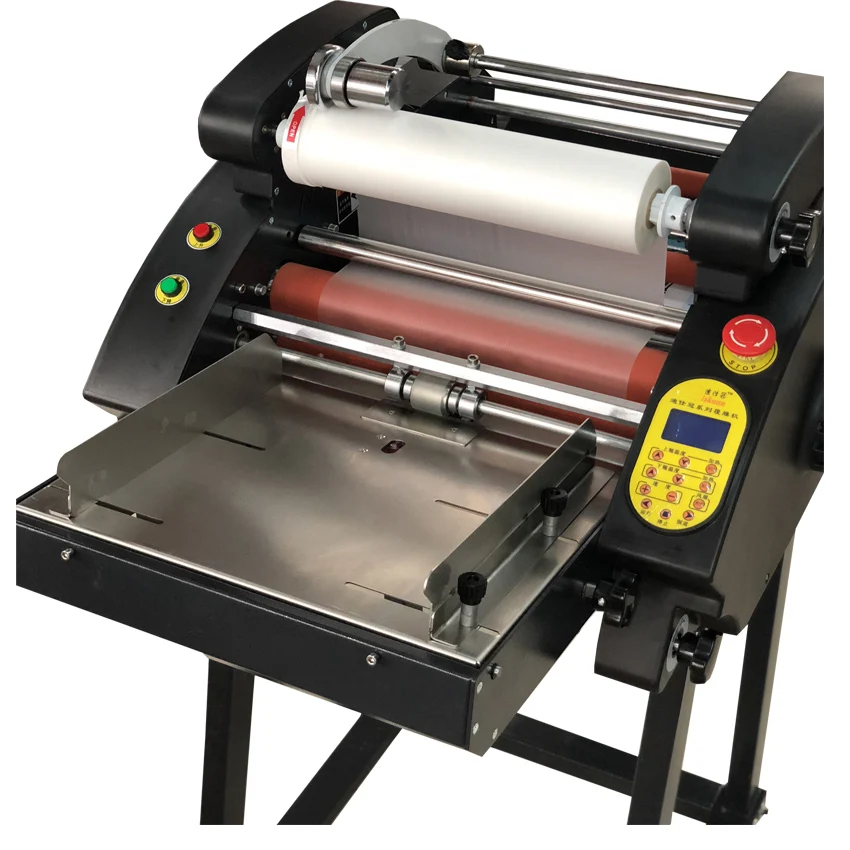

automatic laminator pouch laminator

Product Overview

Description

Automatic laminator pouch laminator . Our company have different model small size laminator machine , such as 380mm , 480mm and 680mm .



Details descipation

380A and 390A laminator is a full-auto roll laminator machine , An ideal laminating solution for use matte or gloss thermal films can save your cost during hot lamination. The machine can applicable many different paper , such as paper, cardboard, signs, canvas, thermal transfer and so on . The machine so easy to use finishing becomes one person.
Also we can produce other function machine , such as high temperature machine , ( temperature can up 200℃ ) and high speed function machine .

Optimum performance
1 . Automatic paper feeding , auto slitting after lamination
2. Large paper stacking capacity .
3. Adjustable roller pressure enable different paper thickness .
4. Especially the 390A machine , use 110mm steel roller , bigger pressure . And make the lamination bight and transparent .
5 . Digital control, touchable input screen for easy operation
6 . Speed and temperature can be adjusted freely
7. Available for different laminating materials to meet different requirements



Technical data

Max laminating width	350mm/450mm/650mm
Lifting way	unilateral lifting
Rated input power	1000w
Max  thickness	5mm
Heating way	infrared heat
Rated input voltage	110/220v
Speed	5m/min
Gross weight	60kg
Temp range	room temp---150°C
