Stand bracket mounting high brightness 450cd/m2 4-wire resistive touch 8 inch car pc display
Features

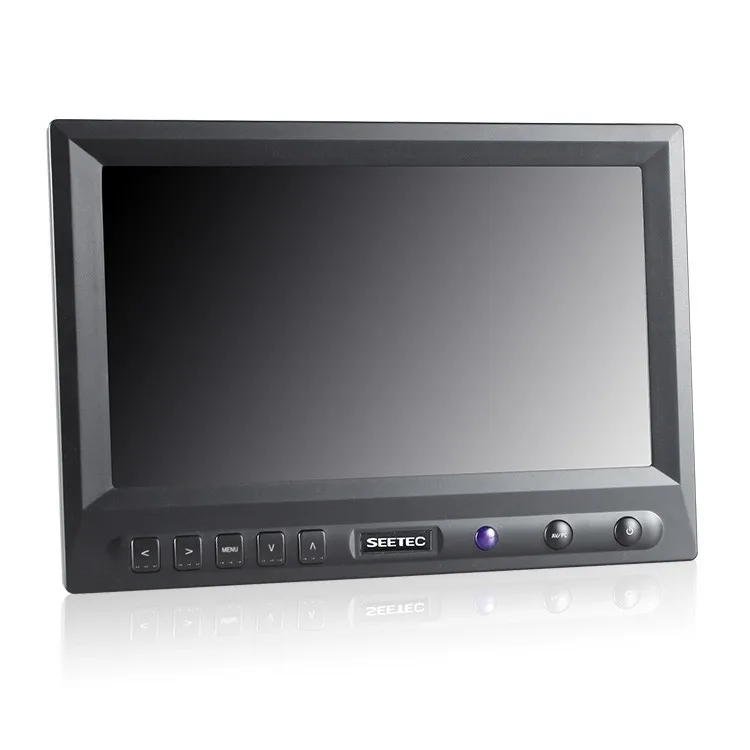

> ST-819AHT is a 8 inch TFT LCD monitor.
> It use a high quality new LCD Panel,with 800x480 resolution,300/450cd/m² high brightness and 70°/70°(L/R) 50°/70°(U/D) wide angle, which can display clear images.
> It uses LED backlight,which has advantage like Energy-Saving,Long life and environmental protection.
Parameters
Description
8" TFT LCD Touch Monitor w/ HDMI Input
Model
ST-819AHT
ST819AHT-450
ST-819AH W/O Touch
ST819AHT-450 W/O Touch
Brightness
300cd/m²
450cd/m²
Touch Screen
4-Wire Resistive Touch(5-Wire for Optional)
Touch Interface
USB (RS232 for Optional)
Dot Resolution
800*480 pixels (max to1920*1440)
Aspect Ratio
16:9
Contrast Ratio
500:1
Backlight
LED
Viewing Angle
70°/70°(L/R) 50°/70°U/D
Input Signal
VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional)
HDMI Format
480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)
Mounting Process
Stand Bracket
VESA 75*75mm
1/4-20 Hole in the bottom
Input Voltage
DC 7-18V
Power Consumption
≤6W
workingTemperature
-20℃~60℃
storage Temperature
-30℃~70℃
Unit Size
208L x 147W x 33H(mm)
Unit Weight
535g
Product Description
Abundant Interface:

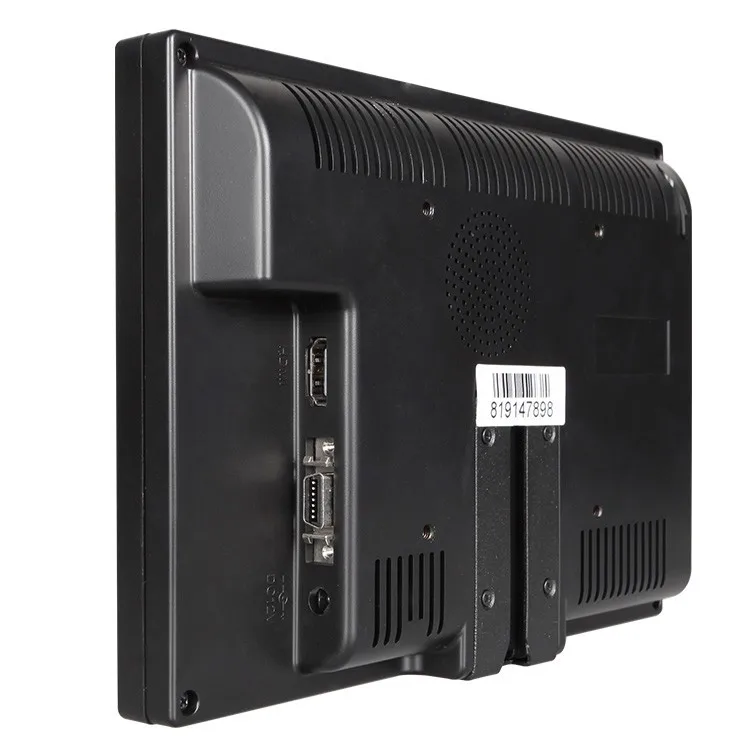

Even small size as 8 inch,ST-819AHT also has HDMI,DVI-D,VGA,Audio (1 RCA)&Video (2 RCA) input, which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.
>On HDMI Mode,using under scan function,it is possible to display Full HD videos.
Customized SKS Cable
One Side: Customized 14 Pin SKS terminal
The other side:
> 9 Pin VGA terminal (Black)
> 2 RCA Video terminal (Yellow)
> 1 RCA Audio terminal (White)
> 1 DC input (Black)

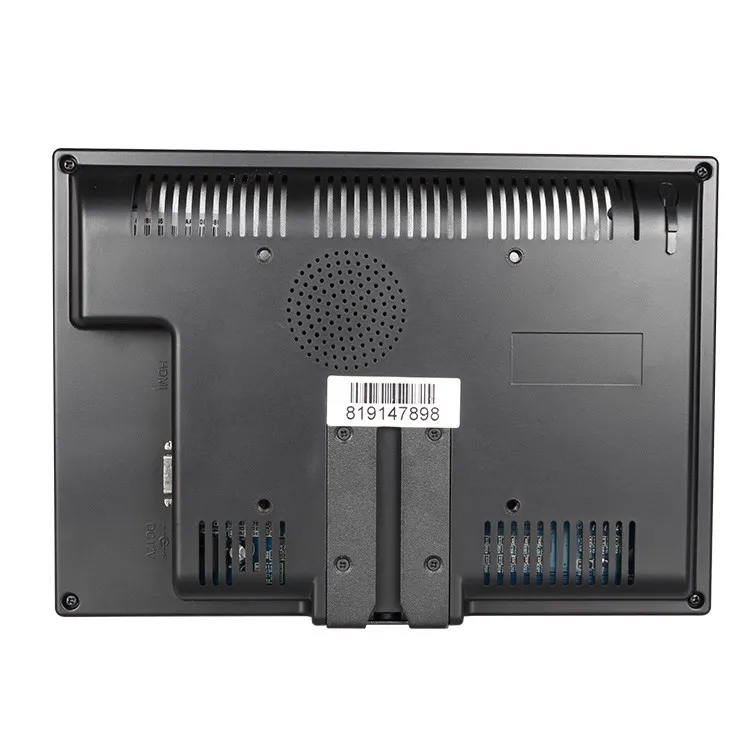

VESA 75mm Mount Holes:
There are VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor.So it can be used with wall mount arm which support VESA 75mm.
Speaker Built-in:
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment

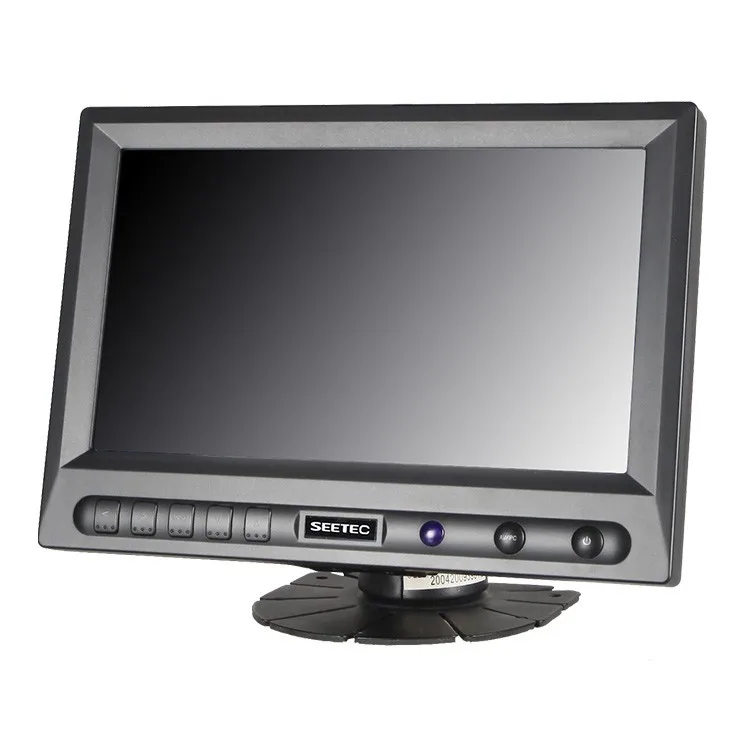

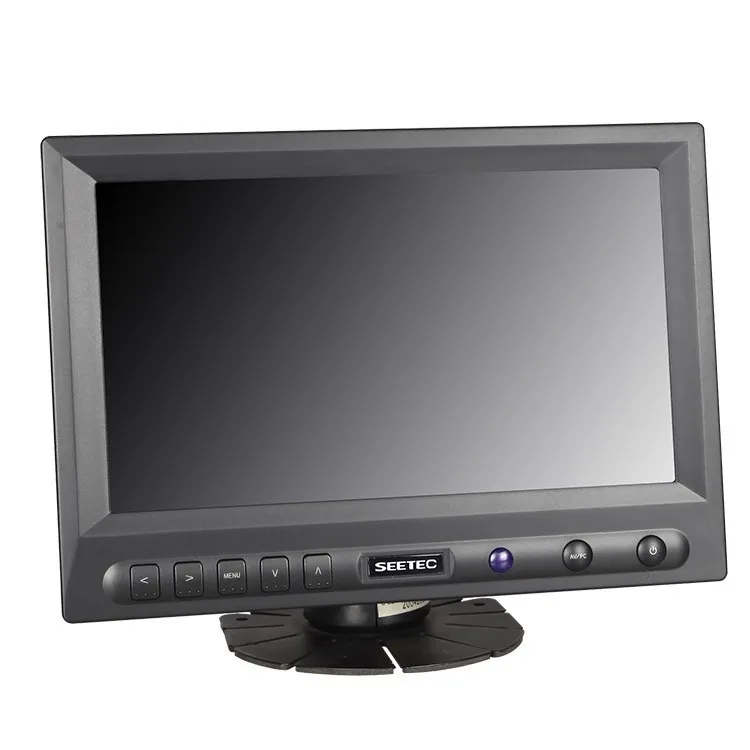

Standard Bracket:
Portable Bracket . It is convenient to adjust the monitor as 360-degree horizontal and 90 degree vertical.
Support System for Touch:
MAC
Vista
Linux
Win CE
MS-DOS
Window XP
Window NT4
Window 9X/ME
Image Flip Function
ST-819AHT has Image Flip(Horizontally & Vertically) function.Using this function.it is convenient to watch the display even the monitor is reverse installation.
Mode Shift between 16:9 to 4:3
Base on different signal input or Practical purposes, you can change the display mode between 16:9 to 4:3.
Application:
This product employs new integrate circuits and high quality TFT LCD Screen. Advanced advantage is low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.
