Ungar Auto Matic disposable Aluminum Foil Container Press Machine
- Category: Home Product Making Machinery Parts >>>
- Supplier: Ungar Machinery (Shanghai) Co. Ltd. [Shanghai China]Ungar
Share on (60299774018):
Product Overview
Description
Auto-Matic disposable Aluminum Foil Container Press Machine
Product Description
Components of this production line:
1. Auto-feeder
2. Punching machine
3. Auto-stacker
4. Auto-scrap collector
5. Electrical control system
6. Stamping mold
| Nominal force | 800KN,H-Type Press |
| Stroke time | 20-70 times/ Min. |
| Slide block stroke(Optional Size ) | 240/260mm(Option) |
| Max.height of mould installation | 450mm |
| Height adjustment for mould | 80mm |
| Distance from slide block center to body | 610mm |
| Adjustable work block dimension X2 | 1000(L)x220(W)x300(H)mm x2 |
| Dimension of Slide block bottom surface | 520 x 520mm |
| Hole Dimension Slide block bottom surface | 340 x 460mm |
| Size of centering hole(Diameter×Depth) | 50 x 90mm |
| Press Machine Type | Electric shut hight adjustment |
| Press Net Weight | 11,000KG |
| Voltage &Frequency(Optional) | 380V, 50/60Hz, 3 Phase |
| Total power | 15kW |
| Press dimension (LxWxH) | 2500x1300x3800mm |
Advantage
- Welded body with steel plate and high intensity.
- Main motor is made by Siemens.
- Adopts combined pneumatic friction clutch and brake.
- Cluster gear adopts the flooding oil lubrication.
- Six-face rectangle lengthen guide;
- Equipped with hydraulic overload protecting device.
- Electric shut height adjustment with digital display.
- Equipped with lifting balance cylinder.
- Duplex valves imported.
- Electric compelling grease lubrication system.
- Balancing cylinder adopts manual lubrication system.
- One set of blowing device

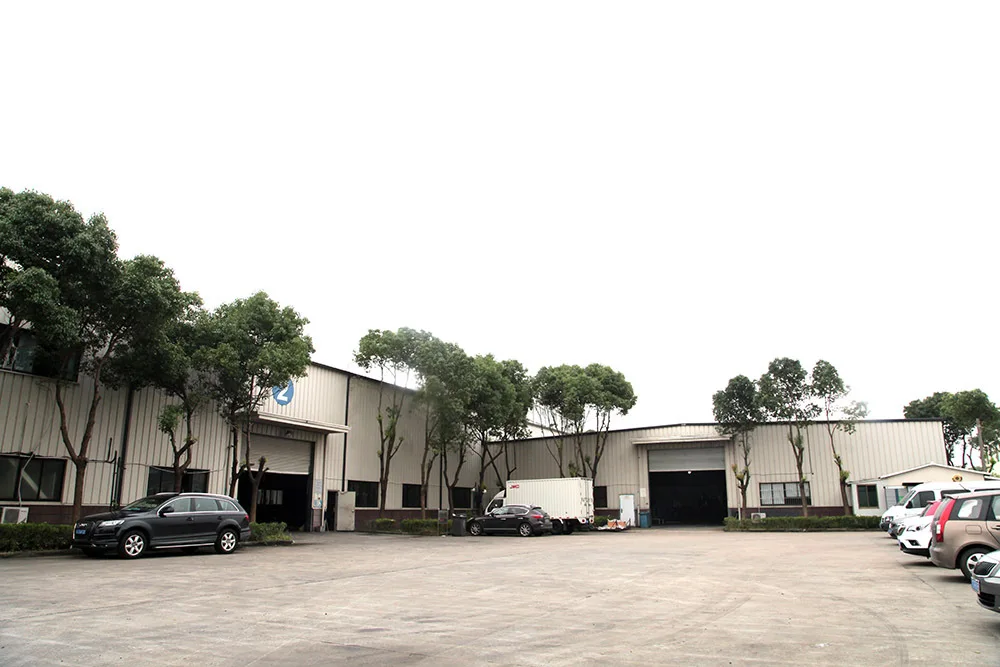

Company Information
UNGAR CO., LTD is an Austrian enterprise established in 2009 supplying high productive multi-cavity mould and machinery which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap aspirator and additional equipments. UNGAR complete integrated production line has been specially designed and developed for the production of aluminum food container and trays, foil rolls.
The design team with its head quarter in Austrial, manufacturing factory located in Shanghai, professional engineers service and global sales linking by Europe, America, Middle East, Gul-food area and most of Asia countries.

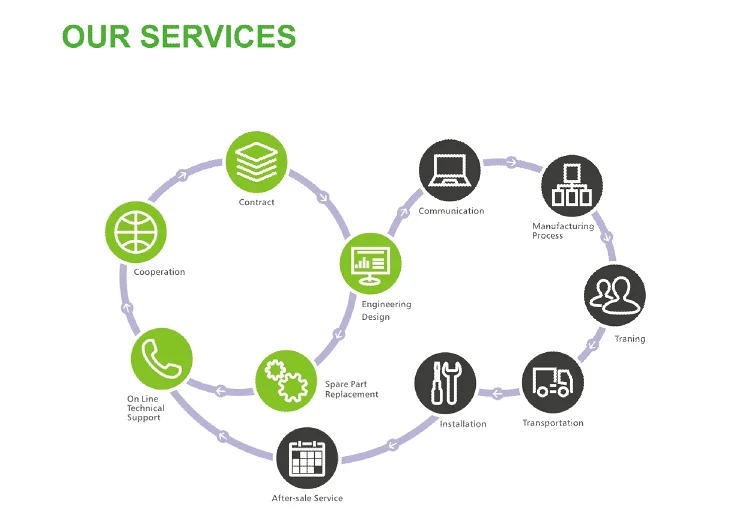

UNGAR CO.,LTD also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on.
Packaging & Shipping
Packaging:
Shipping:
