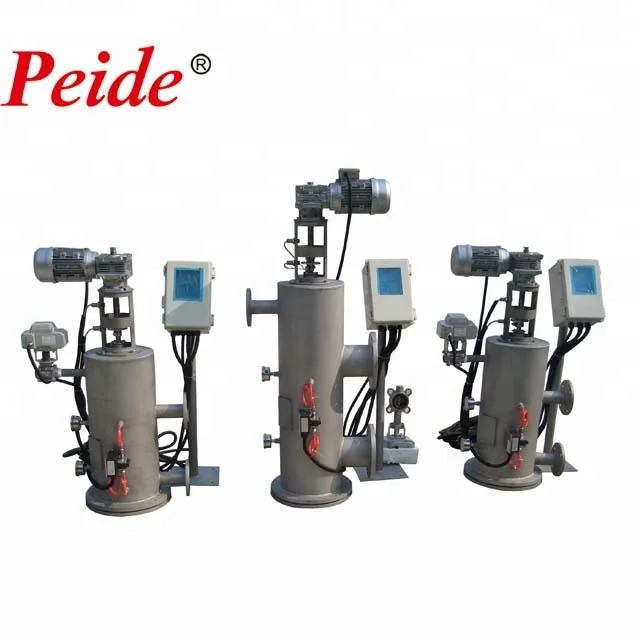

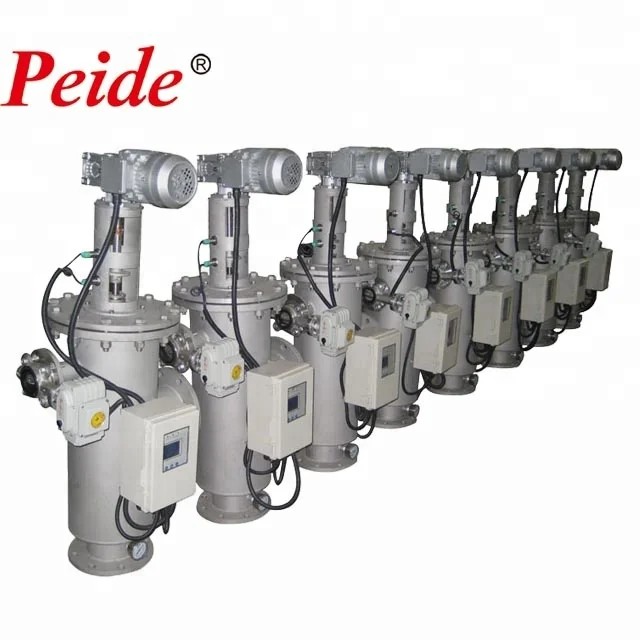

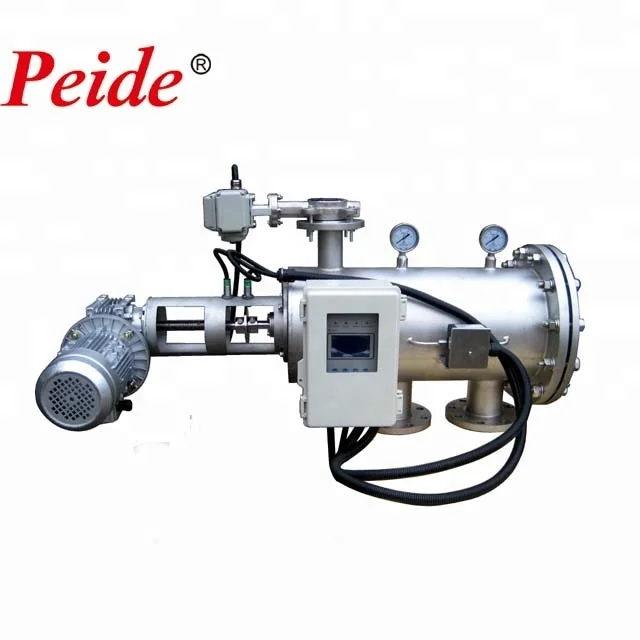

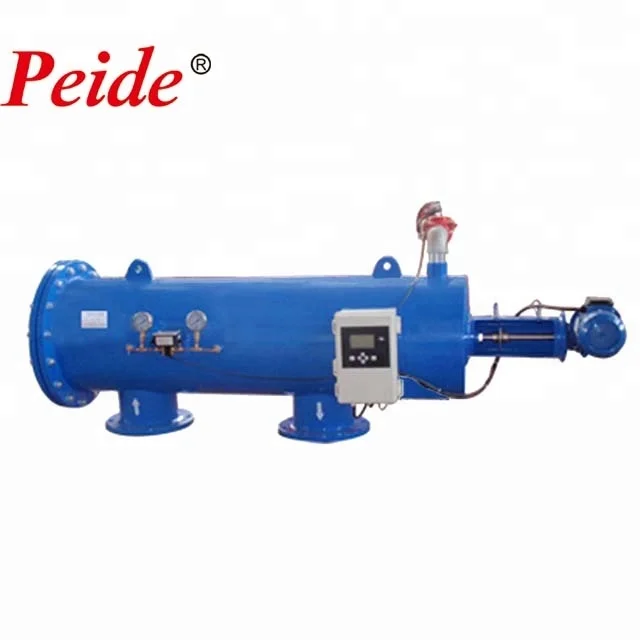

vertical stainless steel automatic self cleaning filter/automatic self cleaning water filter/automatic cleaning water filter
- Category: >>>
- Supplier: Jiangsu Pei De Water Treatment Equipment Co. Ltd.
Share on (60300070112):
Product Overview
Description
Product Paramenters
Standard Design Pressure | 10/16/25bar |
Mini. Working Pressure | 3bar (depend on the viscosity and filtration degree) |
Flow rate Range | 25~3000m³/h |
Applicable Liquid | Viscous Liquid |
Back-flushing Liquid | Filtered Clean Water |
Filtration Degree | 100-1000μm |
Working Principle | Single Filter Continuous Filtration, Automatic Back-flushing |
Design Temperature | 0-120℃ |
Back-flushing Cycle | Differential Pressure and Time |
Differential Pressure Instrument | Intelligent Differential Pressure Transmitter/switch |
Inlet and Outlet Standard | ANSI Flange CLASS150/DIN Flange PN10/ Sanitary Coupling |
Housing Wet Part Material | CS/304/316L |
Filter Screen Material | 304/316L |
Sealing Material | NBR/EPDM/VITON/Silastic |
Back-flushing Valve | Pneumatic Ball Valve/ Electric Butterfly Valve |
Automatic backwash filter is composed of the drive mechanism, the control circuit (including the pressure switch), filter components, cleaning device, connecting flanges and other major component parts.It cleans sewage by the drive motor and the electric valve automatically, the operation mode is automatic operation (option:manual operation), with timing control or pressure difference control. Its automated part is controlled by reliable PLC programmable controller.
Water enters into the filter, the mechanical impurities are intercepted.When the impurities accumulate for a period, reaches 0.05MPa, then the differential pressure switch will send signal, while the PLC command is issued, transmission motor starts, the drain valve opens, the impurities deposited on the filter is brushed away, and drain out. The whole process is without personnel, without downtime. Besides, the device also has the function of timing and manual cleaning to ensure that the outlet water is safe under any circumstances.
Water enters into the filter, the mechanical impurities are intercepted.When the impurities accumulate for a period, reaches 0.05MPa, then the differential pressure switch will send signal, while the PLC command is issued, transmission motor starts, the drain valve opens, the impurities deposited on the filter is brushed away, and drain out. The whole process is without personnel, without downtime. Besides, the device also has the function of timing and manual cleaning to ensure that the outlet water is safe under any circumstances.
Product Advantages
A1:We also have square wave controller,if you want square wave controller,please tell me.
A2:High-performance filter, filter out all your worries and worries.
Details Images
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Construction scene
Production Process
Company Profile
FAQ
1. Q: What terms of payment do you accept?
A: Payment method:T/T,Paypal,western union.
2. Q: What is your delivery time?
A:Delivery term:10-30 working days.
3. Q: What's the minimum quantity of your order?
A: MOQ:1 Set.
4. Q: How long is the warranty?
A: Quality guarantee period:1 year
A: Quality guarantee period:1 year
