Used Products Sand Making Stone Gold Ore Perlite Diesel Engine Tin Aggregator Pulverizer Mill Impact Crusher 2022
- Category: >>>
- Supplier: Yantai Jinpeng Mining Machinery Co. Ltd.
Share on (60300285543):
Product Overview
Description
Product Description
Spring cone crusher

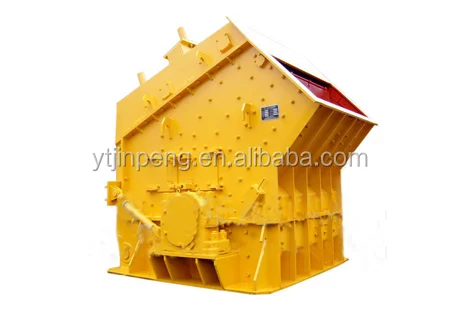

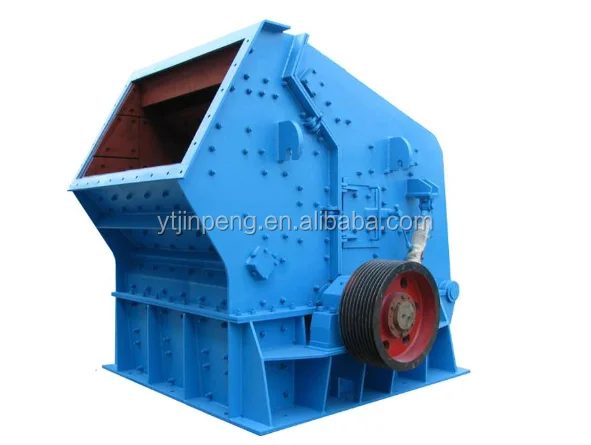

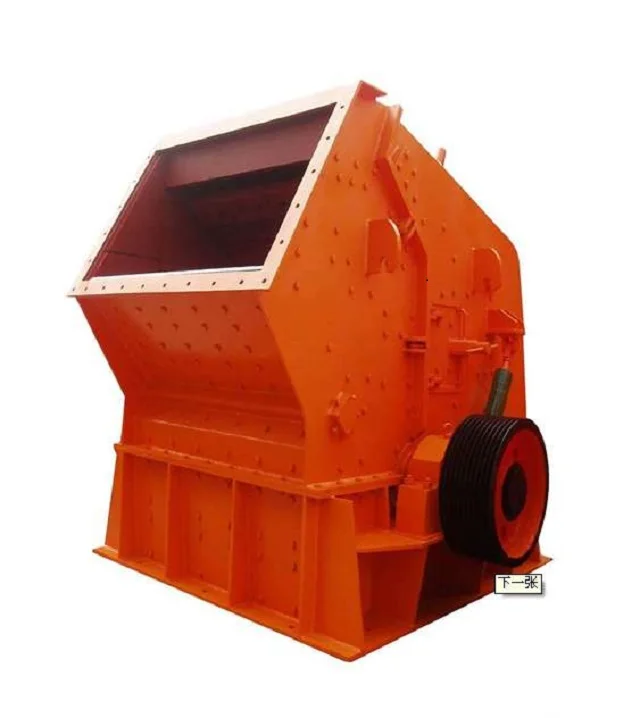

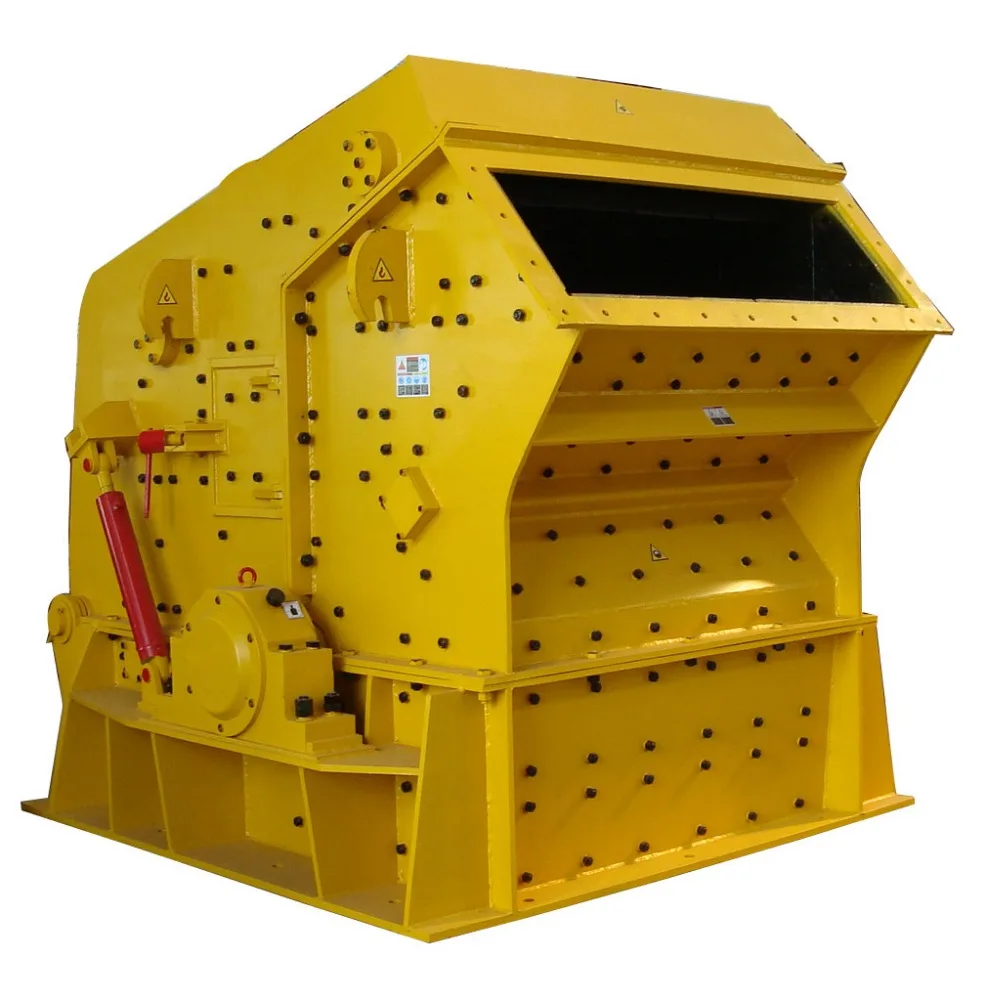

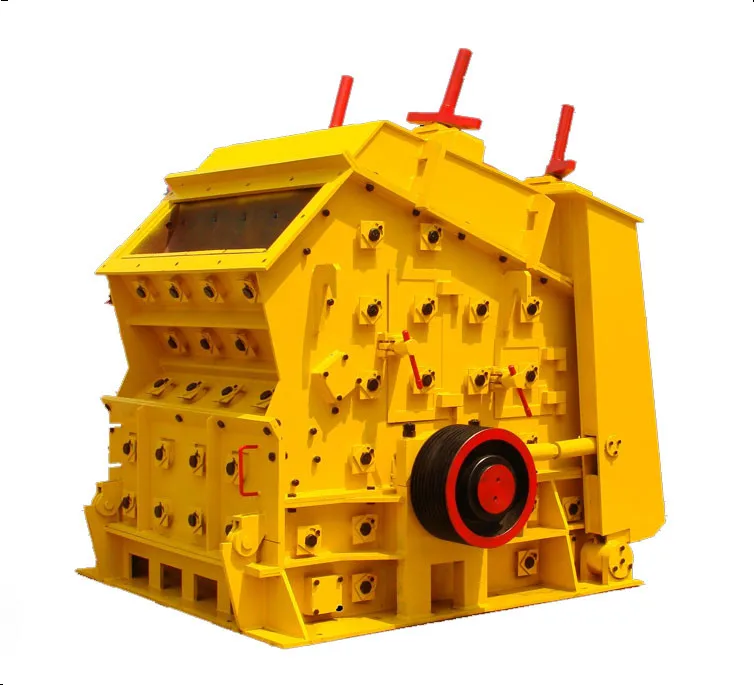

Impact crusher is mainly used in ore crushing finely, its partical size can adjust, broken specifications diversification, big
crushing ratio, material after broken cube grains, etc.)
Product Features: Inheritance of century-old classics, simple structure, stable working performances
Max particle : 1-400mm
Production capacity : 1-800t/h
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
crushing ratio, material after broken cube grains, etc.)
Product Features: Inheritance of century-old classics, simple structure, stable working performances
Max particle : 1-400mm
Production capacity : 1-800t/h
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
Structure
Counterattack crusher is a kind of the use of impact energy to broken material crushing machine, this machine is working, under the drive of the motor, the rotor high-speed rotation, the material into the plate hammer function area, and the rotor plate hammer impact broken, and then again to counter device is broken, and then back to the board from the back plate hammer function area is broken again, this process is repeated, material from big to small into one, two, three, back cavity repeated broken,until the material being broken to the required size, is being exhausted from port discharge, adjust the clearance between the back frame and rotor can achieve the purpose of the material discharging granularity and material to change shape.
Advantage
1, broken than large, generally for 30 to 40, the largest up to 150.
2, high grinding efficiency, low power consumption.
3, product granularity and less crushing phenomenon.
4, can selective crushing.
5, adaptability, can be hard brittle broken, fibrous and the following material, especially suitable for brittle material
breakage.
6, equipment, small volume, light quality, simple structure, easy maintenance.
2, high grinding efficiency, low power consumption.
3, product granularity and less crushing phenomenon.
4, can selective crushing.
5, adaptability, can be hard brittle broken, fibrous and the following material, especially suitable for brittle material
breakage.
6, equipment, small volume, light quality, simple structure, easy maintenance.
Technical Parameter
MODEL | rotor diameter(mm) | rotor length(mm) | Max particle(mm) | Production capacity(t/h) | motor power(kw) | weight(kg) |
PF-0504 | 500 | 400 | 100 | 5-8 | 7.5 | 1.5 |
PF-0607 | 640 | 700 | 120 | 10-20 | 30 | 4.1 |
PF-1007 | 1000 | 700 | 250 | 15-30 | 37 | 6.5 |
PF-1010-1 | 1000 | 1000 | 250 | 30-80 | 75 | 12.7 |
PF-1210-1 | 1250 | 1000 | 250 | 60-120 | 110 | 14.5 |
PF-1212-1 | 1250 | 1250 | 300 | 80-140 | 132 | 16.8 |
PF-1214-1 | 1250 | 1400 | 300 | 100-160 | 132 | 19.5 |
PF-1310-1 | 1300 | 1050 | 300 | 70-140 | 132 | 14.2 |
PF-1315-1 | 1300 | 1500 | 300 | 100-180 | 180 | 21.5 |
PF-1320-1 | 1300 | 2000 | 300 | 150-250 | 200 | 24.5 |
PF-1520-1 | 1500 | 2000 | 300 | 180-320 | 220 | 29.5 |
PF-1622-1 | 1600 | 2200 | 350 | 400-600 | 250 | 101 |
PF-1822-1 | 1800 | 2200 | 400 | 500-800 | 280 | 118 |
Project Case
Project name: HUNAN 12,000 TPD LEAD & ZINC
PLANT
Location: China
Ore type: Lead and Zinc
Design capacity: 12,000 tons per day
PLANT
Location: China
Ore type: Lead and Zinc
Design capacity: 12,000 tons per day
Main process:
Crushing: One stage Jaw crusher with one stage Impact crusher
Grinding: One stage grinding with 3 sets of 3645 ball mill
Rougher+ Scavenger flotation- 69 sets 16 m³ flotation cells
Cleaner flotation- 21 sets 10 m³ flotation cells
Crushing: One stage Jaw crusher with one stage Impact crusher
Grinding: One stage grinding with 3 sets of 3645 ball mill
Rougher+ Scavenger flotation- 69 sets 16 m³ flotation cells
Cleaner flotation- 21 sets 10 m³ flotation cells
Our Services
1. Engineering Consulting
Engineering consulting makes clients have a comprehensive understanding of the value of mine, the useful elements, available
mineral processing technology, plant size, required equipment and period.
2. Mineral dressing test
Mineral dressing test is in charge of Mineral Dressing Research Institute belonging to jinpeng Company.
3. Mine design
Three parts of mine design: feasibility study, preliminary design and construction plan
4. Equipment manufacture
Equipment manufacture is in the charge of jinpeng mine production plants that covers an area of 100 mu, and are divided into 3 production plants. It could manufacture more than 600 kinds of equipment of mining, ore dressing and metallurgy, and provides fullets of main and auxiliary equipment for mine less than 10000 tons / day capacity. jinpeng company passed the ISO9001:2000 international quality management system certification, and has formed a complete and strict quality management system in equipment manufacture that operation is in strict accordance with the requirements of the quality manual.
5. Installation and Commission
Installation & commission is key link of realizing dressing test, mine design, and equipment manufacture, and directly takes influence on production. Jinpeng established professional installation company having four installation teams which are from the mine production line and led by engineering technicians who held the directors of dressing plant and mine leader. Installation personals Jinpeng sent out participate in the whole mine design of clients, and there are two points for this: one is the old technicians are very familiar with structure, performance and using of Jinpeng equipment; the other is the technician who can quickly solve many actual problems in plant construction understand the overall design of factory because of participating in the whole mine design.
6.Personal training
The Jinpeng technicians who have extremely rich practical experience for worker training are experts of installation and
commission team. They help workers to pay attention to some details which usually don't be easy to notice but extremely important.These jinpeng technicians provide training from 3 aspects:Operation training for all workers involved in mineral processingTraining for the common problems in the plant operation and processing technology; a live solution demonstration for workers Training of operation experience grasping, the workers should operate machines by lots of exercises.
7. Designed capacity reached
The target reached of jinpeng EPC includes expected recovery rate reached, design capacity for clients reached, the quality of product reached, consumption indicators meeting requirement, effective controlling of production cost and the stable operation of process and equipment. Whether the recovery rate guarantees is the key of target reached. When the recovery rate could not reach expectation values, it would causes huge losses for dressing plant, especially for precious metals.jinpeng EPC service guarantees the recovery rate reaches the expectation value, and solves all the problems, which makes the dressing plant start soon and reach the target.
8. After-sale Service
After the contract finished, jinpeng would regularly visit customer to provide after-sale technical support and to solve problems of dressing plant. For equipment of dressing plant, jinpeng could provide one-year warranty.
(For more information, please visit //en.ytjpkj.com/comcontent_detail01.html)..
Engineering consulting makes clients have a comprehensive understanding of the value of mine, the useful elements, available
mineral processing technology, plant size, required equipment and period.
2. Mineral dressing test
Mineral dressing test is in charge of Mineral Dressing Research Institute belonging to jinpeng Company.
3. Mine design
Three parts of mine design: feasibility study, preliminary design and construction plan
4. Equipment manufacture
Equipment manufacture is in the charge of jinpeng mine production plants that covers an area of 100 mu, and are divided into 3 production plants. It could manufacture more than 600 kinds of equipment of mining, ore dressing and metallurgy, and provides fullets of main and auxiliary equipment for mine less than 10000 tons / day capacity. jinpeng company passed the ISO9001:2000 international quality management system certification, and has formed a complete and strict quality management system in equipment manufacture that operation is in strict accordance with the requirements of the quality manual.
5. Installation and Commission
Installation & commission is key link of realizing dressing test, mine design, and equipment manufacture, and directly takes influence on production. Jinpeng established professional installation company having four installation teams which are from the mine production line and led by engineering technicians who held the directors of dressing plant and mine leader. Installation personals Jinpeng sent out participate in the whole mine design of clients, and there are two points for this: one is the old technicians are very familiar with structure, performance and using of Jinpeng equipment; the other is the technician who can quickly solve many actual problems in plant construction understand the overall design of factory because of participating in the whole mine design.
6.Personal training
The Jinpeng technicians who have extremely rich practical experience for worker training are experts of installation and
commission team. They help workers to pay attention to some details which usually don't be easy to notice but extremely important.These jinpeng technicians provide training from 3 aspects:Operation training for all workers involved in mineral processingTraining for the common problems in the plant operation and processing technology; a live solution demonstration for workers Training of operation experience grasping, the workers should operate machines by lots of exercises.
7. Designed capacity reached
The target reached of jinpeng EPC includes expected recovery rate reached, design capacity for clients reached, the quality of product reached, consumption indicators meeting requirement, effective controlling of production cost and the stable operation of process and equipment. Whether the recovery rate guarantees is the key of target reached. When the recovery rate could not reach expectation values, it would causes huge losses for dressing plant, especially for precious metals.jinpeng EPC service guarantees the recovery rate reaches the expectation value, and solves all the problems, which makes the dressing plant start soon and reach the target.
8. After-sale Service
After the contract finished, jinpeng would regularly visit customer to provide after-sale technical support and to solve problems of dressing plant. For equipment of dressing plant, jinpeng could provide one-year warranty.
(For more information, please visit //en.ytjpkj.com/comcontent_detail01.html)..
Packing & Delivery
We makes a classification package plan for all the kinds of equipments and materials. Transport the goods to Chinese port in batches, handle the procedure.
