ØPortable-type, light weight, easy to carry do the wild field operations.
ØLow noise, easy to start.

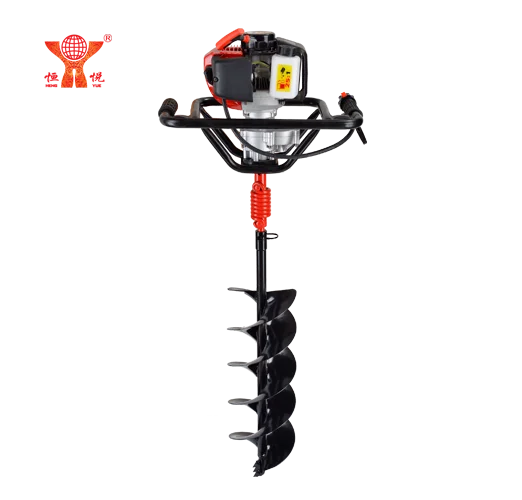

The specifications of the ground drill engine
Item No.
HY-GD550-TD-805-I
Engine Model
1E44F-5
Engine Type
Air cooled, 2 stroke, single cylinder
Displacement
52cc
Engine Power(kw/r/min)
1.82kw/8000rpm
Carburetor Type
Diaphragm Type
Idling Speed
2700-3000r/min
Fuel Tank Capacity
1200ml
Gear Case Output rate
40:1
Gear Case Type
Diagonal gear wheel
Output Shaft Size
20/22mm
Handle Type
HY-S
Operator
Single operator
Drive Drill Bit Dia. Ability
80/100/120/150/200/250/300-800/1000mm
Recommend Drill Bit
200/250-800/1000mm
N.W/G.W
8.2kg/9.8kg
Notice : If you need more length, can be add extender

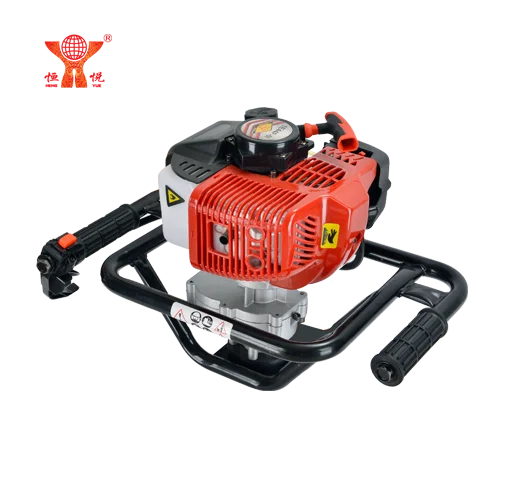

Different engines you can choose
Model No.: HY-GD550-TD
Engine model: 1E40/44F-5
Displacement: 43cc/52cc
Model No.: HY-GD550-D
Engine model: 1E40/44F-5
Displacement: 43cc/52cc
Model No.: HY-GD550-TV
Engine model: 1E40/44F-5
Displacement: 43cc/52cc
Model No.: HY-GD680
Engine model: 1E48F
Displacement: 68cc
Model No.: HY-GD710
Engine model: 1E50F-1
Displacement: 71cc
Model No.: HY-GD144
Engine model: 144F
Engine type: Four stroke

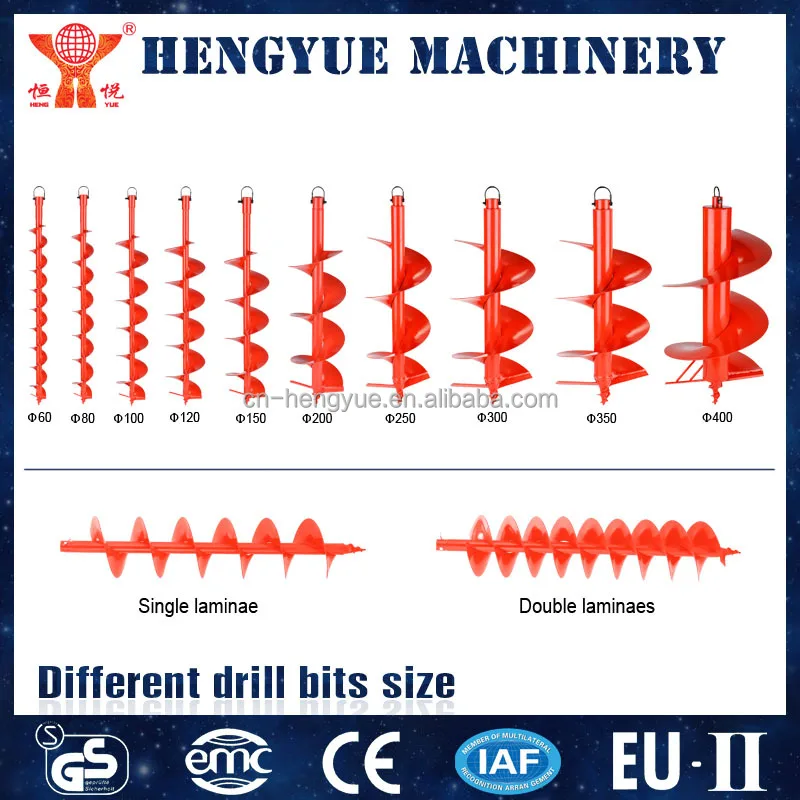

Different drill bit you can choose
1. Different tips
HY-ZT01 A. Cast steel tip, which can not be take down B. Simple blade, which can not be take down C. Single laminae or double laminaes
HY-PT01 A. Easy tip B. Simple blade , which can not be take down C. Single laminae or double laminaes
HY-HJZT01 A. Cast steel tip, which can not be take down B. Alloy sawtooth or flat blade , which can be take down C. Alloy sawtooth or flat blade , which can be take down D. Single laminae or double laminaes
HY-ZYHJ01 A. Cast iron twist tip, which can not be take down B. Alloy sawtooth or flat blade, which can be take down C. Whole metal disk plate in the bottom D. Single laminae or double laminaes
HY-BYHJ01 A. Cast iron twist tip, which can not be take down B. Alloy sawtooth or flat blade, which can be take down C. Alloy sawtooth or flat blade, which can be take down D. Half metal disk plate in the bottom E. Single laminae or double laminaes

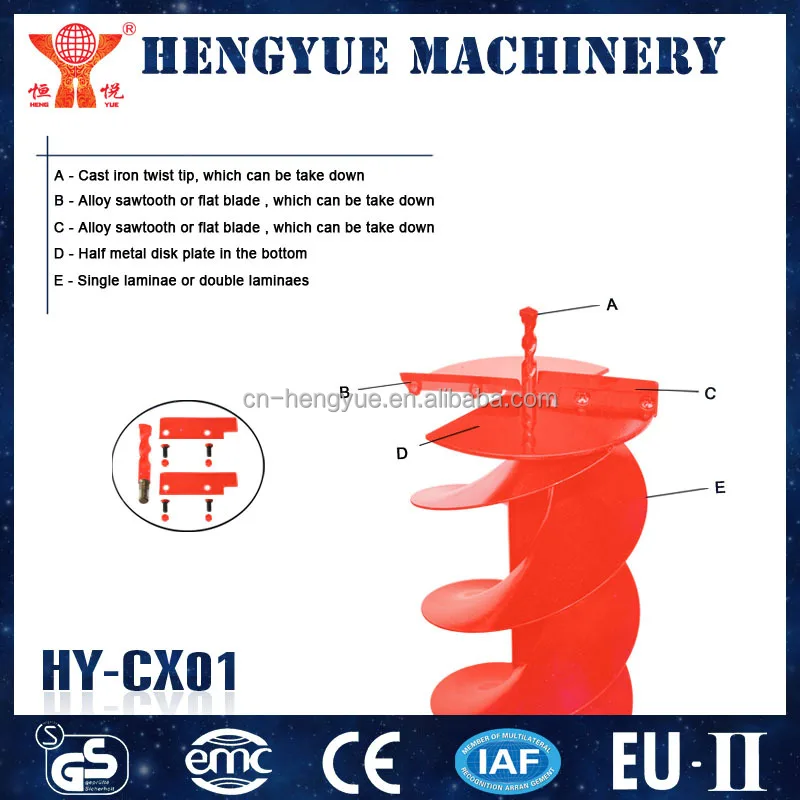

HY-CX01 A. Cast iron twist tip, which can be take down B. Alloy sawtooth or flat blade , which can be take down C. Alloy sawtooth or flat blade , which can be take down D. Half metal disk plate in the bottom E. Single laminae or double laminaes
HY-CX02 A. Cast iron twist tip, which can be take down B. Alloy sawtooth or flat blade , which can be take down C. Alloy sawtooth or flat blade , which can be take down D. Half metal disk plate in the bottom E. Single laminae or double laminaes
HY-CX03 A. Cast iron twist tip, which can be take down B. Alloy sawtooth or flat blade , which can be take down C. Single laminae or double laminaes
HY-ICE01 A. Supper tip, which can be take down B. XK5 material blade ,which can be take down C. XK5 material blade ,which can be take down D. Single laminae or double laminaes

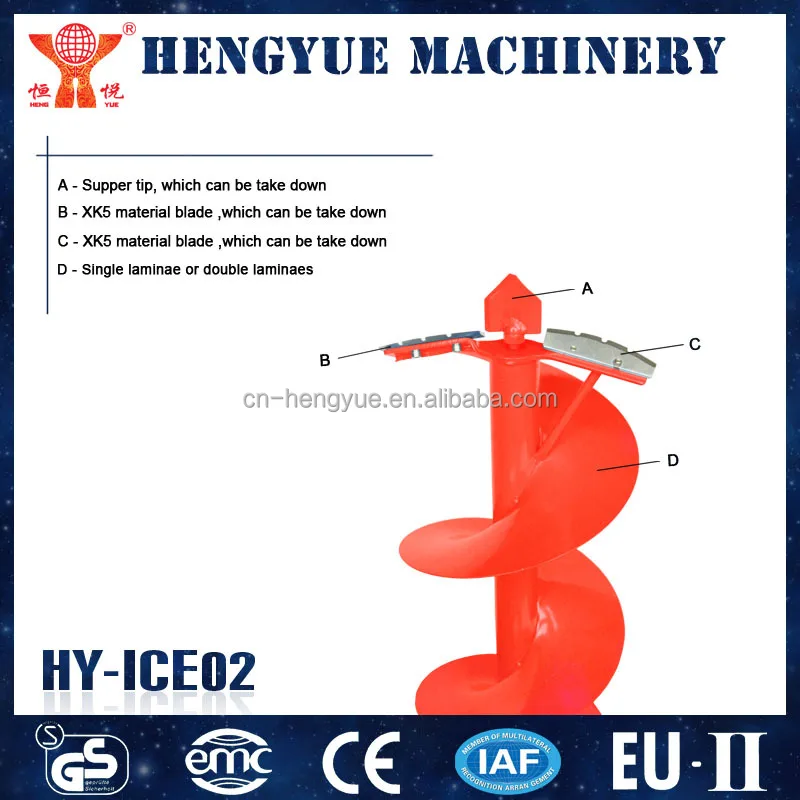

HY-ICE02 A. Supper tip, which can be take down B. XK5 material blade ,which can be take down C. XK5 material blade ,which can be take down D. Single laminae or double laminaes
HY-ICE03 A. Cast iron twist tip, which can not be take down B. Alloy sawtooth or flat blade, which can be take down C. Alloy sawtooth or flat blade, which can be take down D. Half metal disk plate in the bottom E - Single laminae or double laminaes
HY-CX04 A. Spring adapter, can reduce shake B. Single laminae or double laminaes C. Cast iron twist tip, which can not be take down D. Whole metal disk plate in the bottom E.Alloy sawtooth or flat blade, which can be take down
