Product Overview
Description
Product Description
15kw off grid solar energy system
PV Off-grid Solar Power System

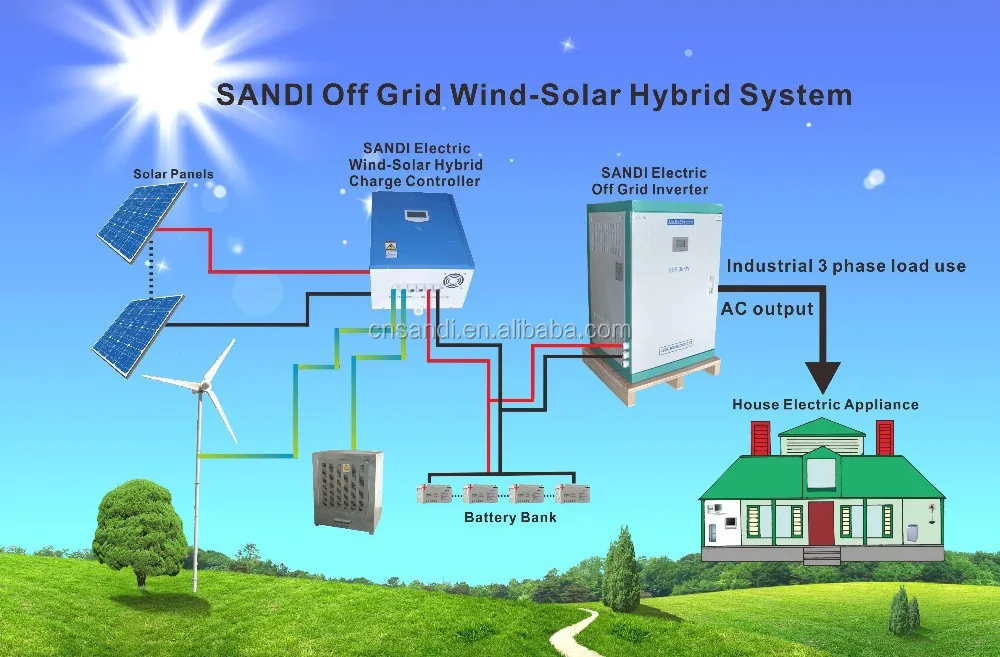

PV Off-grid solar power generation system including solar panel array, solar charge controller, storage battery, Off-grid inverter, etc. In the sunshine, the solar panel convert the solar energy to DC power and charge the battery group by the charge controller. Then the off grid inverter convert the DC power into AC power for power supply the AC load.
Off Grid Inverter Introduction
SANDI SDP series Low Frequency Off Grid Pure Sine Wave Inverter is one of the most advanced DC to AC
conversion products in the world. It’s widely used for solar energy, wind turbine and other renewable energy
systems, also suitable use in the mountains, pastoral, border, island, vehicles, ships and other areas without
electricity which can provide and guarantee effective power supply. It has the main advantages of high quality
sine wave AC output, microcomputer control, humanness design, high efficiency, low no-load loss and no pollution. The inverter can also supply AC power to all kinds of electric equipment, air conditioners, electric
motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.
Technical Features:
Parameters:
Model | SDP-15KW | ||
Isolation mode | Low Frequency Transformer | ||
DC Input | Rated voltage (Vdc) | 192V | 240V |
Rated current(A) | 78A | 62.5A | |
AC Output | Rated output power | 15KW | |
Output waveform | Pure Sine Wave | ||
Rated Voltage | 220V±3% | 380VAC±3% | |
Phases | Single phase | 3 phase 4 wire | |
Rated current(A) | 68A | 23A (phase current) | |
Frequency | 50Hz or 60Hz | ||
Rated output voltage range (V) | 110/120/220/230/240/380/400/415VAC optional | ||
Power Factor(PF) | 0.95 | ||
Overload Ability | 150%, 5 seconds | ||
Efficiency | >94% | ||
Waveform distortion rate (THD) | <3%(Linear load) | ||
Dynamic Response (0 to 100% load) | 5%,≤50ms | ||
Display | LCD | ||
Running mode | Working continuously | ||
Electrical insulation properties | 2000Vac, 1 Minute | ||
Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. | |
Cooling method | Fan-cooled | ||
Short-circuit protection | No automatic recovery, need to restart the machine | ||
Working environment | Noise ( 1 meter) | ≤50dB | |
Degree of protection | IP20(indoor) | ||
Working Altitude(m) | ≤2000 | ||
Working temperature | -25~+55℃ | ||
relative humidity | 0~90%,non-condensing | ||
Mechanical dimension | Depth* Width * Height | 500x600x800mm | |
Weight (Kg) | 150Kg | ||

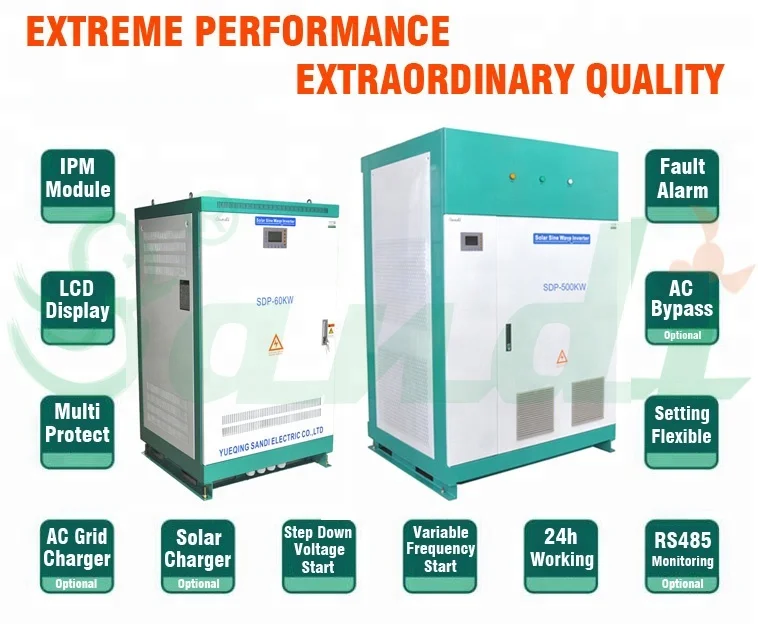

Advantages:

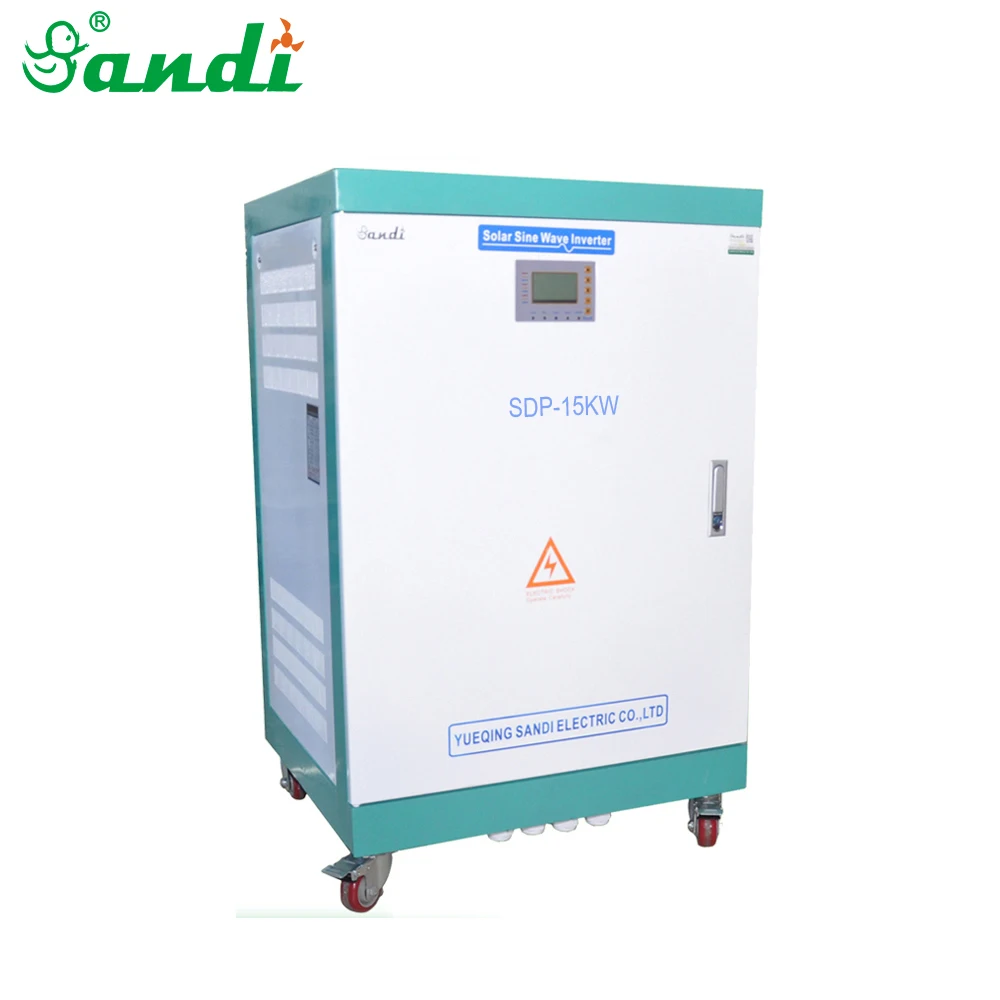

Product Show:

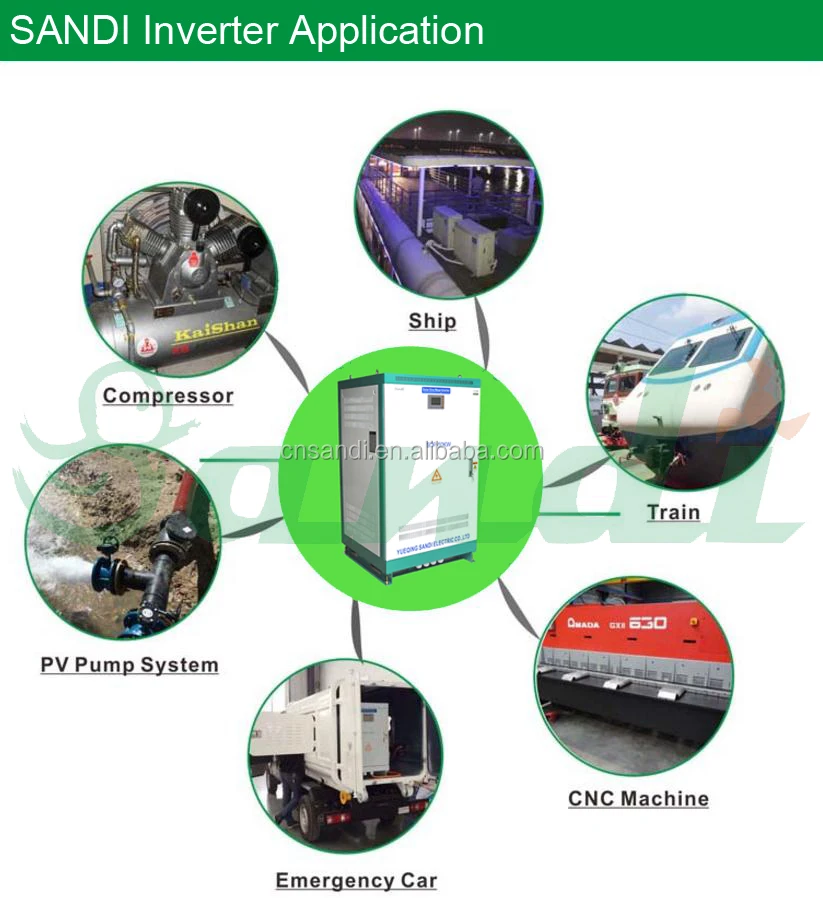

Application:
Project Case
40KW Off Grid System Video Link: https://www.youtube.com/watch?v=QNxIN9RsJ6Y&feature=youtu.be
Certifications

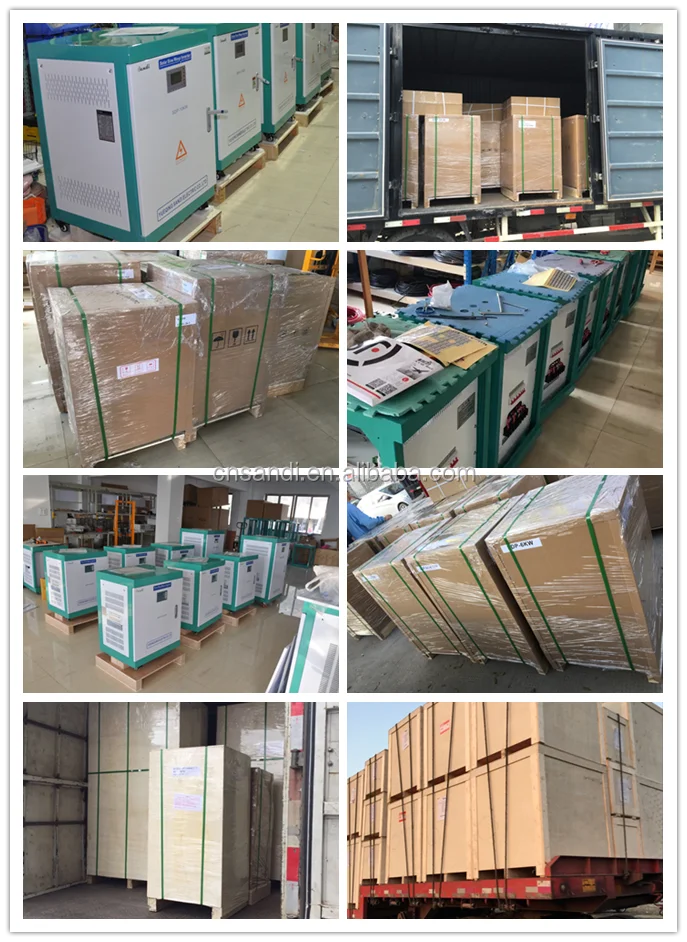

Packaging & Shipping
Welcome OEM service
MOQ=1 pc
Short delivery time
Can be custom made
