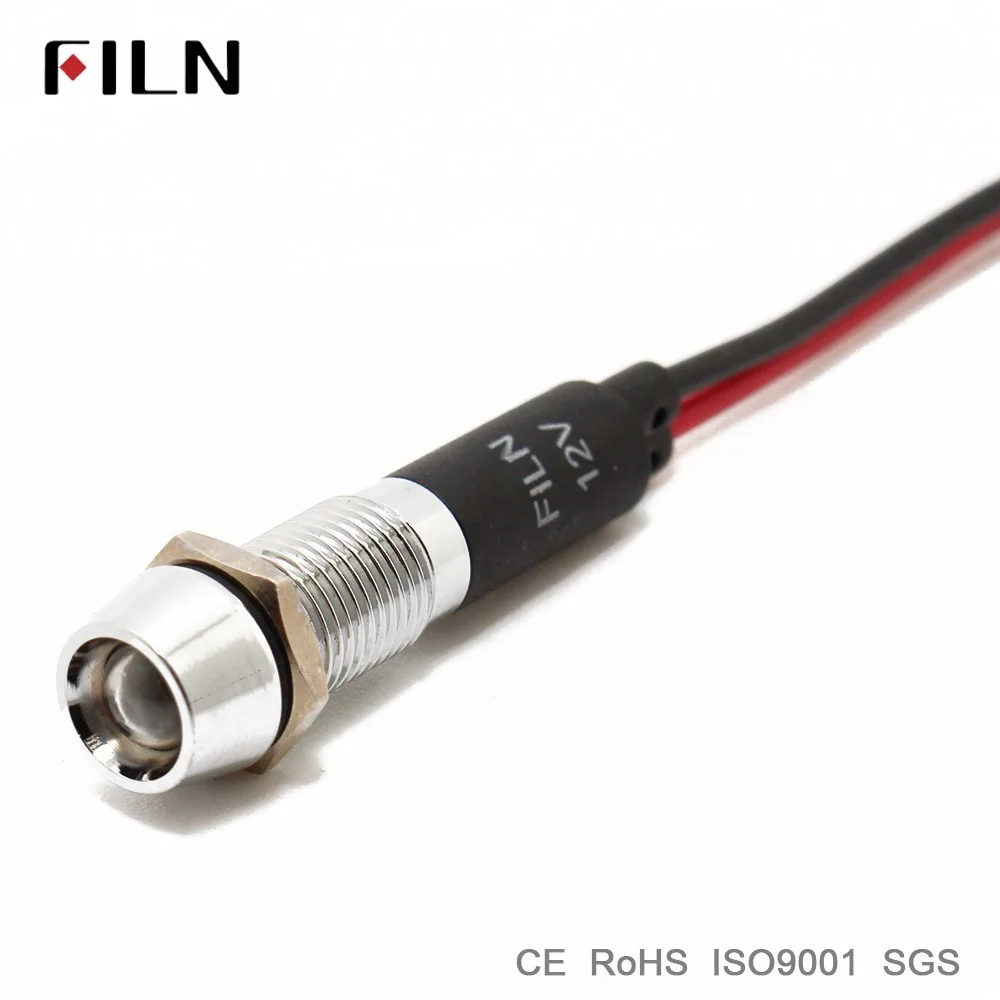

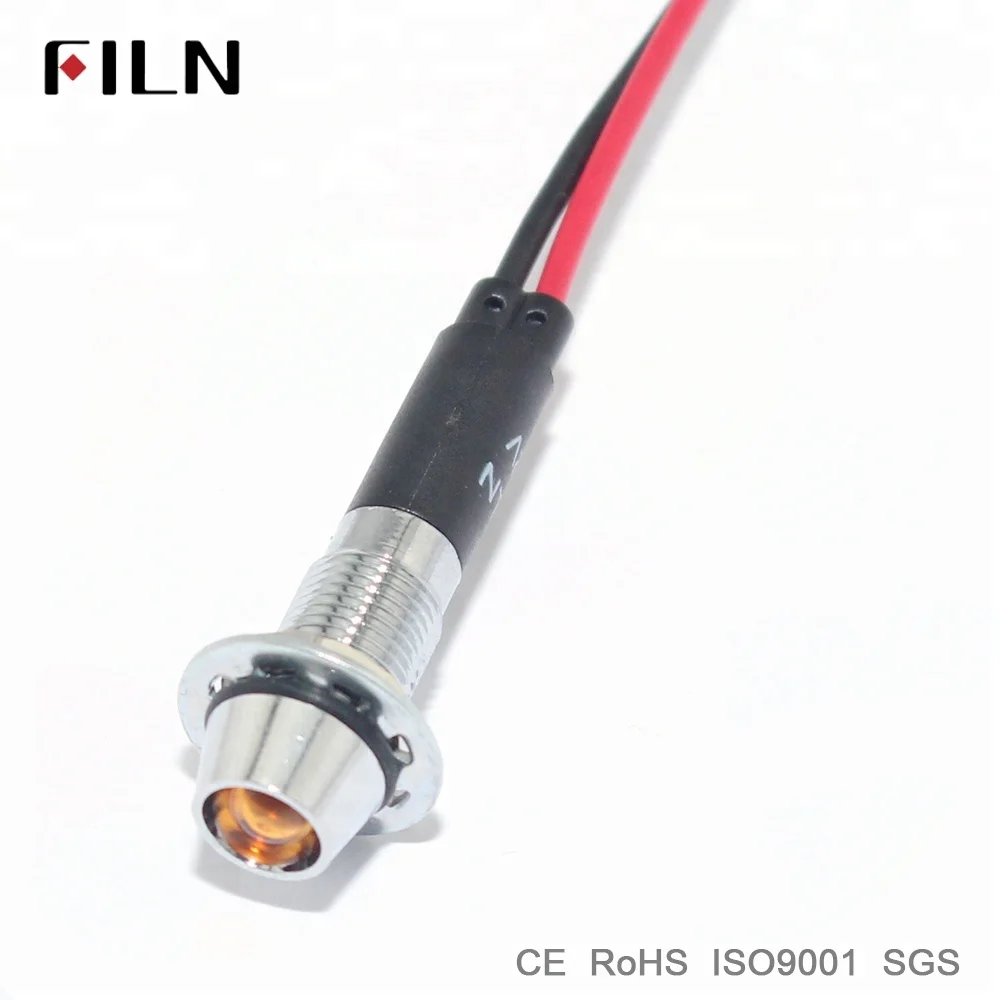

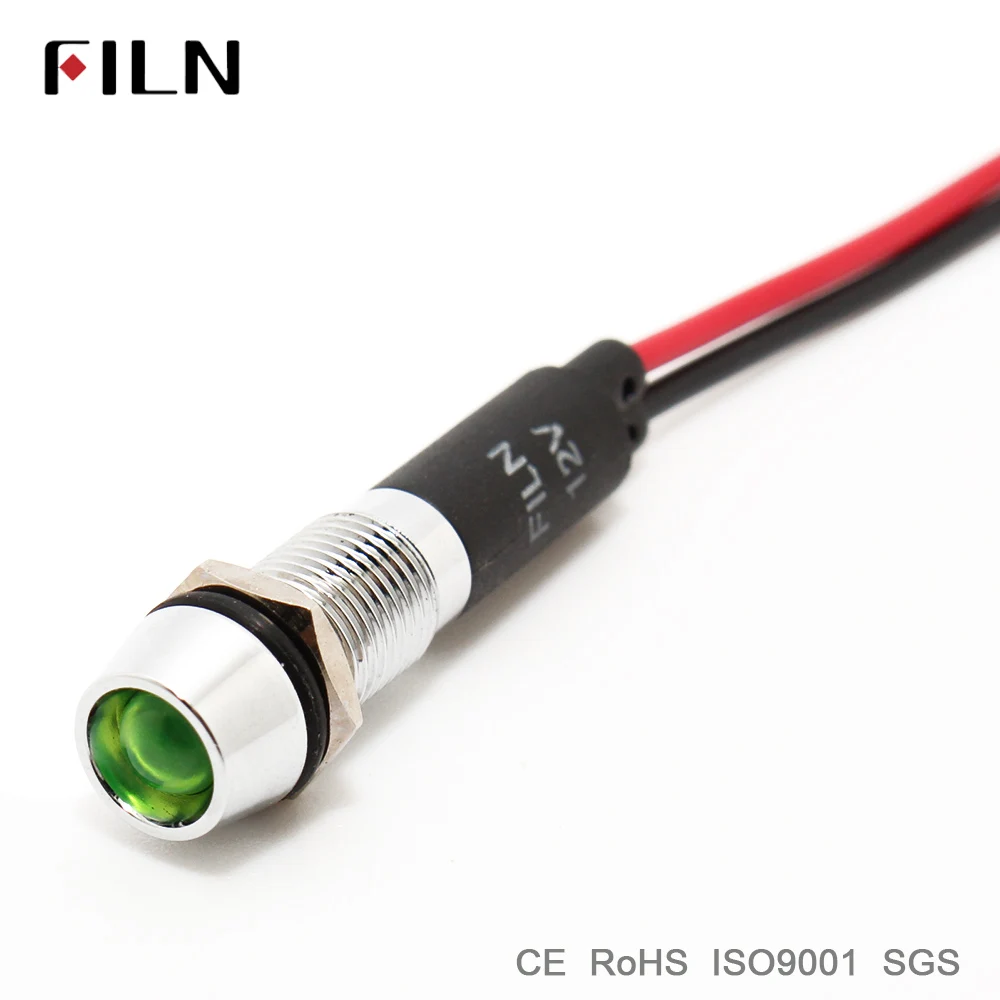

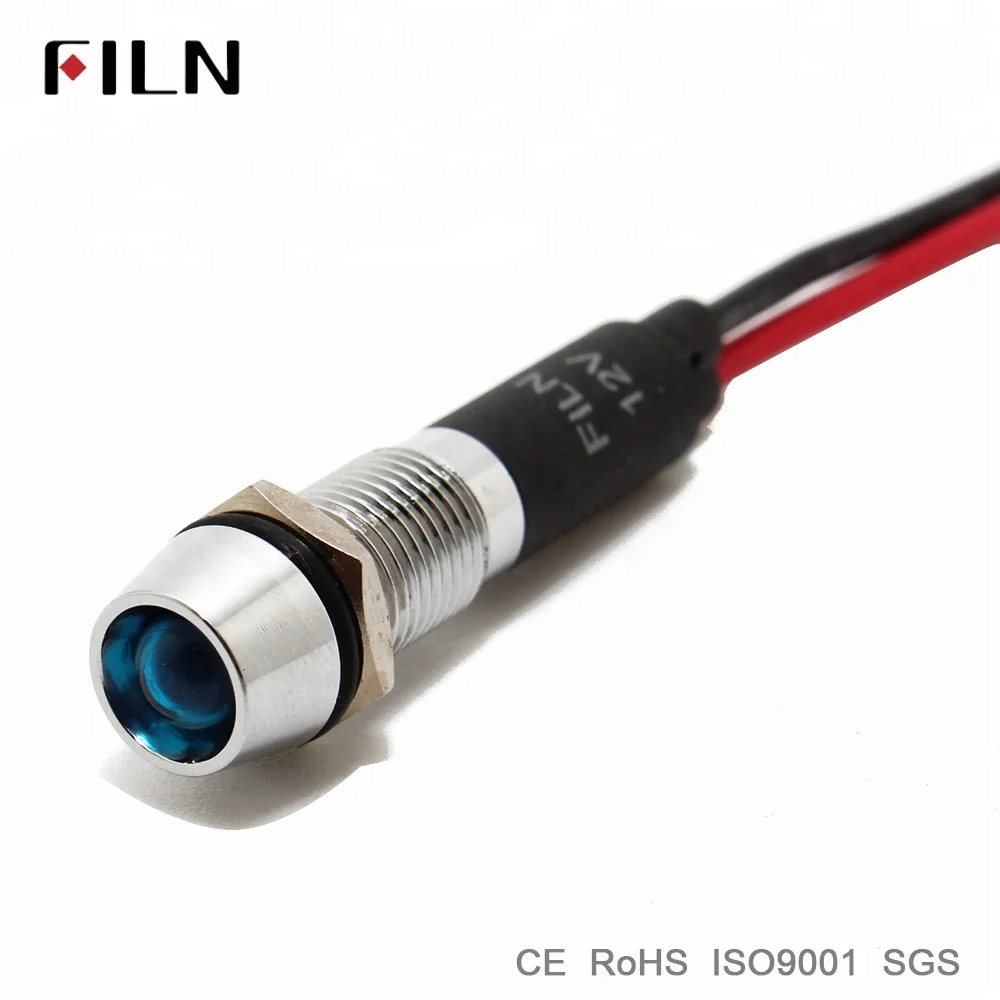

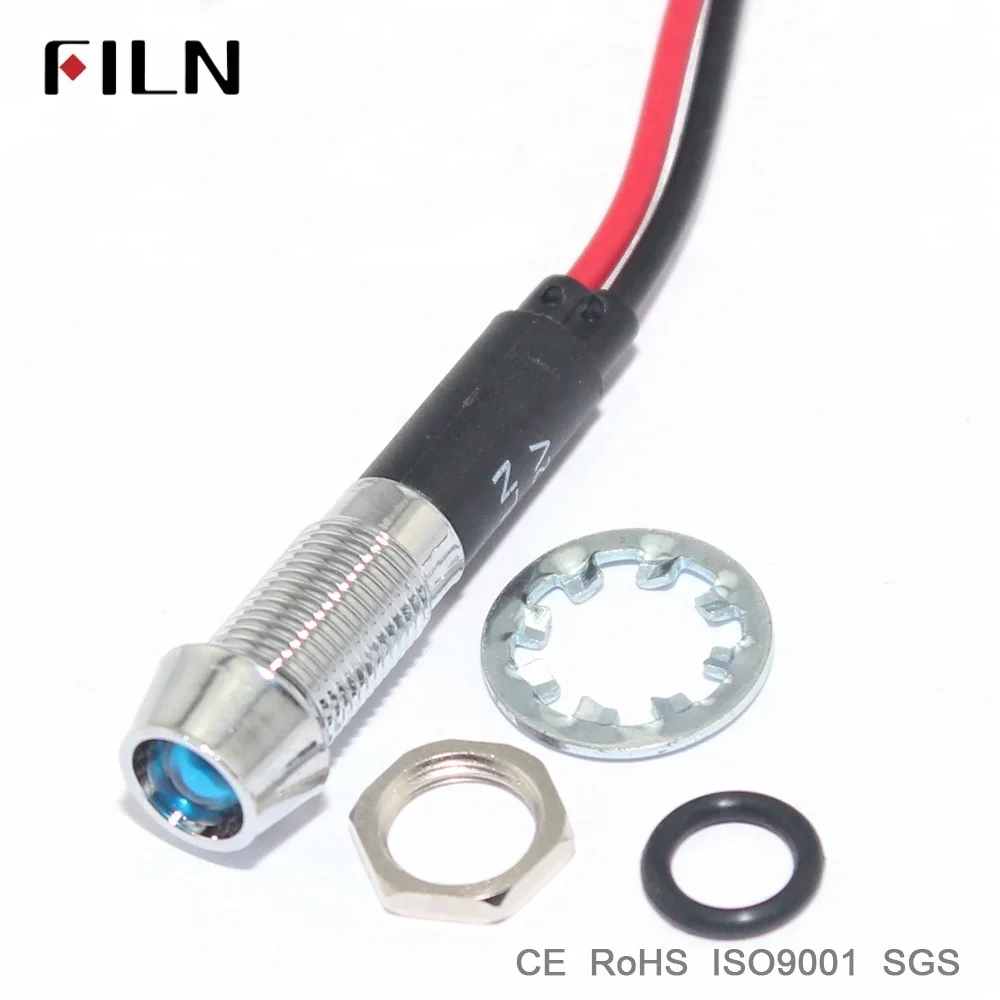

CE approved 8mm 12 volt 24V 110V 220V metal red green waterproof led panel indicator light with 20cm wire
- Category: >>>
- Supplier: Yueqing Yulin Electronic Co. Ltd.
Share on (60300768658):
Product Overview
Description
FILN Metal Indicator lights are made in high quality with CE, RoHS certifications.
It looks beautiful when mounted on panels, and the illuminating effect is perfect.
Customization service in available.
And We control every aspect for you!
| Items | Parameter |
| Mounting hole size | 6mm,8mm,10mm,12mm,14mm,16,,19mm,22mm |
| Head Type | Concave head |
| Shell | PC Plastic |
| Metal Body | H59 Brass/ 204stainless steel/ Zinc alloy alumimum(black) |
| Washer | T10 cold rolled steel |
| Rubber ring | SIL siclica gel |
| Metal nut | H59 nickel plated brass |
| Lens | PA66 Nylon |
| Light source | A class LED/ normal LED |
| Resistor | Metal film |
| Cable | 22AWG/0.3mm2 PVC 20cm (can be customized) |
| Rated Voltage | 3V,6V,12V,24V,48V,110V,220V,380V AC or DC |
| Rated Current | 20mA |
| Rated Power | 0.2W |
| Insulation Voltage | 1800V |
| Working Life | 100000h |
| Electrical life | 100000cycles |
| Working Temperature | -40℃~+80℃ |
