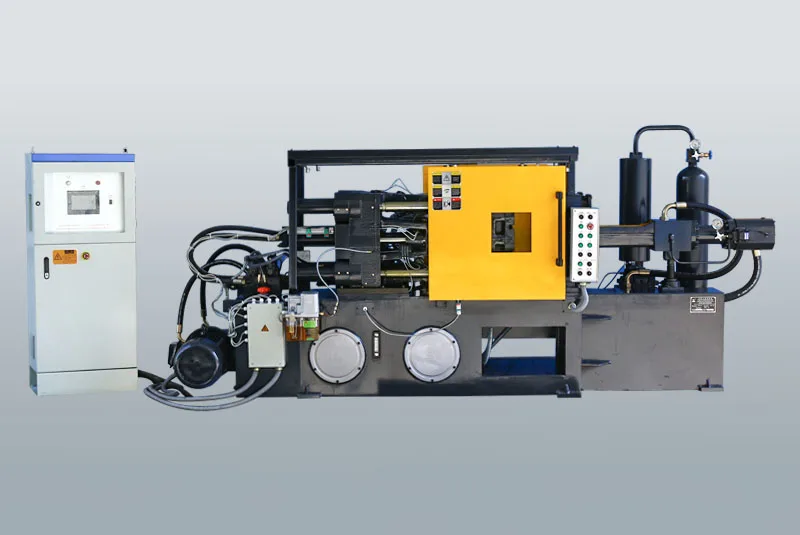

Литье под давлением из алюминиевого сплава 900kN, машина для литья под давлением алюминия

Product Overview

Description

Features and applications of J118A cold chamber die casting machine

1. Squeeze molding machine squeeze molding machine
2. 80T Cold Chamber Casting Machine
3. Suitable for aluminum, zinc and copper alloy
4. Computer-programmed
5. 4-rod pilot elastic framework for excellent rigidity
6. 3-step hydraulic boosting and injection system
7. Efficiency: maximum injection rate over 4m/s
8. minimum boosting time less than 30ms



This die casting  machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.

computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection  rate over 4M/s, and minimum boosting time less than 30ms.

The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.

Specifications and Parameters

SUBJECT	UNIT	J118A
Die lock force	kN	900
Size of moving platen (HXV)	mm	560X600
Inner space between bars(HXV)	mm	360X360
Thickness of die block(Min./Max.)	mm	160/360
Stroke of moving platen	mm	260
Ejection stroke	mm	60
Ejection force	kN	60
Injection force	kN	100
Injection stroke	mm	282
Diameter of shot sleeve	mm	35	40	/
Fluid metal dosage per shot(AL)	kg	0.6
Injection pressure (Min.~Max.)	MPa	57~94
projecting area of casting	cm2	67~110
Dry cycle	s	5
Pipe line pressure	MPa	10.5
Motor power	kW	11
Machine weight	kg	3500
Overall dimensions(LXWXH)	mm	3970X1050X2100



The mould installation drawing





After-Sales Services

We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.



Overseas available        Free training



If you want to know more details pls contact us without hesitate.
