68Ton hot chamber pressure die casting machine

Product Overview

Description

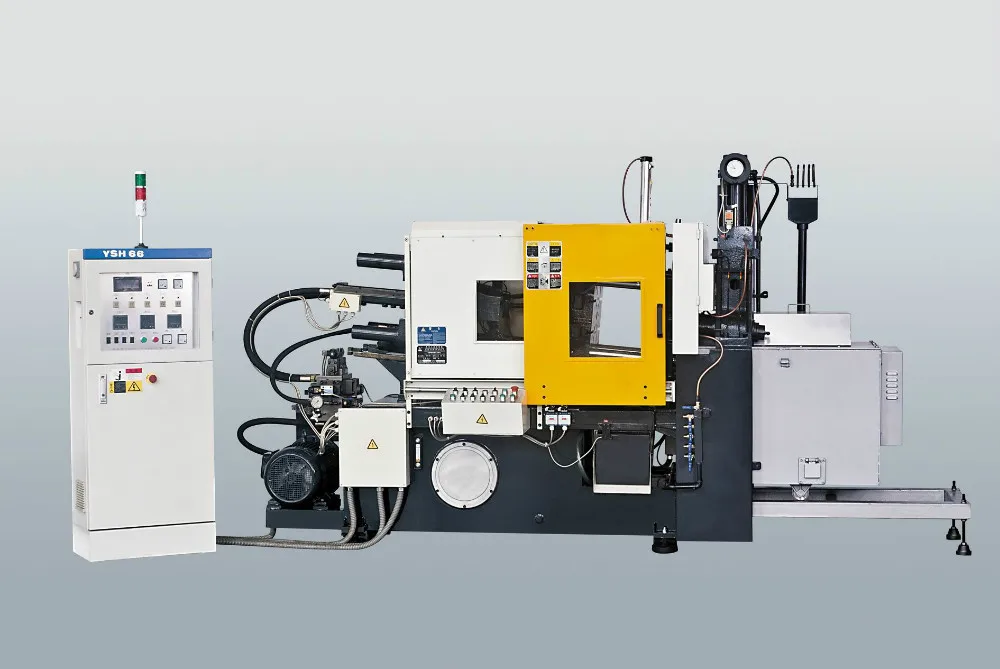

 QUICK TO KNOW 66TON zinc die casting machine

Model :YSH66

Stype: full-automatic (programmed control) hot chamber die casting machine

suitable materials :zinc ,lead and their alloy

die locking force :680Kn

Machine weight : 3950 kg

Overall dimensions (L×W×H) : 3900×1500×2000 mm

Motor power :11 kw

votage :380V 50HZ

YSH66 Hot chamber zinc die casting machine Specification

Die locking force	KN	680
Stroke of moving platen	mm	240
Inner space between the bars(HXV)	mm	320X320
Thicknessof die block(Min./Max.)	mm	150/350
Injection force	kn	66
Injection stroke	mm	130
Ejection force	kn	60
Ejection stroke	mm	60
Diameter of shot sleeve	mm	50
Max.projecting area of casting	cm^2	202
Working pressure of vane pump	MPa	12
Motor power	kw	11
Dosage of fluid metal per shot (zinc)	kg	1.5
Effective volume of crucible(zinc)	kg	250
Oil consumption of burner	kg/h	1.5-6
Volume of oil tank	kg	280





Chart for die mounting

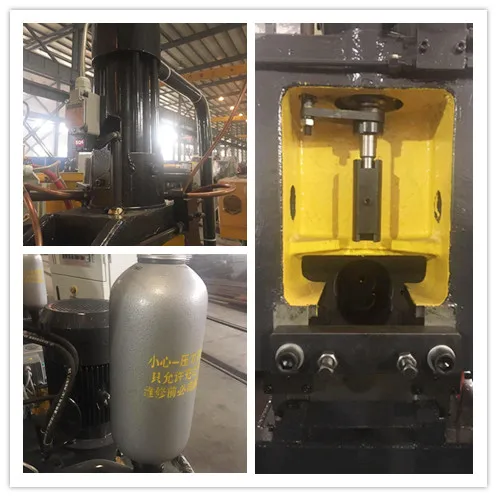

 The detials of 66T hot chamber zinc die casting machine



The closing unit of the machine adopts the double-toggle connecting rod expanding-force unit, ensuring a prompt die-opening and die-closing action and an excellent die-closing precision and stability.



The injection unit is fixed on the machine base. It is fitted with oil cylinders for tension, which connect with the die-casting mould platen, on its both sides. The nozzle can either connect with or disconnect from the die-closing unit, which is controlled through a solenoid operated directional valve. With these design features, the sealability between the sprue bush and the nozzle can be ensured, meanwhile, the installation and cleaning of the nozzle and the heater can be performed with ease.



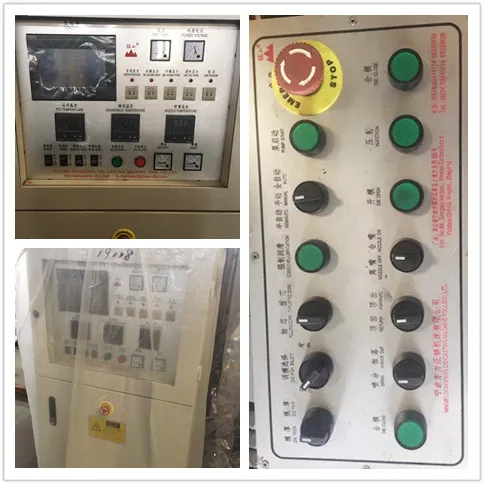

The automatic working cycle of the machine is as follows: core in→closing→tension→ slow injection→ rapid injection→injection delay→injection return →nozzle off →cooling delay→die opening→core out→ejection forward→ejection backward→push off→push off back→ detect→spraying ……

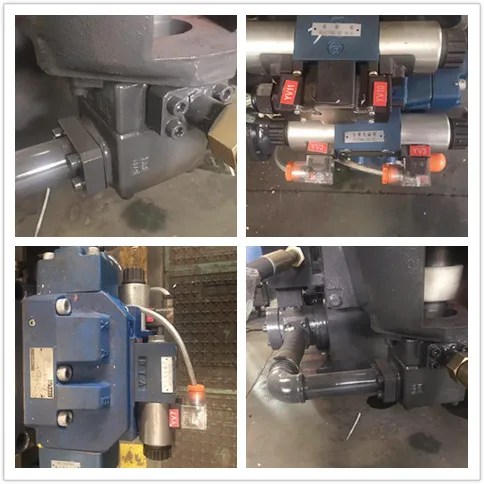

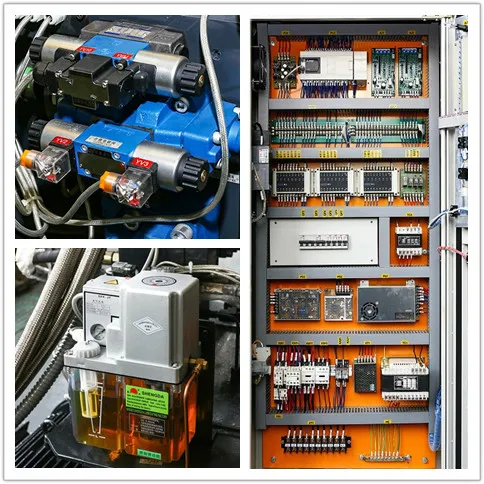

The hydraulic pipeline system consists of three hydraulic combination units, pressure control unit, die-closing pipe unit, ejecting pipe unit and injecting control pipe unit. They all are mounted on the rear of the machine. All the hydraulic elements are installed on the three hydraulic combination units, which offer pipeline systems with a trim appearance and convenient maintenance.



The machine includes two sets of melting unit, which are the full automatic combustion furnace and the electric furnace. Users can choose one kind of melting unit discretionarily. The chimney of the melting furnace should be extended outdoors and the chimney opening should be open upward to prevent smoke against floating backward.



Assembly

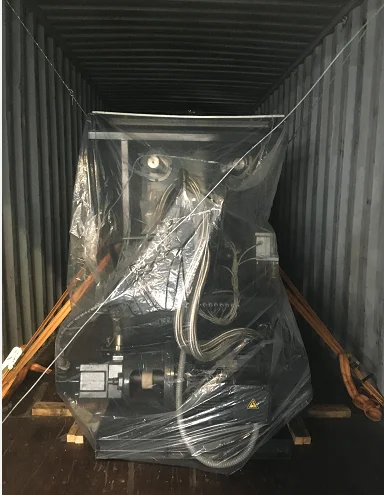

Generally ,the die casting machine in nude package and the accessories in wooden package .



Strategy

In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 40 years, we always have perisistently pursue to provide perfect cold/ hot chamber die casting machine and sincere service.

* With a history of over  40  years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center           * Main Machines: 100sets



 Zinc die casting machine

we can supply this hot chamber zinc die casting machine with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.

FAQ

Q:How many weights are the machine suitable for?

A:It will depend on the ton of machine.Generally , the 25T machine can make the product within 100g . 38T/150g,50T /200g, 58T/250g,66T /300g ,88T/350g,130T /400g, 180T/450g, 280T /500g.

Q:What is your annual production capacity?

A:About 500 sets per year.

Q:the maximum mold measure I can use on the machine?

A:About the maximum mold measure of the machine can make,this is not certain, depending on the product .

Q:How about your delivery time?

A:Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

 Q:How about your Payment Terms?

A: 30% deposit ,and remain 70% be paid by T/T before delivery.

Q: what is your After-sales service provided?

A: We have one year warranty for the machine.And Video technical support, Engineers available to service machinery if our clients need .



If any question and problems pls tell us with no hesitate.
