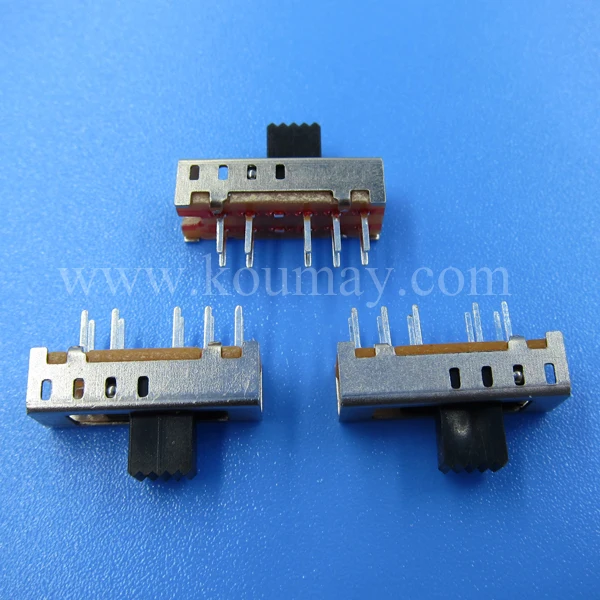

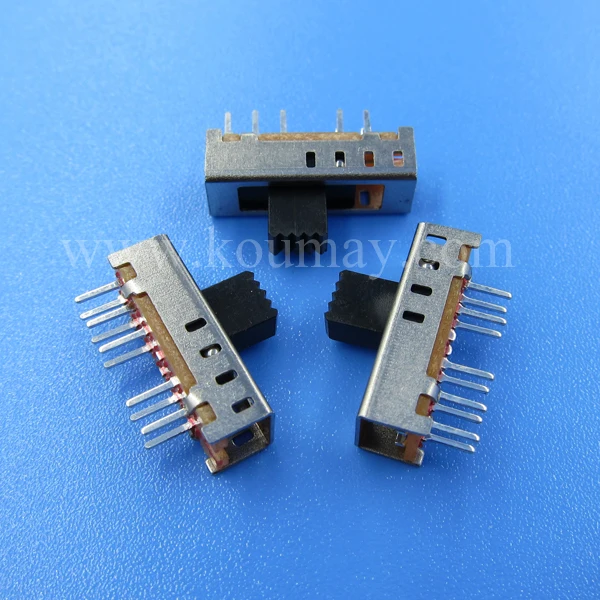

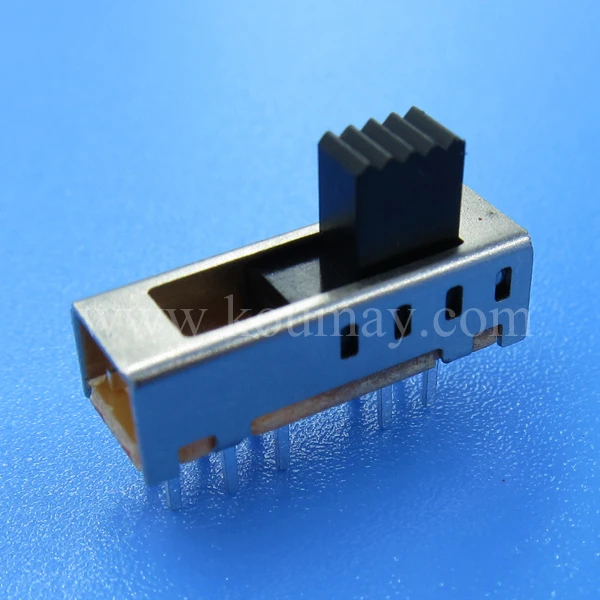

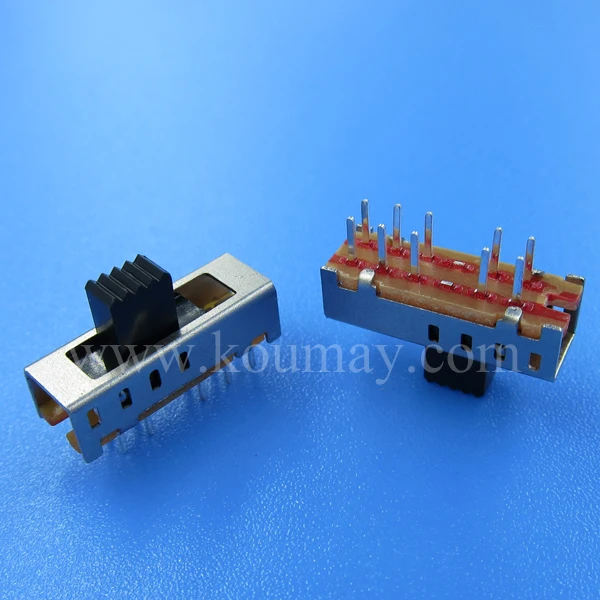

2P4T pcb slide switch dip vertical through hole

Slide Switch

Specification

Rating

0.5A 50V DC

Contact resistance

100mΩ max

Insulation resistance

100MΩ min at 500V DC

Dielectric strength

AC 500V for 1 min

Lifespan

10,000 Cycles

Practical temperature range

-25 to 85 degrees Celsius

RoHS

Yes

[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.
