Pneumatic Cutting Blades Till Roll Slitting Machine, Thermal Paper Roll Slitter Rewinder, Plotter Paper Cutting Machine

Product Overview

Description

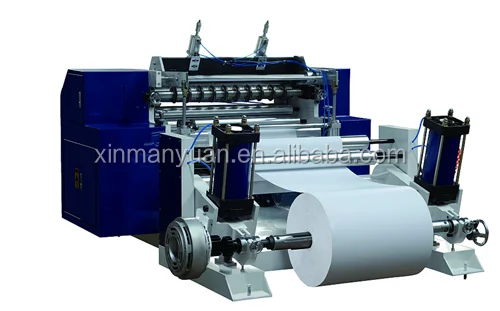

XMY-SY700  Pneumatic Cutting Blades Till Roll Slitting Machine

Application of    Pneumatic Cutting Blades Till Roll Slitting Machine

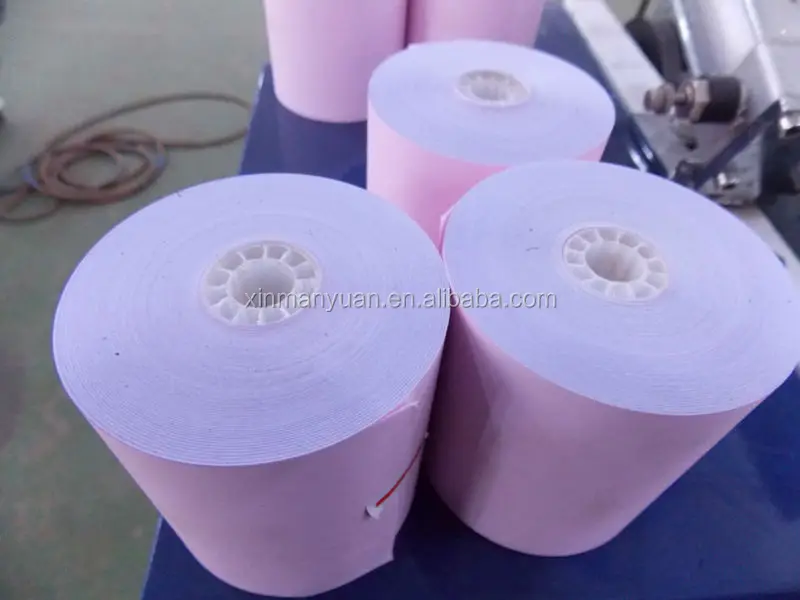

It is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films and so on.



The superior of  Pneumatic Cutting Blades Till Roll Slitting Machine



 1) All the parts are processed by CNC lathe,which will be with high precision.

 2) All transmission rollers have been dynamic/static balance treated.

 3) It is with Airtac cylinder and SMC air pressure valve,it will avoid overlap problem.

 4) Automatic loading system is for loading heavy jumbo onto unwinding stand,save time and reduce labor intensity.



 -Main Functions of   Pneumatic Cutting Blades Till Roll Slitting Machine

 1.Main motor: driven by one A.C motor with 2 stages type length counter to make machine stops accurately.

 2.Rewind device: Rewind controlled by 3 surface rollers, and surface tension is adjustable for different materials and request.

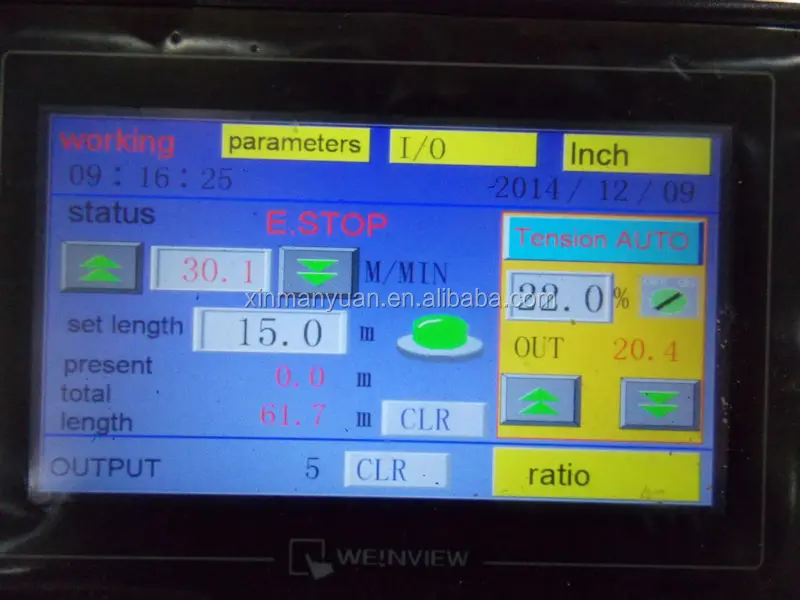

 3. Electricity Device: Equipped with 2 stage preset length counter, which provide machine stops accurately and smoothly.

 4. Rewind Mode: Equipped with separated shaft type unwind base, auto web guide and auto unwind tension controlled.

 5. Unwind Base: Separate type with hydraulic core chunk can be equipped for effcient and quick performance on jumbo roll change.

 Main Technical Parameter of   Pneumatic Cutting Blades Till Roll Slitting Machine

Max. Unwind Diameter	Φ1000mm
Max. Unwind Width	500mm-1300mm
Unwind Core Inner Diameter	Φ76mm(3”)
Max. Rewind Diameter	Φ200mm
Product Core Inner Diameter	0.5",1",1.5",2''
Min. Product Width	35mm
Max. Slitting Speed	150m/min
Main Power	4kw
Working Noise	≤85dB
Machine Weight	2000kg
Working Voltage	As request
Over All Dimension   [Length* Width*Height]	2000*1500*1500MM

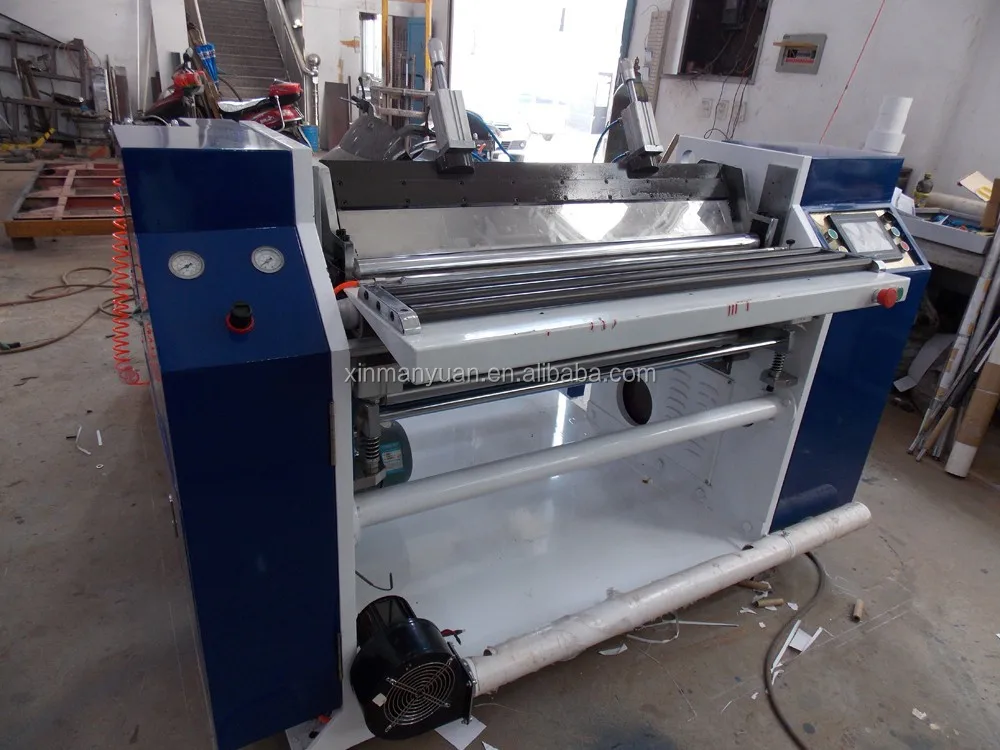

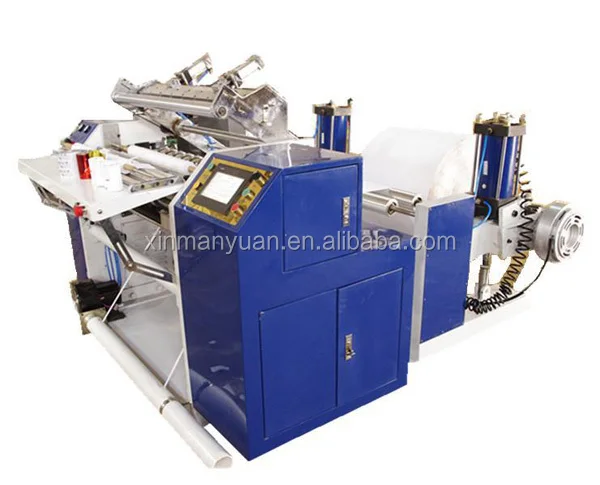

More photos of  Slitting Rewinder Machine for Regular Paper Rolls



Certification:



After-service:

1. Warranty for machines is 12 months and lifetime maintence.
2. A promptly reply within 24 hours.
3. Free usage training before delivering machines in factory.
