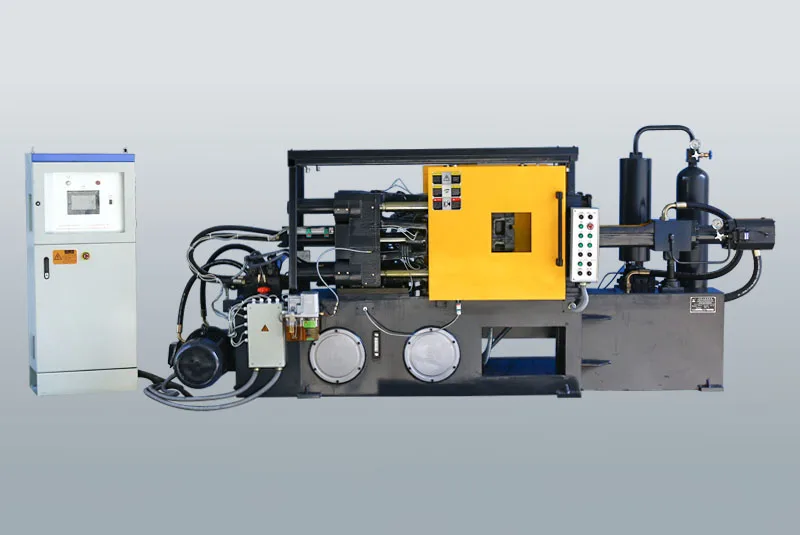

J118A Cold Chamber die casting machine
- Category: Die Casting Machine >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (60301057322):
Product Overview
Description
Features and applications of 80Ton pressure die casting machine for copper
- 80T Cold Chamber Casting Machine
- Suitable for aluminum, zinc and copper alloy
- Computer-programmed
- 4-rod pilot elastic framework for excellent rigidity
- 3-step hydraulic boosting and injection system
- Efficiency: maximum injection rate over 4m/s
- minimum boosting time less than 30ms
This pressure die casting machine for copper is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.
Computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection rate over 4M/s, and minimum boosting time less than 30ms.
The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.
Specification of J118A
SUBJECT | UNIT | J118A | ||
Die lock force | kN | 900 | ||
Size of moving platen (HXV) | mm | 560X600 | ||
Inner space between bars(HXV) | mm | 360X360 | ||
Thickness of die block(Min./Max.) | mm | 160/360 | ||
Stroke of moving platen | mm | 260 | ||
Ejection stroke | mm | 60 | ||
Ejection force | kN | 60 | ||
Injection force | kN | 100 | ||
Injection stroke | mm | 282 | ||
Diameter of shot sleeve | mm | 35 | 40 | / |
Fluid metal dosage per shot(AL) | kg | 0.6 | ||
Injection pressure (Min.~Max.) | MPa | 57~94 | ||
projecting area of casting | cm2 | 67~110 | ||
Dry cycle | s | 5 | ||
Pipe line pressure | MPa | 10.5 | ||
Motor power | kW | 11 | ||
Machine weight | kg | 3500 | ||
Overall dimensions(LXWXH) | mm | 3970X1050X2100 | ||
The mould installation drawing

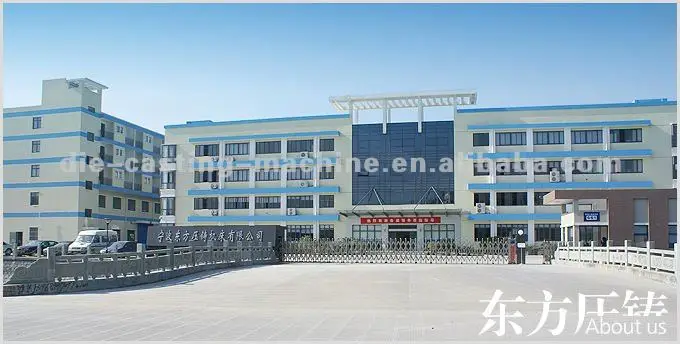

About Us
In Ningbo Dongfang Die casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 3 7years, we always have perisistently pursue to provide perfect hot/cold chamber die casting machine and sincere service.
* With a history of over 37 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets
FAQ
Q:Are you a manufacturer of a trade company?
A:We are a manufacturer.And we have our own Export rights.
Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?
A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .
Q:How is your delivery time?
A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.
But it also depends on the iterm and the quantity of your order.
Q:How about the payment terms?
A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.
Q:How about your warranty and after-sales services?
A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
If you want to know more information, pls contact us without hesitate.
