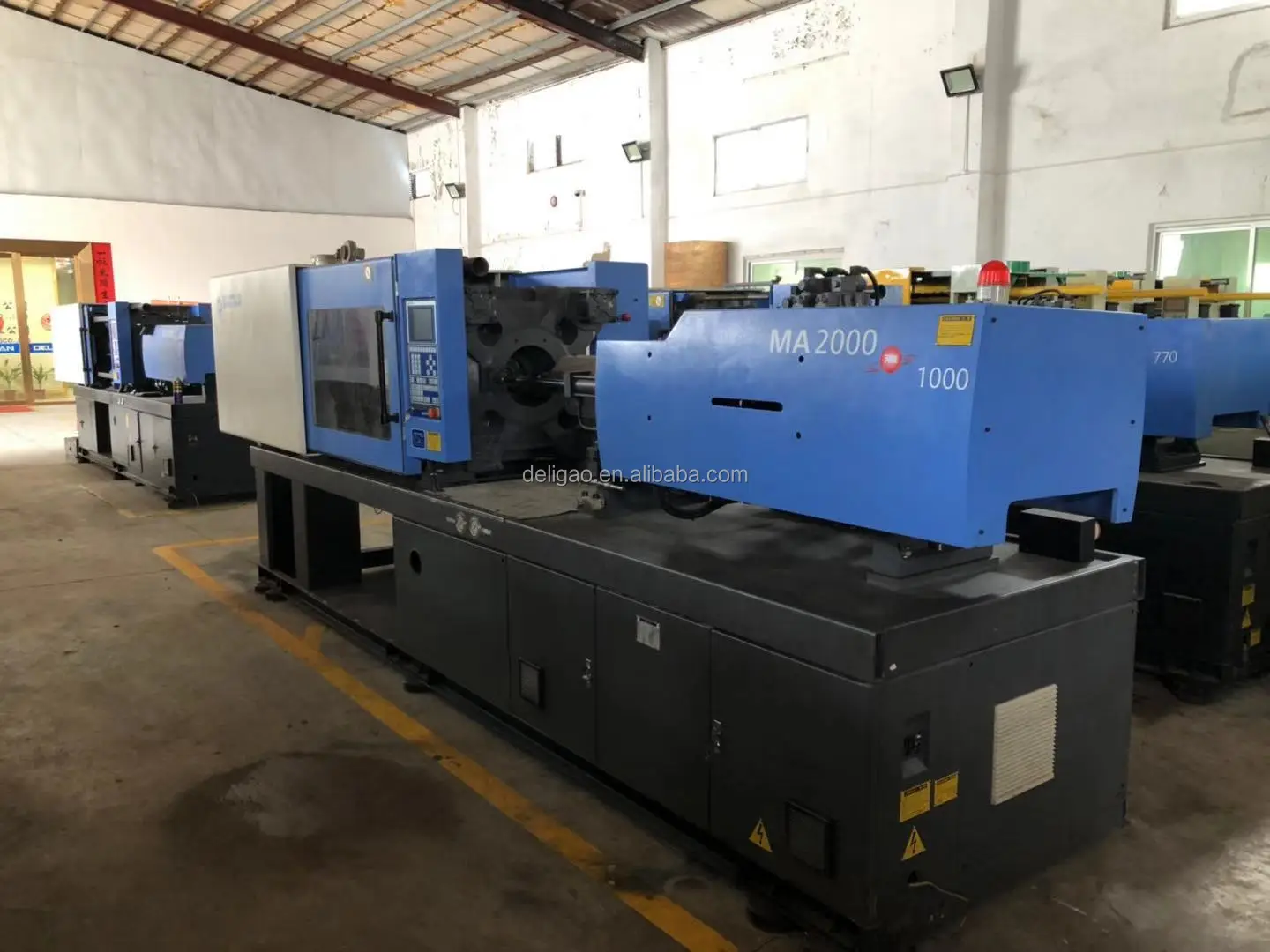

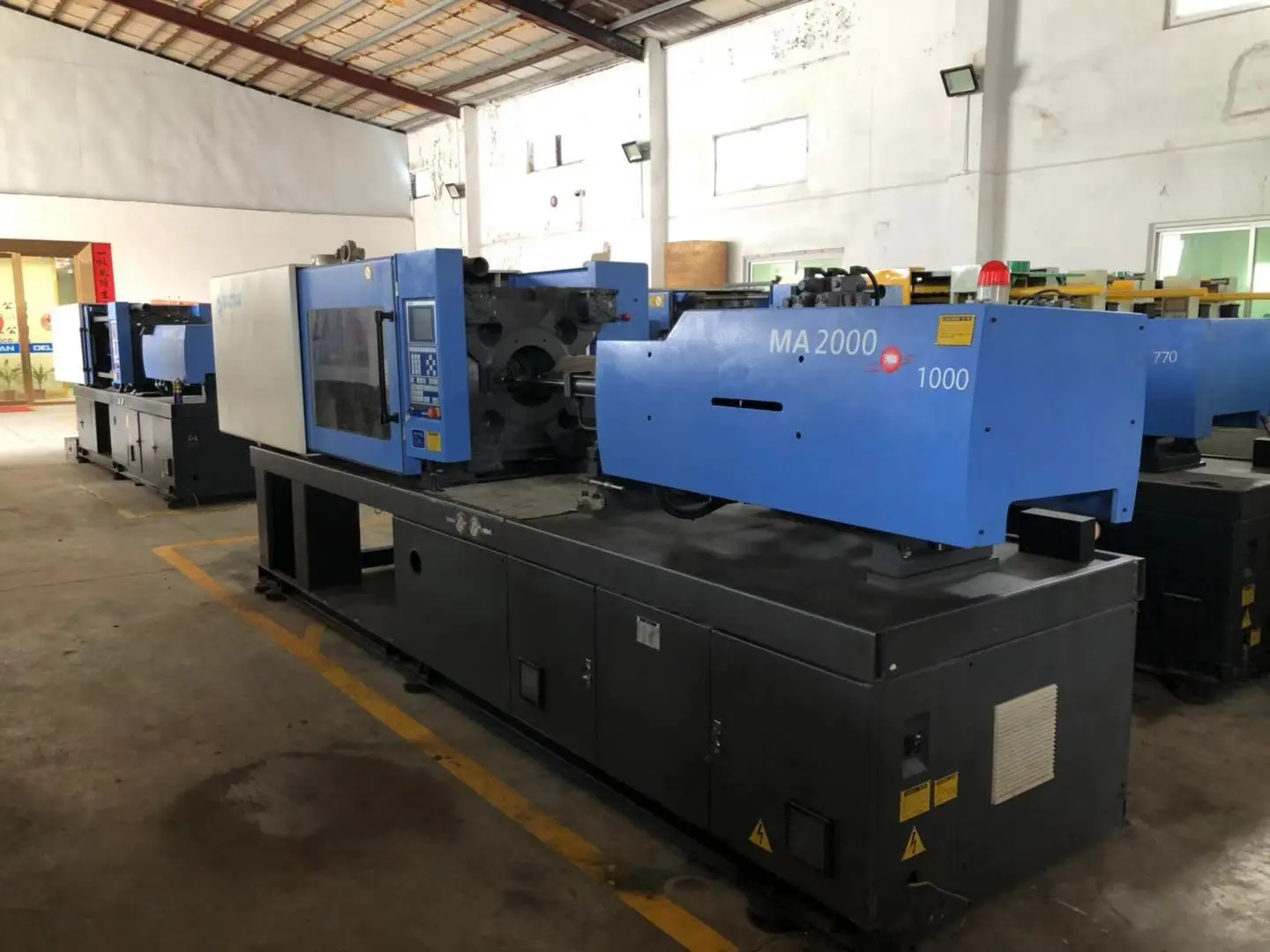

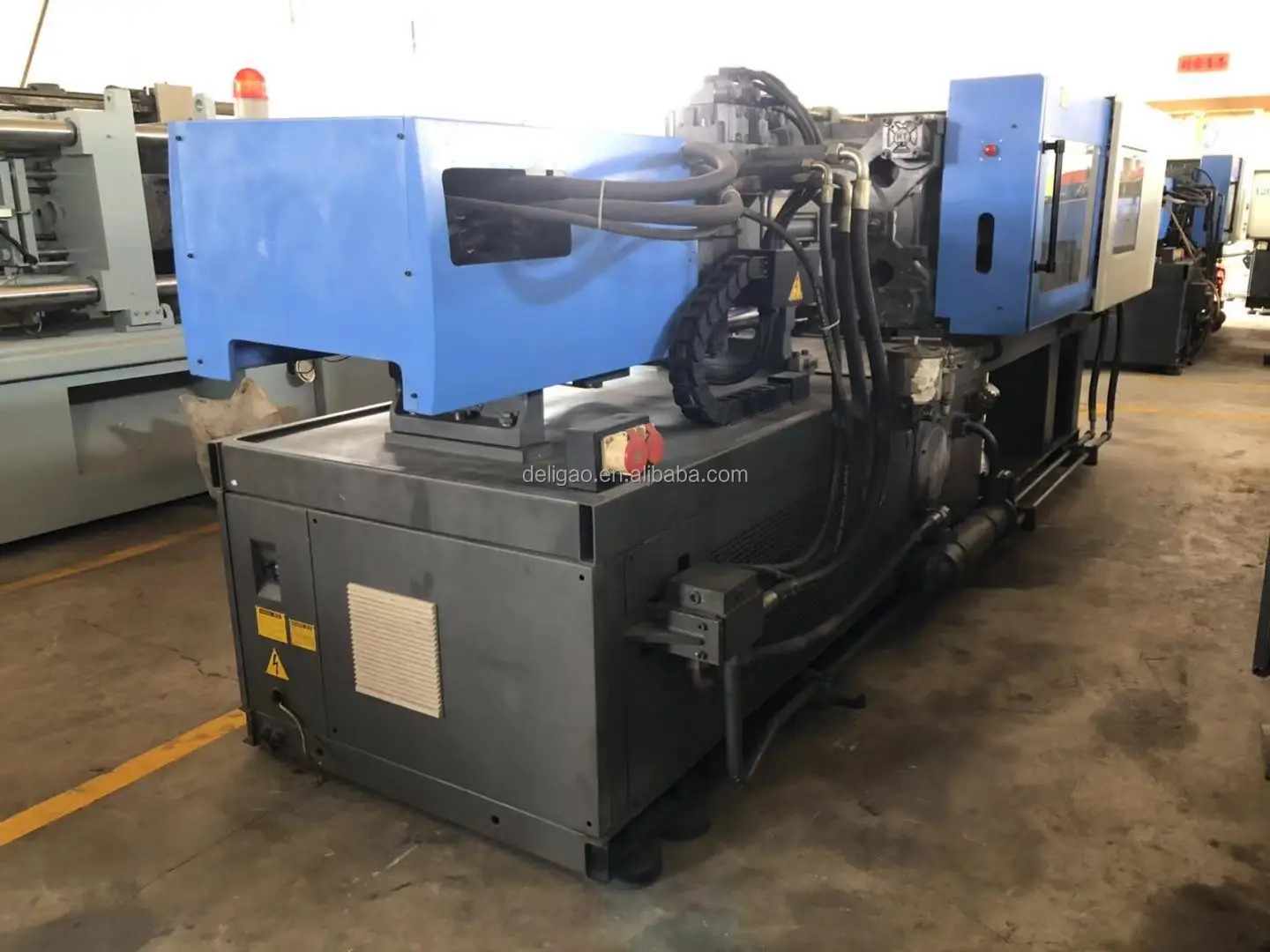

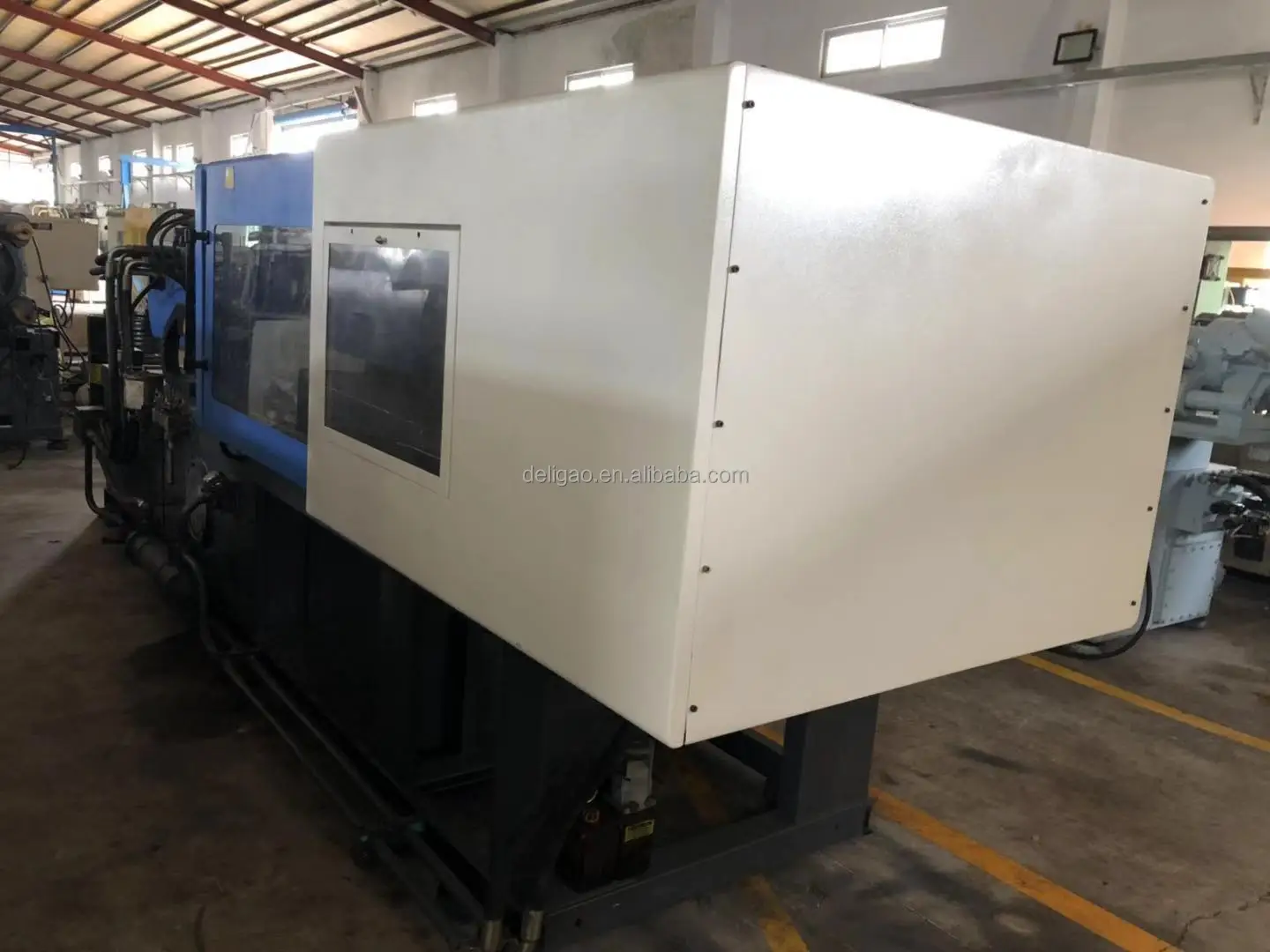

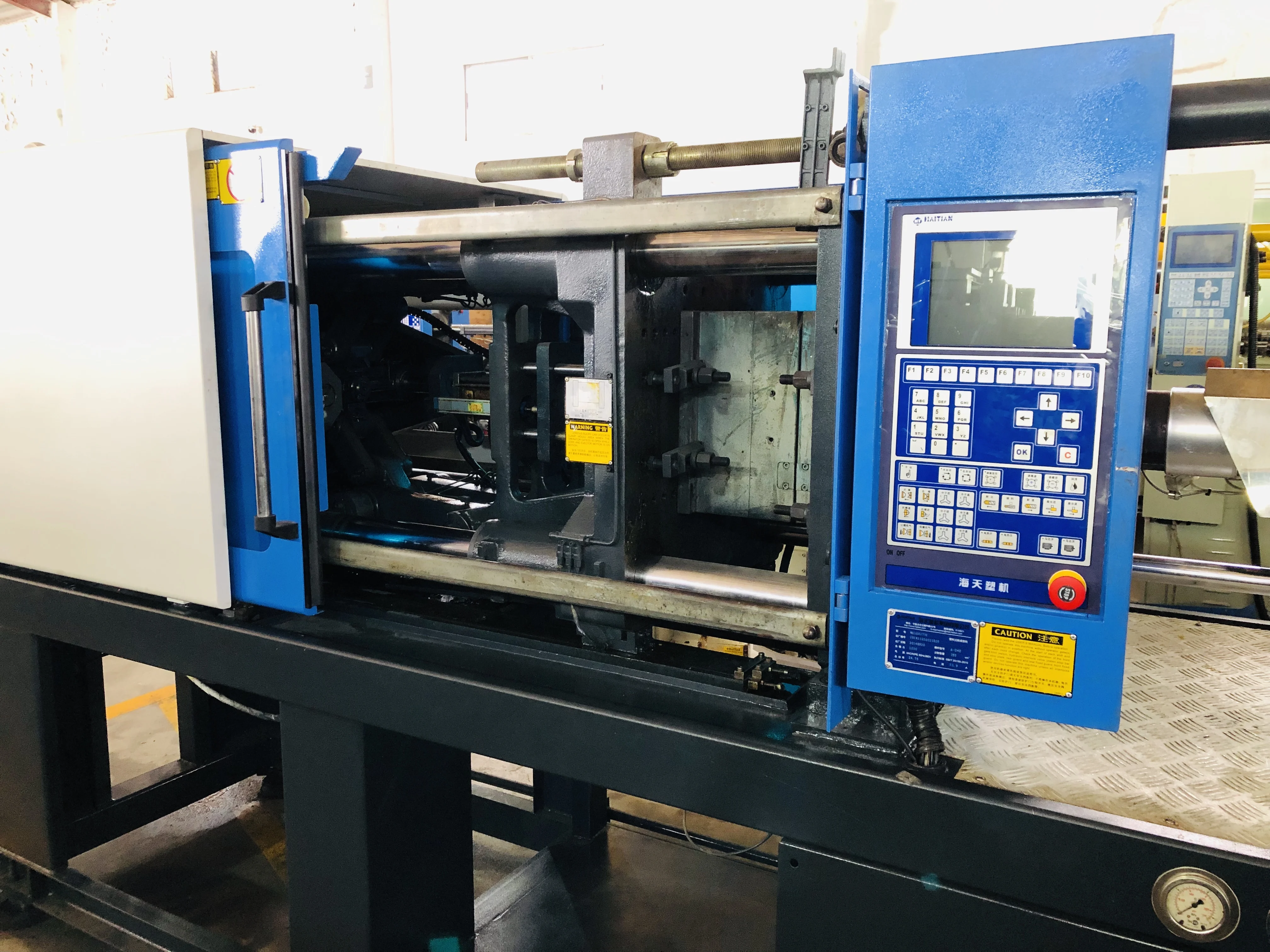

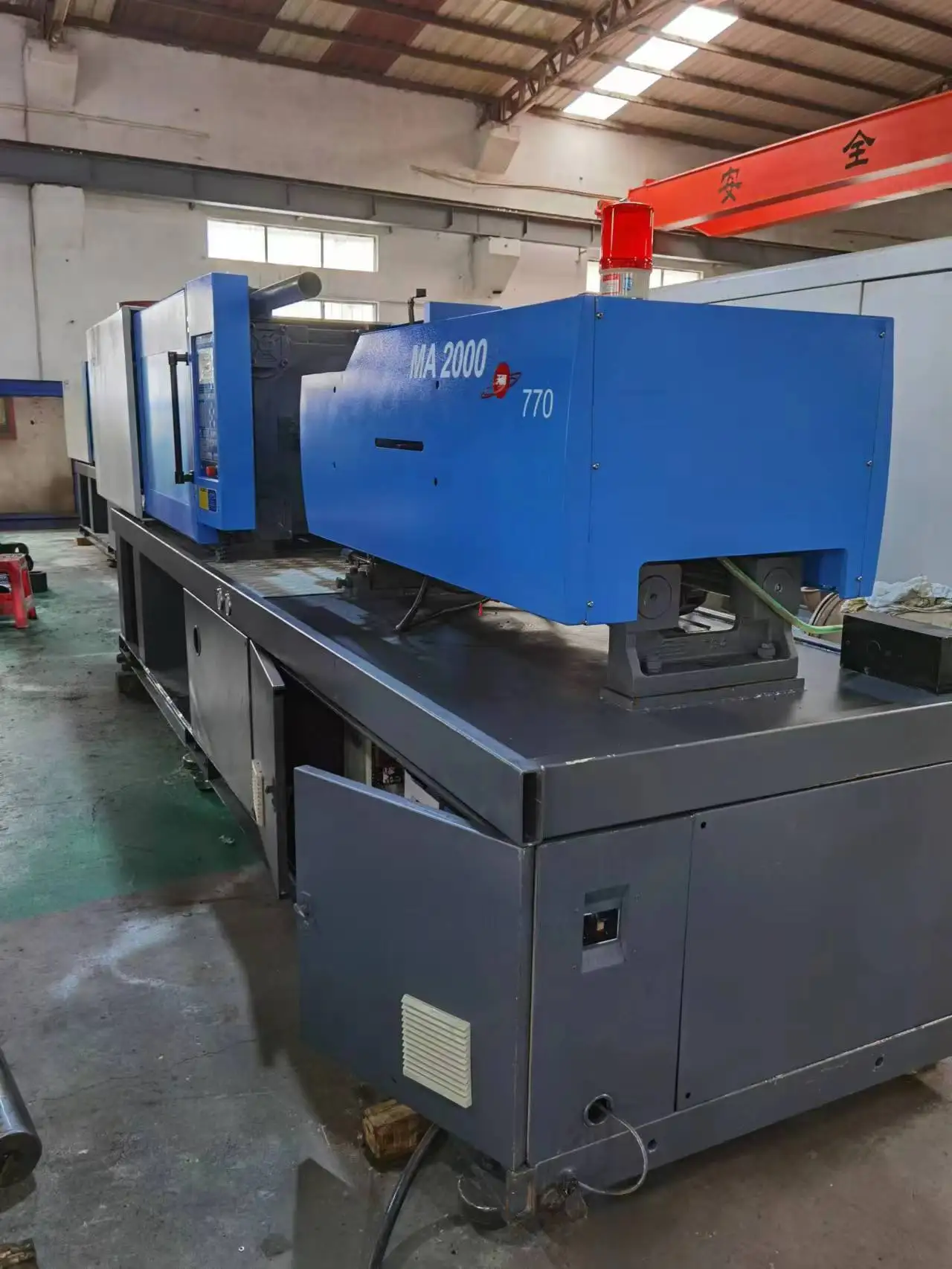

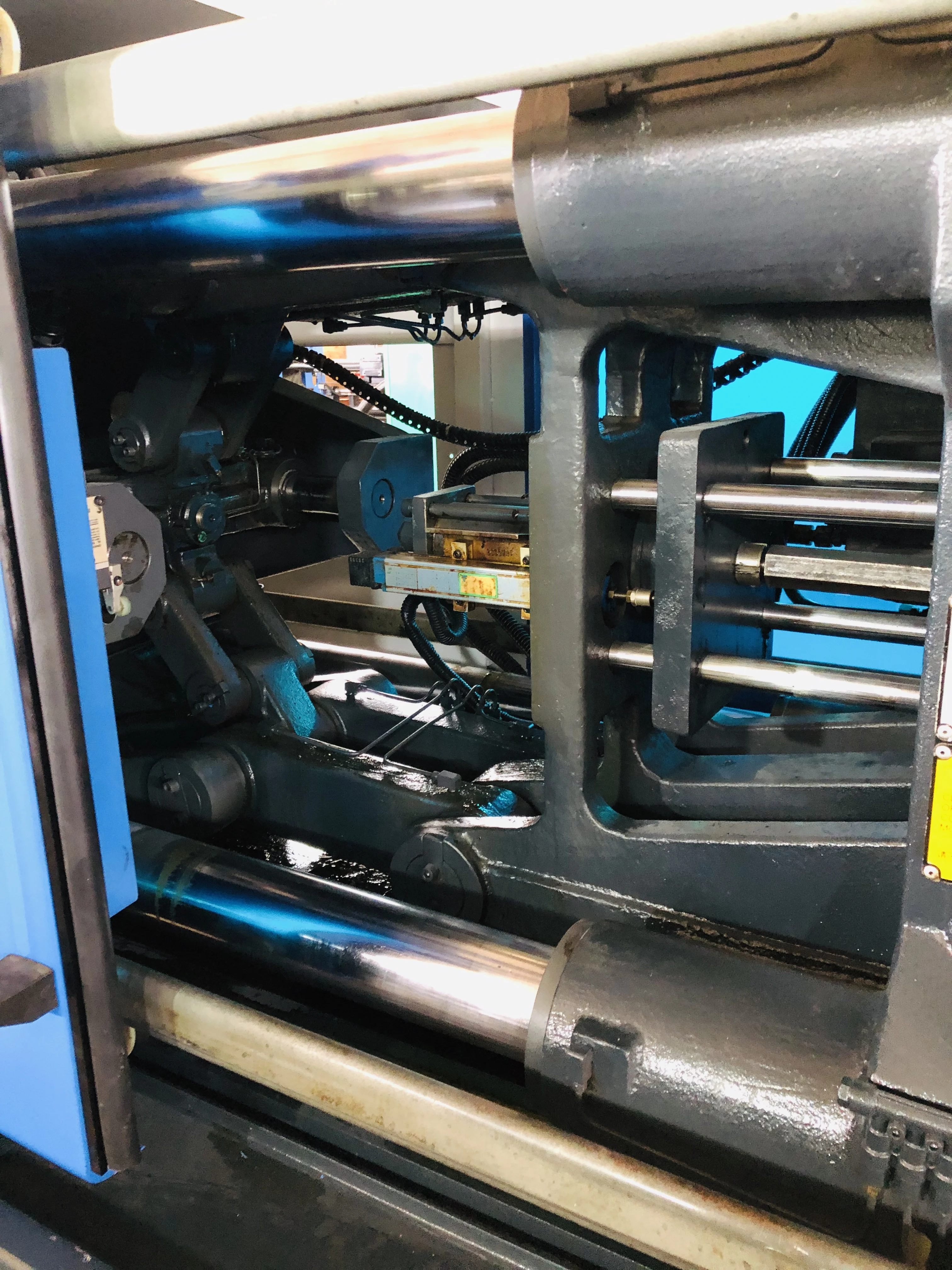

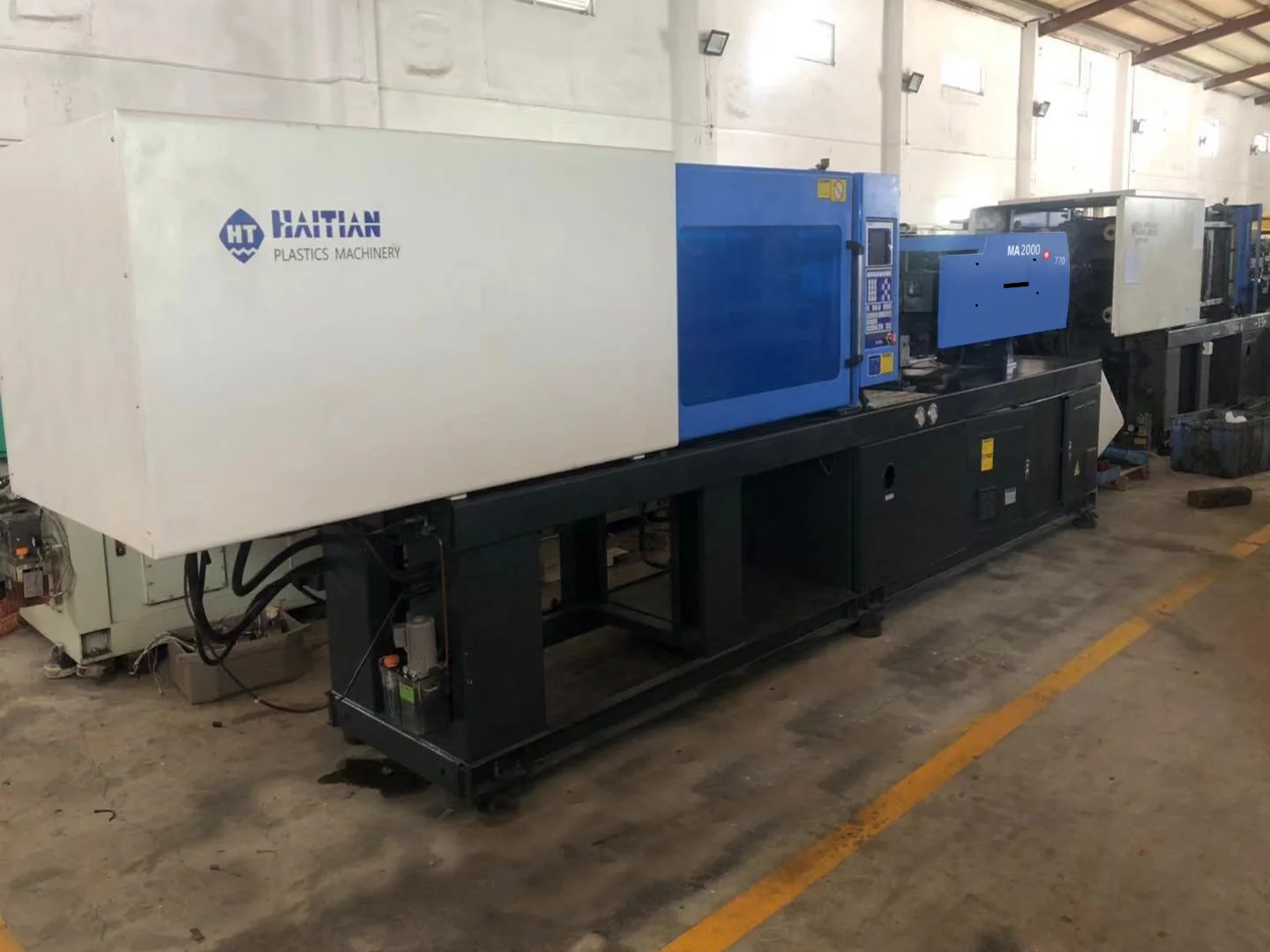

Selling 200 tons second hand injection molding machine HAITIAN servo energy saving injection molding machine MA2000

Product Overview

Description

Shenzhen Deligao Mould Plastic Co.,Ltd
DELIGAO INDUSTRIAL(HK)CO.,LTD
Engaged in used injection molding machine for 19 years. Have a lot of experience.
Technically, our company can provide customers with: Recondition and Repaint. Overseas assembly. Transform variable pump, servo. Wait one stop service.
Our company has huge warehouse and source of goods.
The existing injection molding machine in the warehouse:
Provide various kinds from 30T-4000T,
Place of origin:Japan,Korean,Taiwan,HK,China mainland.
Overall functions and stable capacity and high quality
Low cost, high efficiency and big ROI!
The stock keep more than 300 set of machines, provide different series and size of brands.Such as Engel,JSW,NESSEI,NIIGATA,TOSHIBA,TOYO,FCS,ChenHsong,HAITIAN...



DESCRIPTION		CLF-400T
Injection Unit
Screw Diameter	mm	70 75 80
Theoretical Injection Volume	cm³	1269 1457 1658
Injection Pressure	kg/cm²	1920 1672 1470
Injection Rate	cm³/sec	311 357 406
Shot Weight	grams	1066 1223 1392
Screw Ratation	rpm	183
Clamping Unit
Distance Between Tie Bars(H×V)	mm	680×600
Mold Platen	mm	1010×930
Mold Height	mm	250-700
Die Opening Stroke	mm	620
Diamater of Centering Ring	mm	150
Ejector Stroke	mm	200
Clamping Force	tons	400
General Data
Number of Heating Zones	zones	7
Heating Capacity	kw	19.2
Pump Driving Motor	hp	60
Oil Tank Capacity		850
Machine Size(L×W×H)	m	8.1×1.66 ×1.8
Net Weight	ton	19

High hardness: the template stress distribution is uniform, the deformation is small, and the precision of the product is effectively improved; the pressure center template structure is adopted to effectively improve the precision of the product.

Longer life: The new graphite steel casing greatly enhances the lubrication of the crankshaft and tie rods, smooth running of the mold clamping, longer service life and less maintenance.More precise: integral guide rod support, double-cylinder balanced injection device, so that the screw is evenly balanced during the advancement of the injection, linear advancement.
More efficient: highly optimized clamping unit, smoother high-speed opening and closing mold, effectively shortening cycle time,Innovative drive system, patented servo motor gear pump design.
