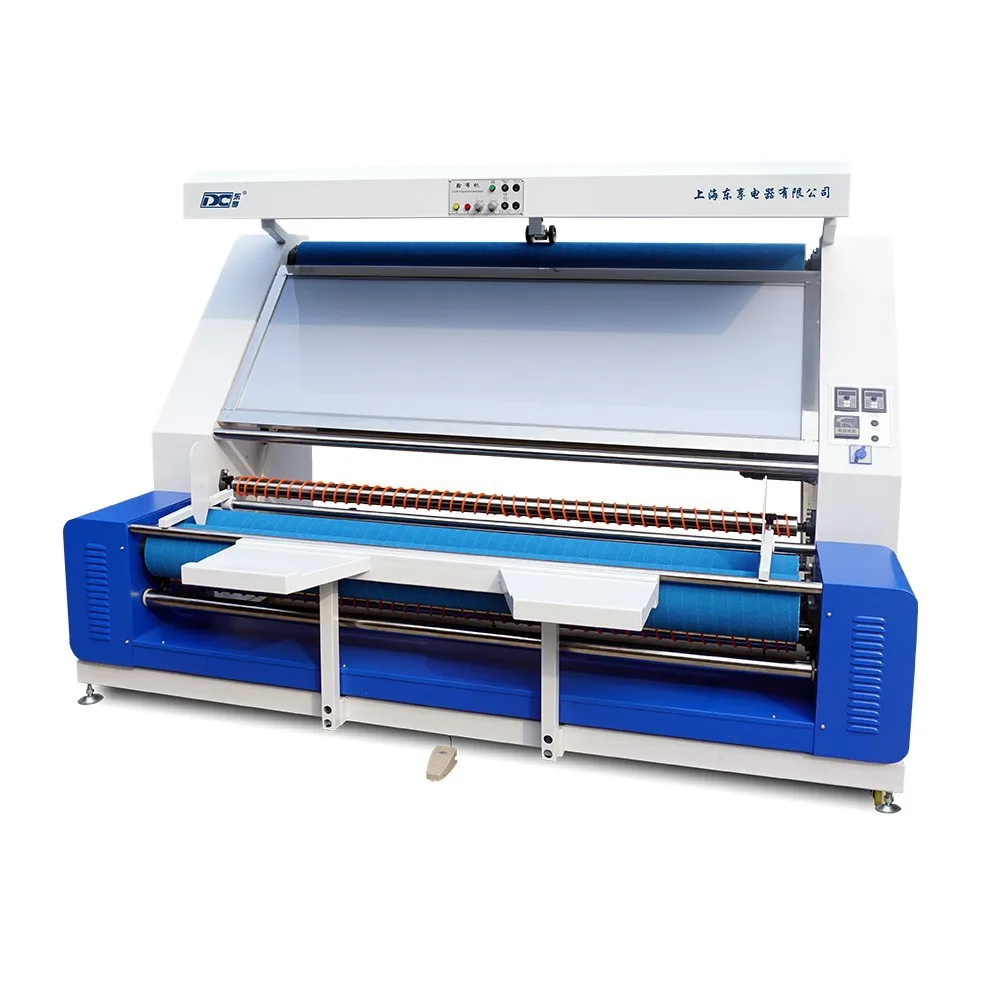

OYQ High Quality Cloth Inspection and Rolling Machine,Fabric Winding Machine

Product Overview

Description



Product Description

1) Suitable for a variety of different fabrics.

2) Adapted to both knitted and woven fabric.

3) Built-precision infrared electronic self-edge system to ensure neat edges. (width reliable edge controller/correction on both sides)

4) The machine has a meter counter, which can accurately record the meter of cloth and setup automatic length stop for any length such as 50m,100m,200m.

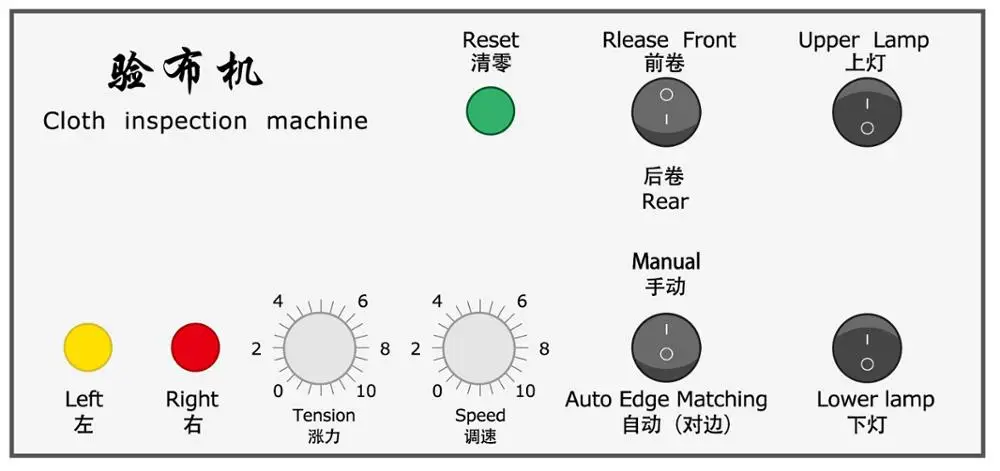

5) The machine has tension control system to do winding tight. Customer can adjust the tension or no tension.

6) The machine has wrinkle removing roller to remove wrinkle from fabric/nonwoven, including final winded roll.



Technical parameters



Model	OYQ
Fabric width	800mm~3600mm
Max Diameter of the tube	500 mm
Max. Speed	0~50m/min
Alignment accuracy	±3mm
Measurement tolerance	0.4%
Voltage	110v/220/380v
