used Japanese tsudakoma water jet loom for sale

Product Overview

Description

used Japanese tsudakoma water jet loom for sale





1. HCH Water Jet Loom Parameters and Features :

Working range	Polyster yarn
Reed width (cm)	Nominal:150, 170, 190, 210, 230, 260, 280, 300, 340, 370 Useful reeding width: reduct 0-60cm
Filling selection	1 color 2 color at will
Weft density range	6-60pick/cm
Motor Power	2.2/ 2.8/ 3.7/ 4.5kw
Rotational speed	1200 rpm max
Shedding	Plain shedding, 2-8pcs heald frame
	cam shedding, 6/10/12 pcs heald frame
	Dobby(mechanical),upper negative dobby or electronic dobby, 2-16 heald frame (according your demands)
Operation	Driven by RUSH START Motor. Stop by electromagnetic brake at programmed   position.
	Arrange, Run Forward inching, Reverse Inching ,Programmed position stop after one cycle reverse rotation.
Filling Insertion :	Single Pump (Plunger Type Spring pressure system)  Double/ Three/ Four Nozzle(Needle ceramic system ) Stablizer System Feeler – ir Feeler or OPF Feeler. Using Opitical Cable



(1) Ultra-high speed with sturdy structure



Qingdao HCH Water Jet Looms are based on the TSUDAKOMA series model, the high toughness of box frame is excellent in un-vibration during high speed operation. Due to the relieving of vibration, it can achieve further steady weft insertion and beating-up, to ensure the high quality of fabric.



(2) Energy saving



Qingdao HCH Water Jet Looms always positively works on environmental issues. The “HCH 908T” and “HCH 408T”require 5% less electric power compared with the existing model, with the redesigned weft insertion, shedding, and beating. In addition, its robust frame structure and the optimized beating mechanism reduce vibration by 25% compared with the existing model.



The RUSH START MOTOR can uprate the power at the moment of startup, and weft blower RDP can convert power, don’t need to equip weft blower SDP. All these can greatly save energy and reduce operating costs.



(3) The stability of the weft insertion performance and soft weft insertion



 The new type nozzle of Qingdao HCH Water Jet Looms can improve the bundling of injection water, to achieve the weft insertion of small shedding. In addition, even in the ultra-high speed operation, it can only use a small amount of injection water, so as to realize the soft weft insertion. It can not only improve the quality of fabric, also can reduce the consumption of water.



(4) Stability of cloth-fell



With strength and high rigidity of frame structure, take-up and let-off system, makes the cloth-fell position be more stable, to weaving fabrics that range from light to medium thick, from low density fabric to high-density. Even loading dobby, the vibration can also be very mild, so complex fabric and uneven fabric all can be weaved steadily.

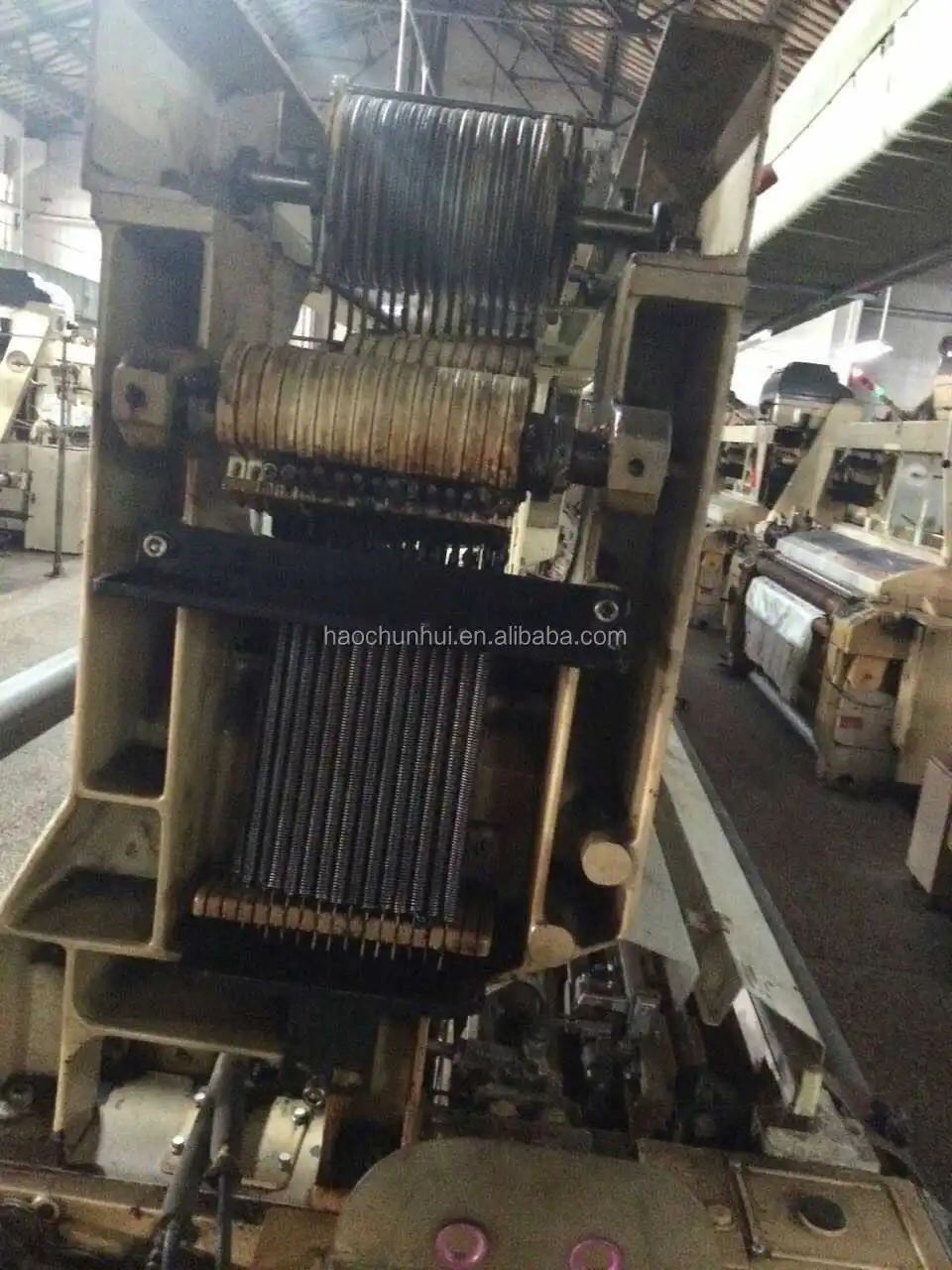

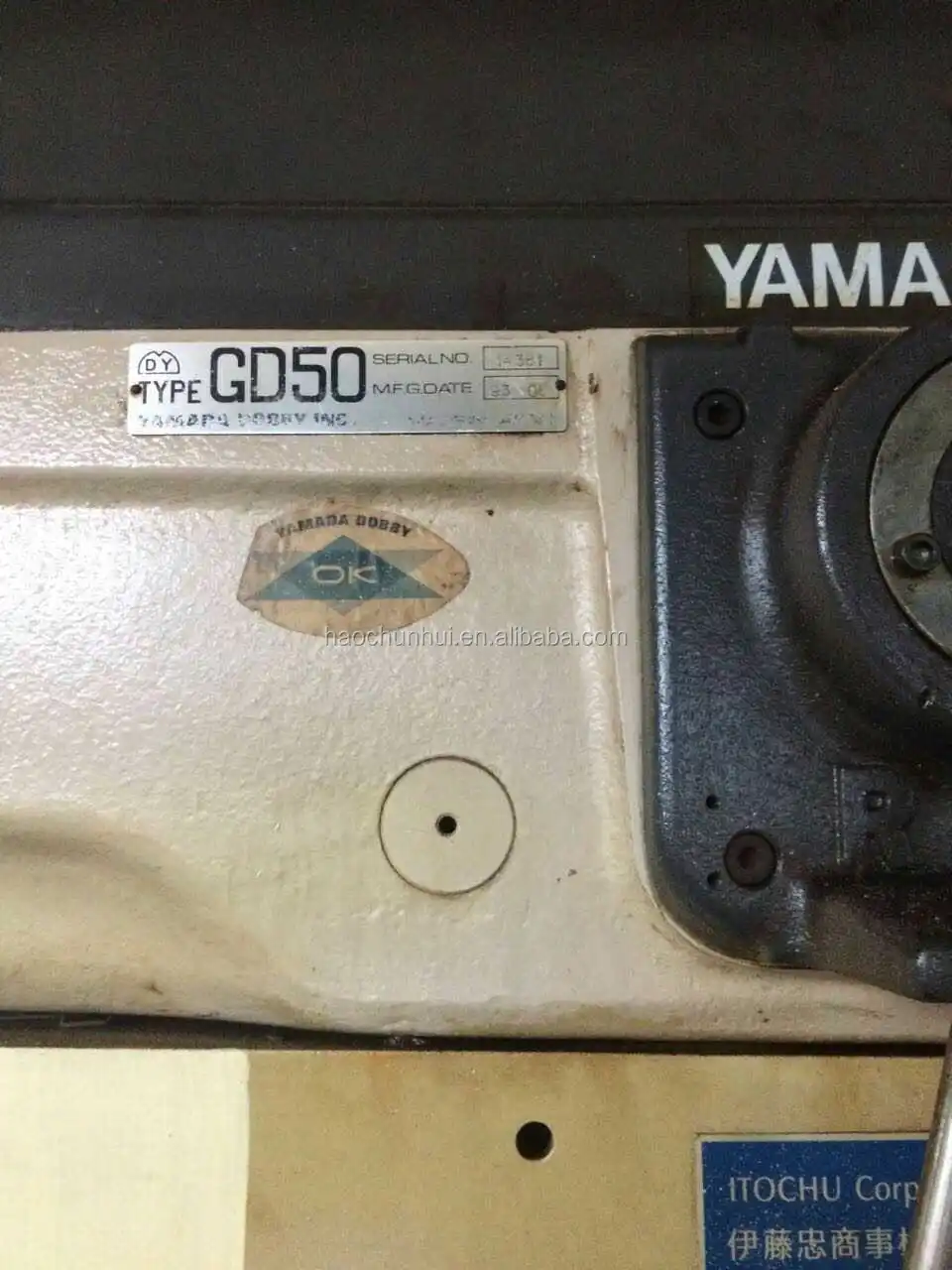

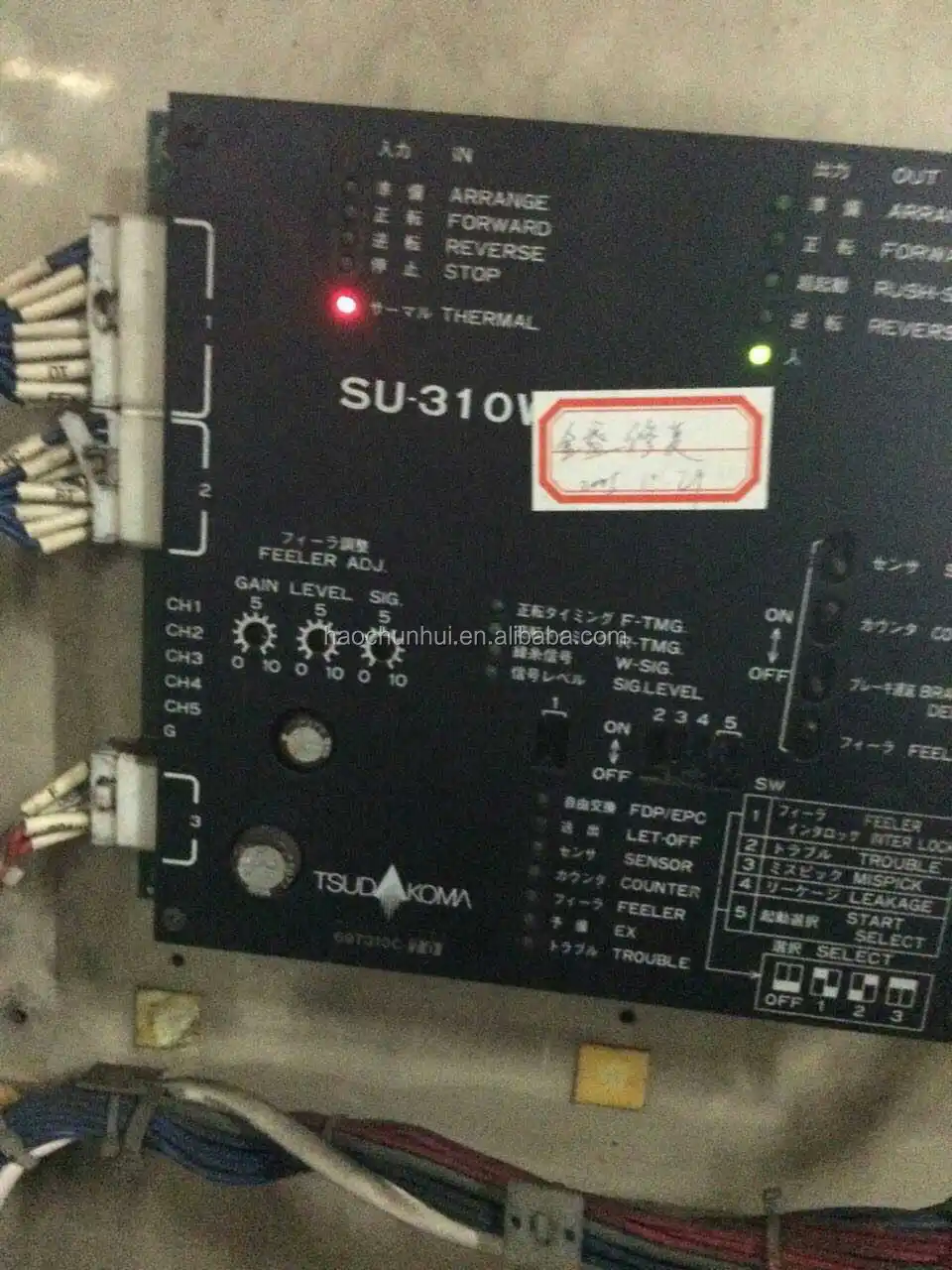

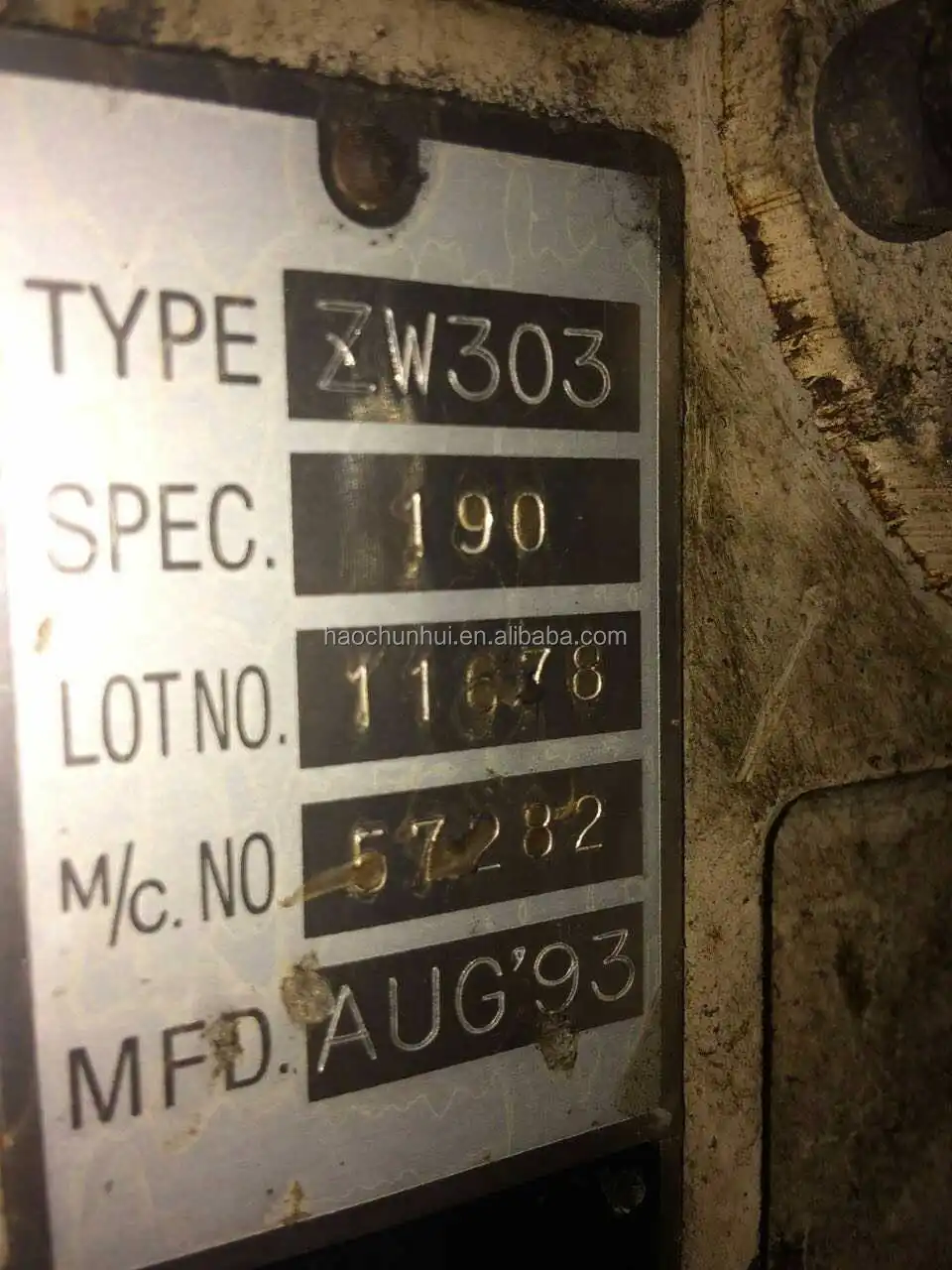

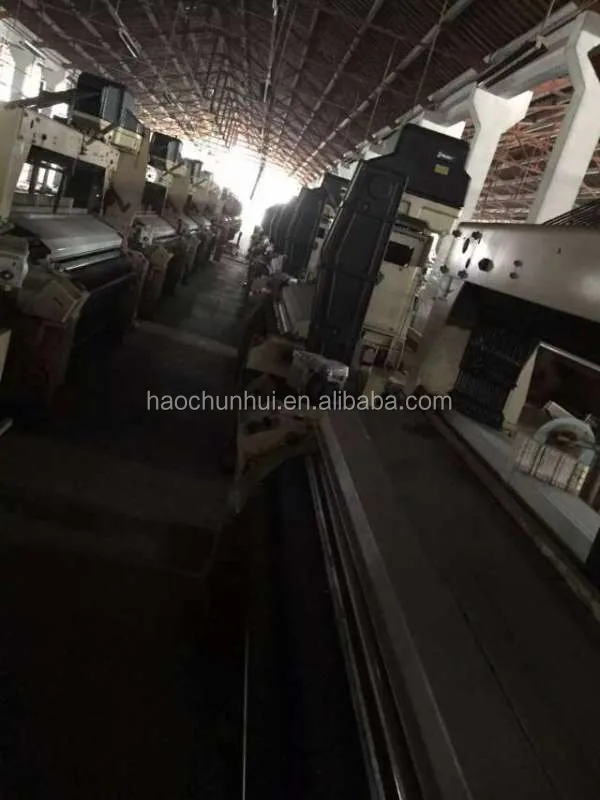

 2. HCH Water Jet Loom Pictures during production for your reference:

3. HCH Water Jet Loom Packing and transportion:

1. In container with fixed bracket.

 2. We can choose the fastest, safest and cheapest ship for you.









 4. Our services:

 1. We realizes a one-stop service system including processing, production, installation, storage, sales and after-sale service.

 2. Actively solving problems during manufacturing and delivery.

 3. We offer engineers available to service machinery overseas under merchandiser's supervision and translation.

4. Detailed users' manual and operation guide for your reference.



For more details and more discounts, please feel free to send me an inquiry and tell me.

                                            We can product the machines according to your requirement.

Contact person: Mia Zhuang
Skype: lucky.mia
Wechat: zhuangxiaoqiao
Mob: 86-15166683992
QQ: 3141379719



5. Company information:

a).   20 years of sales and production experience.

         Qingdao Haochunhui Metal Products Co., Ltd was established in 1999, as a comprehensive manufacturing and trading company. We have been engaged in textile machinery field for

20 years, and are specialized in producing all kinds of textile machines, such as Water jet looms, air jet looms, water jacquard looms, carding machines, plastic knitting machines and so on.

b). We can guarantee the quality, do truly high-quality machinery and equipment.

       We takes the product quality and service quality as the enterprise life, our company has the advanced CNC processing equipment and excellent techanical workers. We guarantee the first-class marterials, strict quality control measures, low parts tolerance, high precision.

        Our water jet looms have been sold to India,pakistan,turkey,people's republic of korea and other countries. High quality and reasonable price has made us win good reputation! HCH was already a famous in the sales market.



c).  We would reduce your cost furthest and make the machine as you requirement.

         As a professional manufacturer, we are good in controlling our cost about materials,manufacturing expenses, selling expenses and little profit to supply the most affordable price.

        We are upholding the principle of Quality First and Service uppormost. Honest Credibility ,Harmony,Hard work ,and Innovation are the everlasting and unremitting pursuance of the Haochunhui People.

6. NOTE:

We also accept purchasing reconditioned water jet looms, with high quality bearings, low price.
